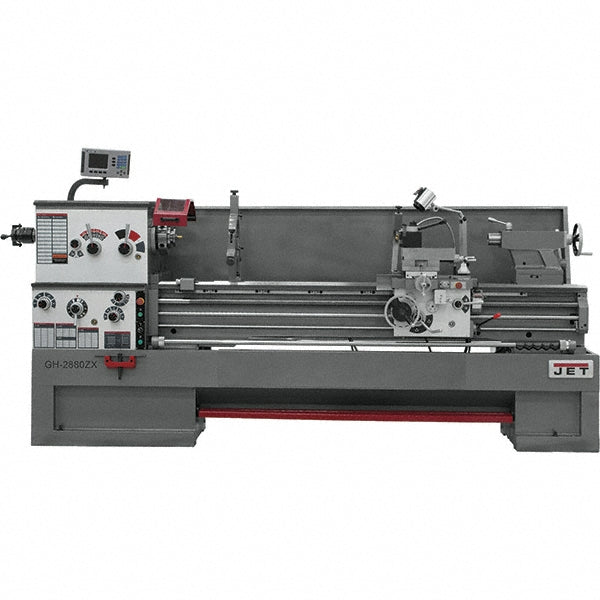

JET 22x80 Engine Lathe Applications
- Heavy industrial machining, large-diameter shaft turning, and deep-hole boring
- Processing oversized pipes and bar stock utilizing the massive 3-1/8" spindle bore
- Turning extreme-diameter flanges and plates via the 29-1/2" removable gap section
- Continuous-duty production in heavy manufacturing, oil/gas fabrication, and maritime maintenance facilities
Ideal for industrial machine shops and heavy fabrication floors requiring an extended 80-inch center capacity paired with the unstoppable torque of a 10 HP 3-Phase motor.
Technical Specifications
| Stock Number | JT9-321568 |
|---|---|
| Machine Type | Geared Head Engine Lathe |
| Motor Power | 10 HP |
| Electrical Configuration | 230V / 460V, Three-Phase (3Ph) |
| Swing Capacities | 22" Over Bed • 13" Over Cross Slide • 29-1/2" Over Gap |
| Distance Between Centers | 80" |
| Spindle Bore / Nose | 3-1/8" Bore / D1-8 Mount (7MT Spindle Taper / 5MT Sleeve) |
| Speed Range | 12 Speeds: 25 – 1,800 RPM (Geared Head) |
| Bed Dimensions | 13-3/8" Width / 12-1/4" Gap Length |
| Threading Range | 61 Inch Threads (1-5/8 to 72 TPI) / 24 Metric Threads |
| Travels | Cross Slide: 9" • Top Slide: 5-1/8" • Tailstock: 5" (5MT Taper) |
| Included Accessories | Integrated Work Light |
| Overall Dimensions (L x D x H) | 136-1/8" x 40" x 48-7/8" |
Performance & Engineering Controls
- Massive 10 HP Geared Headstock ensures unyielding rotational force, preventing the spindle from stalling under the heaviest roughing cuts at low RPMs.
- Oversized 3-1/8" Spindle Bore allows thick bar stock and piping to pass completely through the headstock, vastly increasing machining capabilities.
- Expansive 13-3/8" Wide Bed Architecture supplies the immense structural dampening required to absorb harmonic vibrations during aggressive metal removal.
- Massive Threading & Feed Gearbox provides 61 Inch and 24 Metric threading pitches to handle comprehensive industrial specifications.
- D1-8 Spindle Mount allows for fast, secure installation of massive heavy-duty chucks and faceplates.
Why Invest in This JET Engine Lathe
- 80 inches of center distance easily accommodates the longest drive shafts and industrial components.
- Integrated high-visibility work light ensures accurate, safe tracking during complex operations.
- 230/460V 3-Phase architecture integrates flawlessly into heavy commercial facility power grids.
- Engineered with uncompromising physical weight and rigidity to ensure flawless surface finishes on critical oversized parts.
The JET 321568 Engine Lathe stands as a foundational asset for any heavy industrial shop, delivering the sheer size, unyielding power, and technical precision required for massive fabrication workloads.
