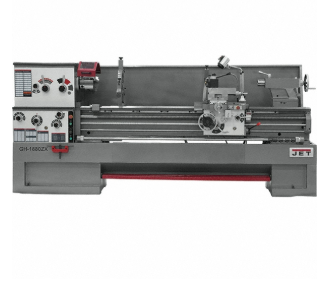

JET 18x80 Lathe Applications
- Heavy industrial machining, large-diameter shaft turning, and precision bored finishing
- High-accuracy threading operations (61 Inch and 24 Metric pitches supported)
- Processing long industrial shafts and oversized bar stock
- Continuous-duty operation in heavy manufacturing, oil/gas fabrication, and maintenance repair environments
Ideal for industrial machine shops requiring the reliable performance of a geared-head lathe paired with the advanced digital precision of an included DRO.
Technical Specifications
| Stock Number | JT9-321487 |
|---|---|
| Machine Type | Toolroom Lathe |
| Electrical Configuration | 230V / 460V, Three-Phase (3Ph) |
| Swing Capacities | 18" Over Bed • 11" Over Cross Slide • 27-1/2" Over Gap |
| Distance Between Centers | 80" |
| Spindle Bore / Nose | 3-1/8" Bore / D1-8 Mount (7MT Spindle Taper) |
| Speed Range | 12 Speeds: 25 – 1,800 RPM (Geared Head) |
| Threading Range | 61 Inch Threads / 24 Metric Threads |
| Travels | Cross Slide: 9" • Top Slide: 5-1/8" • Tailstock: 5" |
| Included Accessories | DRO, Integrated Work Light |
| Overall Dimensions (L x D x H) | 136-1/8" x 40" x 48-7/8" |
Performance & Engineering Controls
- Integrated DRO provides high-resolution digital position feedback, streamlining setup times and ensuring repeatable accuracy on every project.
- Heavy-Duty Geared Headstock delivers positive, slip-free power transfer, essential for maintaining constant RPM under heavy roughing cuts.
- Oversized 3-1/8" Spindle Bore allows large-diameter bar stock and industrial piping to pass directly through the headstock for efficient machining.
- 13-3/8" Wide Bed provides the necessary structural mass to absorb harmonic vibrations, ensuring chatter-free surface finishes.
- D1-8 Spindle Mount allows for fast, secure installation of heavy-duty chucks and faceplates tailored to the job at hand.
Why Choose This JET Lathe Package
- Turnkey assembly arrives equipped with a premium DRO, maximizing immediate shop throughput and precision.
- 80 inches of center distance easily accommodates long drive shafts and industrial components.
- 3-Phase industrial architecture integrates flawlessly into professional manufacturing power grids.
- Built with rigid, industrial-grade components designed to maintain tight tolerances through years of continuous-duty use.
The JET JT9-321487 Engine Lathe delivers the combination of massive center capacity, high-torque geared power, and modern digital monitoring required for professional-grade fabrication.
