JET EVS-1440B Lathe Applications
- High-accuracy toolroom turning, complex boring, and fine-finish facing.
- Versatile multi-pass threading operations utilizing expansive Inch and Metric ranges.
- Rapid, dial-adjusted surface speed matching for varying materials and tool types.
- Continuous-duty fabrication requiring rigid tolerances and minimal setup downtime.
Optimized for commercial manufacturing environments that demand instant RPM adjustments, superior bearing precision, and long-term structural rigidity.
Technical Specifications
| Stock / Model Number | JT9-311444 / EVS-1440B |
|---|---|
| Motor Power | 3 HP |
| Electrical Configuration | 230V / 460V, Three-Phase (3Ph) |
| Swing Capacities | 14" Over Bed • 9-1/16" Over Cross Slide |
| Distance Between Centers | 40" |
| Spindle Bore / Nose | 1-1/2" Bore / D1-4 Mount (MT-5 with Sleeve) |
| Speed Range | Infinite: 40 – 2,000 RPM (Low: 40-365 | High: 220-2000) |
| Threading Range | 34 Inch Threads (2-56 TPI) / 34 Metric Threads (0.5-12 mm) |
| Travels | Cross Slide: 7" • Compound: 3-1/2" • Tailstock: 6-1/8" (MT-3 Taper) |
| Machine Weight | Net: 1,320 lbs / Gross: 1,584 lbs |
| Overall Dimensions (L x W x H) | 68.5" x 28.3" x 50" |
Performance & Engineering Controls

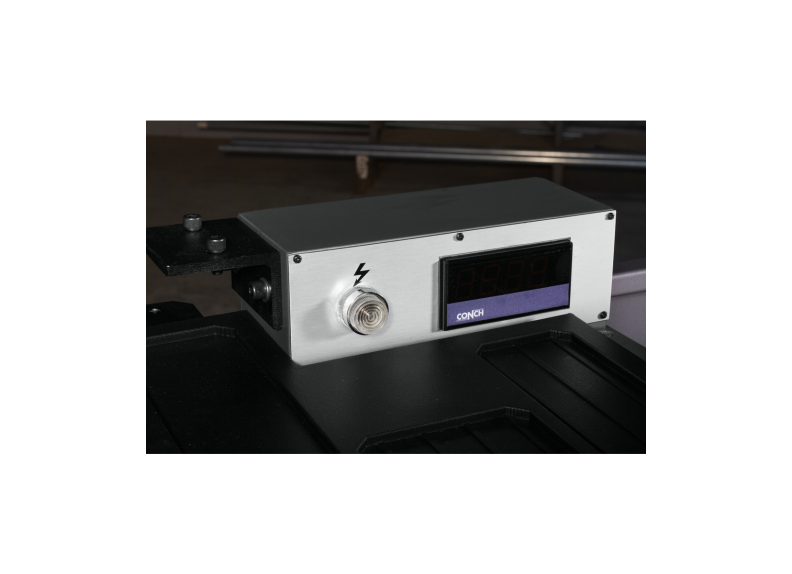

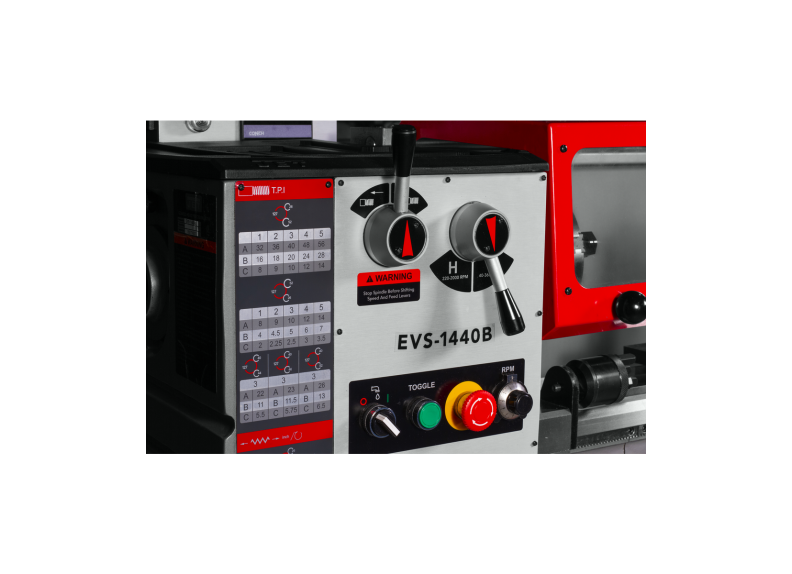

- Electronic Variable Speed with LED Readout: Allows operators to instantly dial in the exact RPM needed without stopping to shift mechanical gears, maximizing cutting efficiency and tool life.
- Class 7 Tapered Roller Bearings: Supports the D1-4 spindle with extreme precision, ensuring a highly accurate maximum runout of just .0004 inches.

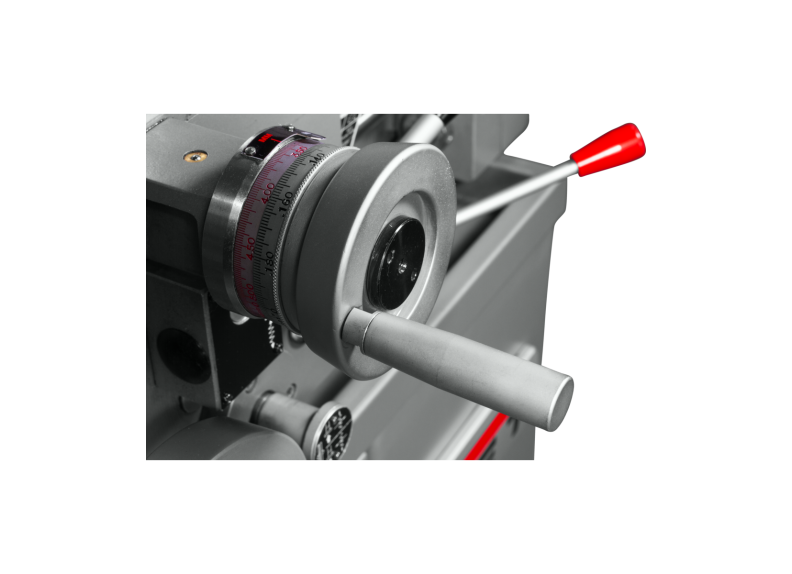

- Backlash Elimination System: Integrated into both the compound and cross slide to ensure tight, predictable tool positioning during critical finishing passes.
- Meehanite Castings & V-Way Bed: The induction hardened, ground V-way bed (7.48" wide) and premium Meehanite cast stand retain tight tolerances and resist deflection over years of heavy machining.

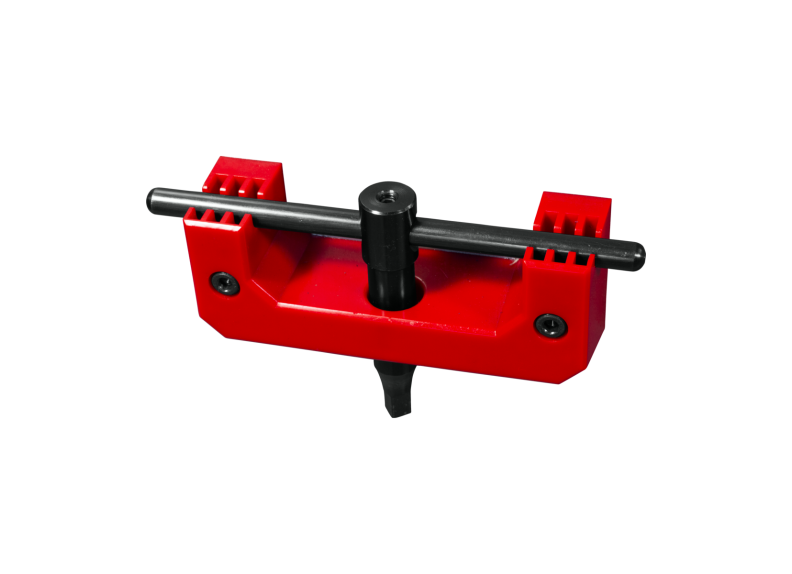

- Patented Electronic Chuck Key Docking Station: Enhances shop floor safety by completely disabling machine startup until the chuck key is safely docked.
Why Invest in This Premium Turning Center
- The two-speed EVS gearbox provides the high torque needed for low-speed roughing and the high RPM needed for fine finishing in a single setup.
- Independent lead screw and feed rod configurations ensure smooth, consistent power feeds without excessive wear on threading components.

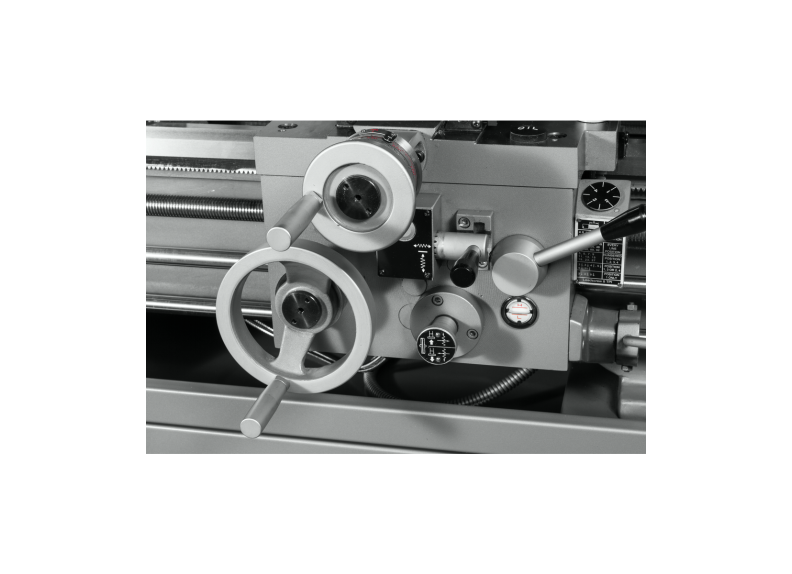

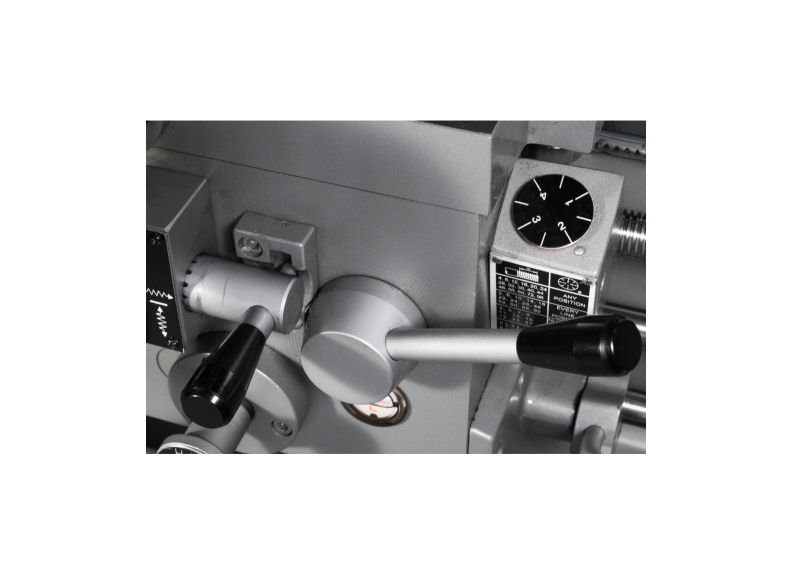

- Features an apron-mounted actuation control and jog button for intuitive, ergonomic operation during complex setups.

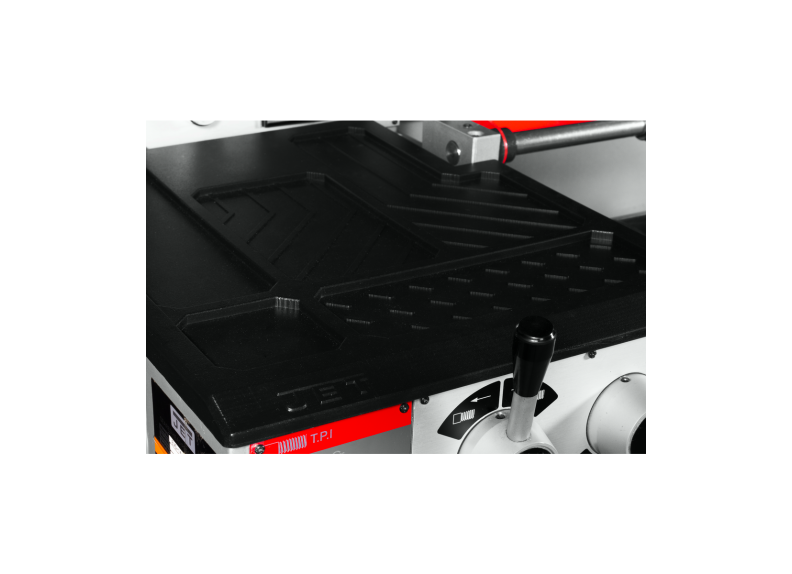

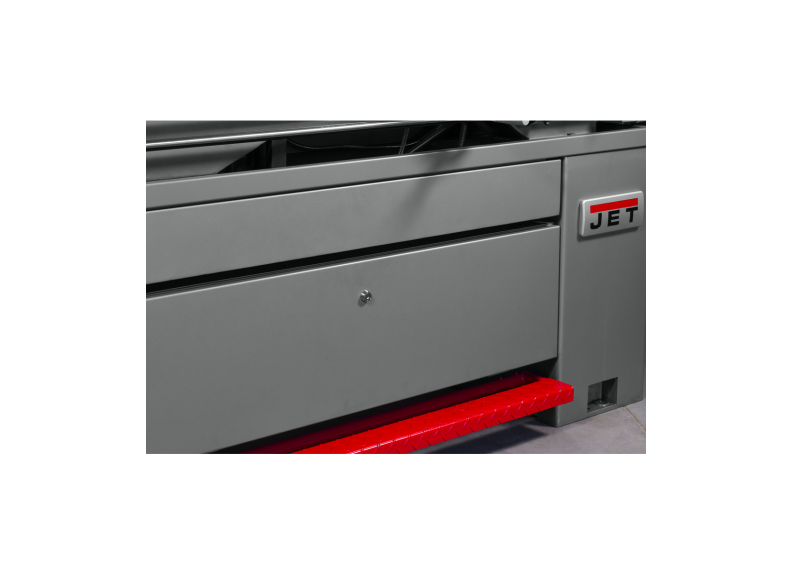

- Arrives with heavy-duty practical upgrades, including a full-length splash guard, front removable chip tray, and an integrated locking tool storage cabinet.

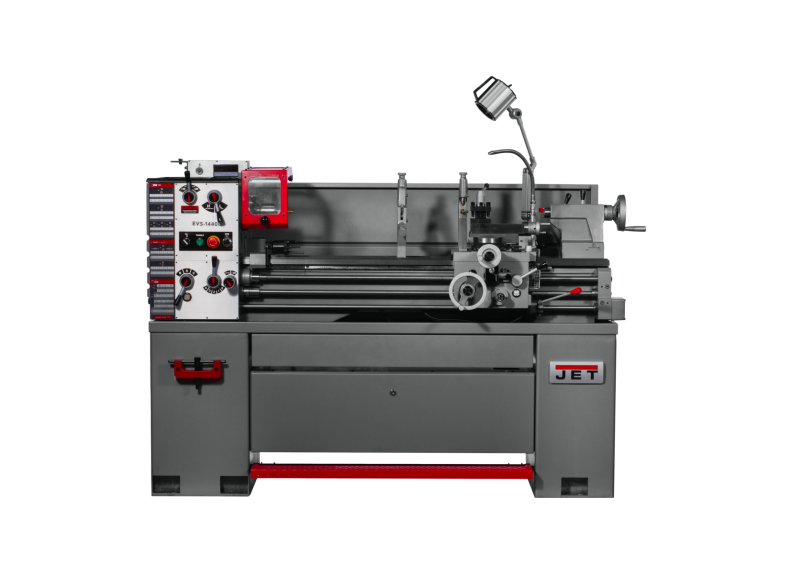

The JET EVS-1440B Bench Lathe combines advanced electronic speed control with world-class mechanical precision to elevate your toolroom's capabilities.
