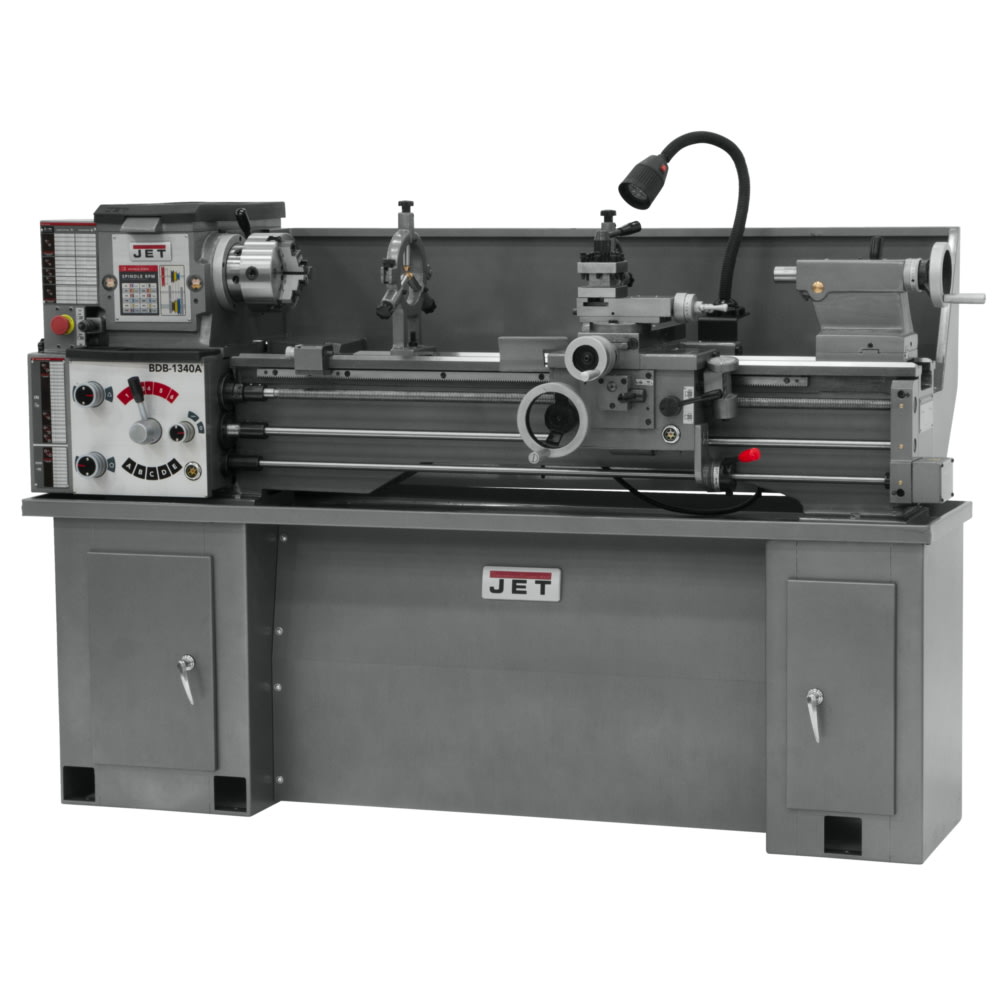

JET 13x43 Lathe Applications
- Precision turning, facing, and boring of hardened and mild steel components
- Rapid, highly repeatable collet work for small-batch production runs
- High-accuracy taper machining for specialized mechanical assemblies
- Complex threading operations (Supports 38 Inch and 23 Metric threads)
- Turning oversized diameter workpieces using the removable gap bed section
Ideal for toolrooms, professional fabricators, and maintenance departments that demand a fully-equipped, gear-driven lathe right out of the crate.
JET 13x43 Lathe Specifications
| Stock Number | 323104 (MSC# 35293315) |
|---|---|
| Motor Power | 2.00 HP, 230V, Single-Phase (1Ph) |
| Swing / Gap Capacity | 13" Over Bed / 18-3/4" Over Gap |
| Distance Between Centers | 43" |
| Spindle Bore / Taper | 1-3/8" Bore / D1-4 Mount / 5MT Sleeve |
| Speed Range | 8 Speeds: 70 – 2,000 RPM (Geared Head) |
| Travels | Cross Slide: 6-5/16" • Compound: 2-11/16" • Tailstock: 3-3/4" |
| Threading Range | 38 Inch Threads (up to 80 TPI) / 23 Metric Threads |
| Dimensions (L x D x H) | 79" x 28-1/2" x 30" |
| Premium Accessories Included | Collet Closer, DRO, Taper Attachment, 6" 3-Jaw Chuck, 8" 4-Jaw Chuck, 12" Face Plate, Steady/Follow Rests |
Performance & Engineering Controls

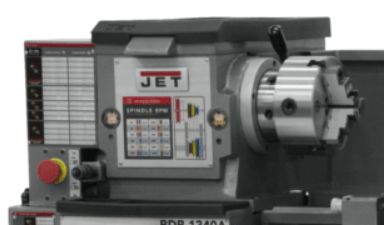

- Enclosed Gear Box Design features hardened and ground gears for fast, easy speed changes and remarkably quiet operation.
- D1-4 Precision Ground Spindle is supported by high-quality tapered roller bearings to ensure absolute rigidity and accuracy.
- Included Collet Closer & DRO significantly reduce setup times, eliminate manual backlash calculations, and increase production efficiency.
- Induction Hardened & Ground V-Way Bed includes a removable gap section to accommodate larger diameter workpieces.
- Independent Leadscrew & Feed Rod paired with an apron-mounted spindle actuation control provide safe, intuitive operation.
- Backlash Elimination & Adjustable Gibs in the carriage, cross slide, and compound slideways maintain tight tolerances over years of heavy use.
- Continuous Headstock Oiling ensures internal mechanical components remain perfectly lubricated during intense operational cycles.
Why Choose This JET Toolroom Lathe Package
- Arrives fully loaded with essential upgrades (Collet Closer, DRO, Taper Attachment, multiple chucks) saving you time and aftermarket sourcing.
- Geared headstock delivers the positive power transfer essential for maintaining constant RPM under heavy, low-speed cutting loads.

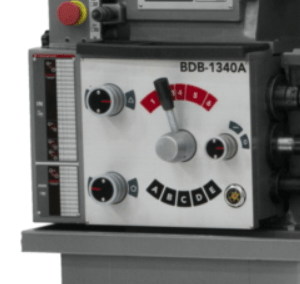

- Comprehensive thread-cutting support handles wide inch/metric capabilities without requiring manual gear swaps.
- Backed by the industry-leading JET Red Assurance 2-Year Warranty for complete professional peace of mind.
The JET 323104 Lathe combines heavy-duty gear-head torque with an uncompromising suite of included precision accessories, establishing a turnkey turning center for any serious industrial fabrication shop.
