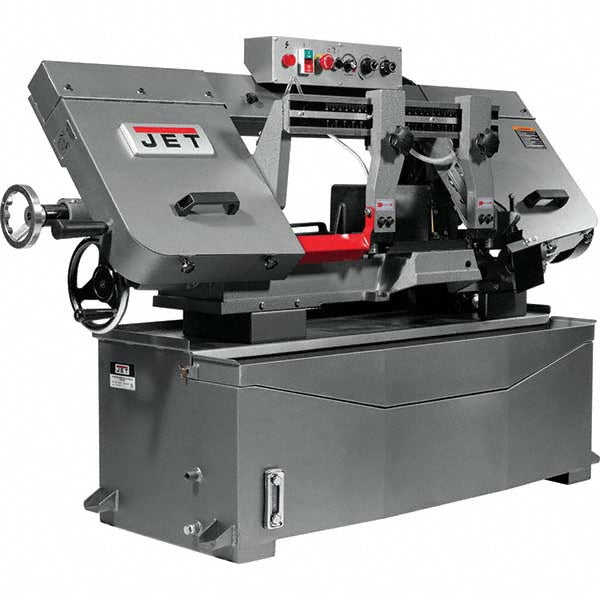

JET HBS-1018EVS Saw Applications
- High-capacity cutting of large-diameter solid bar stock, heavy-walled pipe, and structural steel beams.
- Rapid, dial-adjusted transitions between cutting diverse materials like stainless steel, aluminum, and alloys.
- Exacting 45-degree angular cuts for precision weldment fitting and fabrication framing.
- Automatic, continuous-duty operation in demanding commercial machine shops.
Engineered for professional fabricators requiring massive cutting capacity, infinite speed control, and heavy-duty structural rigidity to minimize vibration.
Technical Specifications
| Stock Number | 424470 |
|---|---|
| Machine Style | Automatic Horizontal Bandsaw |
| Motor Power | 2 HP |
| Electrical Configuration | 115V, Three-Phase (3Ph) |
| Cutting Capacity (90°) | Round: 10" • Rectangular: 10" x 18" |
| Cutting Capacity (45°) | Round: 7-1/2" • Rectangular: 9" x 7-3/4" / 10" x 7-3/8" |
| Drive Type | Electronic Variable Speed (EVS) |
| Blade Speeds | 82 – 330 SFPM |
| Blade Dimensions | 130" L x 1" W x 0.032" Thickness |
| Blade Guide Type | Carbide |
| Included Features | Integrated Coolant System |
| Country of Origin | Taiwan |
Performance & Engineering Controls
- Electronic Variable Speed (EVS): Instantly match the exact surface feet per minute (SFPM) required for specific materials, optimizing cutting efficiency and significantly extending blade life.
- 1-Inch Wide Blade: The heavy-duty 1-inch blade width resists deflection and twisting, ensuring highly accurate, straight cuts through thick, dense materials.
- Carbide Blade Guides: Premium carbide guides secure the blade with absolute rigidity, reducing wander and delivering exceptional finish quality on every pass.
- High-Capacity Vise & Bow: Built with massive cast iron components that absorb harmonic vibrations and securely lock down structural steel up to 10" x 18".
- Integrated Coolant System: Continuously floods the cutting zone to manage thermal expansion, clear metal chips, and prolong the lifespan of consumable tooling.
Why Invest in This Ironline Tools Featured Saw
- The EVS system entirely eliminates the downtime associated with manual pulley or gear changes, drastically improving shop floor throughput.
- Premium Taiwanese manufacturing guarantees tight machining tolerances, smooth hydraulic operation, and superior long-term durability.
- Massive capacity easily handles the oversized structural materials that choke out standard shop saws.
- Backed by JET's industry-leading Red Assurance warranty for complete professional peace of mind.
The JET HBS-1018EVS establishes a heavy-duty, high-efficiency cutting foundation for your commercial fabrication operations.
