JET IBG-8VS Applications
- High-volume industrial material removal, snagging, and weld beveling
- Precision sharpening of custom tool steel, drill bits, lathe tools, and blades
- Surface cleaning, deburring, and smoothing varied castings and fabricated metals
- Variable speed stock reduction optimized for handling diverse metal alloys safely
Ideal for industrial production shops, toolrooms, and automotive maintenance environments needing adjustable RPM performance and advanced electrical safety.
JET IBG-8VS Specifications
| Stock Number | JT9-578208 |
|---|---|
| Model Number | IBG-8VS |
| Motor Power | 1 HP, 115V, Single-Phase (1Ph) |
| Maximum Speed | Variable up to 3,600 RPM |
| Wheel Size (Dia. x W x Bore) | 8" x 1" x 5/8" |
| Shaft / Arbor Diameter | 5/8" |
| Included Wheel Grits | 36 Grit (Coarse) & 60 Grit (Fine) Wheels |
| Dust Port Configuration | Two 2-1/2" Round Ports with Single Outlet Collection Hose |
| Overall Dimensions (L x W x H) | 21.1" x 13.8" x 13.9" |
| Net Weight / Gross Weight | 66.0 lbs / 72.0 lbs |
| Compliance & Certifications | CSA/CUS Certified |
JET IBG-8VS Performance & Construction
- Variable speed adjustment provides a broad range of operational RPMs to match specific workpiece constraints and material requirements.
- Advanced brake resistor rapidly drops spindle speed from 3,600 RPM to zero in under 20 seconds for superior safety control.

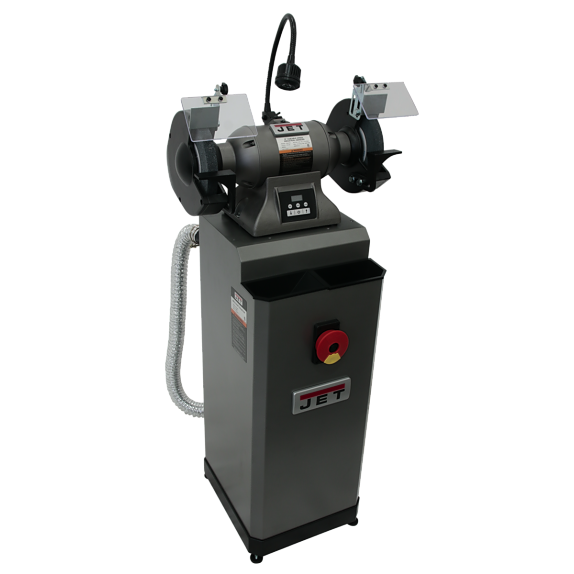

- Full cast iron body construction dampens harmonic vibrations to consistently produce clean, precise, and flat grinds.

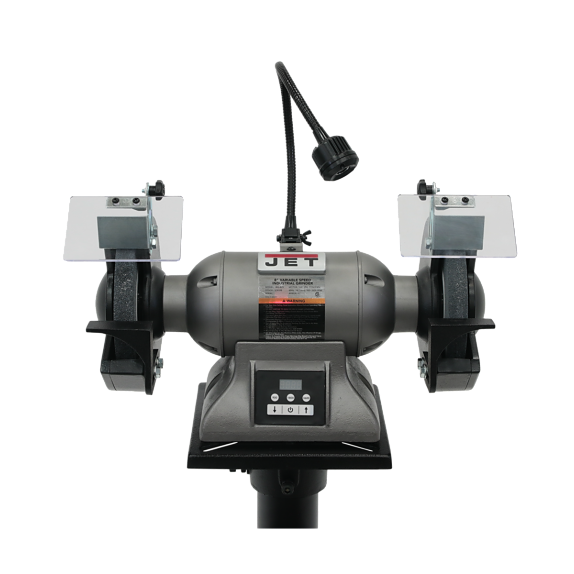

- Integrated dual 2-1/2" dust ports merge into a single outlet collection hose to maximize shop vacuum attachment efficiency.
- Totally enclosed, pre-lubricated ball bearings block abrasive dust out of the motor internals to support maintenance-free operation.

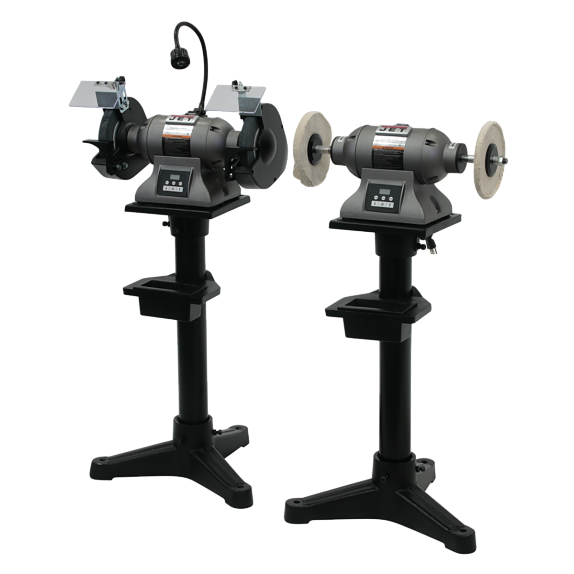

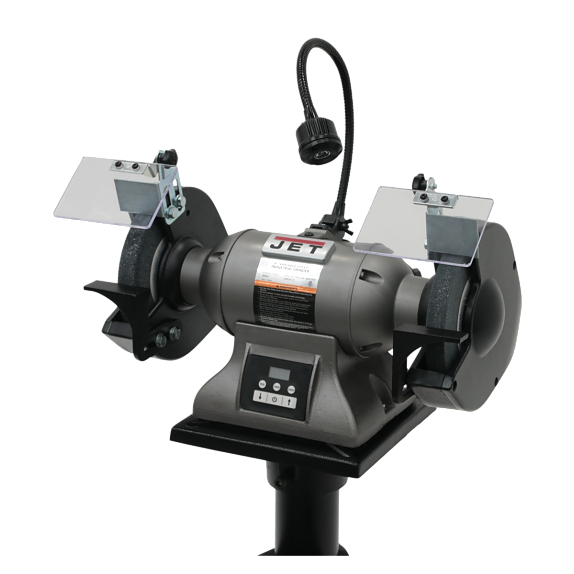

- Adjustable cast iron tool rests and large eye safety shields maximize operator comfort and viewing accuracy.
- *Note: LED Work Lamp shown in some factory imagery is not included.
Why Choose the JET IBG-8VS Industrial Grinder
- Variable RPM dial offers complete execution flexibility over heavy stock removal and detail sharpening.
- Turnkey dust extraction hose architecture simplifies workstation hookup.
- Rigid cast framework reduces operational deflection to deliver exceptionally pristine finishes.
- Backed by premium commercial construction standards and a full 2-Year Warranty.
The JET IBG-8VS pairs highly accurate variable velocity controls with rigorous security engineering to form the definitive professional grinding cell.
Official Manual: Download the JET IBG-8VS Product Manual
