JET IBG-10 Applications
- Aggressive stock removal, weld beveling, and heavy metal conditioning
- High-volume tool sharpening for large industrial blades, drill bits, and lathe tooling
- Cleaning, snagging, and deburring rough structural castings and fabricated parts
- Continuous-duty edge smoothing and surface blending in commercial fabrication environments
Ideal for heavy machinery shops, foundries, and production floors requiring a high-capacity, low-RPM grinding station that maintains precision under constant load.
JET IBG-10 Specifications
| Stock Number | JT9-578010 |
|---|---|
| Model Number | IBG-10 |
| Motor Power | 1-1/2 HP, 115V, Single-Phase (1Ph) |
| Amperage / Frequency | 10A / 60 Hz |
| Maximum Speed | 1,720 RPM |
| Wheel Size (Diameter x Width) | 10" x 1" |
| Shaft / Arbor Hole Diameter | 1" |
| Dust Port Size | 2-1/2" |
| Included Grinding Wheels | Vitrified 36-Grit (Coarse) & 60-Grit (Fine) Wheels |
| Overall Dimensions (L x W x H) | 24" x 16-3/4" x 16" |
| Net Weight / Gross Weight | 110.0 lbs / 115.5 lbs |
| Compliance Standards | CSA/CUS Certified • OSHA Compliant |
JET IBG-10 Performance & Construction
- Heavy-duty 1-1/2 HP capacitor motor supplies massive torque and maintains stable, consistent spindle speeds under heavy grinding pressure.
- Optimized 1,720 RPM speed runs cooler than standard high-speed grinders, preserving the temper of expensive hardened steel tools.
- Sealed, permanently lubricated bearings shield critical internal components from highly abrasive metallic dust for maintenance-free grinding.
- Integrated 2-1/2" dust ports provide efficient extraction to clear the workspace and manage fine particulate.
- Rigid cast iron tool rests offer dependable workpiece support for exact positioning and clean angles.

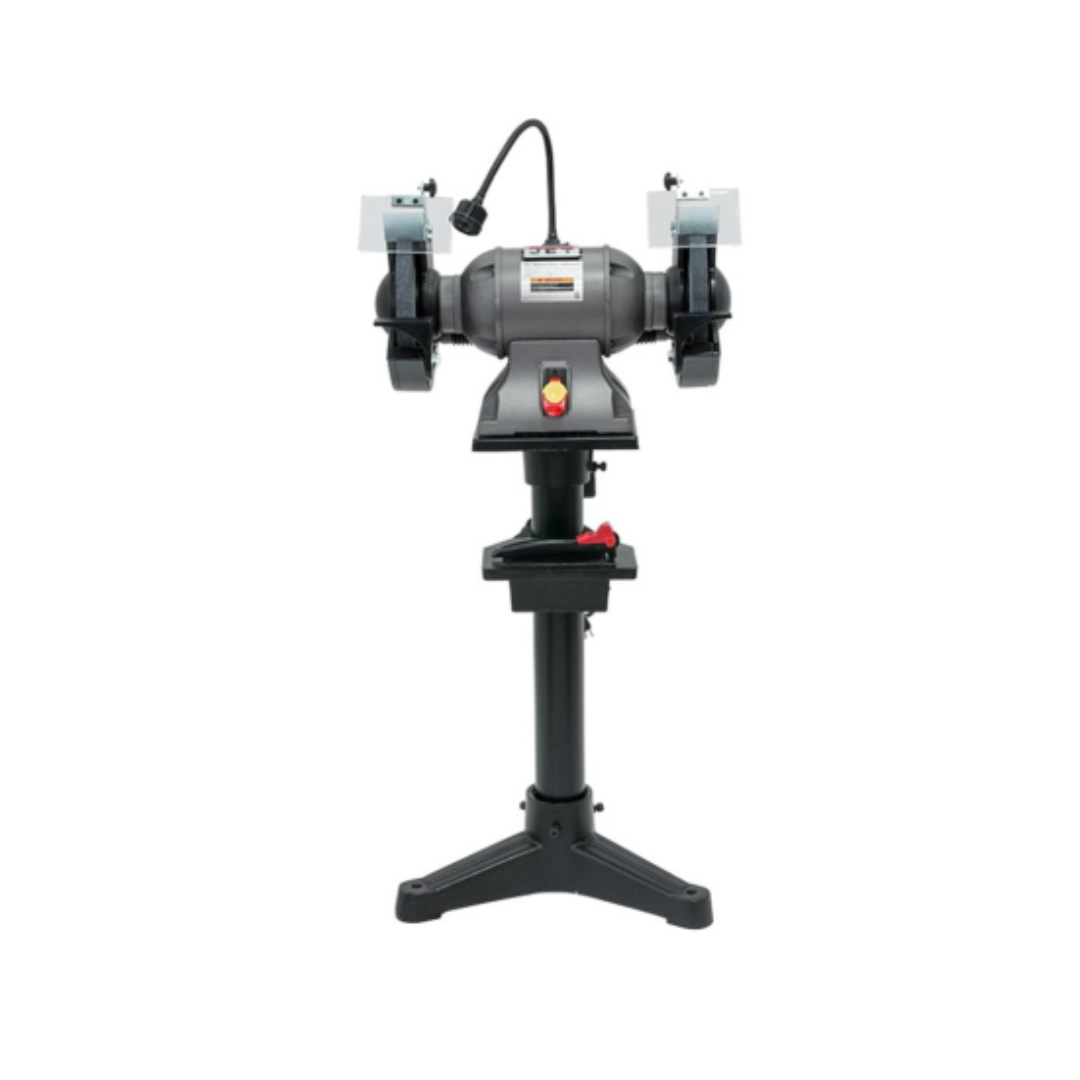

- Adjustable safety eye shields and spark guards keep operators highly protected while allowing clear line-of-sight tracking.
- Industrial toggle switch with safety key prevents unauthorized machine access or accidental startups.

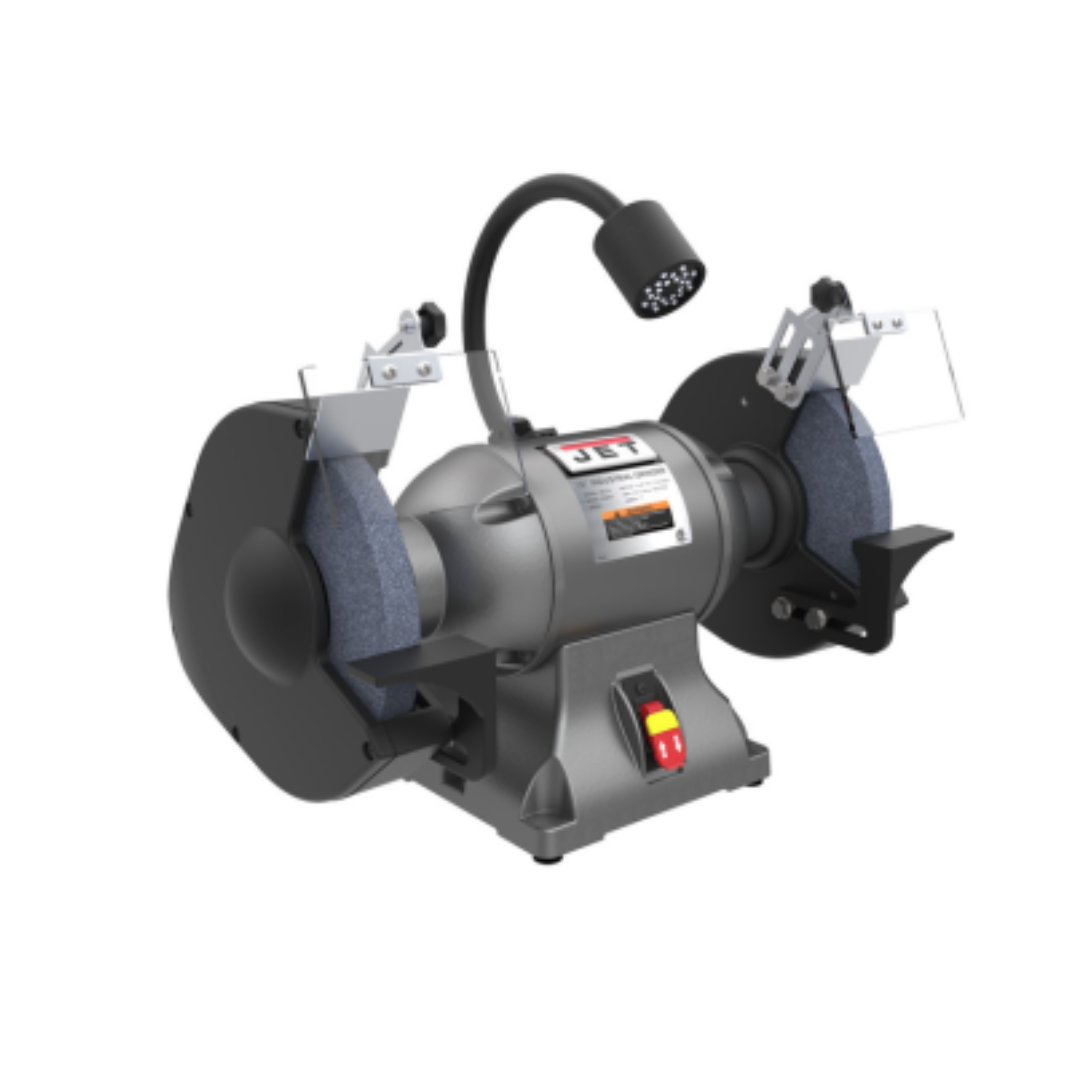

- Pre-drilled heavy cast base ensures secure, vibration-free mounting to any shop stand or workbench setup.
Why Choose the JET IBG-10 Bench Grinder
- Industrial-grade 1-1/2 HP capacitor motor avoids the lag common in lower-tier shop grinders.
- Lower RPM torque protects your tooling from thermal damage while delivering aggressive material removal.
- Full safety compliance with OSHA and CSA/CUS certifications ensures factory-floor readiness.
- Complete turnkey solution with premium fine and coarse vitrified wheels included.
The JET IBG-10 sets a new standard for heavy-duty material removal, structural rigidity, and shop floor operator safety.
