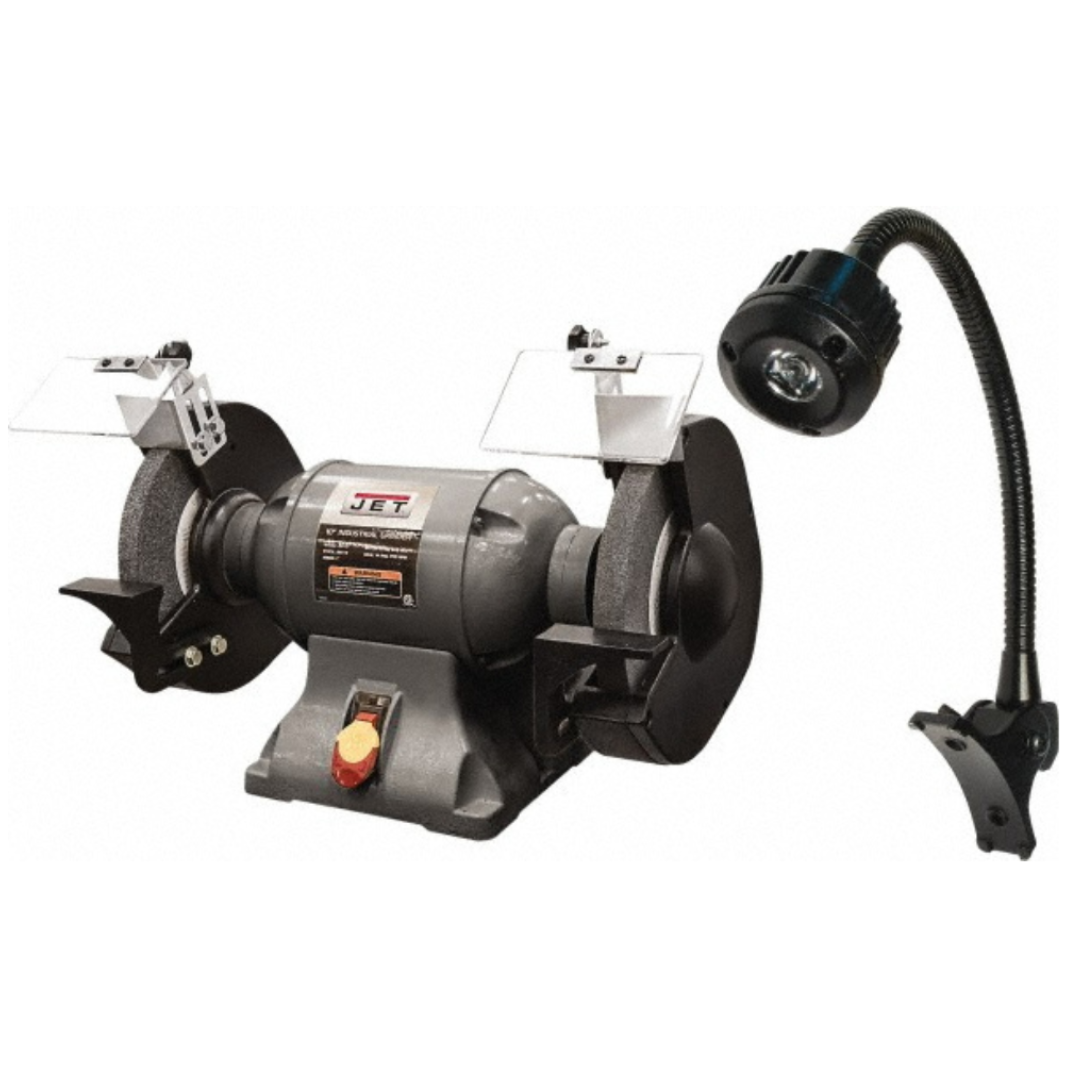

JET 10-Inch Grinder Applications
- Cool-running metal shaping and tool grinding to preserve material hardness
- High-visibility precision sharpening of oversized industrial cutting blades, thick chisels, and lathe tools
- Aggressive stock reduction, casting cleanup, weld blending, and edge beveling
- Continuous-duty metalworking and routine smoothing in demanding commercial shops
Ideal for commercial fabrication spaces, toolrooms, and industrial maintenance departments requiring a high-capacity benchtop grinding hub with integrated task lighting.
JET 10-Inch Grinder Specifications
| Part Numbers | 4724139 / 4724487 |
|---|---|
| Machine Type | Industrial Bench Grinder |
| Electrical Configuration | 115V, Single-Phase (1Ph) |
| Amperage Rating | 10A |
| Maximum Speed | 1,720 RPM |
| Wheel Diameter | 10.00" |
| Wheel Width / Thickness | 1" |
| Arbor Hole / Shaft Diameter | 1" |
| Tool Rest Material | Heavy-Duty Cast Iron |
| Overall Dimensions (L x D x H) | 24" x 15.9" x 16.7" |
| Color / Finish | White Industrial Enamel |
Performance & Construction
- Integrated adjustable work lamp delivers direct, shadow-free illumination at the grinding wheel for highly accurate edge tracking and safer operation.
- Optimized low-speed 1,720 RPM spindle tracking runs significantly cooler than traditional grinders to maintain exact workpiece temper.
- High-torque 10-Amp motor supplies consistent rotational force, ensuring the wheels maintain stable speeds under heavy grinding pressure.
- Massive 10" x 1" wheel capacity with a 1" shaft easily accommodates broad metal profiles and oversized components.
- Rigid cast iron tool rests supply dependable, flex-free tracking control for heavy parts and high-pressure grinding tasks.
- 115V single-phase architecture integrates seamlessly into standard shop electrical infrastructures.
Why Choose This JET Grinding Station
- Low-RPM, high-torque layout strikes the ultimate balance between aggressive stock removal and thermal control.
- Dedicated task lighting significantly reduces operator eye strain and increases processing accuracy.
- Heavy-gauge housing construction provides the rigid mass needed for perfectly uniform surface finishes.
- Space-efficient benchtop footprint delivers full-size industrial capability without overwhelming your workspace.
The JET 10-Inch Grinder optimizes visibility and technical precision to establish a professional, high-capacity grinding asset on any workbench.
