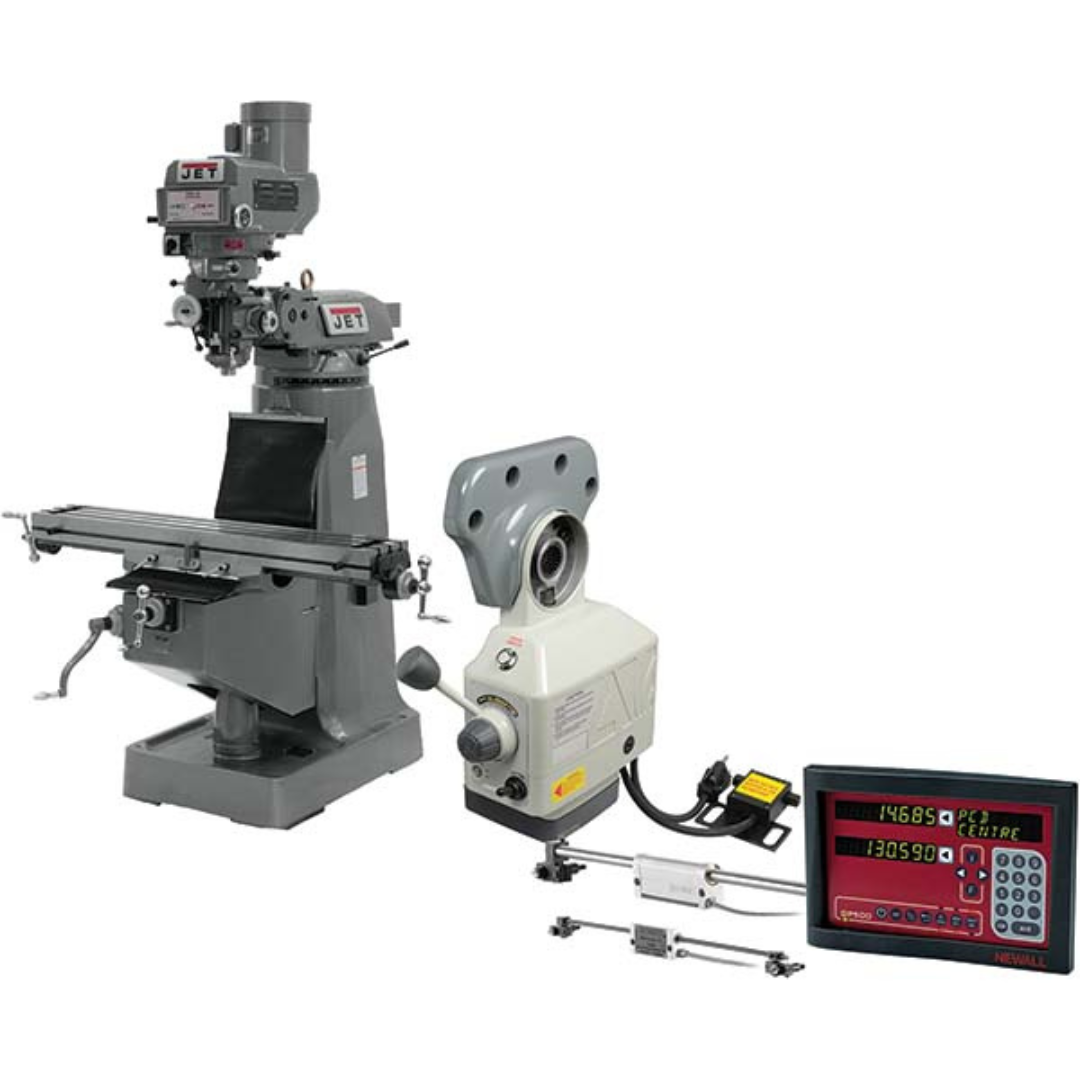

JET Vertical Mill Package Applications
- High-accuracy face milling, precision pocketing, slotting, and multi-axis profiling
- Production tool and die manufacturing, custom mold machining, and industrial prototyping
- Heavy-duty boring, deep-hole drilling, and precision tapping across a 660 lb table load limit
- Compound-angle machining utilizing 45° forward/backward tilt and full 90° left/right head rotation
A complete, turnkey machining cell engineered for industrial fabrication facilities, job shops, and aerospace maintenance environments requiring advanced digital control and automated feeding.
Technical Specifications
| Part Numbers | 9774232 / 4104673 |
|---|---|
| Machine Type | Vertical Knee Milling Machine Package |
| Motor Power | 3.0000 HP |
| Electrical Configuration | 230V / 460V, Three-Phase (3Ph) |
| Spindle Speed Control | Variable Speed Pulley Drive |
| Spindle Speed Range | 60 RPM Minimum – 4,200 RPM Maximum |
| Spindle Taper Size | R8 |
| Table Dimensions (L x W) | 49" x 9" (with three 5/8" T-Slots) |
| Work Table Load Capacity | 660.00 lbs |
| Axis Travels | Longitudinal (X): 34" • Cross (Y): 12" • Knee (Z): 14.5" • Ram: 14.5" |
| Quill Properties | 3-3/8" Chromed Diameter • 5" Spindle Travel |
| Spindle Power Feed Rates | 3 Stages: 0.0015, 0.0030, 0.0060 in/rev |
| Head Articulation | Tilt (Forward/Backward): 45° • Rotation (Left/Right): 90° |
| Included System Accessories | 12 x 36" 2-Axis MN300 DRO Kit • X-Axis Power Feed (1-32 in/min) • Ram Mount Adapter Plate Kit • Tolerance Test Sheet |
| Overall Dimensions (L x D x H) | 65-1/2" x 63" x 85" |
Performance & Bundle Integration Features
- Integrated 2-Axis MN300 DRO Kit provides crisp digital tracking across 12" x 36" coordinates, reducing operator layout times and eliminating backlash calculations.
- Variable Speed X-Axis Power Feed delivers automated table travel from 1 to 32 inches per minute, optimizing chip loads and ensuring flawless surface finishes.
- 3 HP Variable Speed Spindle Head allows operators to tune tracking dynamically from a low 60 RPM for heavy-torque cutting up to 4,200 RPM for high-speed end milling.
- Precision Hardened & Ground Table & Ways are meticulously scraped to hold tight tolerances and offer smooth slide tracking across maximum cross and longitudinal travel paths.
- Three-Stage Automatic Spindle Downfeed channels exact power feed rates (.0015", .0030", and .0060" per revolution) to maximize repeatability during precise deep boring operations.
- Oversized 3-3/8" Chrome Quill Assembly combined with a premium R8 spindle taper minimizes tool flexion under heavy side-load milling stresses.
- Articulating Head and Ram Mechanics offer broad facility coverage, supporting compound 45-degree tilting and full 90-degree left/right axis swings.
Why Invest in This JET Milling Package
- Turnkey assembly arrives completely equipped with DRO and power feed modules to maximize immediate shop throughput.
- Dual-voltage 3-Phase configuration easily adapts into standard commercial facility power distribution setups.
- Rigid cast framework design dampens operational harmonics to preserve cutting tool geometries and tool life.
- Includes a certified factory layout Tolerance Test Sheet to guarantee strict quality verification right out of the crate.
This heavy-duty JET Knee Mill bundle pairs traditional machining mass with digital precision controls and automated feeds, establishing a highly efficient, long-term asset for professional manufacturing environments.
