Milling Machine Applications
- Precision surfacing, drilling, and slotting for custom part prototyping and small-batch production.
- Versatile angled machining utilizing the articulating head, which can be tilted left or right to accommodate complex contours.
- Consistent downfeed boring utilizing the large chromed quill with .0015", .003", and .006" IPR rates.
- Reliable toolroom maintenance tasks where rigid dovetailed ways are necessary to prevent chatter.
Finding a jet 7-7-8 x 35-3-4 knee milling machine 690038 for sale guarantees your shop is equipped with a versatile, safety-conscious workhorse engineered for daily, rigorous manual machining.
Technical Specifications

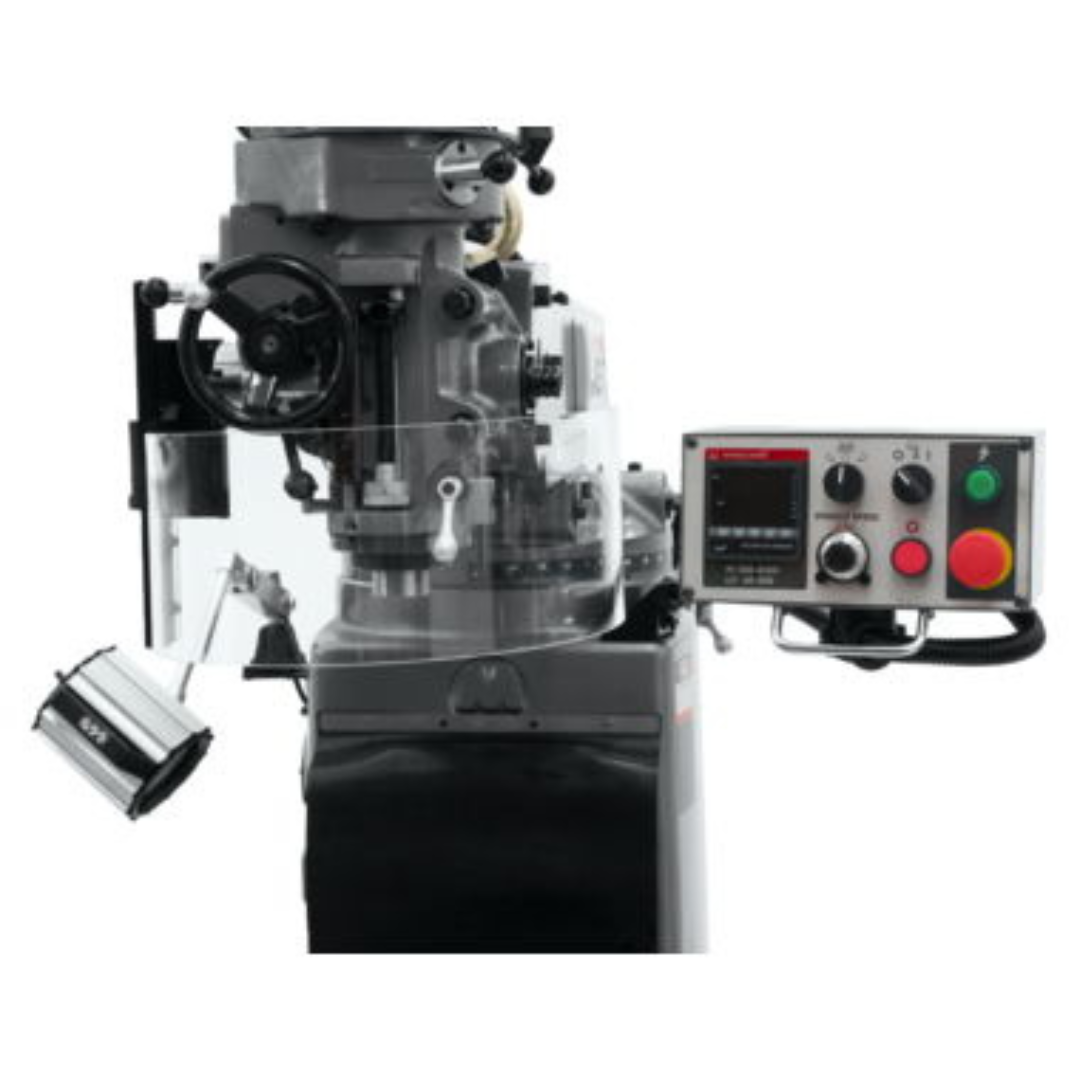

| Stock Number | JT9-690038 (Model JVM-836-3) |
|---|---|

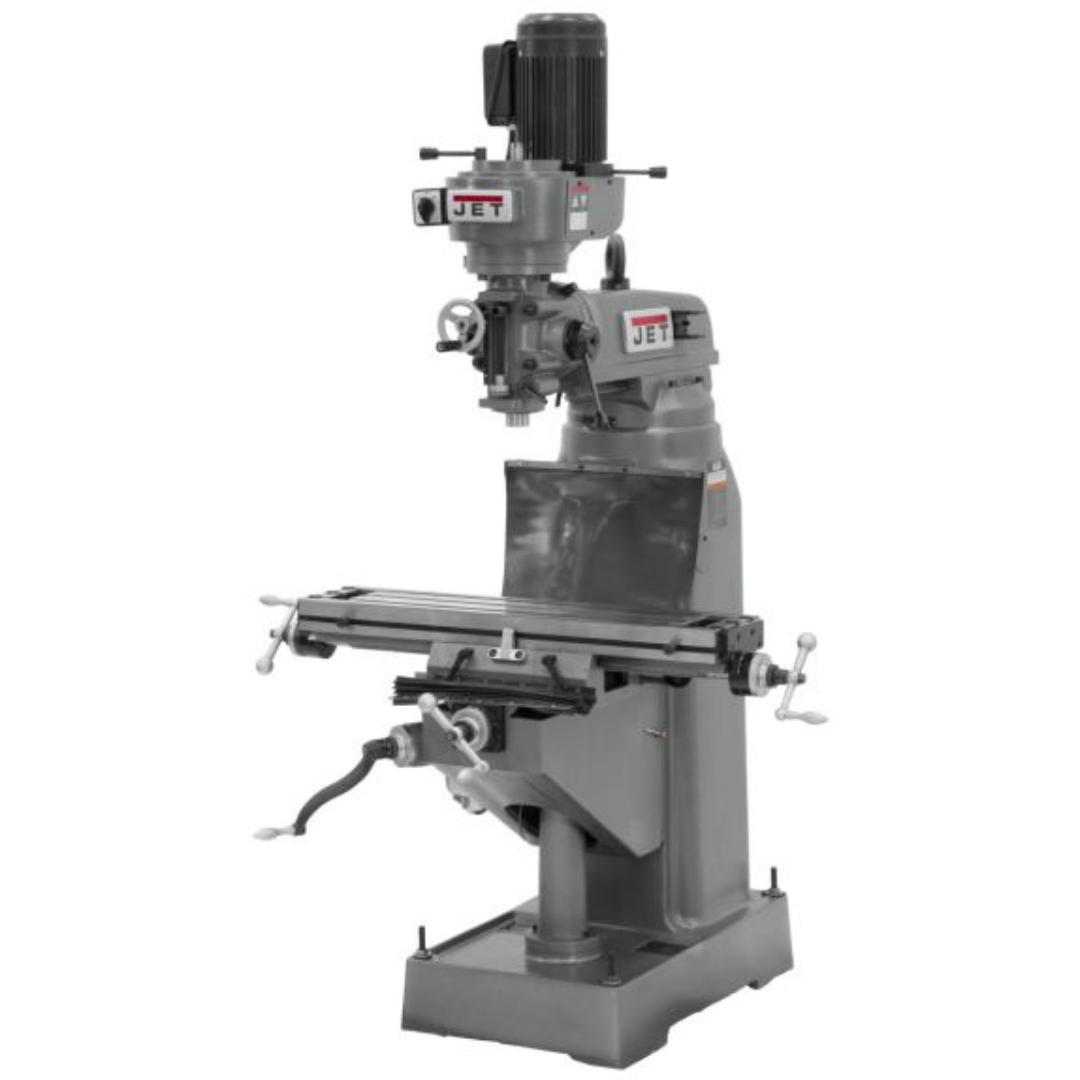

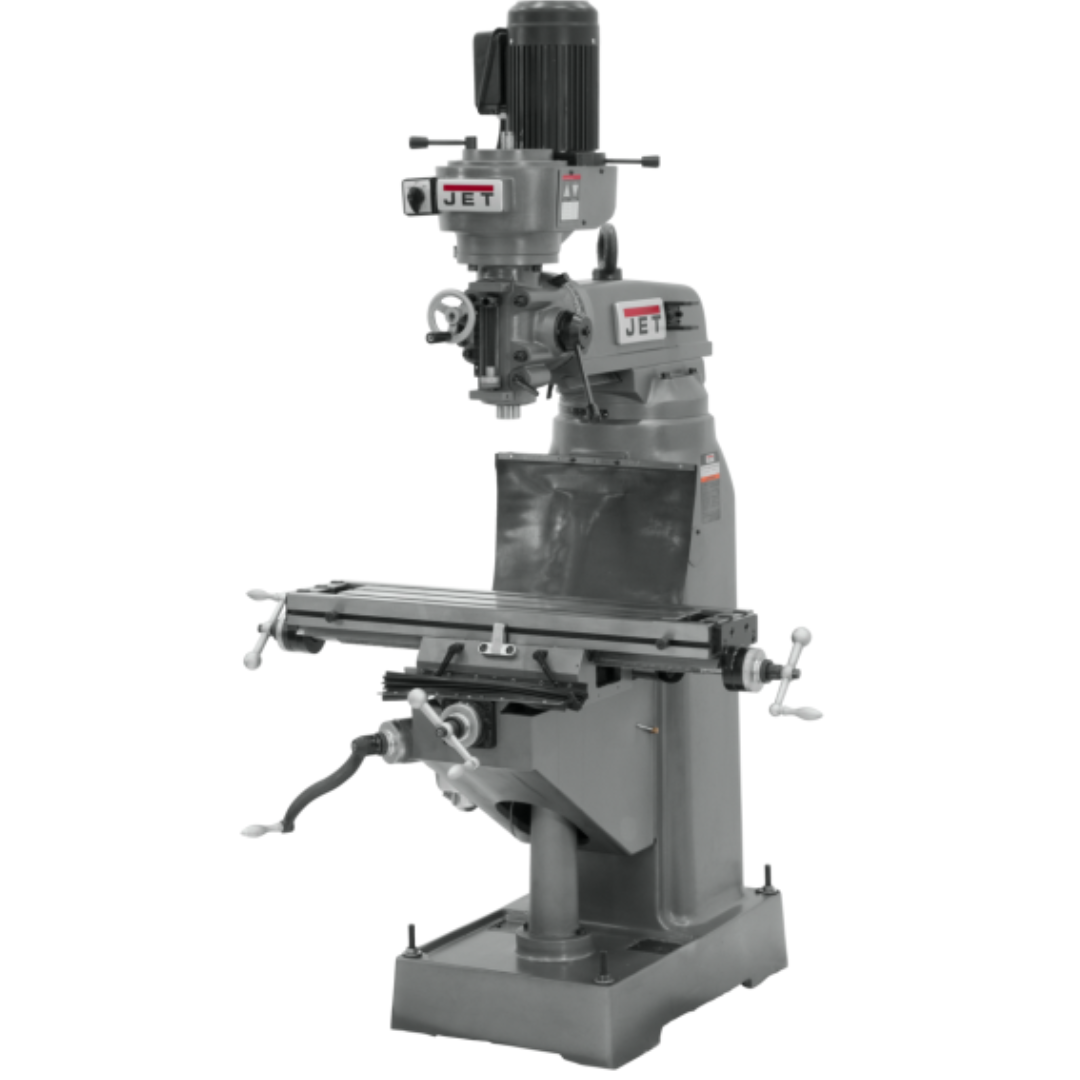

| Machine Type | Step Pulley Vertical Knee Mill |
| Motor Power | 1-1/2 HP |
| Electrical Configuration | 230V Only, Three-Phase (3Ph) |
| Spindle Speed Control | Step Pulley (10 Speeds) |
| Spindle Speed Range | 120 RPM Minimum – 1,550 RPM Maximum |
| Spindle Taper Size | R-8 (1/8" - 7/8" Collet Capacity) |
| Table Dimensions (L x W) | 35-3/4" x 7-7/8" (2-1/2" T-Slot Centers) |
| Work Table Load Capacity | 500 lbs |
| Axis Travels | Longitudinal (X): 22-1/4" • Cross (Y): 9-1/2" • Knee (Z): 14" • Ram: 10-1/2" |
| Quill Properties | 3-3/8" Chromed Diameter • 5" Spindle Travel |
| Distance Spindle to Column | 15-3/4" (Max) |
| Max Distance Spindle to Table | 13-3/4" |
| Overall Dimensions (L x W x H) | 55" x 52" x 78" (Gross Weight: 1610 lbs) |
Performance & Safety Features

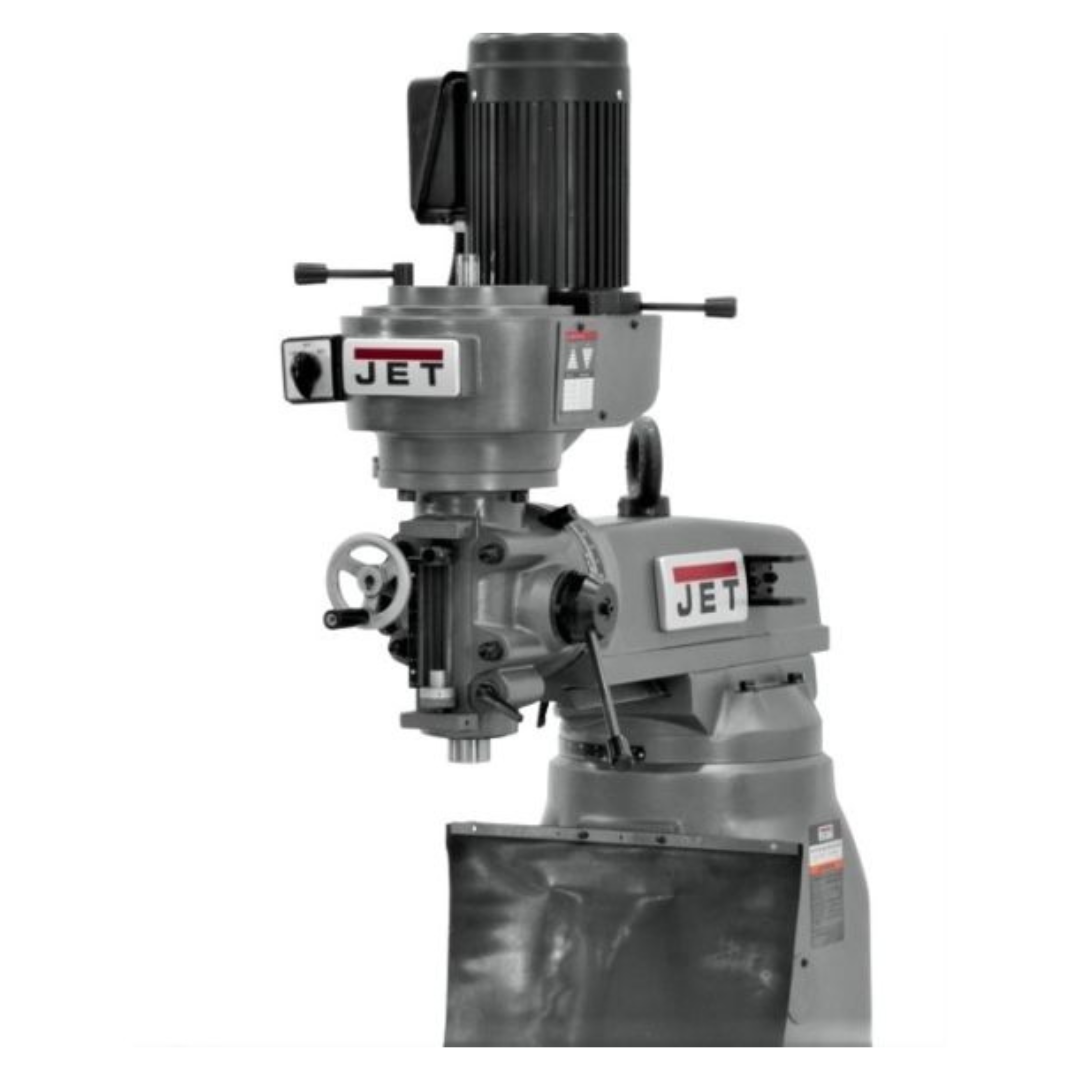

- Precision Bored & Honed Milling Head: Ensures extremely low runout, extending tool life and delivering superior surface finishes.
- High Precision Spindle Bearings: Support the R8 spindle to maintain strict concentricity during both low-RPM roughing and high-RPM finishing.

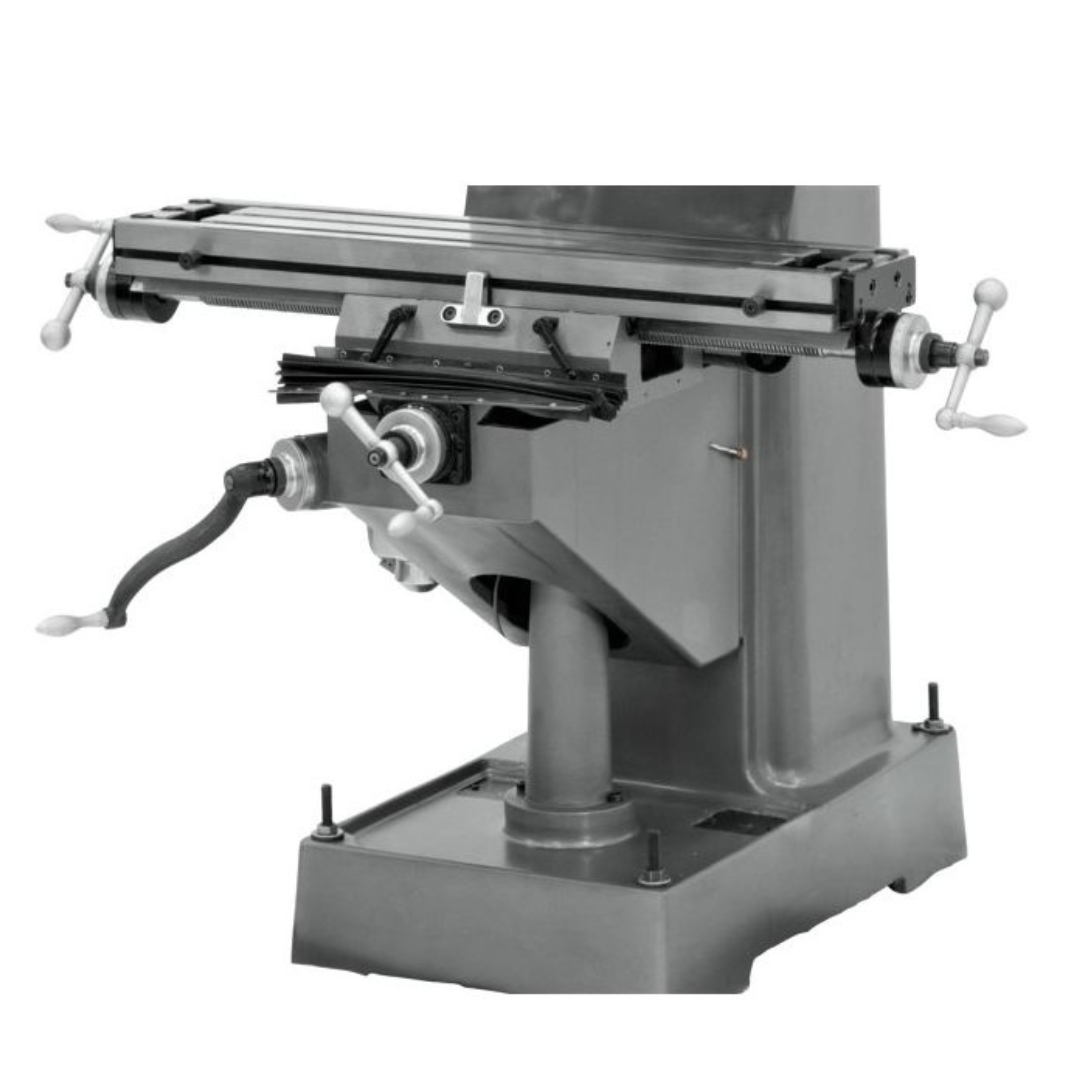

- Hardened & Ground Precision Table: Rides on precision-ground dovetail ways to ensure smooth, highly accurate manual feeding without binding.

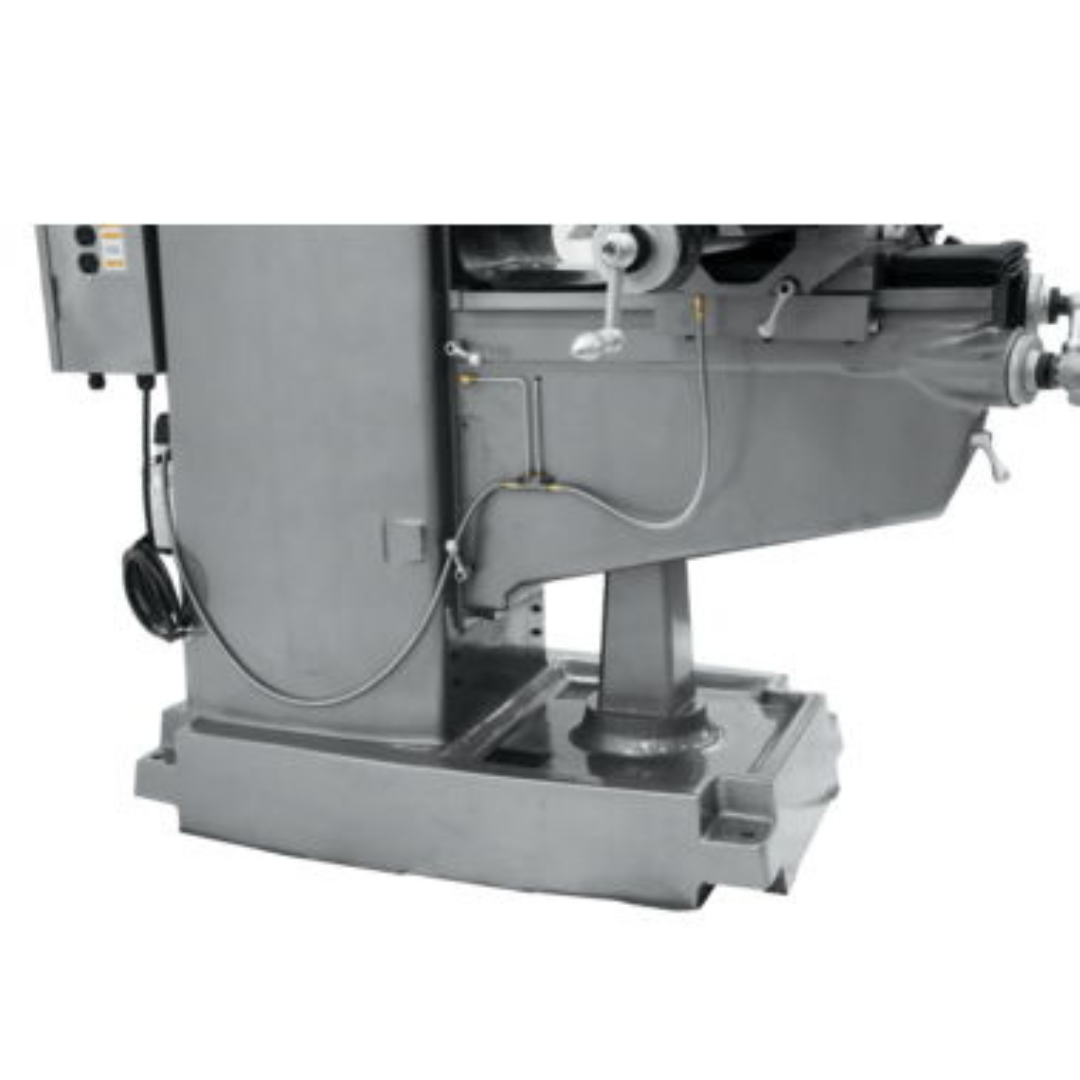

- One-Shot Lubrication System: Quickly distributes way oil to all critical bearing surfaces and slideways with a single pump, vastly reducing daily maintenance time.
- Graduated Scale on Column: Allows operators to accurately reference Z-axis knee adjustments for precise depth control.
- Integrated Safety Locks: Features positive locks on all moving surfaces (table, saddle, and knee) to increase structural rigidity and operator safety during heavy cuts.
Why Invest in the JVM-836-3 Mill
- When analyzing the price jet 7-7-8 x 35-3-4 knee milling machine 690038, it represents an outstanding value by offering true industrial mass in a smaller 8"x36" class footprint.
- Whether you catch a jet 7-7/8 x 35-3/4" knee milling machine 690038 sale or buy it at standard list pricing, its 3-phase power delivery ensures smooth, vibration-free operation under load.
- Looking to acquire one without heavy freight delays? Check with local industrial suppliers for a jet 7-7/8 x 35-3/4" knee milling machine 690038 nearby to get it onto your shop floor faster.
- Backed by the reliable JET 2-Year Warranty, giving peace of mind that service and parts are readily available.
The reviews jet 7-7-8 x 35-3-4 knee milling machine 690038 routinely praise its out-of-the-box accuracy and the robustness of its step-pulley drivetrain, making it a favorite for traditional toolmakers and technical schools alike.
Official Resources: Download the JET JVM-836-3 Product Manual
