Milling Machine Applications
- Heavy-duty face milling, aggressive slotting, and large-scale profiling on bulky workpieces up to 925 lbs.
- High-efficiency production runs utilizing the integrated X, Y, and Z-axis powerfeeds for consistent, hands-free chip loads.
- Rapid-turnaround job shops and custom tooling operations leveraging the pneumatic air drawbar for instant tool swaps.
- Complex multi-angle machining utilizing the fully articulating head (45° left tilt, 90° right tilt).
Whether you are upgrading an existing tooling department or outfitting a heavy industrial fabrication floor, this fully loaded 5 HP mill drastically reduces manual labor and machine downtime.
Technical Specifications

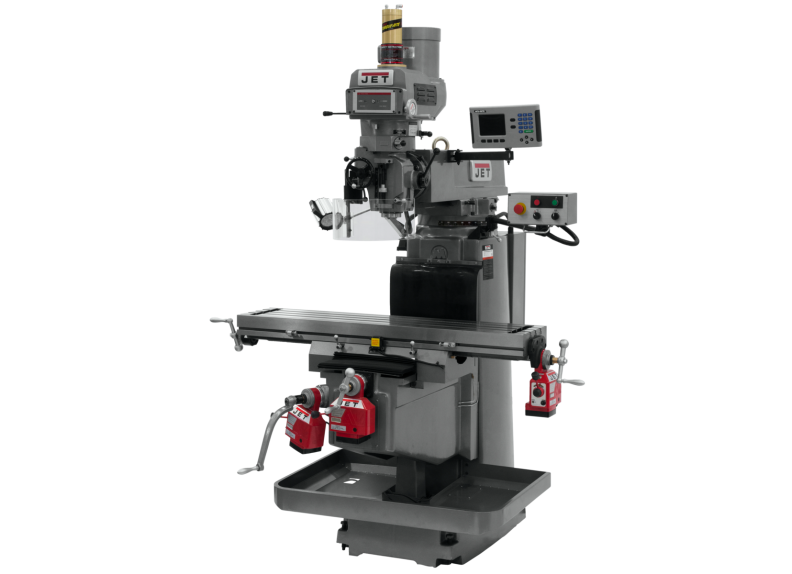

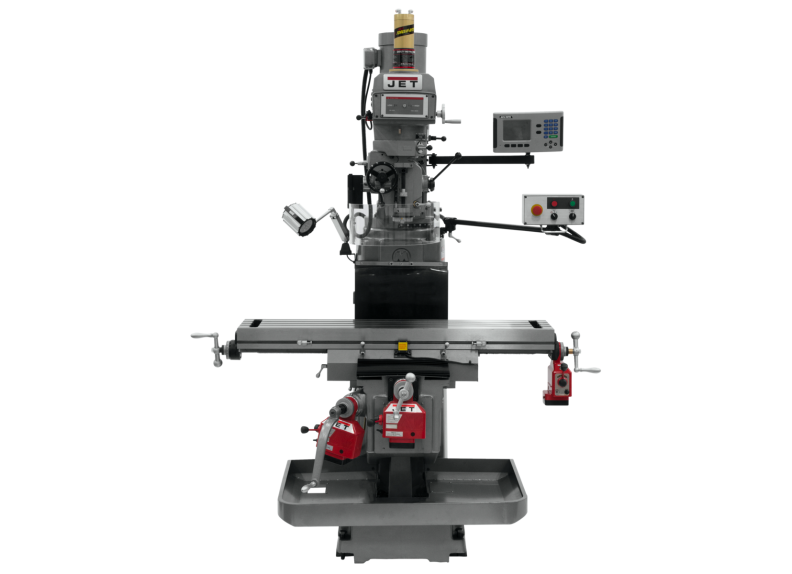

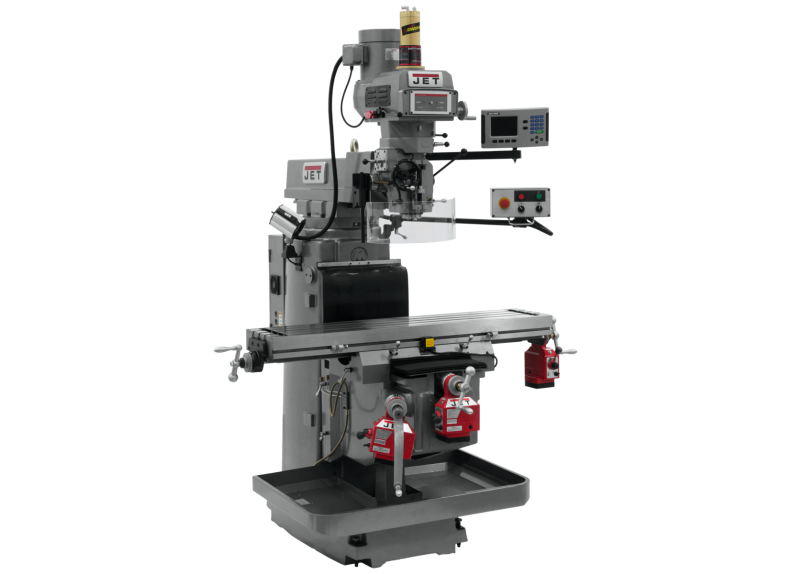

| Stock Number | JT9-698060 (Model JTM-1254VS) |
|---|---|
| Machine Type | Heavy-Duty Variable Speed Vertical Knee Mill |
| Motor Power | 5.00 HP |
| Electrical Configuration | 230V / 460V, Three-Phase (3Ph) |
| Spindle Speed Control | Variable Speed Pulley |
| Spindle Speed Range | 80 RPM Minimum – 3,800 RPM Maximum |
| Spindle Taper Size | NST #40 (1/8" - 1" Collet Capacity) |
| Table Dimensions (L x W) | 54" x 12" (3 T-Slots) |
| Work Table Load Capacity | 925 lbs |
| Axis Travels | Longitudinal (X): 33-7/8" • Cross (Y): 15-1/3" • Knee (Z): 19-1/4" • Ram: 25" |
| Quill Properties | 4-1/8" Diameter • 5" Spindle Travel |
| Max Spindle to Table Distance | 23" |
| Included System Upgrades | 3-Axis ACU-RITE 203 DRO • X, Y, & Z Powerfeeds • Pneumatic Air Drawbar |
| Overall Dimensions (L x W x H) | 92-1/8" x 79-7/8" x 104-1/4" (Gross Weight: 3,696 lbs) |
Performance, Safety & Integration Features
- Integrated Air Power Drawbar: Allows operators to swap NST-40 tooling in seconds with the push of a button, drastically reducing cycle times between operations.
- 3-Axis Powerfeed System: Fully automates the X, Y, and Z axes, ensuring perfectly consistent surface finishes and massively reducing operator fatigue during long shifts.
- Automatic Lubrication System: Provides ongoing, metered lubrication to the ways and leadscrews every 180 minutes, maximizing machine lifespan and preventing wear.
- Certified Meehanite® Castings: Supply unparalleled structural rigidity and vibration dampening during intense, large-scale cutting and boring operations.
- Heavy-Duty Spindle Brake: Rapidly and safely stops the massive NST-40 spindle to increase shop safety and streamline manual tool inspections.
- Three-Stage Power Downfeed: Includes an automatic stop mechanism (.0015", .003", .008" IPR) for highly accurate, repeatable Z-axis plunging.
- Precision Hardened & Ground Ways: Paired with adjustable gibs throughout to maintain incredibly tight geometric tolerances and smooth carriage glides over the 54" table.
Why Invest in This JET Mill Package
- Arrives as a completely turnkey production cell—fully loaded with premium ACU-RITE optics, automated feeds on every axis, and an air drawbar.
- The massive 5 HP motor and NST40 taper allow for significantly heavier cuts and greater rigidity than standard R8 class mills, boosting overall shop productivity.
- Features a thoughtfully designed electrical box equipped with two 115V outlets to conveniently power the included powerfeeds without running extra extension cords.
- Backed by the industry-leading JET RED ASSURANCE 2-Year Warranty and built to strict CSA/CUS safety certifications.
This heavy-duty 12x54 milling package delivers the ultimate combination of traditional iron mass and modern automated convenience.
