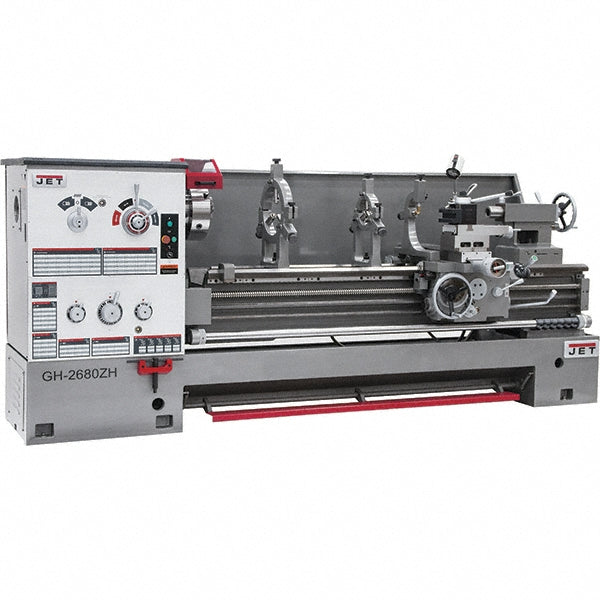

JET 26x80 Lathe Applications
- Heavy industrial machining, extra-long shaft turning, and precision large-bore finishing.
- Continuous-duty fabrication and rapid material removal in 3-Phase commercial machine shops.
- Complex multi-pass threading workflows supporting 61 distinct Inch thread options (up to 72 TPI).
- Oil country production and heavy-walled piping fabrication utilizing the massive headstock capacity.
Engineered specifically for heavy manufacturing environments that require massive structural dampening, extended 80-inch workpiece capacity, and high-torque 3-Phase power.
Technical Specifications
| Stock Number | JT9-321862 |
|---|---|
| Machine Type | Geared Head Toolroom Lathe |
| Motor Power | 10 HP |
| Electrical Configuration | 230V, Three-Phase (3Ph) |
| Swing Capacities | 26" Over Bed • 7-5/8" Over Cross Slide • 20-7/8" Through Gap |
| Distance Between Centers | 80" |
| Spindle Bore / Designation | 4-1/8" Bore / D1-6 Mount (6MT Taper / 4MT Sleeve) |
| Speed Range | 12 Speeds: 40 – 1,800 RPM (Geared Head) |
| Threading Configurations | 61 Inch Threads (Up to 72 TPI) |
| Travels | Cross Slide: 10.8125" • Tailstock Spindle: 6" |
| Bed Width | 13-3/8" |
| Overall Dimensions (L x D x H) | 138" x 43" x 57" |
Performance & Engineering Controls
- Oversized 4-1/8" Spindle Bore: Maximizes machining versatility and throughput by allowing large-diameter industrial piping and heavy bar stock to pass completely through the D1-6 headstock.
- Expansive 80" Center Distance: Provides massive real estate to easily mount and machine extra-long drive shafts and oversized commercial components without tool interference.
- 10 HP High-Torque Drive: Supplies relentless rotational power to the enclosed geared headstock, easily powering through heavy roughing cuts and difficult-to-machine alloys.
- Robust Lathe Bed Foundation: The 13-3/8 inch bed width delivers superior structural harmonics, heavily dampening vibration to ensure flawless surface finishes under extreme tool pressure.
- Precision Feed Rates: Features aggressive longitudinal feed rates ranging from 0.0023 to 0.0937 IPR for highly consistent and rapid material removal.
Why Invest in This JET Lathe
- Delivers an exceptional combination of a massive 80-inch center distance and a large 4-1/8" spindle bore capacity, managing the oversized structural components that standard toolroom lathes cannot clear.
- Operates on robust 230V 3-Phase power, bringing relentless industrial capabilities to continuous-duty production lines.
- Built with rigid, vibration-dampening cast iron components designed to maintain strict commercial tolerances through years of heavy, continuous use.
- Backed by the industry-leading JET Red Assurance Warranty for complete professional peace of mind on the shop floor.
The JET 26x80 establishes an unyielding, high-torque mechanical foundation for large-bore machining operations, delivering absolute precision alongside heavy industrial capacity.
