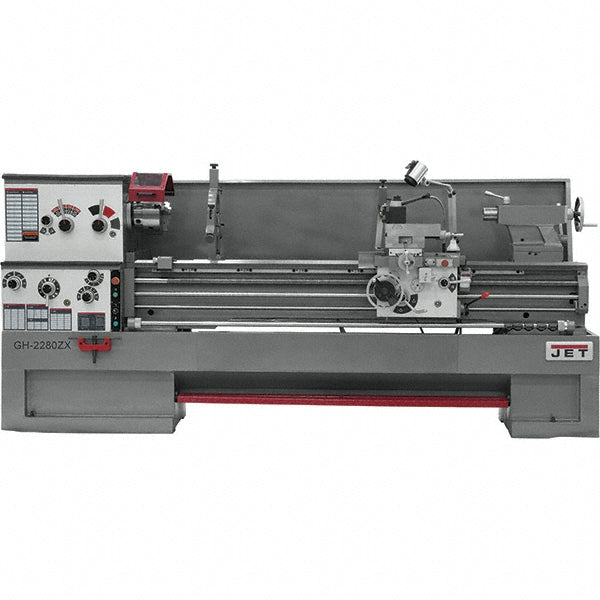

JET 22x80 Lathe Applications
- Heavy industrial machining, extra-long shaft turning, and precision large-bore finishing.
- Continuous-duty fabrication and rapid material removal in 3-Phase commercial machine shops.
- Complex multi-pass threading workflows supporting up to 61 distinct Threads Per Inch (TPI).
- Machining extreme-diameter flanges, flywheels, and wide faceplate work utilizing the 29-1/2" removable gap section.
Engineered specifically for heavy manufacturing environments that require massive structural dampening, extended 80-inch workpiece capacity, and high-torque 3-Phase power.
Technical Specifications
| Stock Number | JT9-321610 |
|---|---|
| Machine Type | Geared Head Toolroom Lathe |
| Motor Power | 10 HP |
| Electrical Configuration | 230V, Three-Phase (3Ph) |
| Swing Capacities | 22" Over Bed • 13" Over Cross Slide • 29-1/2" Through Gap |
| Distance Between Centers | 80" |
| Spindle Bore / Taper | 3-1/8" Bore / 7MT Spindle Taper (5MT with Sleeve) |
| Speed Range | 12 Speeds: 25 – 1,800 RPM (Geared Head) |
| Maximum Threading | 61 TPI |
| Travels | Cross Slide: 10" • Tailstock Spindle: 5" |
| Bed Dimensions | 13-3/8" Width / 12.25" Gap Length |
| Overall Dimensions (L x D x H) | 136" x 40" x 49" |
Performance & Engineering Controls
- Oversized 3-1/8" Spindle Bore: Maximizes machining versatility and throughput by allowing large-diameter industrial piping and heavy bar stock to pass completely through the headstock.
- Expansive 80" Center Distance: Provides massive real estate to easily mount and machine extra-long drive shafts and oversized commercial components without tool interference.
- 10 HP High-Torque Drive: Supplies relentless rotational power to the enclosed geared headstock, easily powering through heavy roughing cuts and difficult-to-machine alloys.
- Extra-Wide Lathe Bed Foundation: The robust 13-3/8 inch bed width delivers superior structural harmonics, heavily dampening vibration to ensure flawless surface finishes under extreme tool pressure.
- Precision Feed Rates: Features aggressive longitudinal feed rates ranging from 0.0015 to 0.0913 IPR for highly consistent and rapid material removal.
Why Invest in This JET Lathe
- Delivers an exceptional combination of a massive 80-inch center distance and a large 3-1/8" spindle bore capacity, managing the oversized structural components that standard toolroom lathes cannot clear.
- Operates on robust 230V 3-Phase power, bringing relentless industrial capabilities to continuous-duty production lines.
- Built with rigid, vibration-dampening cast iron components designed to maintain strict commercial tolerances through years of heavy, continuous use.
- Backed by the industry-leading JET Red Assurance Warranty for complete professional peace of mind on the shop floor.
The JET 22x80 establishes a heavy-duty, high-torque foundation for your commercial machining operations, delivering unyielding precision and massive large-bore flexibility.
