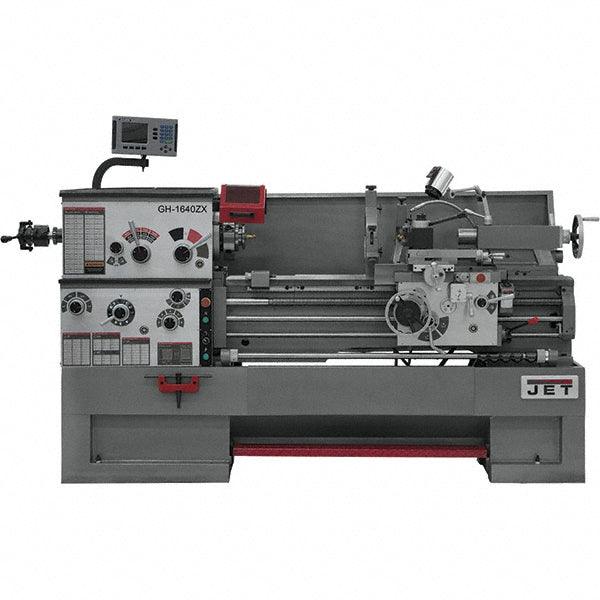

JET 16x60 Lathe Applications
- Heavy industrial machining, extra-long shaft turning, and precision bored finishing.
- Continuous-duty fabrication and rapid material removal in 3-Phase commercial machine shops.
- Complex multi-pass threading workflows supporting up to 40 distinct Inch thread selections.
- Machining oversized flanges, flywheels, and wide faceplate work utilizing the 19" removable gap section.
Engineered specifically for manufacturing environments that require structural dampening, extended 60-inch workpiece capacity, and high-torque 3-Phase power.
Technical Specifications
| Stock Number | JT9-321383 |
|---|---|
| Machine Type | Geared Head Toolroom Lathe |
| Electrical Configuration | 230V, Three-Phase (3Ph) |
| Swing Capacities | 16" Over Bed • 7-1/2" Over Cross Slide • 19" Through Gap |
| Distance Between Centers | 60" |
| Spindle Bore / Designation | 1-1/2" Bore (38mm) / D1-4 Spindle Nose |
| Speed Range | 12 Speeds: 40 – 1,800 RPM (Geared Head) |
| Threading Options | 40 Inch Threads (4 to 112 TPI) |
| Travels | Cross Slide: 9" • Tailstock Spindle: 4.75" (3MT Taper) |
| Bed Dimensions | 10-1/2" Width / 12.25" Gap Length |
| Spindle Taper Size | 4MT |
Performance & Engineering Controls
- Enclosed Geared Headstock: Delivers immediate, positive power transfer across 12 distinct speed settings, ensuring optimal high-torque surface footage from 40 to 1,800 RPM without belt slippage.
- Expansive 60" Center Distance: Provides the necessary real estate to easily mount and machine extra-long drive shafts and oversized commercial components.
- 1-1/2" Spindle Bore: Accommodates standard bar sizes and specialized stock tooling setups straight through the headstock assembly.
- Removable Gap Bed: Extends the swing capacity to an impressive 19 inches, allowing for the machining of larger-diameter components while preserving the baseline rigidity of the 10-1/2" wide machine bed.
- Precision Feed Rates: Features fine-tuned longitudinal feed rates ranging from 0.0012 to 0.0294 IPR for consistent finishing and material removal.
Why Invest in This JET Lathe
- Delivers an exceptional combination of a massive 60-inch center distance and a high-torque geared headstock, optimizing turnaround times for large assemblies.
- Operates on robust 230V 3-Phase power, bringing relentless industrial capabilities to continuous-duty production lines.
- Built with rigid, vibration-dampening cast iron components designed to maintain strict toolroom tolerances through years of heavy roughing cuts.
- Backed by the industry-leading JET Red Assurance 2-Year Warranty for complete professional peace of mind on the shop floor.
The JET 16x60 establishes a robust turning foundation for commercial machining operations, delivering unyielding precision and massive structural flexibility.
