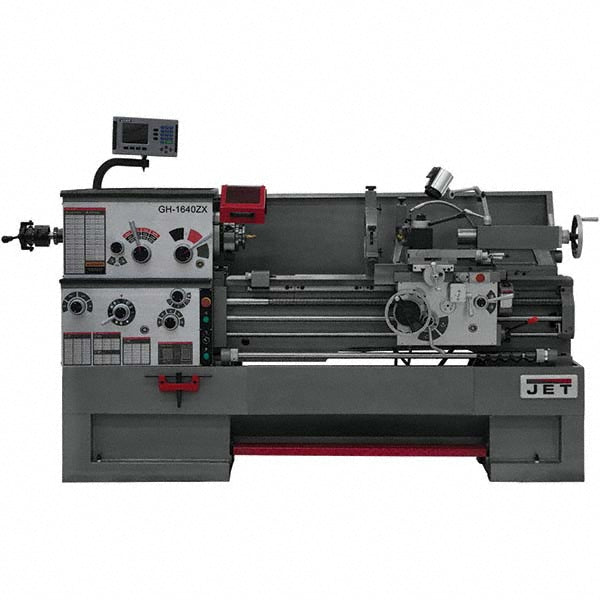

JET 16x40 Lathe Applications
- Precision turning, facing, and boring of hardened and mild steel components
- Complex multi-pass threading operations (Supports 61 Inch and 24 Metric threads)
- Turning oversized diameter workpieces using the 25-7/8" removable gap section
- Continuous-duty batch production in toolrooms and heavy maintenance departments
Ideal for professional fabricators and machinists who require the robust, consistent torque of a 3-phase geared-head lathe but need a more compact 40-inch center configuration.
Technical Specifications
| Stock Number | JT9-321445 |
|---|---|
| Machine Type | Toolroom Lathe |
| Electrical Configuration | 230V / 460V, Three-Phase (3Ph) |
| Swing Capacities | 16" Over Bed • 10" Over Cross Slide • 25-7/8" Over Gap |
| Distance Between Centers | 40" |
| Spindle Bore / Nose | 3-1/8" Bore / D1-8 Mount (7MT Spindle Taper) |
| Speed Range | 12 Speeds: 25 – 1,800 RPM (Geared Head) |
| Threading Range | 61 Inch Threads (1-5/8 to 72 TPI) / 24 Metric Threads |
| Travels | Cross Slide: 9" • Tailstock: 5" (4MT Taper) |
| Bed Width | 13-3/8" |
| Overall Dimensions (L x H) | 96" x 66" |
Performance & Engineering Controls
- Geared Headstock Design: Delivers positive gear-driven power transfer, essential for maintaining constant RPM under heavy, low-speed cutting loads.
- Oversized 3-1/8" Spindle Bore: Provides generous clearance allowing large-diameter shafts and specialized tooling setups to pass directly through the headstock.
- Versatile Swing Over Gap: The removable 12.25-inch gap section provides an impressive 25-7/8 inch swing capacity for turning larger diameter flanges and plates.
- D1-8 Spindle Mount: Ensures quick, highly accurate chuck changes and secure workpiece holding during aggressive metal removal.
Why Choose This JET Lathe Package
- Engineered for high-torque industrial applications that standard belt-driven lathes cannot sustain.
- Comprehensive thread-cutting gearbox handles a massive range of global industry standards without extensive gear swapping.
- Compact 96-inch overall length saves critical shop floor space while retaining full heavy-duty turning capabilities.
- Backed by the reliable JET Red Assurance 2-Year Warranty for complete professional peace of mind.
The JET 321445 delivers unyielding gear-head power and technical precision, making it a foundational turning center for any serious industrial fabrication shop.
