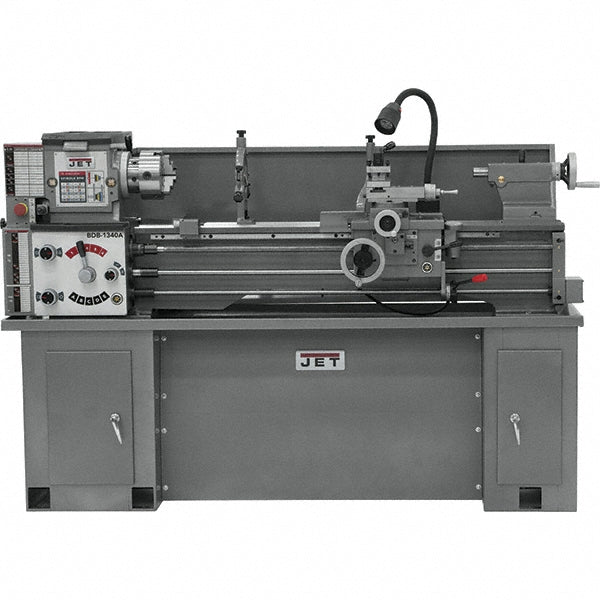

JET 13x40 Lathe Applications
- Precision turning, facing, and boring of hardened and mild steel components
- Complex threading operations (Supports 38 Inch and 23 Metric threads)
- Turning oversized diameter workpieces using the 18-3/4" removable gap section
- Continuous-duty small batch production in toolrooms and maintenance departments
Ideal for fabricators and machinists who require the robust, consistent torque of a geared-head lathe but operate in facilities limited to single-phase power.
Technical Specifications
| Stock Number | JT9-321102AK |
|---|---|
| Machine Type | Toolroom Bench Lathe |
| Electrical Configuration | 230V, Single-Phase (1Ph) |
| Swing Capacities | 13" Over Bed • 7-25/32" Over Cross Slide • 18-3/4" Over Gap |
| Distance Between Centers | 40" |
| Spindle Bore / Nose | 1-3/8" Bore / D1-4 Mount (5MT Spindle Taper / 3MT Sleeve) |
| Speed Range | 12 Speeds: 60 – 1,240 RPM (Geared Head) |
| Threading Range | 38 Inch Threads (3-1/2 to 40 TPI) / 23 Metric Threads (0.45 to 10.00 mm) |
| Travels | Cross Slide: 6-5/16" • Tailstock: 3-3/4" (3MT Taper) |
| Bed Width | 13-3/8" |
| Overall Dimensions (L x D x H) | 71" x 32" x 45" |
Performance & Engineering Controls
- Geared Headstock Design: Delivers positive gear-driven power transfer, essential for maintaining constant RPM under heavy, low-speed cutting loads.
- 1-3/8" Spindle Bore: Provides generous clearance allowing long shafts and specialized tooling setups to pass directly through the headstock.
- Versatile Swing Over Gap: The removable 8-inch gap section provides an 18.75-inch swing capacity for turning larger diameter workpieces beyond standard limits.
- D1-4 Spindle Mount: Ensures quick, highly accurate chuck changes and secure workpiece holding during aggressive metal removal.
Why Choose This JET Lathe Package
- Engineered for high-torque applications that traditional belt-driven lathes often cannot sustain.
- Comprehensive thread-cutting support handles a wide range of global industry standards without extensive gear swapping.
- Compact, powerful design saves critical floor space without compromising on a generous 40-inch workpiece capacity.
- Operates entirely on standard 230V Single-Phase power, eliminating the need for expensive 3-Phase shop converters.
The JET 321102AK delivers unyielding gear-head power and technical precision, making it a highly capable turning center for professional machine shops.
