IMER STEP-UP 120 Rotor/Stator Pump Applications
- Mortar pumping and spraying applications
- Stucco spraying for interior and exterior surfaces
- Grout pumping with aggregates up to 3/8"
- Restoration mortar placement and repair work
- Self-leveling underlayment pumping applications
- Fireproofing spray applications on commercial structures
- Waterproofing material transfer and spraying
- Commercial and industrial material placement projects
- Long-distance pumping applications requiring higher output pressure
The IMER STEP-UP 120 Rotor/Stator Pump is designed for contractors who require higher horsepower, greater pumping range, and continuous-duty material delivery for demanding commercial construction applications.
IMER STEP-UP 120 Rotor/Stator Pump Specifications
| Model Number | 1106181 |
|---|---|
| Motor Power | 7.5 HP - 208V 3Ø |
| Power Supply | 220V / 60Hz / 3 Phase |
| Maximum Aggregate Size | 3/8" |
| Hopper Capacity | 4.25 cu ft |
| Dimensions (W × L × H) | 33" × 80" × 38" |
| Weight | 616 lbs |
IMER STEP-UP 120 Rotor/Stator Pump Features & Performance

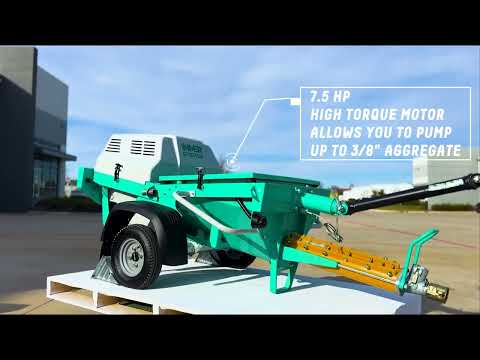

- High-output 7.5 HP motor delivers powerful pumping performance for demanding commercial applications and long hose runs.
- 3-phase electrical configuration provides increased efficiency, smoother operation, and consistent material flow under heavy workloads.

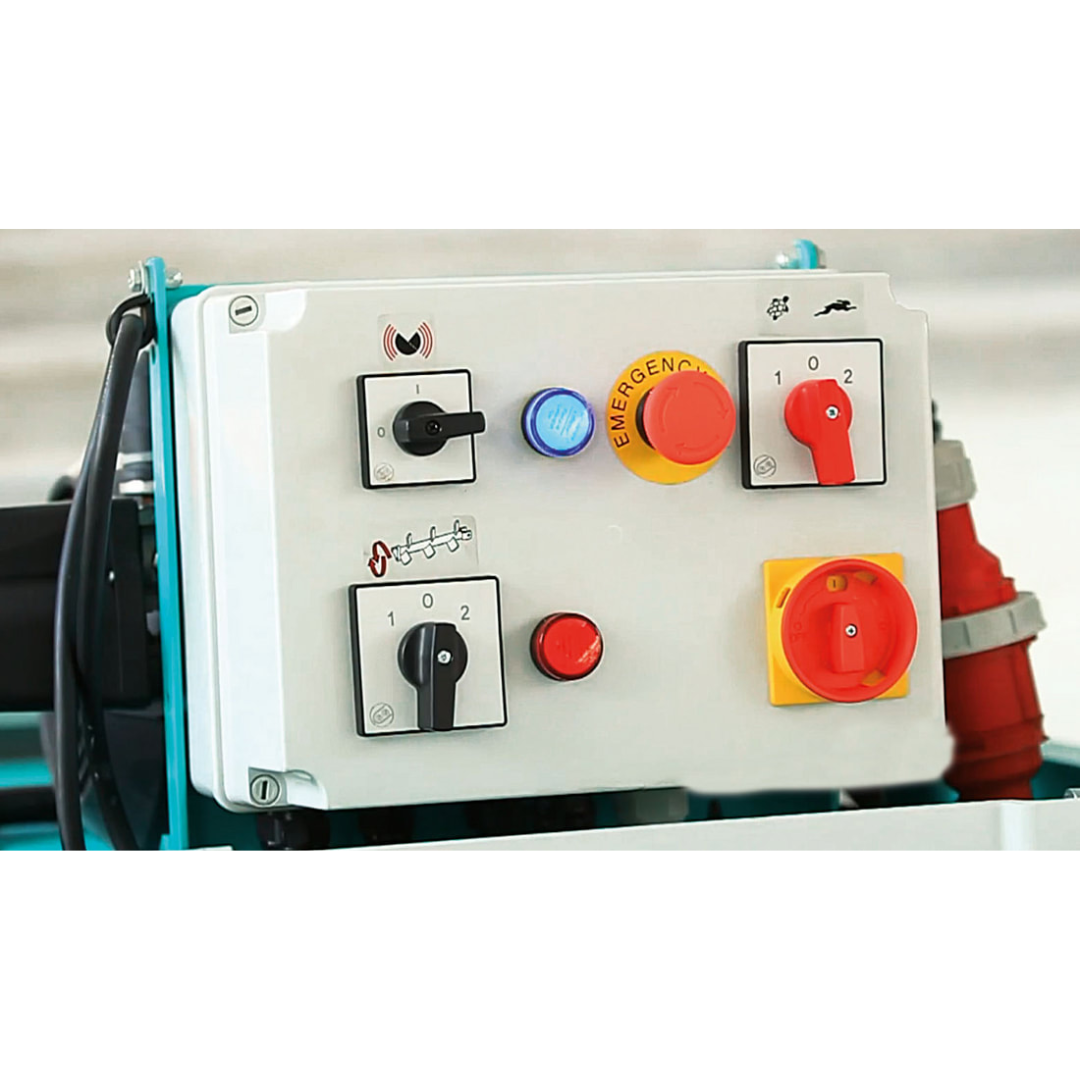

- 2-speed control panel allows operators to adjust pumping performance based on material type and jobsite requirements.

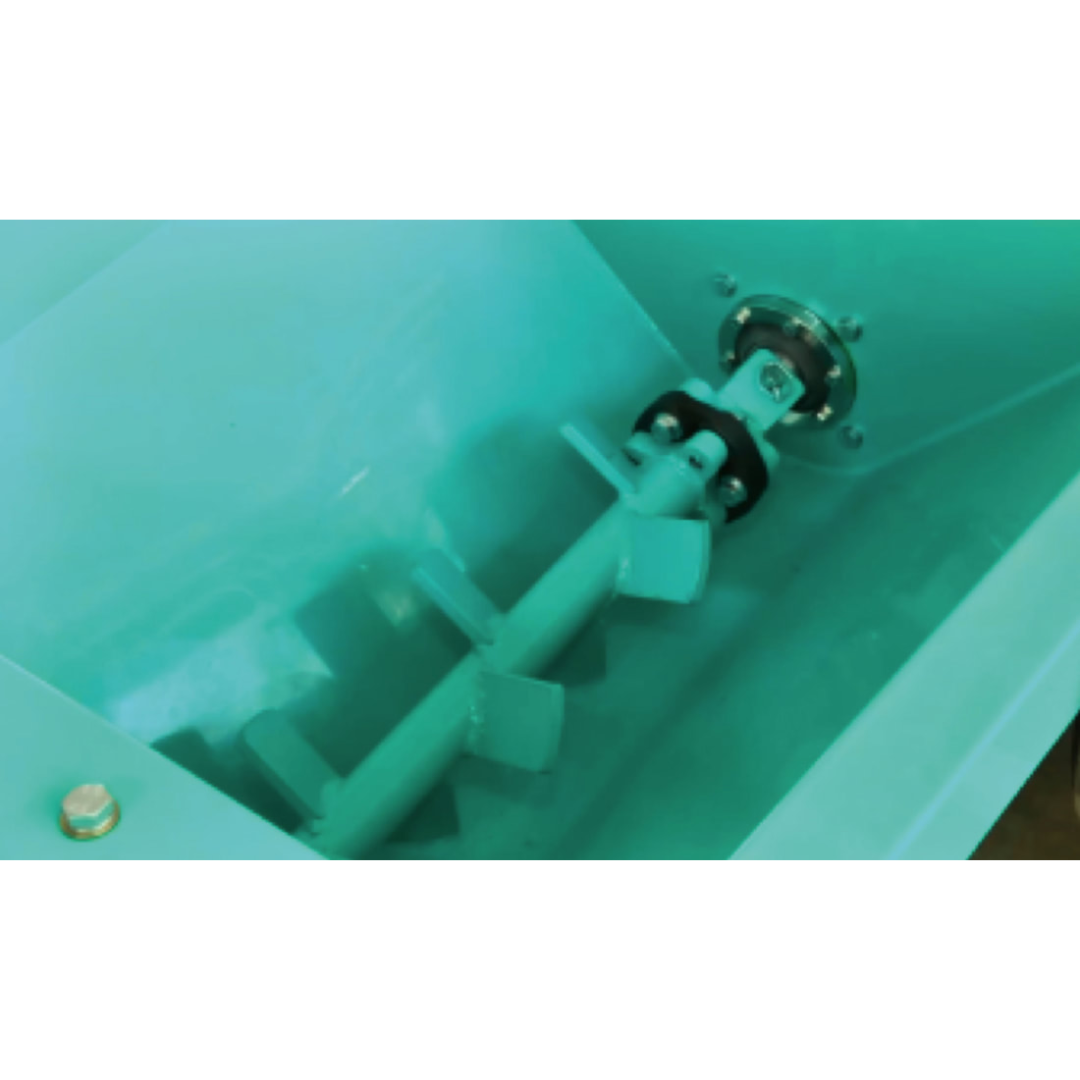

- IM25L rotor and stator system generates reliable pumping pressure and smooth material transfer for mortar, grout, and stucco applications.
- 100% duty cycle motor supports continuous operation for high-production environments and extended pumping periods.
- Capable of pumping aggregates up to 3/8" for handling a wider range of grouts and restoration materials.
- Heavy-duty towable frame design improves portability and transport efficiency between jobsites.

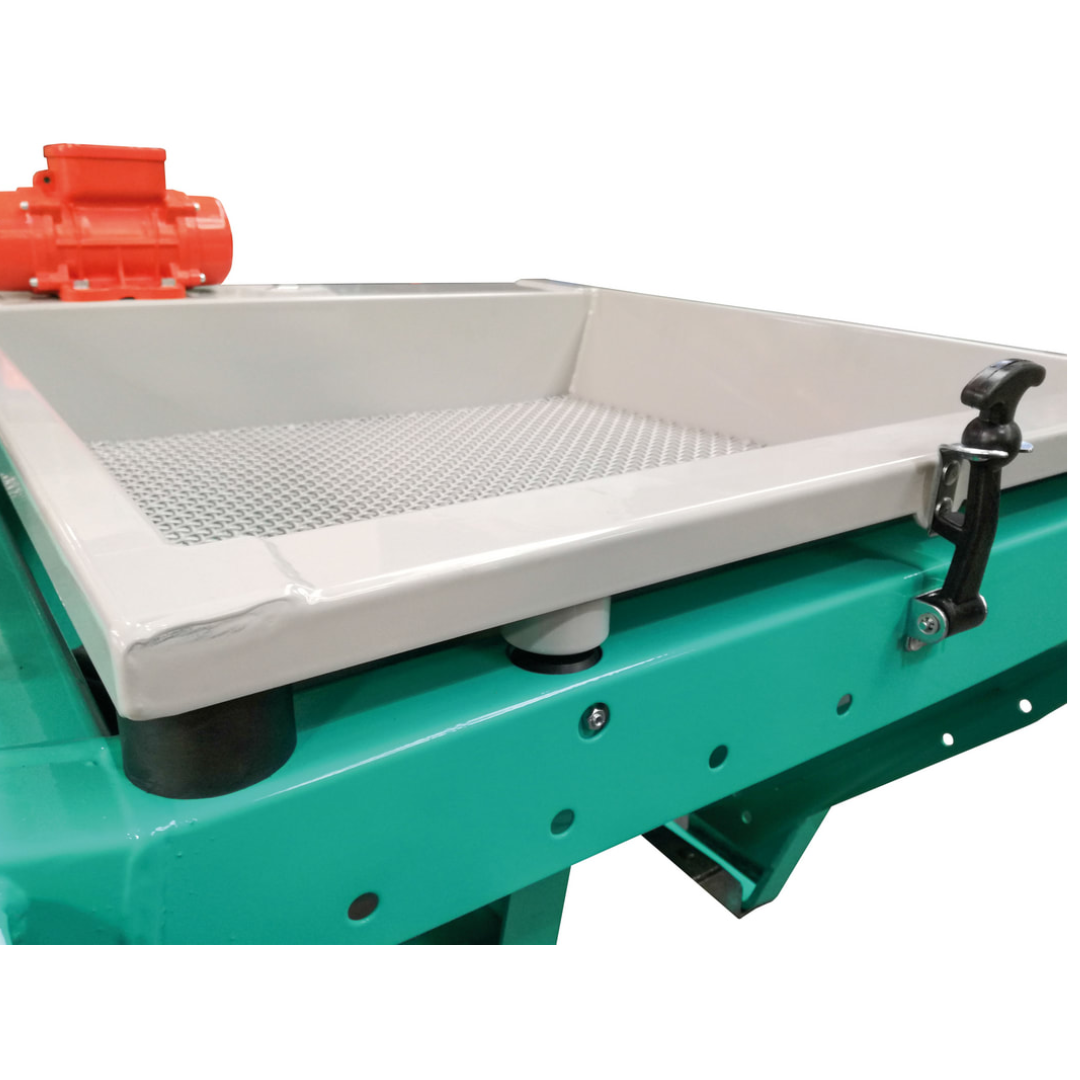

- Grate system for premixed materials helps filter oversized material while improving loading efficiency.
- Remote control ready configuration allows operators to expand machine control flexibility on larger jobsites.
- Large hopper capacity supports continuous material feeding and improved production output.
IMER STEP-UP 120 Rotor/Stator Pump Standard Equipment
- 2-speed control panel
- 66’ power cord
- Remote control ready configuration
- 7.5 HP / 2-speed / 3-phase 100% duty cycle motor
- IM25L rotor/stator assembly
- Tow kit
- Grate for premixed materials
- Accessory toolbox
The IMER STEP-UP 120 Rotor/Stator Pump comes equipped with professional-grade pumping components, mobility accessories, and continuous-duty operational features to support high-demand commercial construction projects.
IMER STEP-UP 120 Rotor/Stator Pump Production Advantages
- Higher horsepower enables longer pumping distances and increased material pressure.
- Continuous-duty motor supports demanding production schedules and heavy workloads.
- Capable of handling multiple material types including mortar, grout, fireproofing, and underlayments.
- 2-speed operation improves adaptability for varying material viscosities and application requirements.
- Towable design simplifies transportation between commercial jobsites.
- Professional rotor/stator pumping technology ensures reliable and consistent material delivery.
The IMER STEP-UP 120 Rotor/Stator Pump combines industrial-grade pumping performance with versatile material compatibility, making it an excellent solution for contractors needing dependable high-output material placement equipment.
Why Choose the IMER STEP-UP 120 Rotor/Stator Pump 1106181
- Powerful 7.5 HP 3-phase motor for demanding pumping applications.
- Handles aggregates up to 3/8" for expanded material compatibility.
- Designed for continuous-duty commercial and industrial operation.
- 2-speed controls improve flexibility for different material types.
- Towable frame enhances portability and jobsite mobility.
- Professional rotor/stator system provides smooth and consistent pumping performance.
- Ideal for mortar, grout, stucco, fireproofing, and restoration applications.
- Heavy-duty construction built for long-term contractor use.
The IMER STEP-UP 120 Rotor/Stator Pump 1106181 delivers the horsepower, pumping range, and professional-grade durability contractors need for demanding material placement applications. Whether spraying stucco, pumping grout, or handling restoration materials, the STEP-UP 120 provides reliable continuous performance and efficient jobsite productivity.
