IMER SL 3730 Skid Steer Loader Applications
- Construction site material handling and transport
- Landscape construction and hardscape preparation
- Residential and commercial grading operations
- Excavation and trenching support applications
- Demolition debris removal and cleanup
- Property maintenance and site preparation work
- Confined-space loading and dumping operations
- Snow removal and seasonal maintenance applications
- Agricultural and farm material handling tasks
The IMER SL 3730 Skid Steer Loader is ideal for contractors and operators requiring compact dimensions, reliable diesel performance, and precise hydraulic control for demanding jobsites with limited access space.
IMER SL 3730 Skid Steer Loader Specifications
| Model Number | SL-3730 |
|---|---|
| Engine | Yanmar Diesel Engine – 21 HP |
| Operating Weight | 2,955 lbs |
| SAE Operating Load Capacity (35%) | 728 lbs |
| Tipping Load Capacity (50%) | 1,455 lbs |
| Bucket Breakout Force | 1,658 ft/lb |
| Maximum Travel Speed | 4.5 mph |
| Fuel Tank Capacity | 2.2 gal |
| Hydraulic Pressure | 2,610 psi |
| Auxiliary Hydraulic Flow | 7.4 gpm |
| ROPS Compliance | ISO 3471:1994 |
| FOPS Compliance | ISO 3449:1998 Level 1 |
IMER SL 3730 Skid Steer Loader Dimensions & Working Range
| Operating Height – Fully Raised | 10'10" |
|---|---|
| Height to Hinge Pin – Fully Raised | 8'4" |
| Dump Height | 6'8" |
| Bucket Tilt Angle | 112° |
| Dumping Angle at Max Height | 31° |
| Dump Reach – Fully Raised | 1'2" |
| Maximum Rollback at Ground | 34° |
| Departure Angle | 27° |
| Wheel Base Length | 2'6" |
| Total Length (Without Bucket) | 6'7" |
| Total Length | 8'6" |
| Minimum Ground Clearance | 6" |
| Overall Height | 6'2" |
| Bucket Width | 3'2" – 3'8" |
| Crawler Width | 3'1" – 3'8" |
| Front Clearance Radius (With Bucket) | 5'1" |
| Front Clearance Radius | 2'8" |
| Rear Clearance Radius | 3'11" |
IMER SL 3730 Skid Steer Loader Performance & Features
- 21 HP Yanmar diesel engine delivers dependable power, fuel efficiency, and reliable operation in demanding work environments.

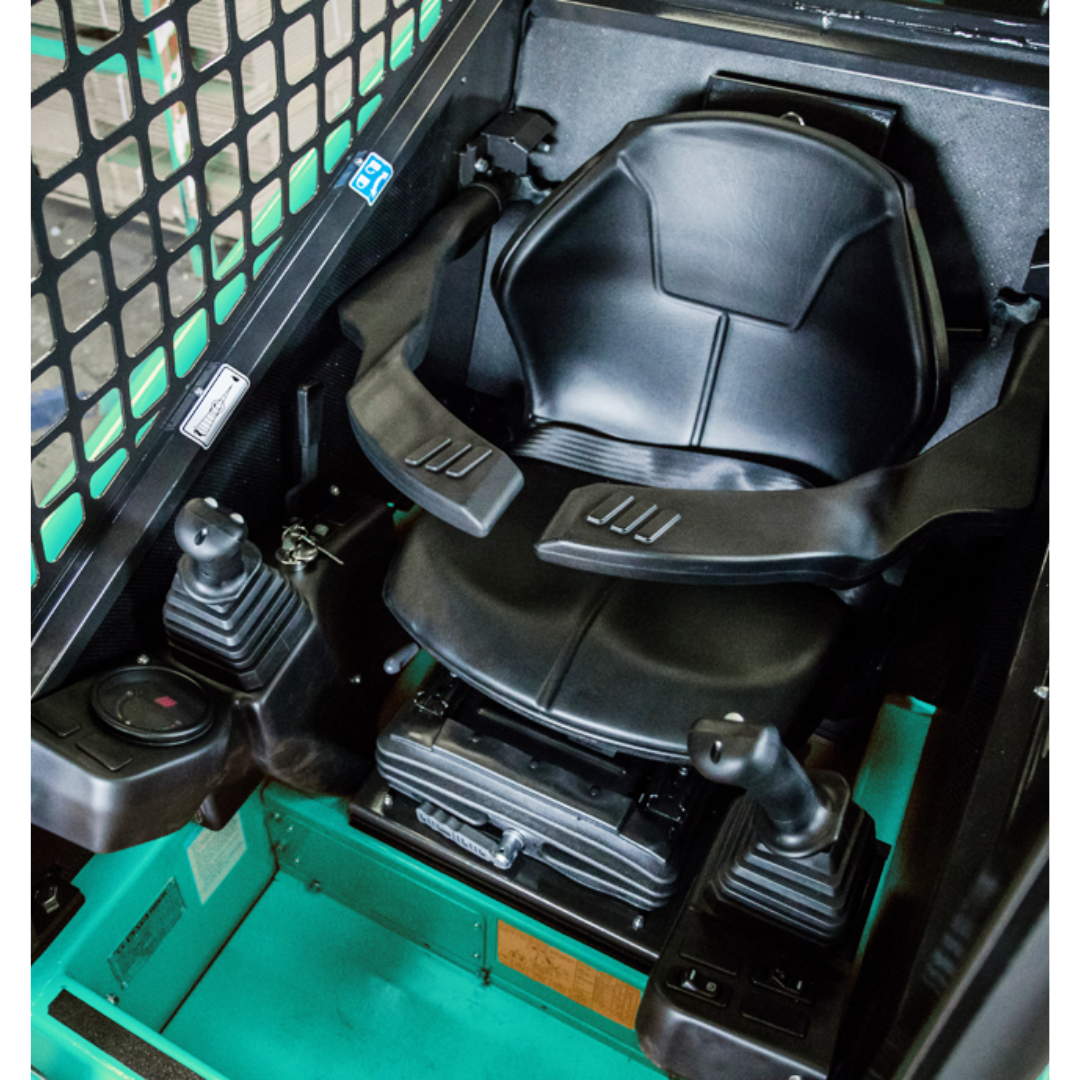

- Pilot operated joystick controls provide smooth, responsive machine operation and improved operator precision.
- Compact skid steer design allows easy maneuverability in confined workspaces, narrow access points, and congested jobsites.
- High breakout force of 1,658 ft/lb improves digging, loading, and material handling performance.

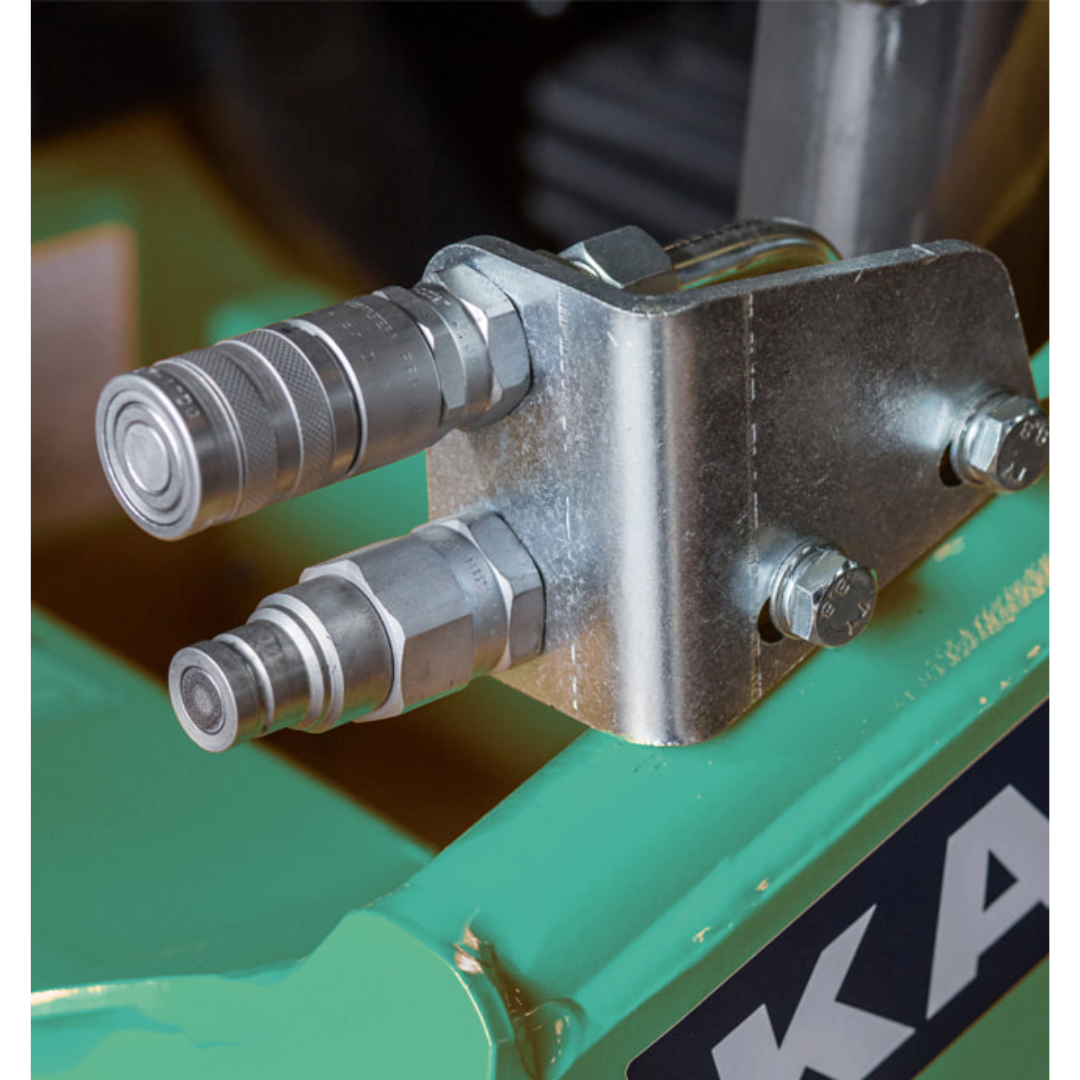

- Auxiliary hydraulic flow of 7.4 gpm supports operation of compatible hydraulic attachments and accessories.
- ROPS and FOPS compliant operator protection system enhances jobsite safety and operator protection.
- 4.5 mph travel speed improves machine productivity and transport efficiency around the jobsite.
- Excellent lifting geometry provides strong dumping height and effective loading capability for trucks, bins, and material piles.
- Heavy-duty construction engineered for durability in commercial construction, landscaping, and rental fleet applications.
- Compact wheelbase and turning radius improve maneuverability in restricted-access operating environments.
Why Choose the IMER SL 3730 Skid Steer Loader
- Compact footprint designed for confined-space applications.
- Reliable 21 HP Yanmar diesel engine delivers strong performance.
- Pilot operated joystick controls improve operator comfort and precision.
- Excellent breakout force and lifting capability for demanding tasks.
- ROPS and FOPS certified operator protection system.
- Ideal for construction, landscaping, excavation, and material handling.
- Durable skid steer platform designed for daily commercial use.
The IMER SL 3730 Skid Steer Loader combines compact maneuverability, dependable diesel-powered performance, advanced operator controls, and strong hydraulic capability into a versatile machine built for professional contractors and demanding jobsites.
