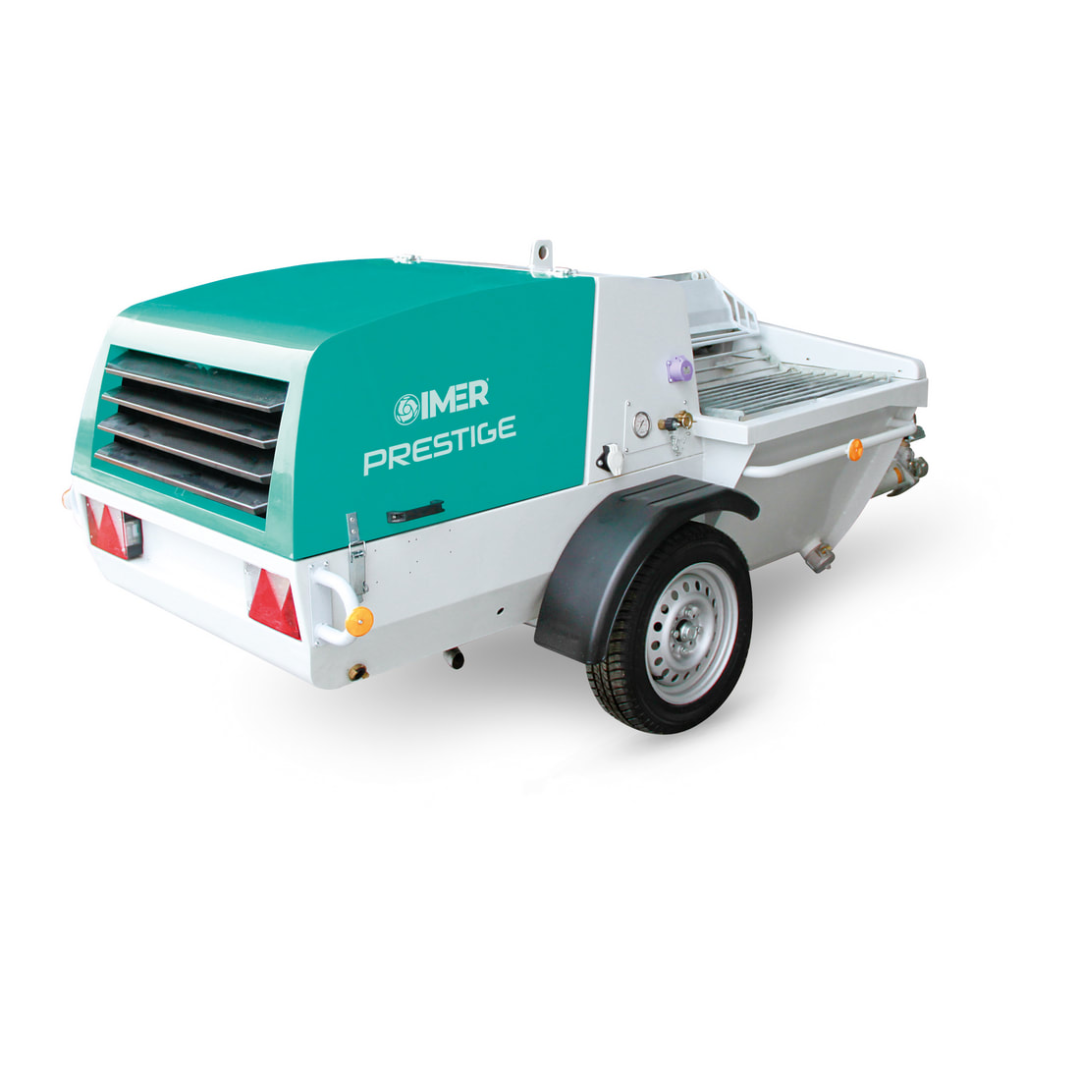

IMER PRESTIGE 300 Rotor/Stator Pump Applications
- Mortar pumping and spraying applications
- Stucco spraying for commercial and residential projects
- Shotcrete and structural repair work
- Fireproofing spray applications
- Waterproofing material pumping and spraying
- Restoration mortar and rehabilitation projects
- Grout pumping with aggregate materials up to 3/8"
- Underlayment pumping and placement
- High-production material transfer and spraying operations
The IMER PRESTIGE 300 Rotor/Stator Pump is designed for contractors who require a fully integrated diesel-powered pumping and spraying system capable of handling demanding high-volume commercial applications.
IMER PRESTIGE 300 Rotor/Stator Pump Specifications
| Model Number | 1106433 |
|---|---|
| Engine Power | 24 HP Diesel |
| Compressor Flow Rate | 14 CF/m |
| Maximum Aggregate Size | 3/8" |
| Hopper Capacity | 7 cu ft |
| Mixer Capacity | 6.3 cu ft |
| Dimensions (W × L × H) | 131.5" × 55.5" × 53" |
| Weight | 1,653 lbs |
IMER PRESTIGE 300 Rotor/Stator Pump Features & Performance
- 24 HP diesel engine delivers powerful independent operation for demanding jobsites without requiring external electrical power.
- Integrated 6.3 cubic foot hydraulic mixer provides continuous high-shear mixing for improved material consistency and production efficiency.
- Onboard 14 CF/m compressor supports professional spray applications including stucco, fireproofing, and shotcrete operations.
- Military-spec integrated control panel centralizes machine functions for simplified operation and faster operator training.
- Variable speed hydraulic pump system allows precise control over material flow and pumping performance.
- Programmable mixer timer helps maintain consistent mix quality and repeatable batching performance.
- Versatile rotor/stator compatibility allows contractors to configure the machine for a wide variety of material types and application requirements.
- Capable of handling aggregates up to 3/8" when equipped with the optional L7 rotor/stator system.
- Towable highway-ready chassis improves transport efficiency between commercial jobsites.
- Heavy-duty hydraulic mixing and pumping system designed for high-volume commercial and industrial construction applications.
IMER PRESTIGE 300 Rotor/Stator Pump Standard Equipment
- 24 HP diesel engine
- 14 CF/m onboard compressor
- 2L6 screw pump
- 2 clean-out sponges
- High shear hydraulic mixer
- Variable speed hydraulic pump
- Programmable mixer timer
- Metal accessory box
- Tow package for highway use
The IMER PRESTIGE 300 Rotor/Stator Pump includes a complete integrated pumping, mixing, and spraying system designed to maximize productivity while reducing setup complexity on demanding jobsites.
IMER PRESTIGE 300 Rotor/Stator Pump Optional Equipment
| Optional Accessory | Part Number |
|---|---|
| 33’ Ø 35mm hose | 1107528 |
| 33’ Ø 50mm hose | 1107533 |
| Aqua Control Electronic Meter System | 1107209 |
| Vibrating grate | 1107036 |
| 164’ remote control | 1107086 |
| IM25L rotor/stator kit | 1107149 |
| 60.12 rotor/stator kit | 1107090 |
| L7-1.5 rotor/stator kit | 1107660 |
| 50mm to 35mm material hose reducer | 1106178 |
| Spray gun Step 120 | 1107577 |
| 16’ x 35mm male to 25mm male hose | 1107074 |
| Pintle tow ring | 1107161 |
| Shotcrete gun | 1106250 |
| 5 function radio remote | 1107208 |
| Hydraulic power washer | 1107171 |
| 5’ overhead wand | 1107549 |
IMER PRESTIGE 300 Rotor/Stator Pump Production Advantages
- Integrated diesel engine allows operation in remote and undeveloped jobsites.
- Built-in hydraulic mixer eliminates the need for separate mixing equipment.
- Onboard compressor simplifies spray setup and improves efficiency.
- Variable speed hydraulic controls improve precision and material consistency.
- Supports multiple rotor/stator configurations for expanded material compatibility.
- High-capacity hopper and mixer improve production output for large commercial projects.
- Heavy-duty towable design enhances mobility between construction sites.
- Centralized controls simplify operation and reduce training time for crews.
The IMER PRESTIGE 300 Rotor/Stator Pump delivers a complete professional pumping and spraying solution for contractors who require high-output performance, material versatility, and self-contained jobsite operation.
Why Choose the IMER PRESTIGE 300 Rotor/Stator Pump 1106133
- Powerful 24 HP diesel engine for independent high-performance operation.
- Integrated hydraulic mixer and compressor reduce equipment requirements.
- Supports pumping and spraying of multiple construction material types.
- Configurable rotor/stator systems improve versatility for changing applications.
- Handles aggregates up to 3/8" with optional pumping configurations.
- Military-spec control system simplifies operation and improves efficiency.
- Towable highway-ready chassis enhances transportation flexibility.
- Professional-grade construction built for demanding commercial environments.
The IMER PRESTIGE 300 Rotor/Stator Pump 1106133 is a true all-in-one pumping and spraying system designed for professional contractors handling large-scale material placement projects. Combining diesel-powered performance, hydraulic mixing technology, integrated spraying capability, and heavy-duty construction, the PRESTIGE 300 delivers exceptional productivity, reliability, and versatility across a wide range of demanding construction applications.
