IMER MIX 750 Vertical Shaft Mixer Applications
- High-output precast concrete mixing operations requiring fast and consistent batch production
- Bridge and highway construction projects demanding continuous heavy-duty material processing
- Refractory mud and dry refractory material mixing for industrial and high-temperature applications
- UHPC and specialty cementitious material preparation for advanced infrastructure projects
- Large-scale mortar, grout, and concrete mixing operations for commercial construction environments
- Industrial jobsites requiring aggressive mixing action for low slump and stiff material applications
- Infrastructure repair and restoration projects demanding high-volume material production
- Commercial and municipal construction projects requiring mini-batch plant style mixing capabilities

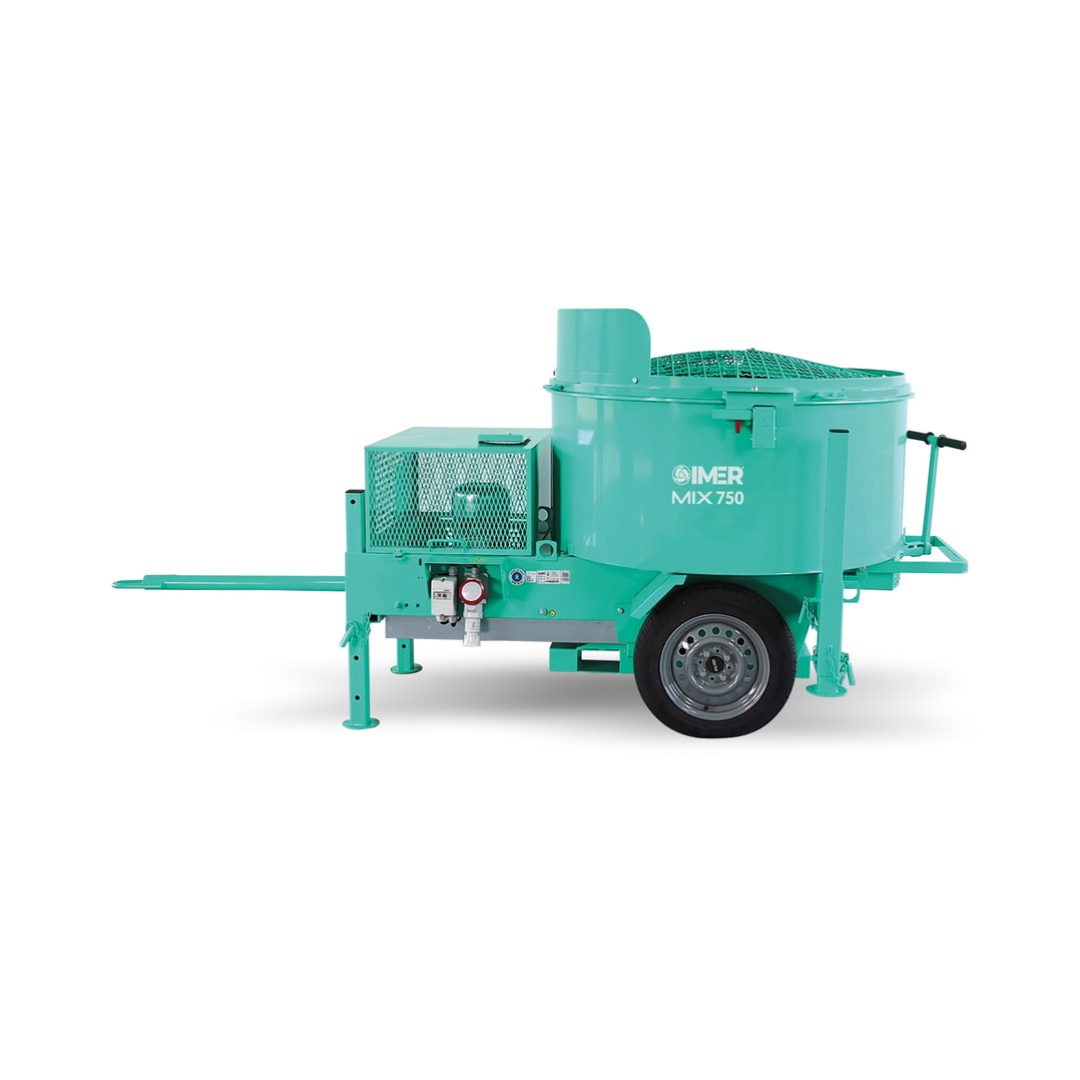

The IMER MIX 750 Vertical Shaft Mixer is designed for contractors and industrial material professionals who require exceptional production capacity, powerful mixing torque, and reliable large-scale material processing performance.
IMER MIX 750 Vertical Shaft Mixer Specifications
| Model Number - 240V Single Phase 5 HP | 1194644 |
|---|---|
| Model Number - 208V Three Phase 7.5 HP | 1194645 |
| Model Number - 480V Three Phase 7.5 HP | 1194646 |
| Model Number - 13 HP Honda GXV 390 | 1194648 |
| Model Number - No Motor | 1194640 |
| Drum Capacity | 22 cu ft |
| Batch Output | 18 cu ft |
| Drum Diameter | 52 in |
| Maximum Aggregate Size | 3/8 in |
| Discharge Height - Maximum / Minimum | 29 in / 23 in |
| Wheel Size | 22 in |
| Machine Weight | 1,588 lbs |
| Machine Width | 63 in |
| Machine Length | 90 in |
| Machine Height | 62 in |
IMER MIX 750 Vertical Shaft Mixer Performance & Construction
- Produces up to 18 cubic feet of material every three to four minutes for exceptional productivity on demanding commercial and infrastructure projects.

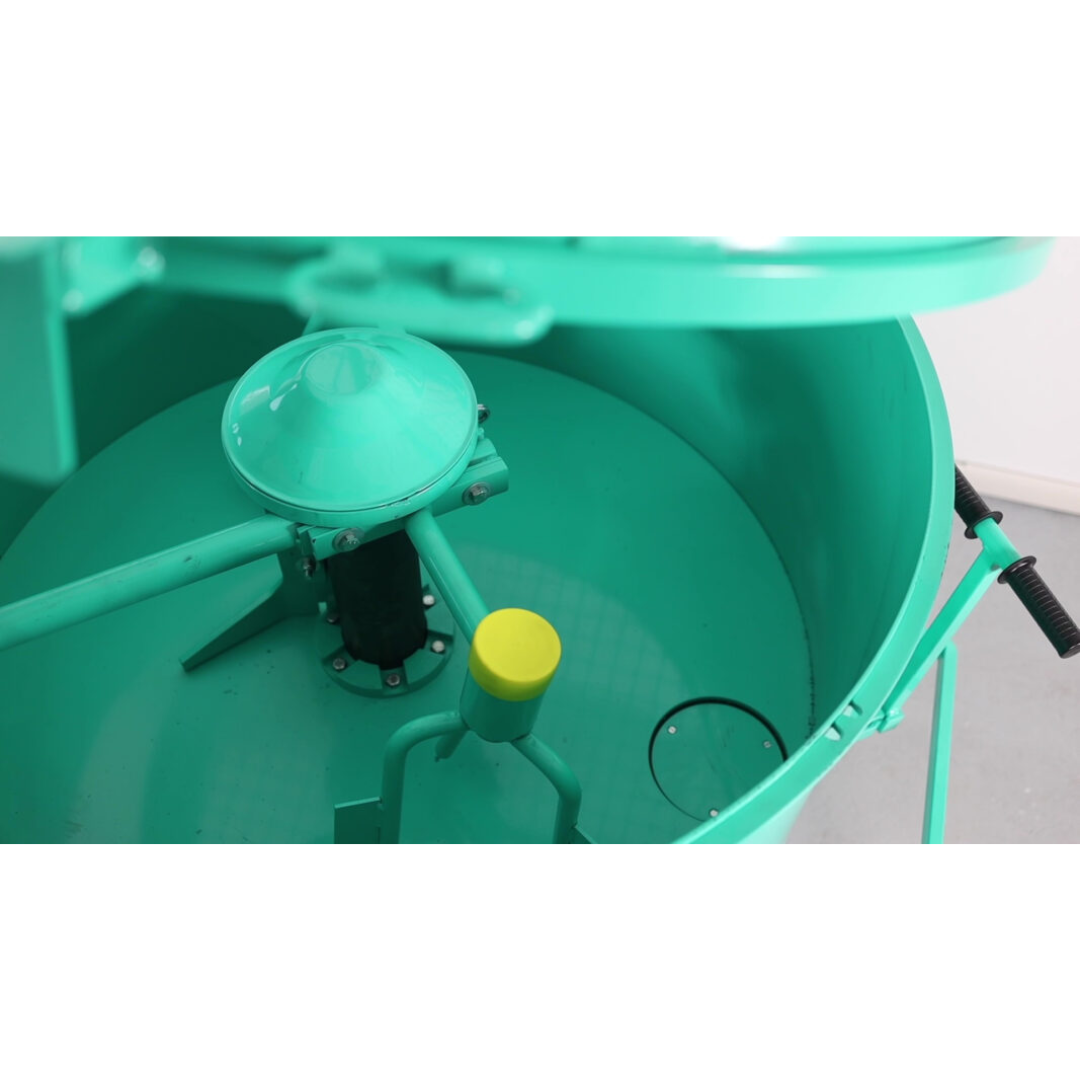

- Advanced vertical shaft mixing technology generates significantly more mixing torque than conventional horizontal shaft mortar mixers.

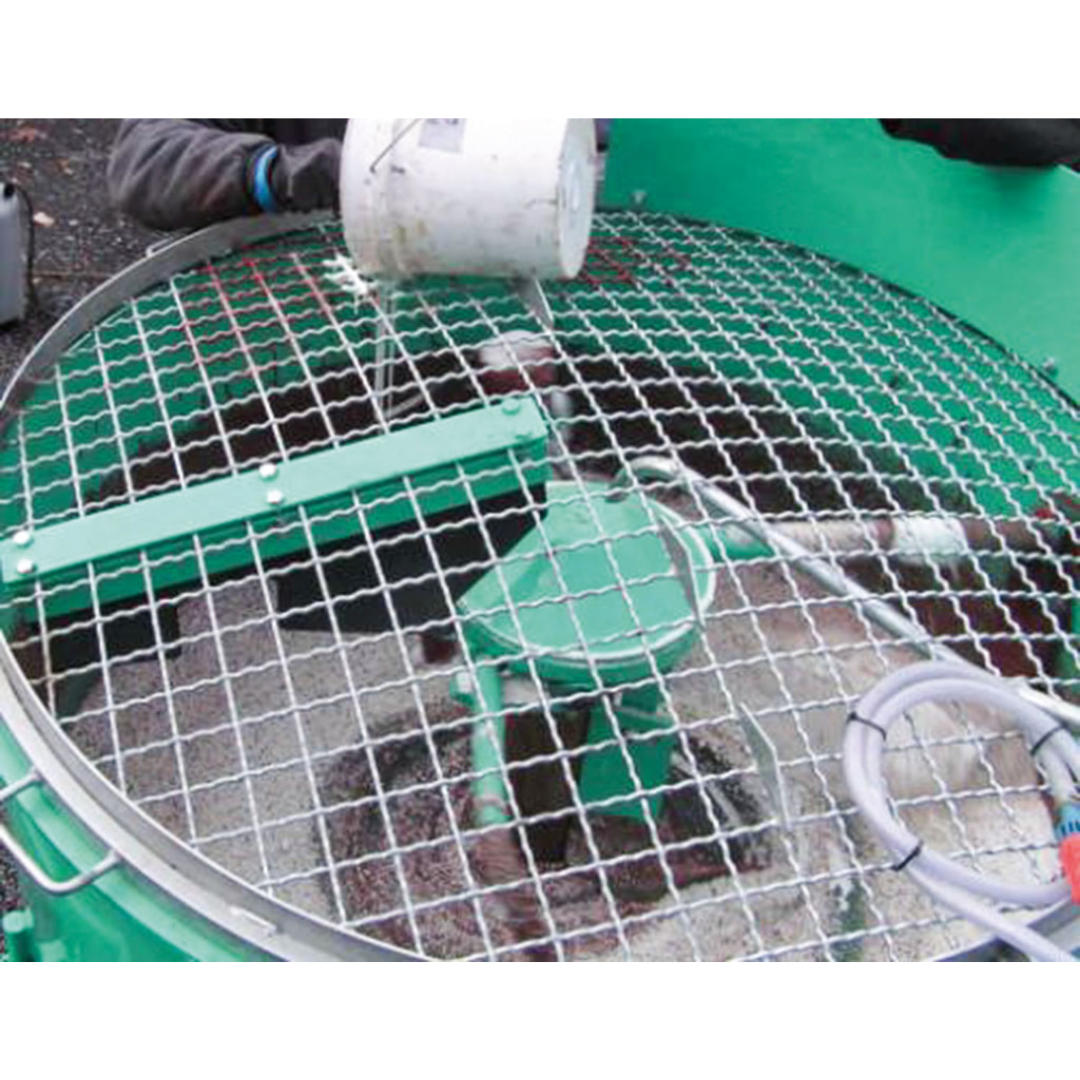

- Designed for stiff and low slump materials including refractory mud, UHPC, grout, mortar, and specialty cementitious compounds.
- Mini-batch plant style production capability delivers high-volume mixing performance at a fraction of the cost of larger plant systems.
- Massive 22 cubic foot drum capacity supports large-scale batch production and continuous jobsite efficiency.
- Heavy-duty discharge system is protected against impacts from mud buckets, forklifts, and demanding material handling operations.
- Easy-open discharge gate design improves operator efficiency and simplifies material unloading procedures.

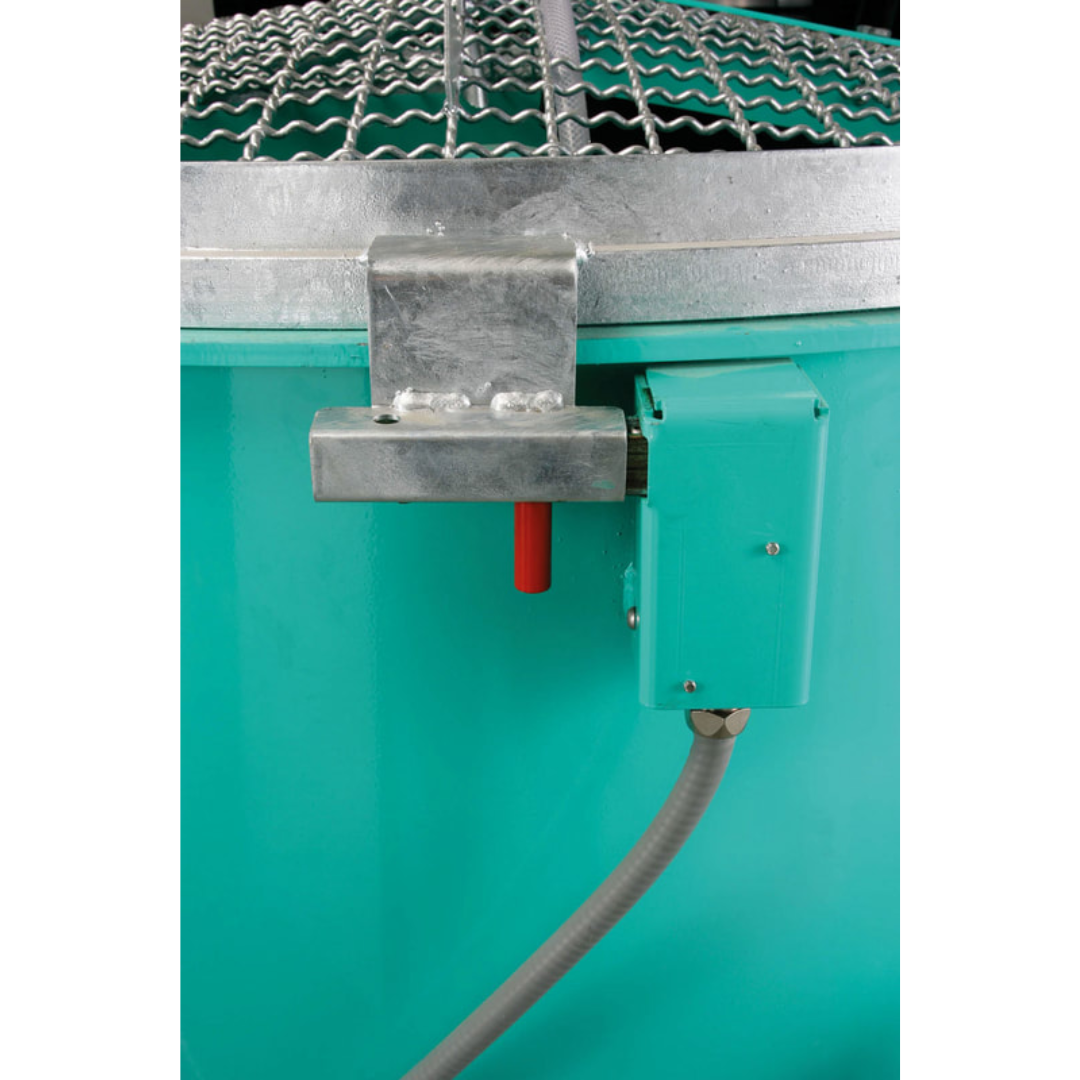

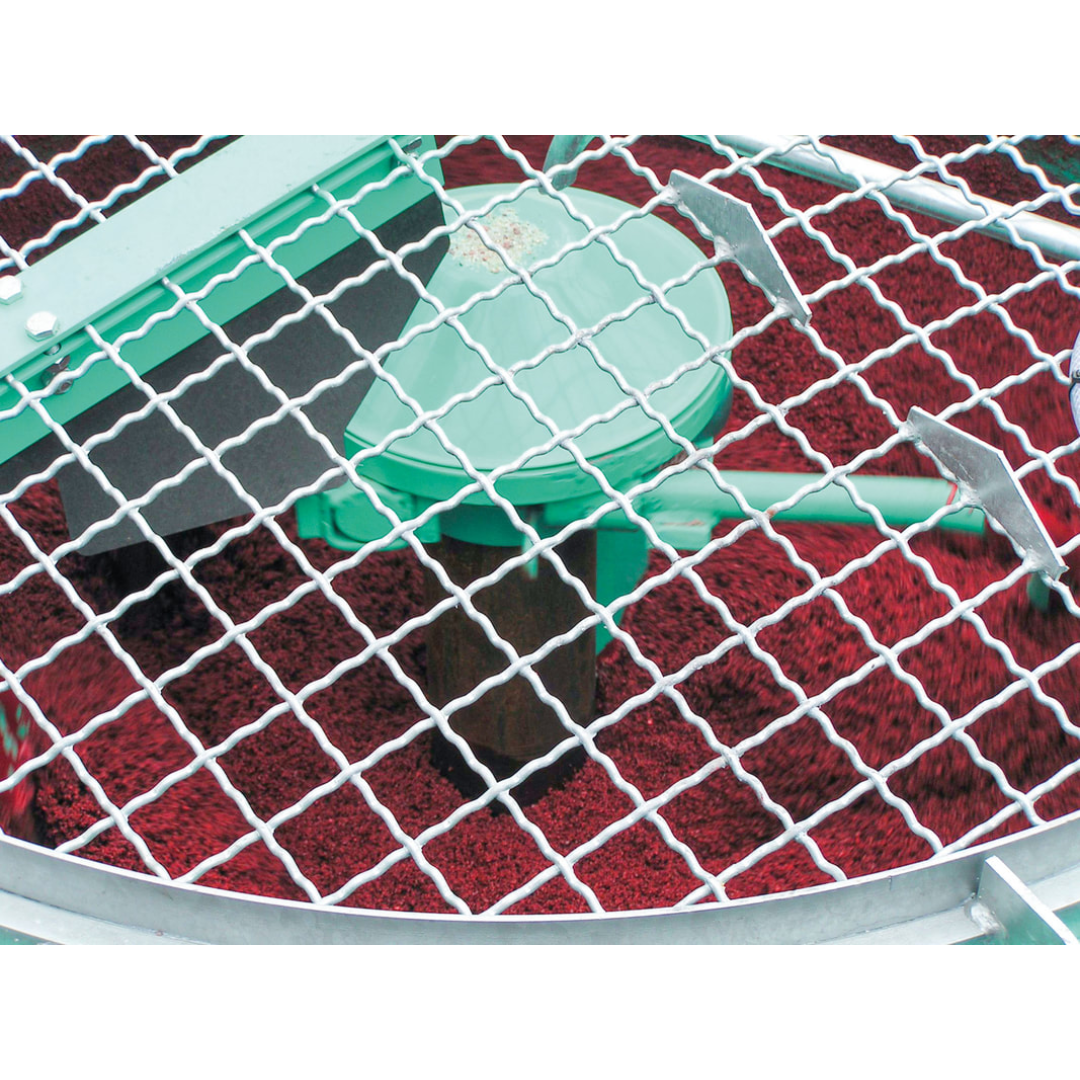

- Hinged auto-shutdown safety grate provides immediate drum access while improving operator safety during loading and operation.

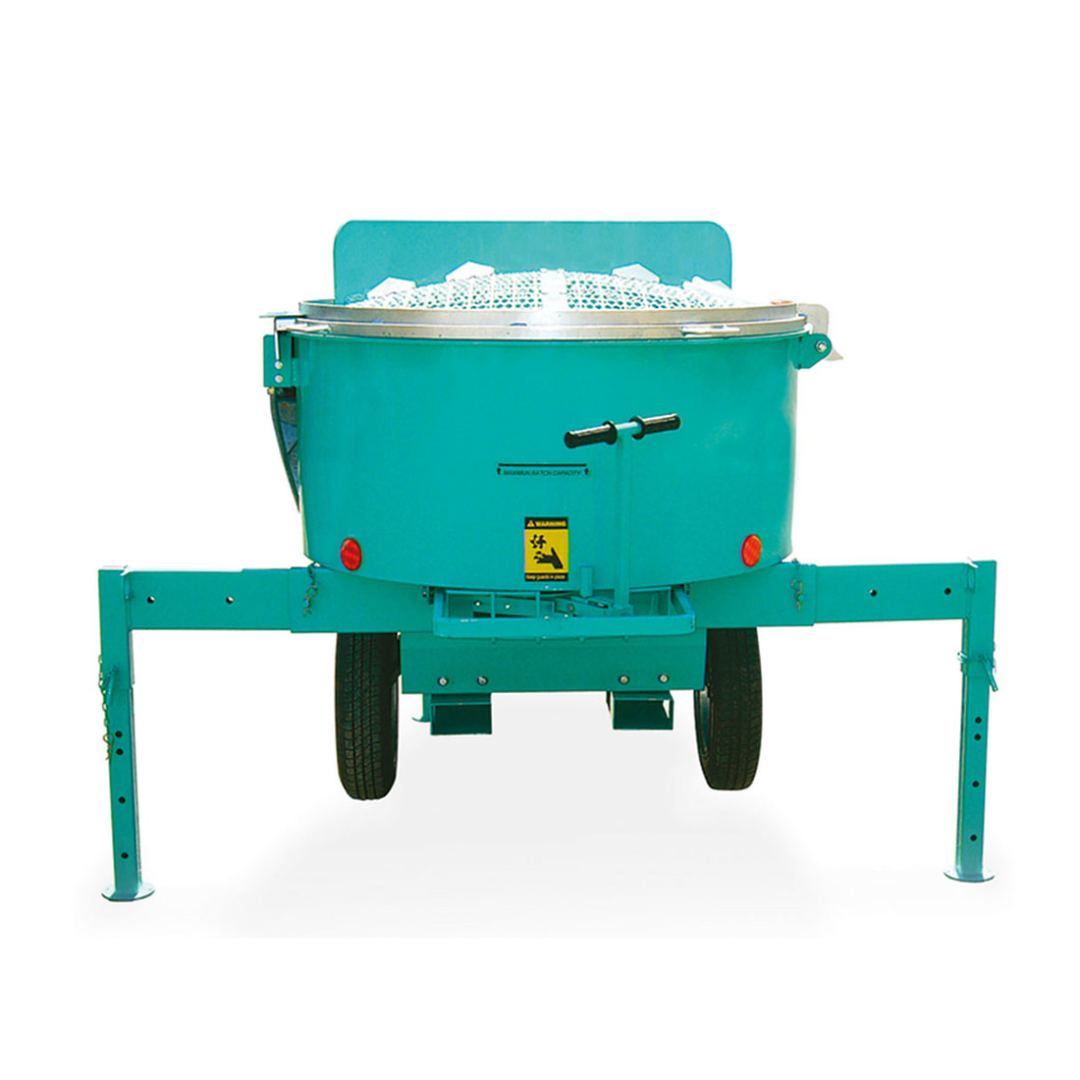

- Adjustable leg height system increases flexibility for discharge positioning and compatibility with various material handling setups.

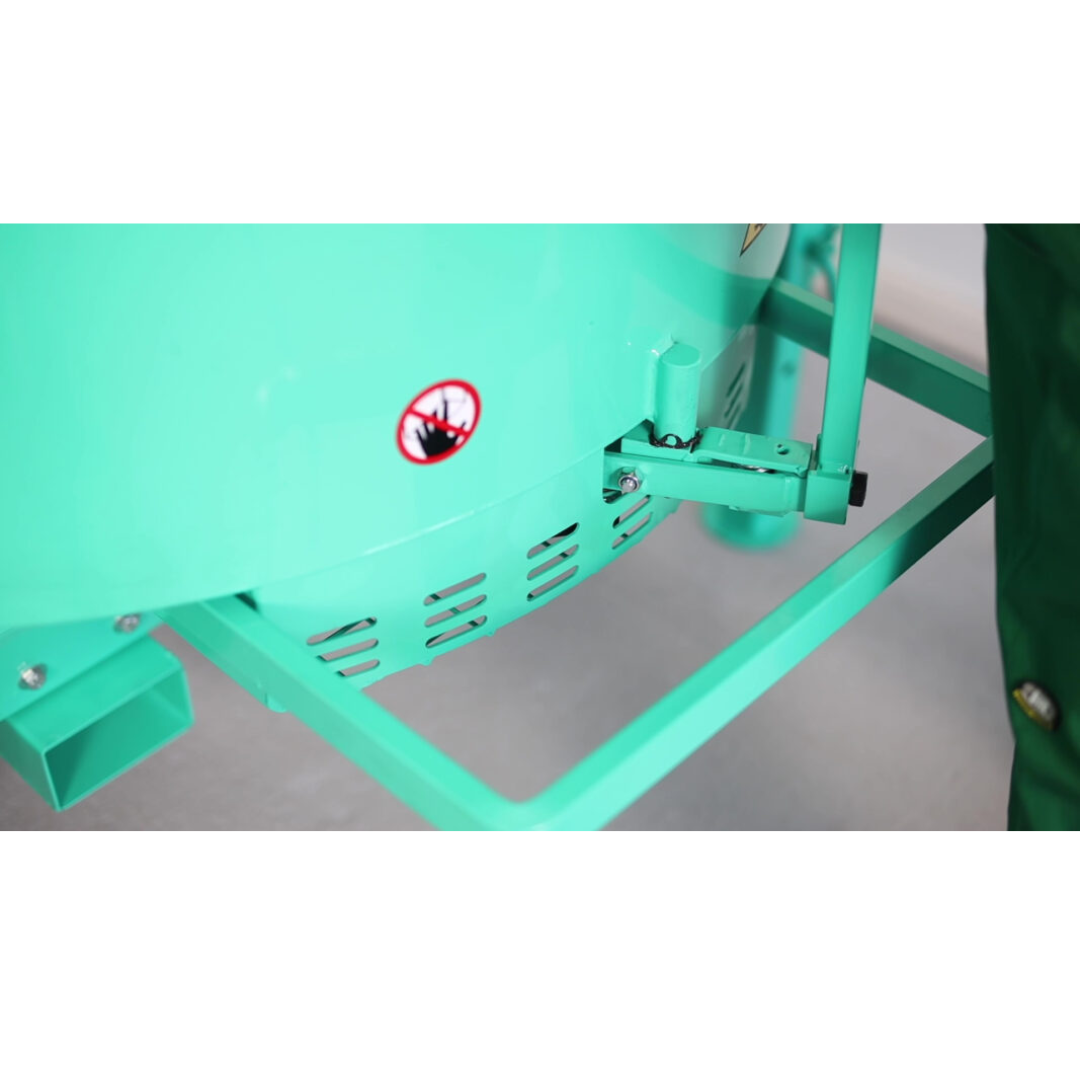

- Tow bar and torsion bar suspension system enhance towing stability, portability, and jobsite transportation performance.

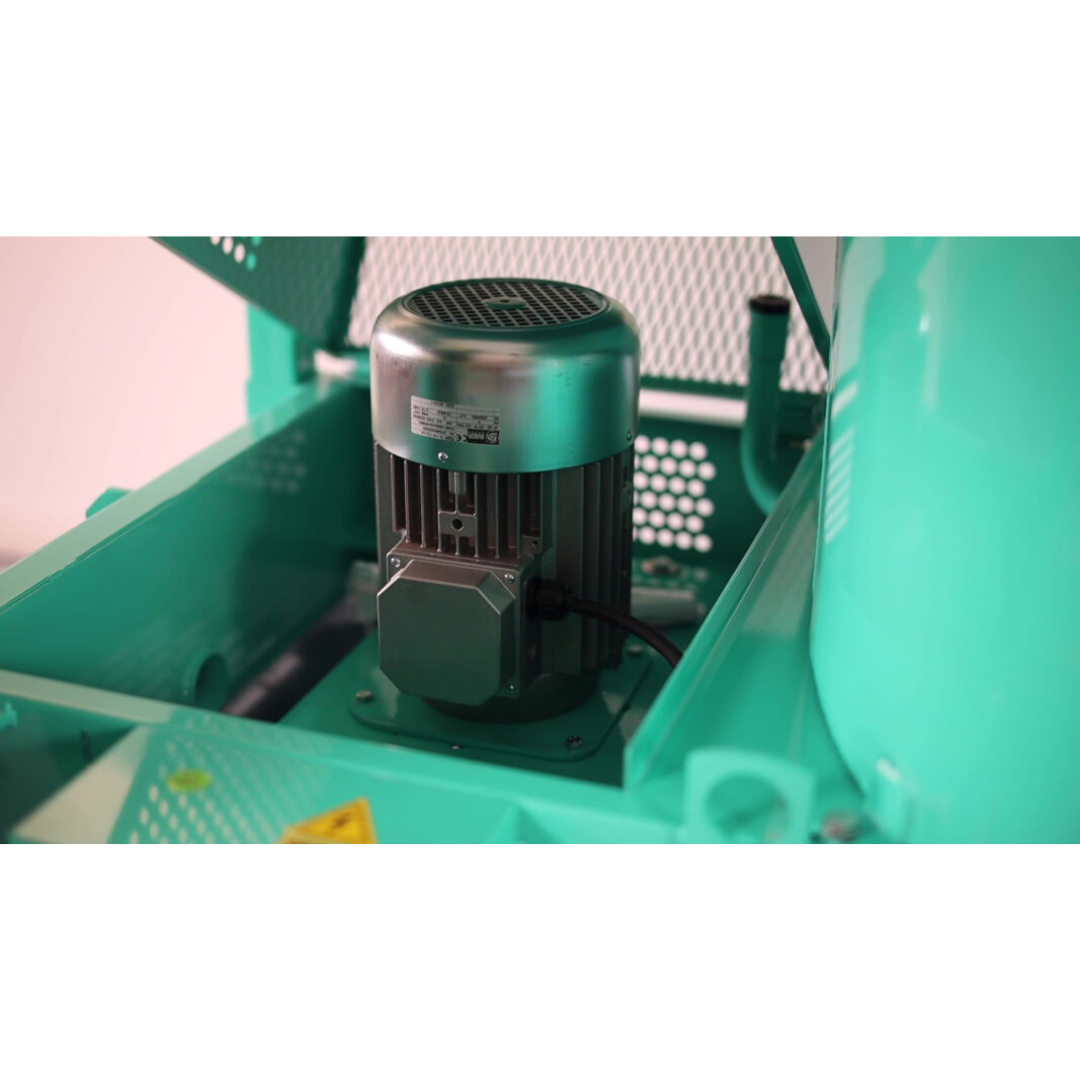

- Available in multiple power configurations including electric single phase, electric three phase, gas-powered, and no-motor versions for maximum operational flexibility.
- Heavy-duty industrial frame construction engineered for continuous use in demanding bridge, highway, precast, and commercial construction environments.
Why Choose the IMER MIX 750 Vertical Shaft Mixer
- Produces up to 18 cubic feet of material every three to four minutes for maximum productivity.
- Vertical shaft technology delivers exceptional torque and material consistency.
- Handles refractory mud, dry pack materials, UHPC, and low slump mixes with ease.
- Mini-batch plant production performance without the high plant installation cost.
- Heavy-duty towable construction built for infrastructure and industrial jobsite applications.
- Protected discharge system and advanced safety features improve operational reliability.
- Multiple power options provide flexibility across commercial and industrial environments.
The IMER MIX 750 Vertical Shaft Mixer combines industrial-scale production capacity, aggressive vertical shaft mixing performance, and advanced jobsite safety features to deliver professional-grade material processing for bridge work, highway construction, refractory applications, precast operations, and high-volume commercial construction projects.
