IMER MIX 360 Vertical Shaft Mixer Applications
- Dry pack mortar mixing for flooring systems, tile installation, and specialty concrete applications
- UHPC (Ultra High Performance Concrete) material preparation for advanced construction projects
- Refractory cement mixing for industrial, commercial, and high-temperature applications
- Stucco, grout, and mortar production for masonry and finishing contractors
- Large-scale commercial construction projects requiring high-output batch mixing performance
- Infrastructure and restoration projects demanding aggressive material blending and consistency
- Jobsite and plant operations requiring towable mobility and high-volume production capability
- Specialty cementitious material processing requiring low slump mixing efficiency
The IMER MIX 360 Vertical Shaft Mixer is designed for contractors and material professionals who require superior mixing torque, large batch production, and advanced safety features for demanding commercial and industrial applications.
IMER MIX 360 Vertical Shaft Mixer Specifications
| Model Number - Electric | 1194662 |
|---|---|
| Model Number - Gas | 1194661 |

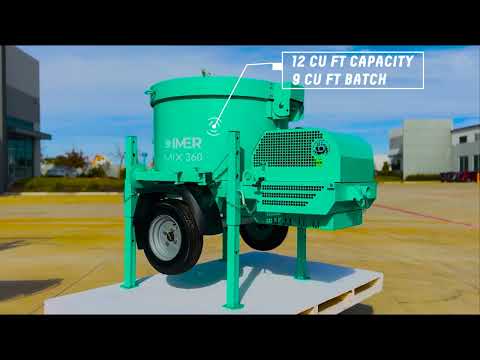

| Drum Capacity | 12 cu ft |
| Batch Output | 9 cu ft |
| Maximum Aggregate Size | 3/8 in |
| Discharge Height - Maximum / Minimum | 30 in / 18 in |
| Wheel Size | 18 in |
| Machine Weight | 787 lbs Electric / 794 lbs Gas |
| Electric Motor | 240V 5 HP Single Phase |
| Gas Engine | 11 HP Honda GXV 390 |
| Machine Width | 44 in |
| Machine Length | 59 in |
| Machine Height | 58 in |
IMER MIX 360 Vertical Shaft Mixer Performance & Construction
- Advanced vertical shaft mixing technology uses batch plant mixing principles for superior blending performance and consistent material quality.

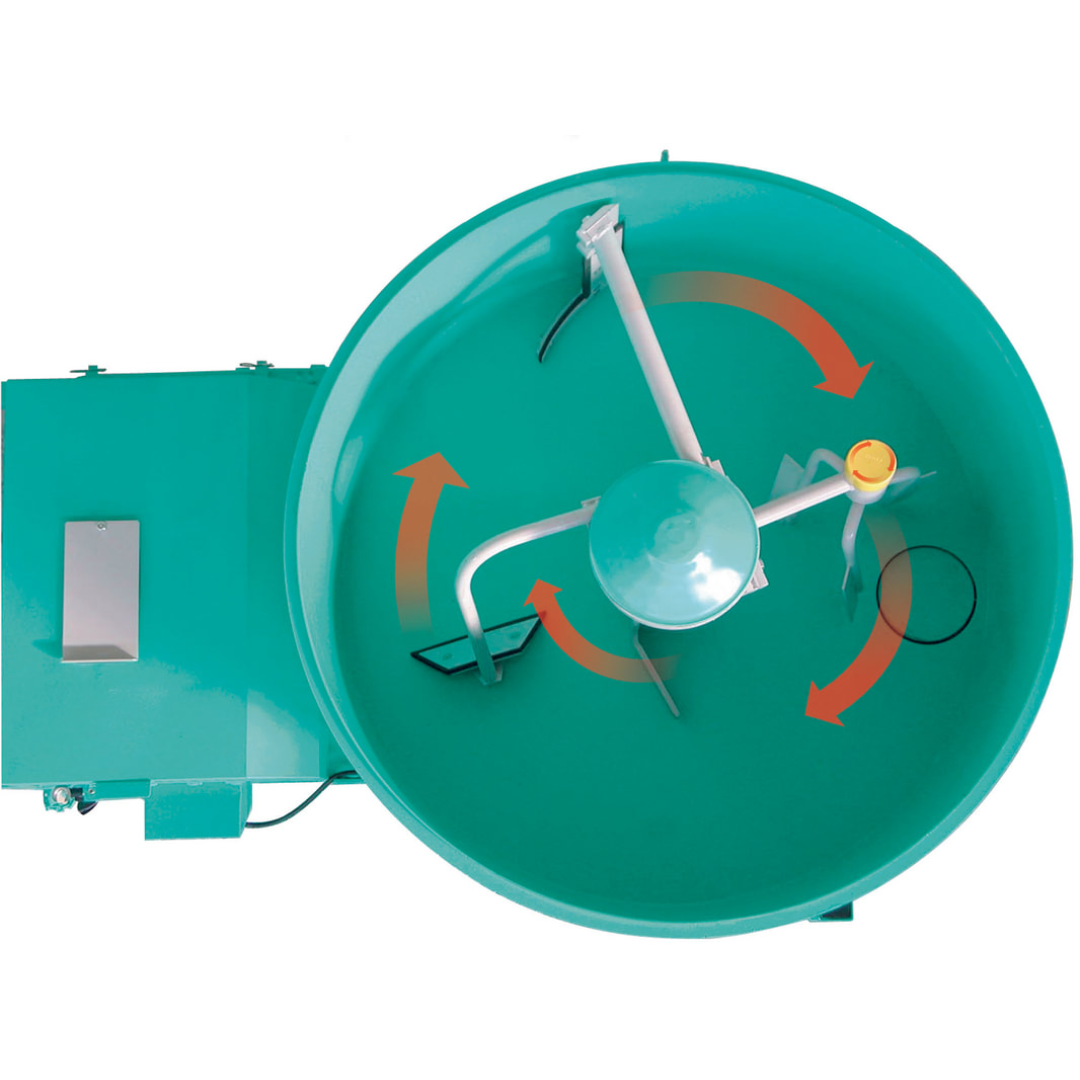

- Paddles rotate through the mix rather than lifting and dropping materials, providing more aggressive and efficient mixing action than conventional mortar mixers.
- Designed for low slump materials including dry pack mortar, refractory cement, UHPC, grout, and specialty cementitious compounds.
- High-capacity 12 cubic foot drum supports demanding commercial and industrial batch production requirements.
- 9 cubic foot batch output improves jobsite productivity and reduces downtime between mixing cycles.
- Available in electric or gas-powered configurations for flexibility across indoor and outdoor construction environments.
- 240V 5 HP single-phase electric motor provides powerful torque and dependable operation for continuous production applications.
- 11 HP Honda GXV 390 gas engine option delivers portable jobsite performance where electrical power may be limited.
- Auto-shutdown safety grate enhances operator safety by automatically stopping operation when the grate is opened.
- Adjustable leg heights provide improved discharge flexibility and compatibility with varying material handling setups.

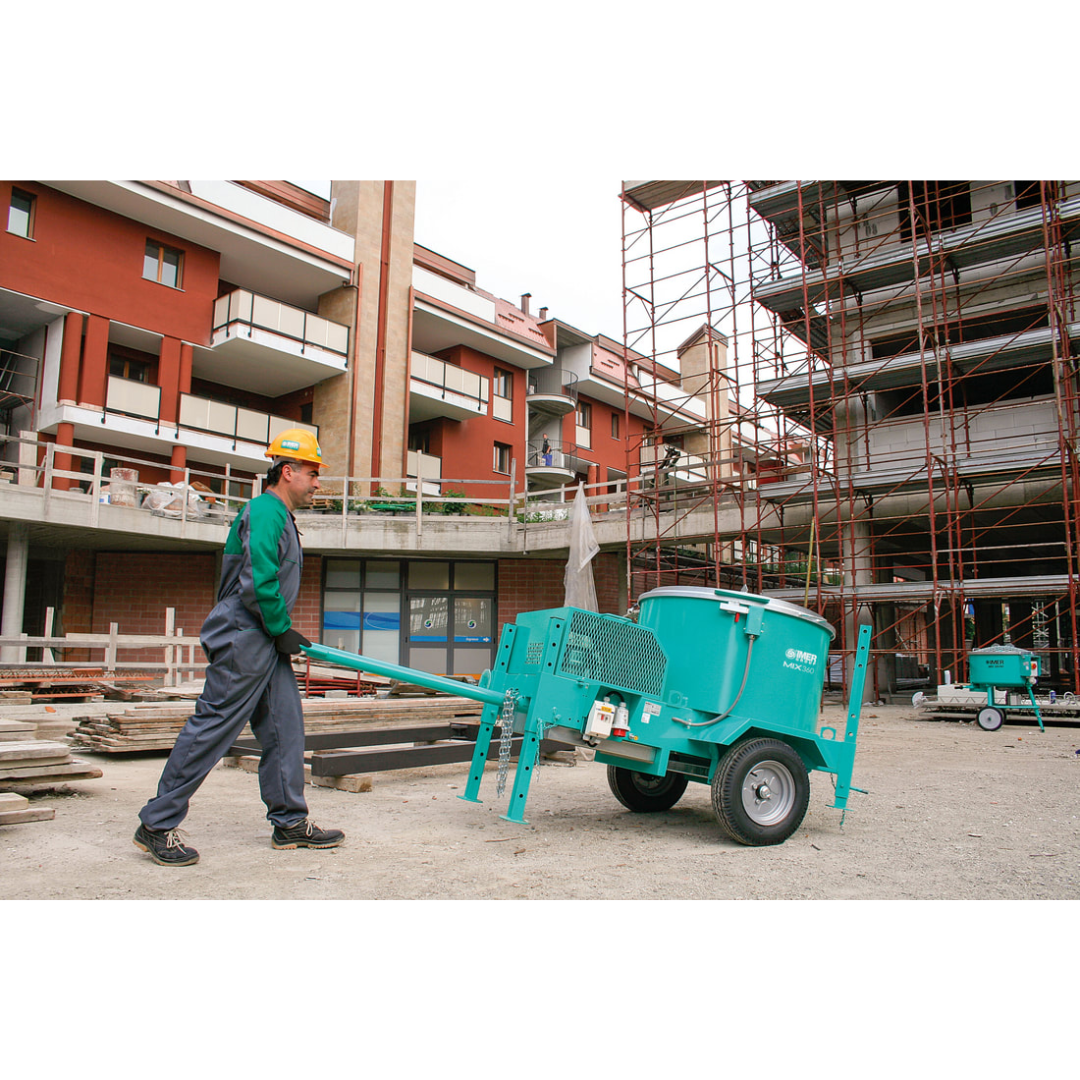

- Tow bar and torsion bar suspension system improve towing stability, portability, and jobsite transport efficiency.
- Heavy-duty towable frame construction engineered for long-term durability in demanding commercial environments.
Why Choose the IMER MIX 360 Vertical Shaft Mixer
- Vertical shaft mixing technology delivers superior blending consistency and efficiency.
- High-capacity production ideal for commercial and industrial construction applications.
- Designed specifically for difficult low slump materials including UHPC and refractory cement.
- Available in electric and gas-powered models for maximum operational flexibility.
- Advanced safety systems help improve operator protection on active jobsites.
- Towable heavy-duty design improves portability and transportation efficiency.
- Batch plant mixing principles provide professional-grade material consistency and productivity.
The IMER MIX 360 Vertical Shaft Mixer delivers unmatched mixing performance, high-volume production capability, and professional-grade safety features for contractors handling demanding mortar, grout, refractory, UHPC, and specialty cementitious material applications.
