IMER MIGHTY SMALL 50 Rotor/Stator Pump Applications
- Grout pumping into forms and structural cavities
- Bridge deck repair and restoration projects
- Fireproofing spray applications on commercial structures
- Stucco and mortar spraying operations
- Fine coating and paint spraying applications
- Tuckpointing and masonry repair projects
- Block fill, form fill, and door jamb filling applications
- Specialty coating and material transfer operations
- Construction sites requiring compact and portable pumping equipment
The IMER MIGHTY SMALL 50 Rotor/Stator Pump is built for contractors who need a compact yet highly adaptable pumping and spray system capable of handling multiple material applications with professional-grade performance.
IMER MIGHTY SMALL 50 Rotor/Stator Pump Specifications
| Model Number EVO | 1106344 |
|---|---|
| Model Number PLUS | 1106345 |
| Power Supply - EVO | 120V |
| Power Supply - PLUS | 240V |
| Maximum Aggregate Size | 1/4" |
| Hopper Capacity | 1.74 cu ft |
| Loading Height | 25.5" |
| Dimensions (W × L × H) | 20.5" × 44" × 25.5" |
| Weight - EVO | 90 lbs |
| Weight - PLUS | 100 lbs |
IMER MIGHTY SMALL 50 Rotor/Stator Pump Features & Performance
- Compact portable design allows easy transport through jobsites, scaffolding areas, and confined workspaces.
- Multi-purpose pumping and spraying capability supports a wide range of construction, restoration, and coating applications.

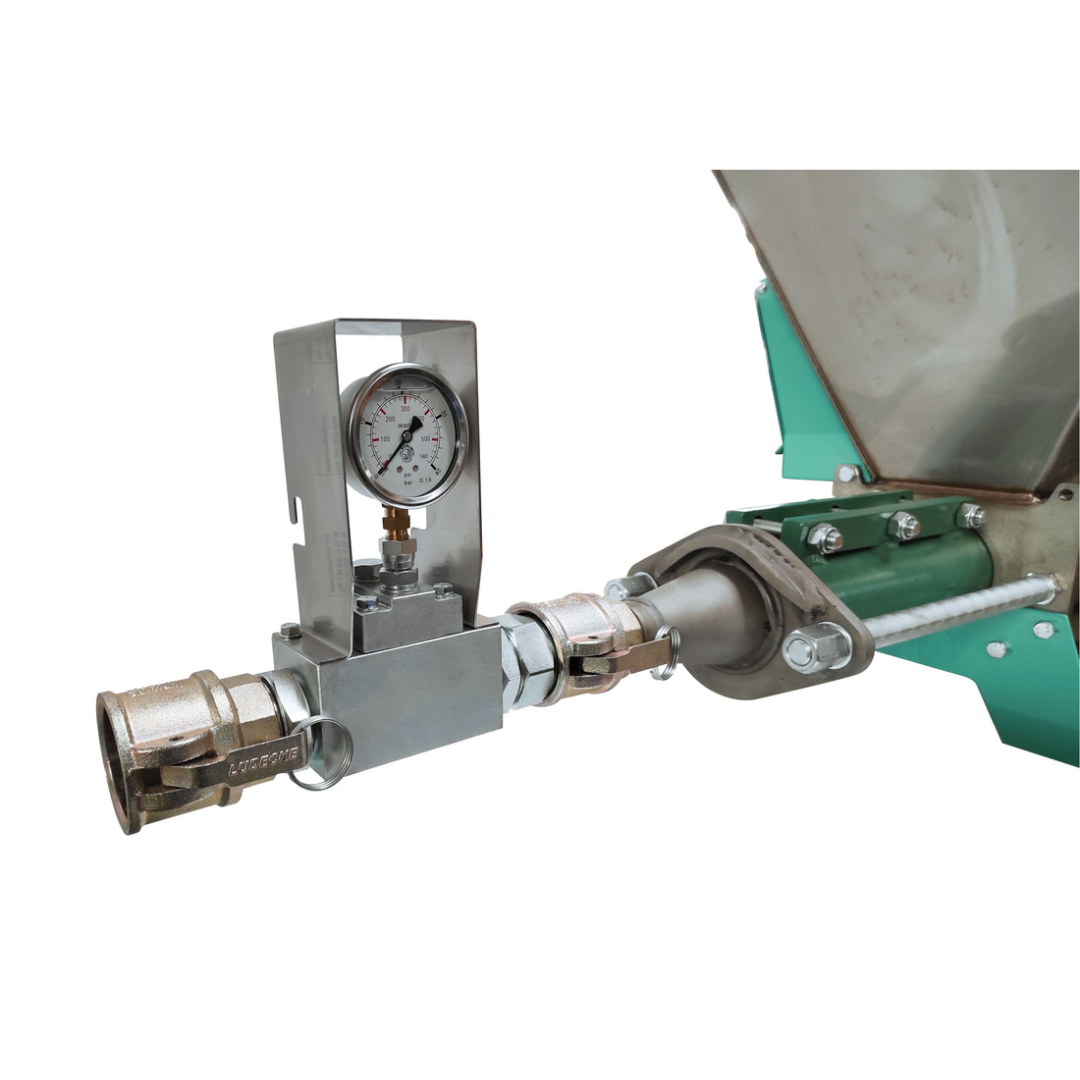

- D8 1.5 rotor and stator system delivers reliable pressure generation and smooth material flow for professional pumping performance.
- Stainless steel hopper improves durability while resisting corrosion and material buildup during operation.

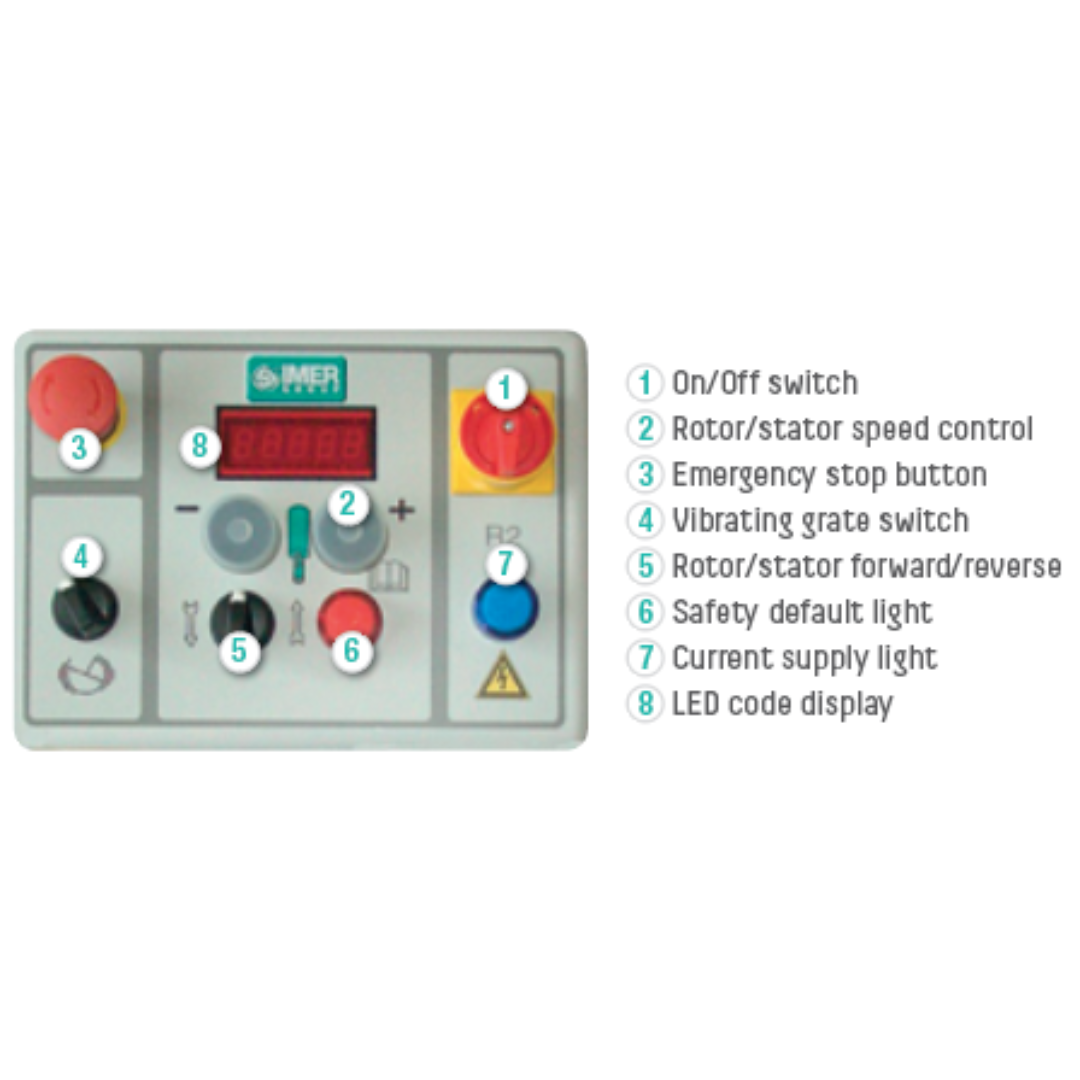

- Inverter-driven control panel provides adjustable operational control for varying material types and application requirements.
- Electric remote control cable allows convenient machine operation and enhanced jobsite flexibility.
- Integrated pressure gauge enables operators to monitor material pressure for improved consistency and system management.
- Accessory-ready configuration allows contractors to customize the machine for spraying, grouting, tuckpointing, and coating applications.
- Compact loading height reduces operator fatigue during material loading and improves handling efficiency.
- Lightweight construction supports easier transportation and maneuverability compared to larger pumping systems.
IMER MIGHTY SMALL 50 Rotor/Stator Pump Standard Equipment
- D8 1.5 rotor and stator
- Stainless steel hopper
- Inverter driven control panel
- Electric remote control cable
- Pressure gauge for material pressure
- Accessory toolbox
The IMER MIGHTY SMALL 50 Rotor/Stator Pump includes essential pumping and control components required for efficient operation while maintaining compatibility with a wide variety of optional accessories and application kits.
IMER MIGHTY SMALL 50 Rotor/Stator Pump Airless Spray Kit
- Stator 4N13S - Part #1107220
- Rotor 4N13S - Part #1107221
- AG19 Gun - Part #1107643
- Nozzle kit including 617, 619, 531, and 335 nozzles
- Green and white airless filter kits
- Safety sensor, pressure gauge, and cable
- 66’ airless hose (1/2”) - Part #1107654
- Gun cleaning kit - Part #1107658
The optional airless spray configuration transforms the IMER MIGHTY SMALL 50 Rotor/Stator Pump into a versatile coating and spray system for fine finishing and specialty material applications.
IMER MIGHTY SMALL 50 Rotor/Stator Pump Optional Equipment
| Optional Accessory | Part Number |
|---|---|
| Dual diaphragm compressor | 1107546 |
| Mortar, stucco and fireproofing gun kit | 1107005 |
| Paint and fine coatings gun kit | 1107010 |
| Grout injection kit | 1107006 |
| Tuck pointing gun kit | 1107504 |
| 50’ x 25mm material hose | 1107525 |
| 33’ x 25mm material hose | 1107526 |
| 16’ x 25mm material hose | 1107527 |
| 5’ overhead wand | 1107549 |
| Vibrating hopper for tuckpointing | 1107015 |
| Vibrating screen for bulk sand mixes | 1107548 |
| Pipe hook for block, form and door jamb filling | 1107570 |
| D5 - 2.5 Rotor | 1107085 |
| D5 - 2.5 Stator | 1107084 |
| Small 50 Plus Airless Spray Kit | 1107669 |
Why Choose the IMER MIGHTY SMALL 50 Rotor/Stator Pump
- Compact and lightweight design for excellent portability.
- Multi-purpose pumping and spray functionality for diverse applications.
- Configurable accessory system adapts to changing project requirements.
- Professional rotor/stator pumping technology ensures consistent material flow.
- Ideal for grout, stucco, coatings, fireproofing, and repair work.
- Available in both 120V EVO and 240V PLUS configurations.
- Easy-to-use controls and remote operation improve jobsite efficiency.
- Durable construction designed for professional contractor use.
The IMER MIGHTY SMALL 50 Rotor/Stator Pump delivers unmatched versatility in a compact portable package. Whether pumping grout, spraying coatings, handling tuckpointing applications, or performing fireproofing work, this machine provides dependable performance, adaptable functionality, and professional-grade results across a wide range of construction and restoration environments.
