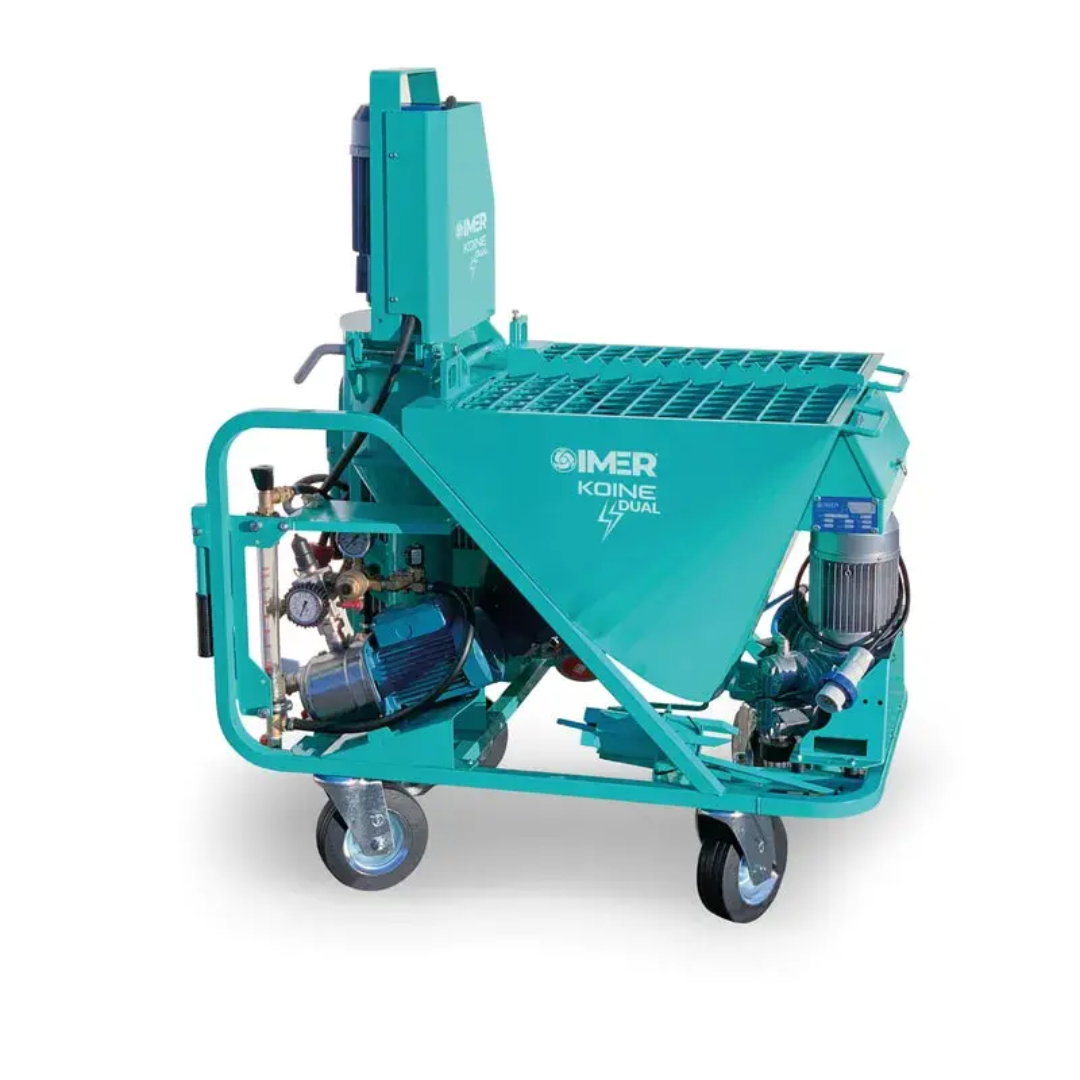

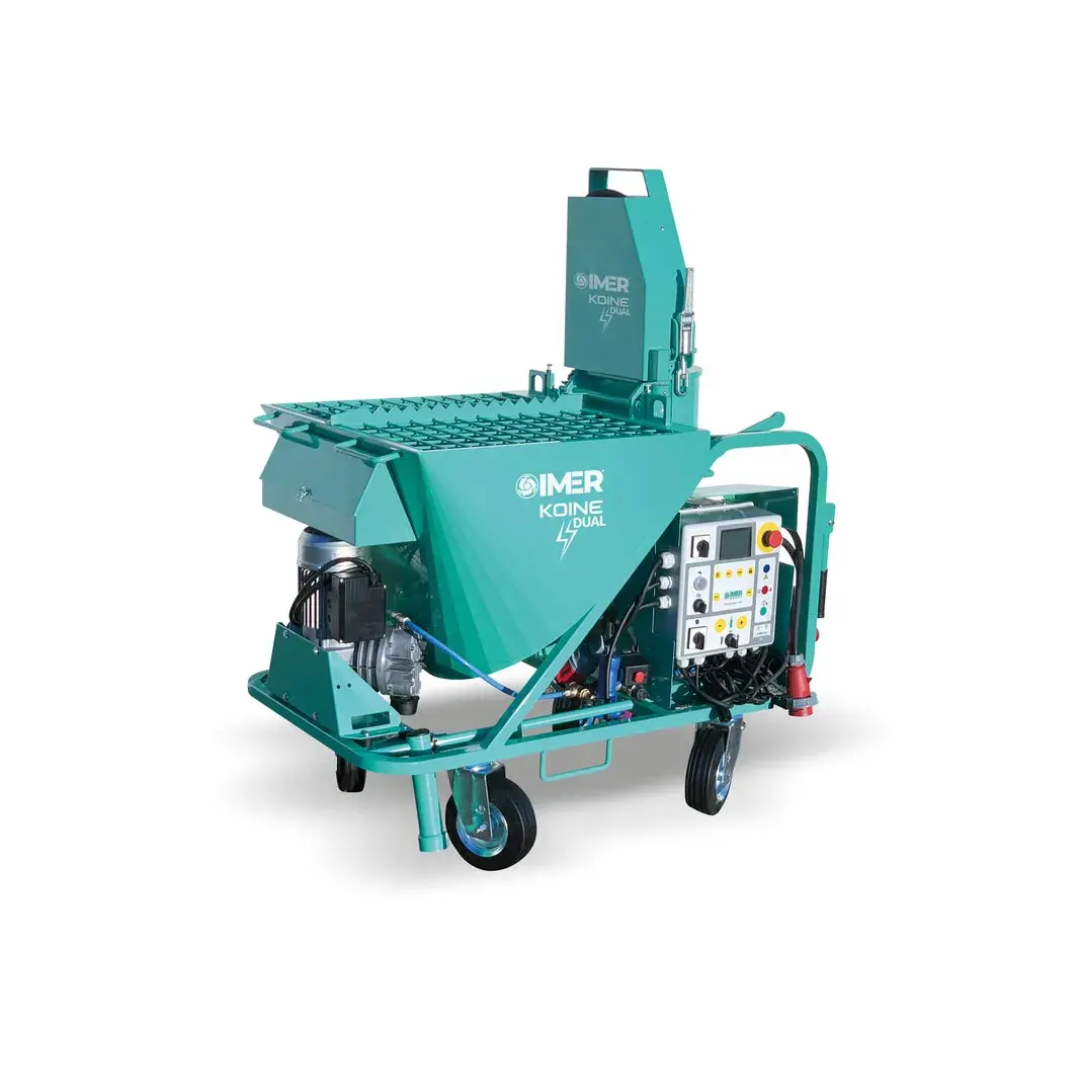

IMER KOINE DUAL Continuous Mixer/Pump Applications
- Self-leveling underlayment installation for commercial flooring projects
- Mortar pumping for masonry and structural applications
- Stucco and plaster spraying operations
- Fireproofing material mixing and pumping
- Grout transfer and specialty cementitious material handling
- Large-scale commercial and industrial construction projects
- Continuous pumping applications requiring high production output
- Projects needing flexible single-phase or three-phase power operation
The IMER KOINE DUAL Continuous Mixer/Pump is designed for contractors seeking high production output, advanced mixing consistency, and versatile power compatibility across a wide range of construction environments.
IMER KOINE DUAL Continuous Mixer/Pump Specifications
| Model Number | 1106312 |
|---|---|
| Power Supply | 208V / 240V - 3Ø / 1Ø |
| Total Machine Power | 9 HP |
| Drive Motor | 7.5 HP |
| Feeding Wheel Motor | 1 HP |
| Water Pump | 1 HP |
| Material Flow Rate | Up to 140 cu ft per hour |
| Bags Per Hour (SLU) | Up to 300 |
| Loading Height | 36" |
| Dimensions (W × L × H) | 29" × 47" × 62" |
| Weight | 574 lbs |
IMER KOINE DUAL Continuous Mixer/Pump Features & Performance
- Continuous mixing and pumping operation streamlines production by automatically batching, mixing, and delivering material without interruption.

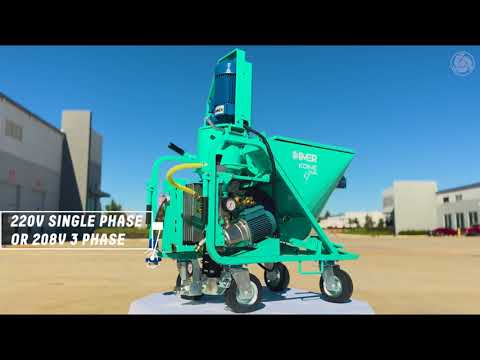

- Dual power capability allows operation using either single-phase or three-phase electrical service for maximum jobsite flexibility.

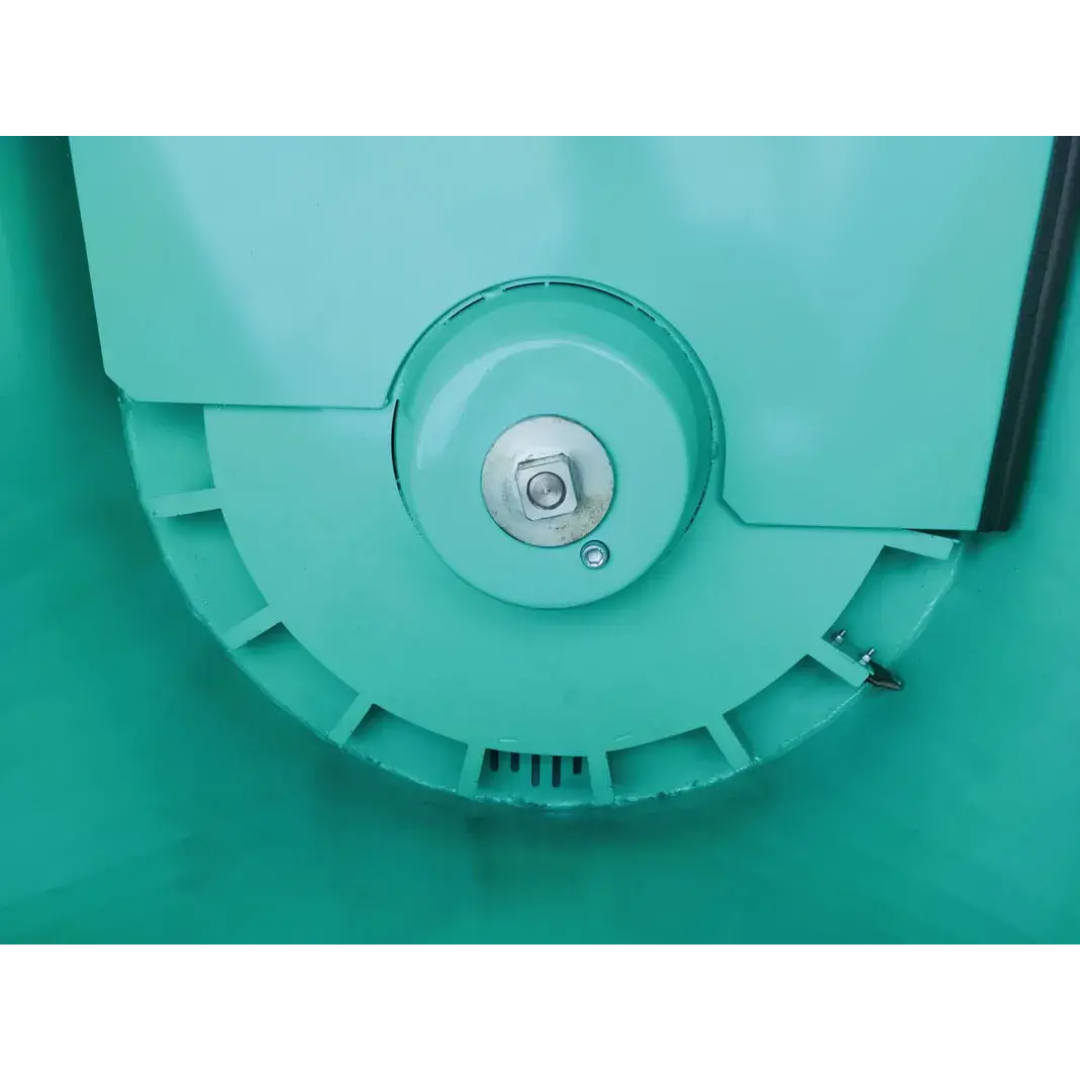

- High shear mixing paddle spins up to 400 RPM to thoroughly blend materials and improve consistency before pumping.
- Rotor-driven impeller system ensures material is completely mixed prior to placement for smoother application and improved finish quality.

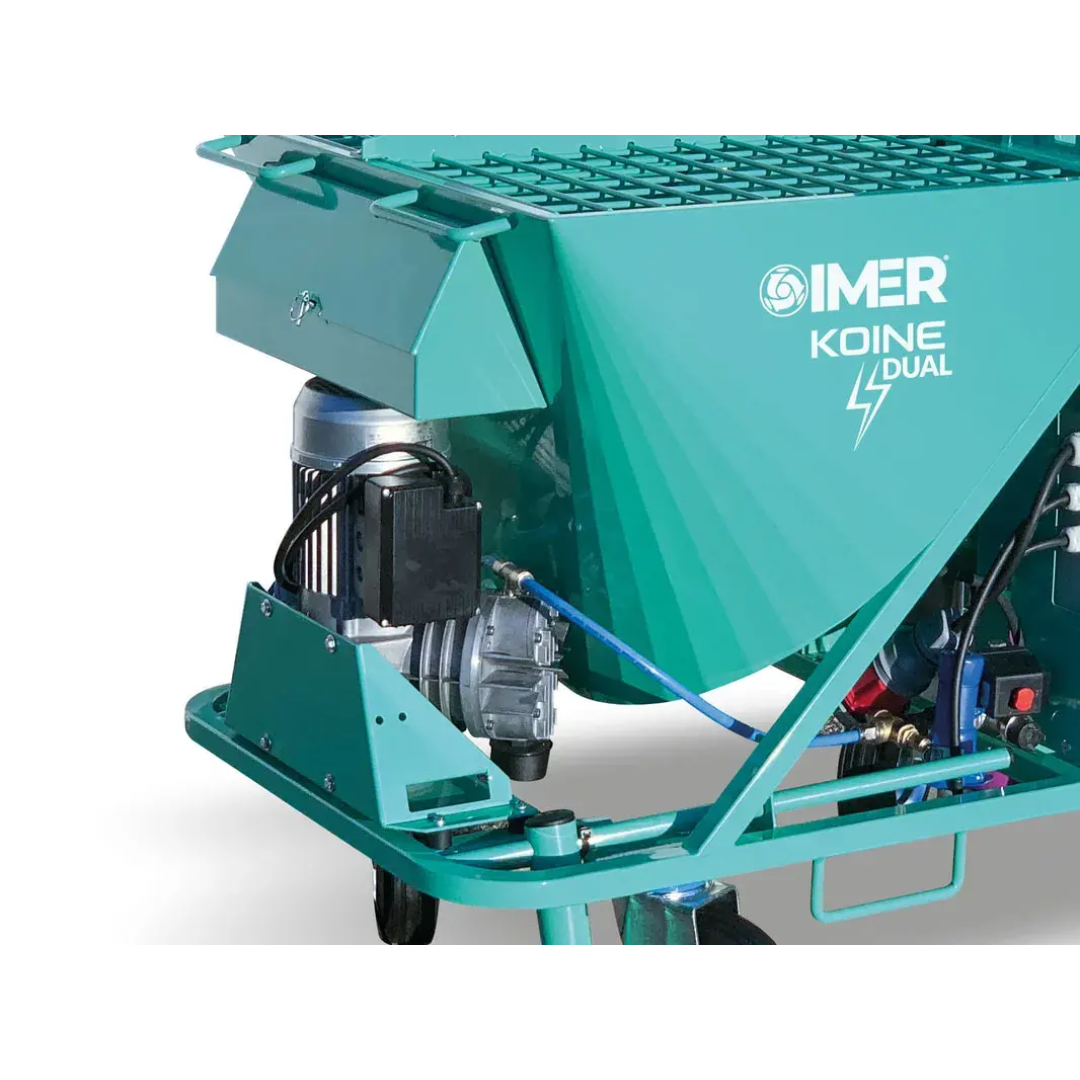

- Gear-driven feed impeller continuously moves dry material from the hopper into the mixing chamber for efficient material handling.
- Integrated water metering system introduces precise water flow to maintain accurate material consistency during operation.
- Self-priming stainless steel water pump provides dependable water delivery and long-term corrosion resistance.

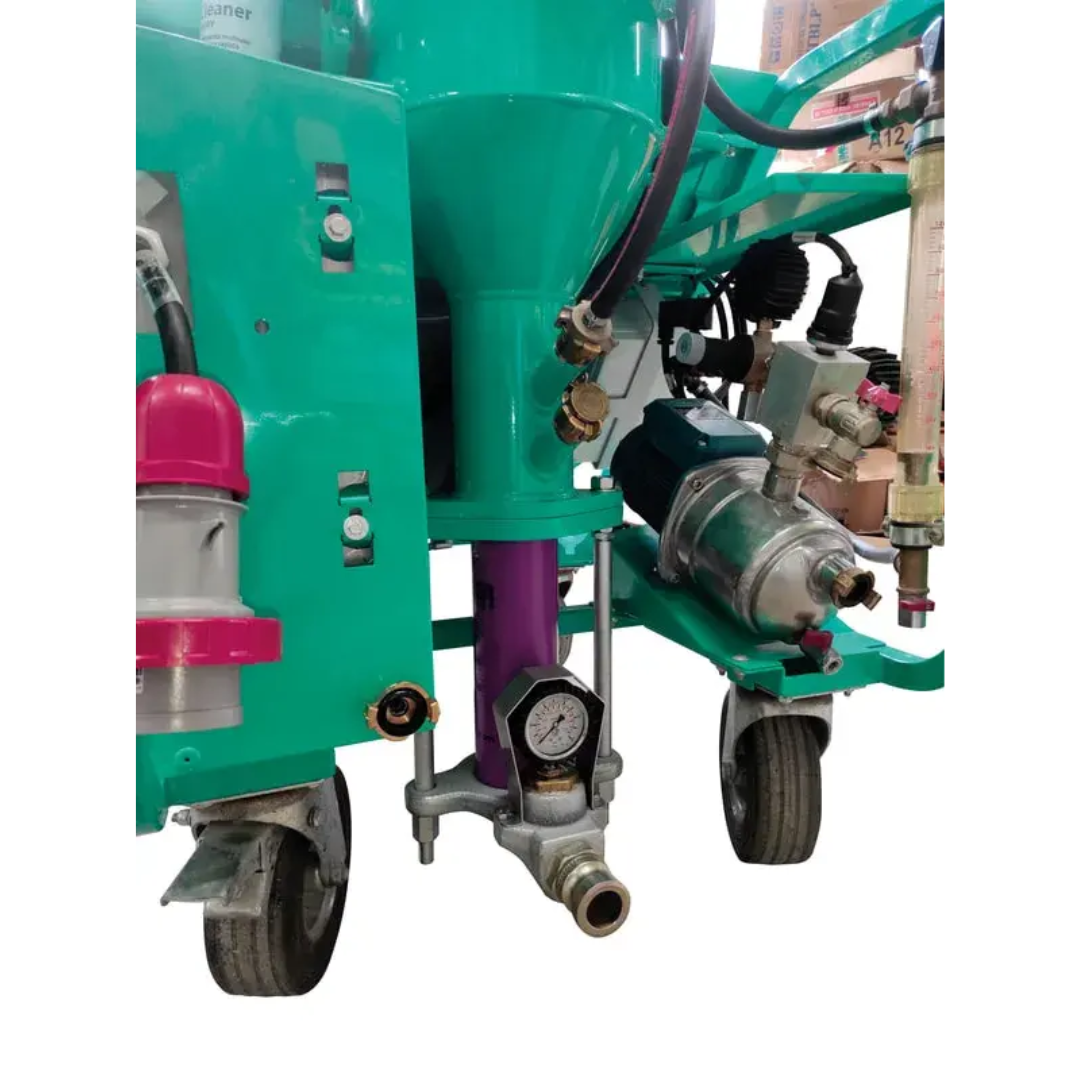

- Heavy-duty rotor and stator pumping assembly generates the pressure needed for consistent hose delivery and high-volume pumping applications.

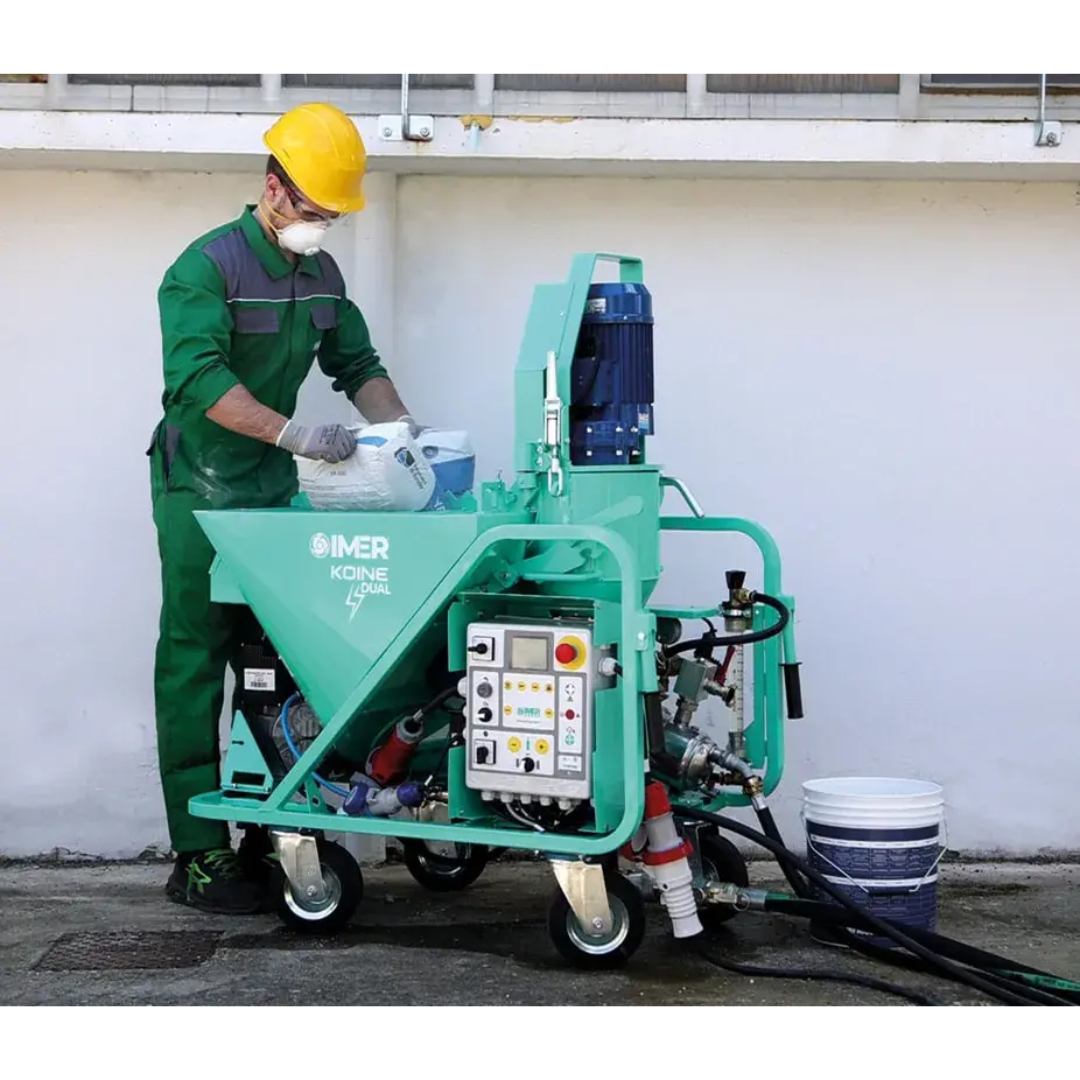

- Dust grate with vacuum port helps reduce airborne dust during bag loading operations and improves jobsite cleanliness.
- Integrated tool storage box keeps accessories, cleanup tools, and maintenance items conveniently stored on the machine.
- Quick-connect hose system simplifies setup and teardown while supporting efficient material transfer.
IMER KOINE DUAL Continuous Mixer/Pump Standard Equipment
- Dust grate with vacuum port
- R8 stator and rotor with tab
- Turbo mixer kit
- Material delivery pressure gauge
- Gear driven feed impeller
- Self-priming stainless steel water pump
- 35mm hose clean-out adapter
- Water system with flow meter and no freeze discharge valve
- 130’ electric cord
- 130’ water hose Ø 19 mm (3/4”)
- 33’ material hose Ø 35 mm (1-3/8”) with quick connects
- Integrated tool storage box
- Clean up kit with scraper and sponge
The IMER KOINE DUAL Continuous Mixer/Pump includes a comprehensive package of mixing, pumping, and cleanup equipment to maximize productivity and minimize setup time on demanding jobsites.
IMER KOINE DUAL Continuous Mixer/Pump Optional Equipment
| Optional Accessory | Part Number |
|---|---|
| Dual diaphragm compressor, 3 phase | 1107680 |
| Koine gun kit | 1107005 |
| 5’ overhead wand | 1107549 |
| 33’ x 35mm hose | 1107528 |
| 35mm - 25mm Reducer | 1107565 |
| R7 - 1.5 rotor with tab | 1107625 |
| R7 - 1.5 stator | 1107624 |
| R7 - 2.5 rotor with tab | 1107623 |
| R7 - 2.5 stator | 1107622 |
| Mixing paddle for light materials | 1107541 |
| Spray gun 35mm female | 1107641 |
Why Choose the IMER KOINE DUAL Continuous Mixer/Pump 1106312
- Operates on both single-phase and three-phase power for unmatched flexibility.
- Continuous mixing and pumping system improves efficiency and productivity.
- High-capacity output supports large commercial and industrial applications.
- Advanced mixing technology ensures smooth and consistent material quality.
- Integrated water metering and feed systems simplify operation.
- Heavy-duty pumping components are designed for long-term professional use.
- Comprehensive standard equipment package reduces additional setup costs.
- Compact mobile design allows easier transport and positioning on jobsites.
The IMER KOINE DUAL Continuous Mixer/Pump 1106312 combines high production output, advanced continuous mixing technology, and dual power flexibility into one powerful machine. Built for contractors handling demanding material pumping applications, the KOINE DUAL delivers consistent performance, reliable operation, and efficient material placement for modern construction projects.
