IMER KOINE 3.1 Continuous Mixer/Pump Applications
- Self-leveling underlayment installation and floor preparation
- Mortar pumping for masonry and block applications
- Grout mixing and delivery for construction and restoration work
- Stucco and plaster spraying operations
- Fireproofing and specialty coating applications
- Continuous pumping of cementitious materials in commercial construction
- Interior and exterior rendering applications
- Projects requiring high mobility and compact pumping equipment
The IMER KOINE 3.1 Continuous Mixer/Pump is designed for contractors who require a flexible machine capable of handling both continuous dry material feeding and wet mixed material pumping with excellent consistency and reliability.
IMER KOINE 3.1 Continuous Mixer/Pump Specifications
| Model Number | 1106351 |
|---|---|
| Power Supply | 240V 1Ø |
| Maximum Installed Power | 4.5 HP |
| Mixer Motor Power | 3 HP |
| Electric Pump Motor Power | 0.6 HP |
| Flow Rate - Dry Mode | 1/4 – 3/5 cu ft per minute |
| Flow Rate - Wet Mode | 0.08 – 3/5 cu ft per minute |
| Hopper Volume | 2.65 cu ft |
| Loading Height | 39" |
| Dimensions (W × L × H) | 26" × 42" × 59" |
| Weight | 350 lbs |
IMER KOINE 3.1 Continuous Mixer/Pump Features & Performance
- Dual wet and dry operating capability allows contractors to use either bagged dry materials or pre-mixed materials depending on project requirements.
- Continuous mixing and pumping design improves workflow efficiency by reducing downtime associated with batch mixing systems.

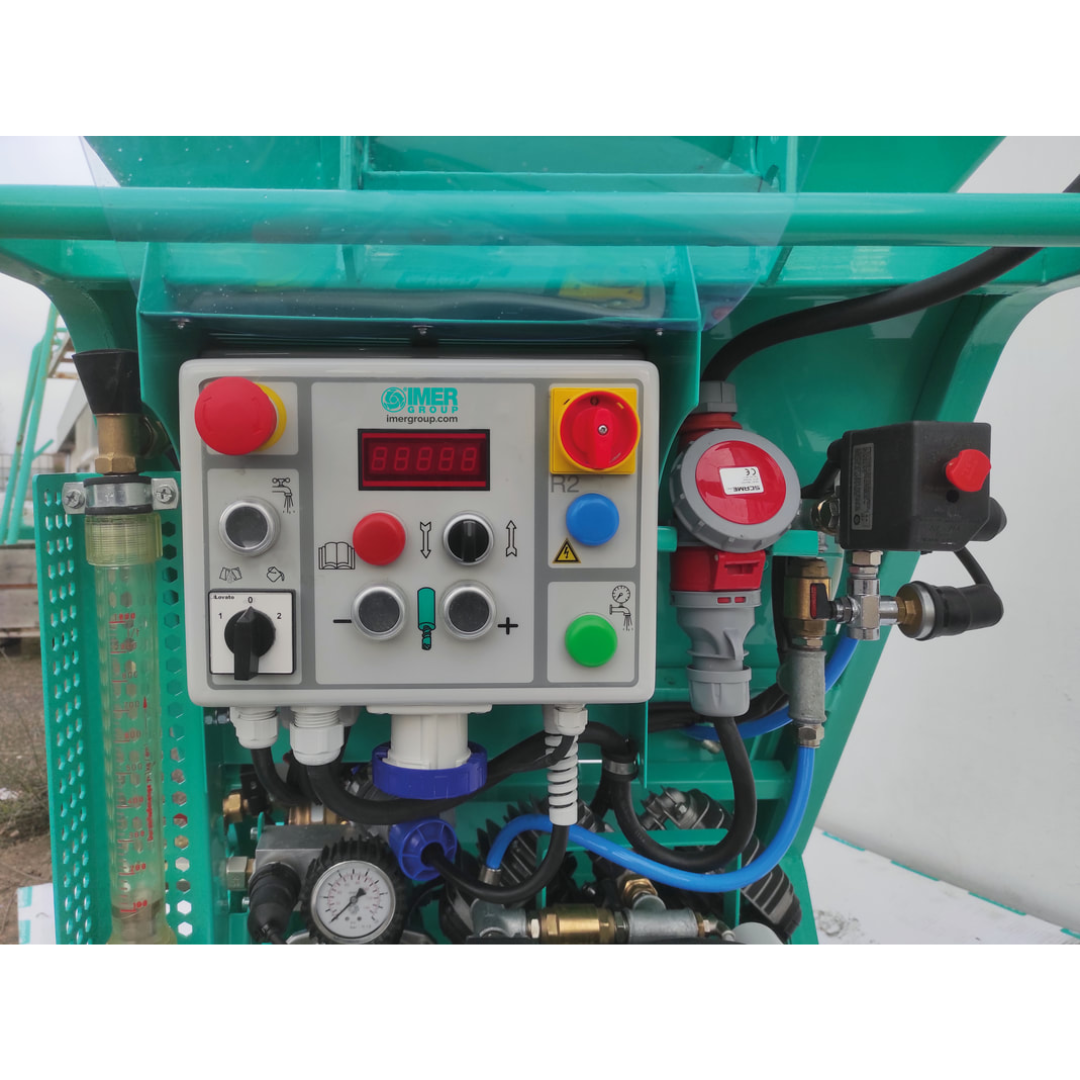

- Integrated IMER speed inverter control panel provides precise operational control and optimized pumping performance for different material consistencies.
- Self-priming water booster pump ensures reliable water delivery for accurate material mixing and consistent output.
- Material delivery pressure gauge allows operators to monitor pumping performance and system pressure during operation.

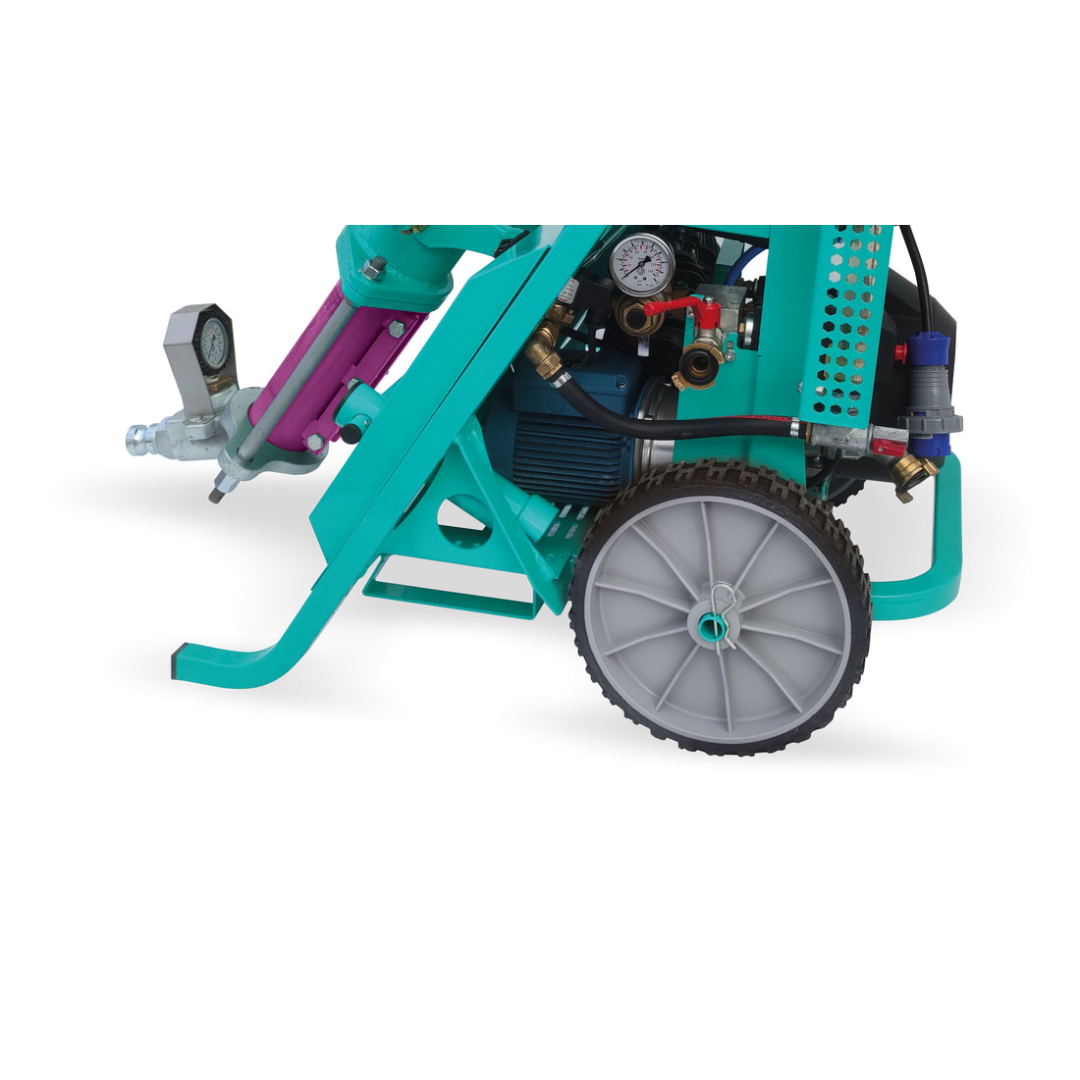

- Compact wheeled frame design enhances portability and maneuverability around jobsites and confined workspaces.
- Easy clean-out configuration helps reduce maintenance time between material changes and job completion.
- Air compressor ready setup allows the machine to be configured for spray applications including stucco and fireproofing.
- Heavy-duty rotor and stator pumping system delivers dependable material transfer with smooth and consistent flow rates.
- Versatile pumping performance supports a wide range of construction materials including mortars, grouts, underlayments, and plasters.
IMER KOINE 3.1 Continuous Mixer/Pump Standard Equipment
- D8 1.5 stator and rotor
- Material delivery pressure gauge
- Control panel with exclusive IMER speed inverter
- Self-priming water booster pump
- Water system with flow meter and discharge valves
- 66’ power cord
- 66’ water hose Ø 19 mm (3/4”)
- 50’ material hose Ø 25 mm (1”)
- Hose cleaning kit with toolbox
- Mixing chamber clean out tool
- Air compressor ready configuration
The included accessories and pumping components allow the IMER KOINE 3.1 Continuous Mixer/Pump to be jobsite-ready for a wide range of pumping and spraying applications immediately after setup.
IMER KOINE 3.1 Continuous Mixer/Pump Optional Equipment
| Optional Accessory | Part Number |
|---|---|
| Dual diaphragm compressor | 1107637 |
| Mortar, stucco and fireproofing gun kit | 1107005 |
| D5 - 2.5 Rotor | 1107085 |
| D5 - 2.5 Stator | 1107084 |
| Turbo mixer | 1107517 |
| 50’ x 25mm material hose | 1107525 |
| 33’ x 25mm material hose | 1107526 |
| 16’ x 25mm material hose | 1107527 |
| 5’ overhead wand | 1107549 |
| D8 - 1.5 Rotor with tab | 1107029 |
| D8 - 1.5 Stator | 1107028 |
| SLU mixing paddle for light materials | 1107597 |
Why Choose the IMER KOINE 3.1 Continuous Mixer/Pump 1106351
- Operates in both wet and dry pumping configurations for maximum flexibility.
- Compact and mobile design ideal for commercial and residential construction sites.
- Continuous operation improves production efficiency and material consistency.
- Integrated pumping and mixing system reduces labor and setup requirements.
- Compatible with a wide variety of mortars, grouts, plasters, and specialty materials.
- Built with professional-grade IMER components for long-term durability and dependable performance.
- Comprehensive standard equipment package minimizes additional setup costs.
The IMER KOINE 3.1 Continuous Mixer/Pump 1106351 delivers the versatility, portability, and pumping performance contractors need for modern material handling applications. Whether operating in dry feed mode for continuous mixing or wet mode for specialty blended materials, this machine provides reliable output, consistent material flow, and jobsite-ready efficiency for demanding professional use.
