IMER IM R23 ARTICULATED & TELESCOPIC LIFT Applications
- Commercial building maintenance and facade access
- Tree care, arborist, and landscaping operations
- Industrial plant inspection and elevated service work
- Electrical installation and overhead utility maintenance
- Churches, stadiums, theaters, and historic building restoration
- Indoor facility maintenance requiring compact access equipment
- Glass installation, roofing, and elevated construction applications
- Difficult terrain and restricted-access elevated work environments
The compact transport dimensions and track-driven mobility allow the IMER IM R23 Articulated & Telescopic Lift to access narrow entryways, sensitive flooring areas, and uneven outdoor terrain while maintaining exceptional working reach.

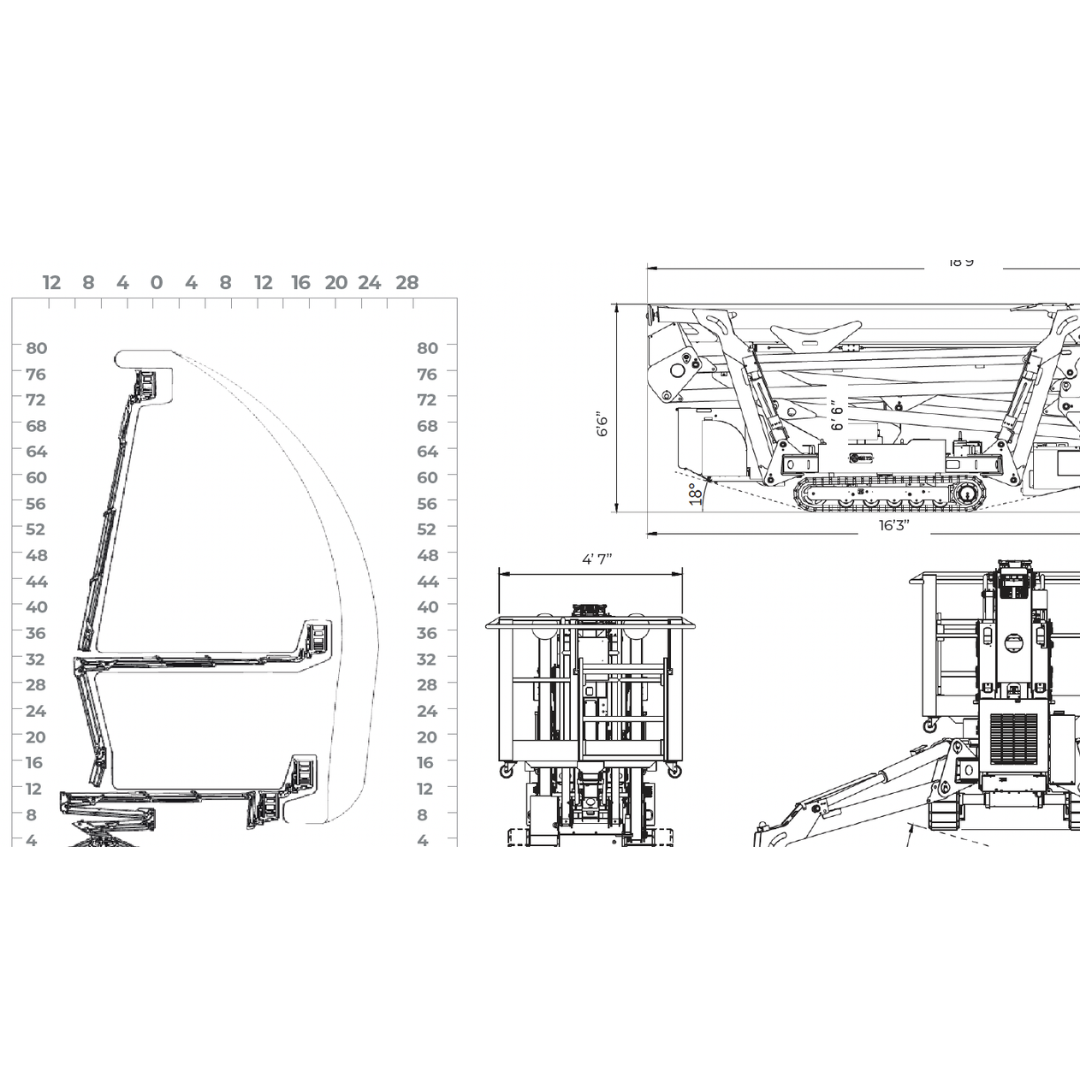

IMER IM R23 ARTICULATED & TELESCOPIC LIFT Specifications
| Model Number | 1128632 Gas / 1128633 Diesel |
|---|---|
| Working Height | 75 ft (23 m) |
| Platform Height | 69 ft (21 m) |
| Horizontal Outreach | 35 ft / 507 lbs — 39 ft / 308 lbs |
| Rotation | 355° Non-Continuous |
| Basket Dimensions | 54 in × 30 in × 42 in |
| Basket Rotation | 124° Hydraulic Rotation |
| Transport Length (Without Basket) | 18 ft 8 in (5.7 m) |
| Transport Width (Without Basket) | Maximum 3 ft 3 in (0.98 m) |
| Height in Stowed Position | 6 ft 6 in (1.99 m) |
| Overall Outrigger Footprint | 12 ft 9 in × 12 ft 1 in |
| Stabilizer Load | 3,930 psf (1750 daN) |
| Driving Speed | 0 – 1.7 mph (0 – 2.8 km/h) |
| Gradeability | 32% |
| Platform Capacity | 510 lbs (231 kg) |
| Honda GX800 Engine | 25 HP (18 kW) |
| Optional Diesel Engine | Yanmar 3TNV70 – 23 HP (17 kW) |
| Machine Weight | 6,525 lbs (2,960 kg) |
IMER IM R23 ARTICULATED & TELESCOPIC LIFT Standard Equipment
- Automatic outrigger leveling system improves setup efficiency and machine stability.
- 355-degree non-continuous turret rotation provides exceptional positioning flexibility.
- Emergency hand pump system enables safe operation during emergency situations.
- Cylinder holding valves enhance elevated platform safety and hydraulic stability.
- Integrated hour meter supports maintenance scheduling and operational tracking.
- Load and tip detection sensors improve operator safety during elevated work.
- Load cell monitoring system assists with maintaining safe platform capacity.
- Hydraulic jib system provides improved articulation and difficult-access positioning.
- Heavy-duty rubber tracks deliver reliable traction and reduced ground pressure.
- 230V 16-amp electric motor allows clean indoor electric operation.
- Air and water outlets in platform basket support specialized service applications.
- 120V AC power to platform enables powered tool operation at elevation.
- Removable wired control box supports flexible machine operation and servicing.
- Three travel speed settings improve maneuverability and jobsite control.
- Remote battery charger simplifies charging access and maintenance.
- Quick-detach removable basket allows simplified transportation and access through restricted areas.
- Overload sensor system protects against unsafe operating conditions.
- 120V battery charger supports efficient charging performance.
- Proportional controls with diagnostics deliver smooth operation and simplified troubleshooting.
- Honda GX800 engine provides reliable outdoor operating power.
- Hydraulically adjustable track width improves stability and access versatility.
- 12V emergency pump system supports emergency lowering and backup operation.
- 8-inch outrigger pads improve stability on uneven surfaces.
- Wireless radio remote control system increases operator flexibility and safety.
- 124-degree hydraulic basket rotation allows precise work positioning.
IMER IM R23 ARTICULATED & TELESCOPIC LIFT Optional Equipment
- Non-marking rubber tracks for sensitive flooring applications
- Platform basket working light for low-light jobsite environments
- 12V emergency pump upgrade
- 14-inch oversized outrigger pads for improved ground distribution
- Yanmar 3TNV70 diesel engine option
- Wireless radio-control box system
- IMERVIEW GPS remote monitoring system
Optional configurations allow the IMER IM R23 Articulated & Telescopic Lift to be customized for specialized indoor access, rough terrain applications, and remote fleet monitoring requirements.
IMER IM R23 ARTICULATED & TELESCOPIC LIFT Performance & Construction
- Compact lightweight spider lift design allows access through narrow doorways and restricted entry points.
- Track-driven mobility system improves maneuverability on uneven terrain and sensitive surfaces.
- Articulated and telescopic boom configuration enables exceptional elevated positioning flexibility.
- Hydraulically adjustable tracks optimize machine stability and transport width versatility.
- Automatic outrigger leveling system reduces setup time and improves operating efficiency.
- Wireless remote-control operation enhances operator visibility and jobsite safety.
- Compact stowed dimensions simplify transportation and indoor access.
- Indoor electric operation capability provides low-noise, low-emission performance for enclosed environments.
Why Choose the IMER IM R23 ARTICULATED & TELESCOPIC LIFT
- 75-foot working height for demanding elevated access projects.
- Compact tracked chassis for difficult-access environments.
- Articulated and telescopic boom system for exceptional positioning flexibility.
- Automatic outriggers and adjustable tracks for improved stability.
- Indoor electric and outdoor engine-powered operating capability.
- Wireless remote-control system improves safety and efficiency.
- Professional-grade construction for industrial, commercial, and maintenance applications.
The IMER IM R23 Articulated & Telescopic Lift combines compact spider lift maneuverability, high-reach articulated performance, advanced safety systems, and versatile indoor/outdoor operation to deliver a powerful elevated access solution for demanding professional applications.
