IMER IM R19 ARTICULATED & TELESCOPIC LIFT Applications
- Commercial building maintenance and facade access
- Indoor facility service and elevated repair operations
- Tree care, arborist, and landscaping applications
- Industrial maintenance and plant inspection work
- Electrical installation and utility servicing
- Historic building restoration and difficult-access projects
- Glass installation, roofing, and elevated construction work
- Narrow-access indoor and outdoor elevated access applications
The compact chassis design and track-driven mobility system allow the IMER IM R19 Articulated & Telescopic Lift to access restricted work areas while maintaining exceptional elevated reach and stability.

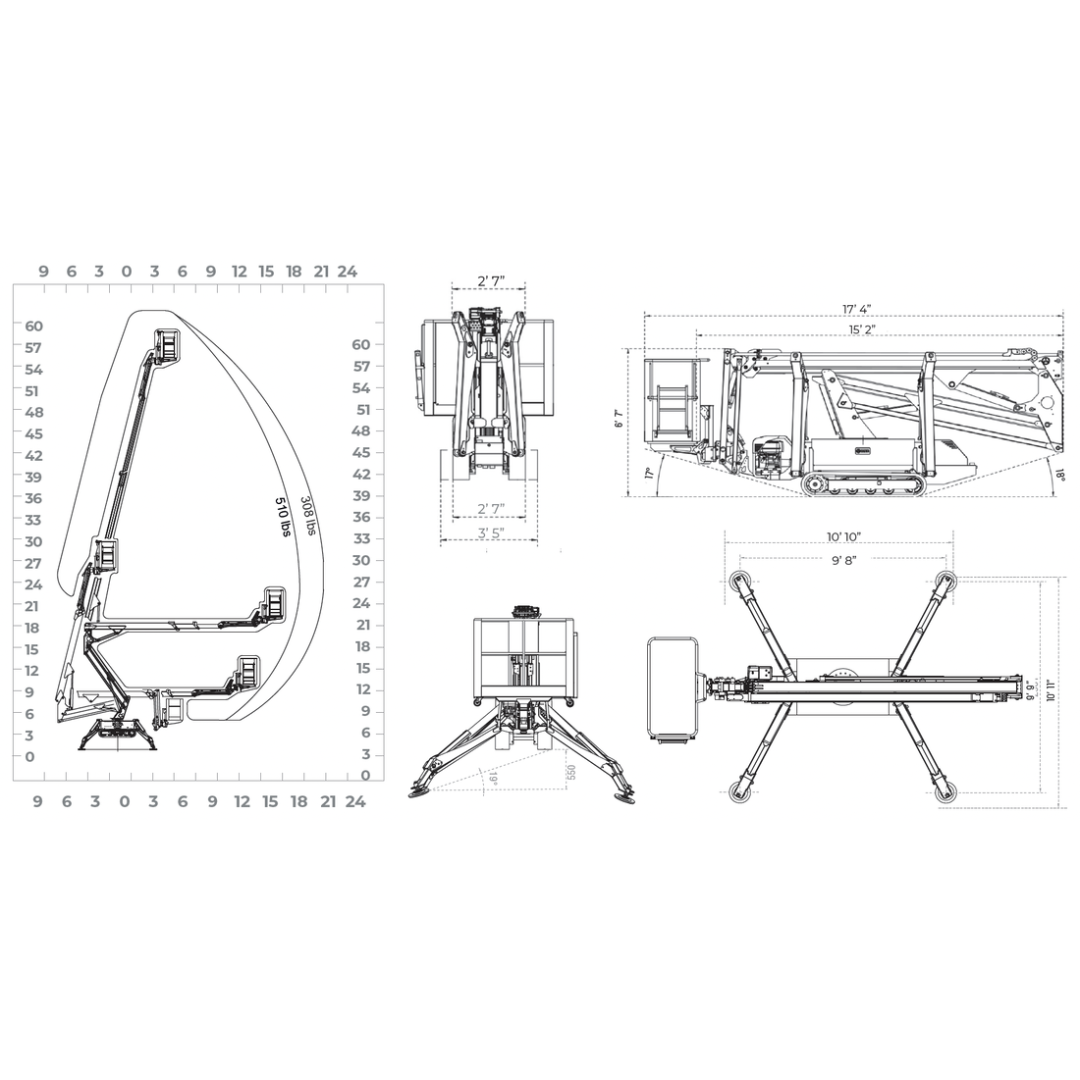

IMER IM R19 ARTICULATED & TELESCOPIC LIFT Specifications
| Model Number | 1128770 Electric / 1128772 Lithium Powered |
|---|---|
| Working Height | 62 ft (19 m) |
| Platform Height | 56 ft (17 m) |
| Horizontal Outreach | 32 ft / 176 lbs — 28 ft / 310 lbs — 23 ft / 510 lbs |
| Rotation | 360° Non-Continuous |
| Basket Dimensions | 57 in × 28 in × 43 in |
| Basket Rotation | 124° Hydraulic Rotation |
| Transport Length (Without Basket) | 17 ft 5 in / 15 ft 2 in |
| Transport Width (Without Basket) | Maximum 3 ft 6 in / Minimum 2 ft 7 in |
| Height in Stowed Position | Minimum 6 ft 6 in / Maximum 6 ft 11 in |
| Overall Outrigger Footprint | 10 ft 10 in × 10 ft 11 in |
| Stabilizer Load | 3,930 psf (1750 daN) |
| Driving Speed | 0 – 1.25 mph (0 – 2 km/h) |
| Gradeability | 32% |
| Electric Pump | 120V / 1.5 HP |
| Maximum Hydraulic Pressure | 3,190 psi (220 bar) |
| Battery System | 12V |
| Battery Charger | 12V / 48V Lithium Charger |
| Honda GX390 Engine | 13 HP (9.7 kW) |
| Optional Diesel Engine | Diesel L100N – 8.9 HP (6.6 kW) |
| Machine Weight | 5,370 lbs (2,435 kg) |
IMER IM R19 ARTICULATED & TELESCOPIC LIFT Standard Equipment
- Automatic outrigger leveling system improves setup efficiency and operating stability.
- 360-degree non-continuous turret rotation provides exceptional positioning flexibility.
- Emergency hand pump system supports safe emergency lowering and backup operation.
- Cylinder holding valves improve elevated platform safety and hydraulic stability.
- Integrated hour meter assists with maintenance tracking and operational monitoring.
- Load and tip detection sensors improve operator safety during elevated work.
- Load cell monitoring system helps maintain safe working capacities.
- Hydraulic jib system enhances articulation and difficult-access positioning capability.

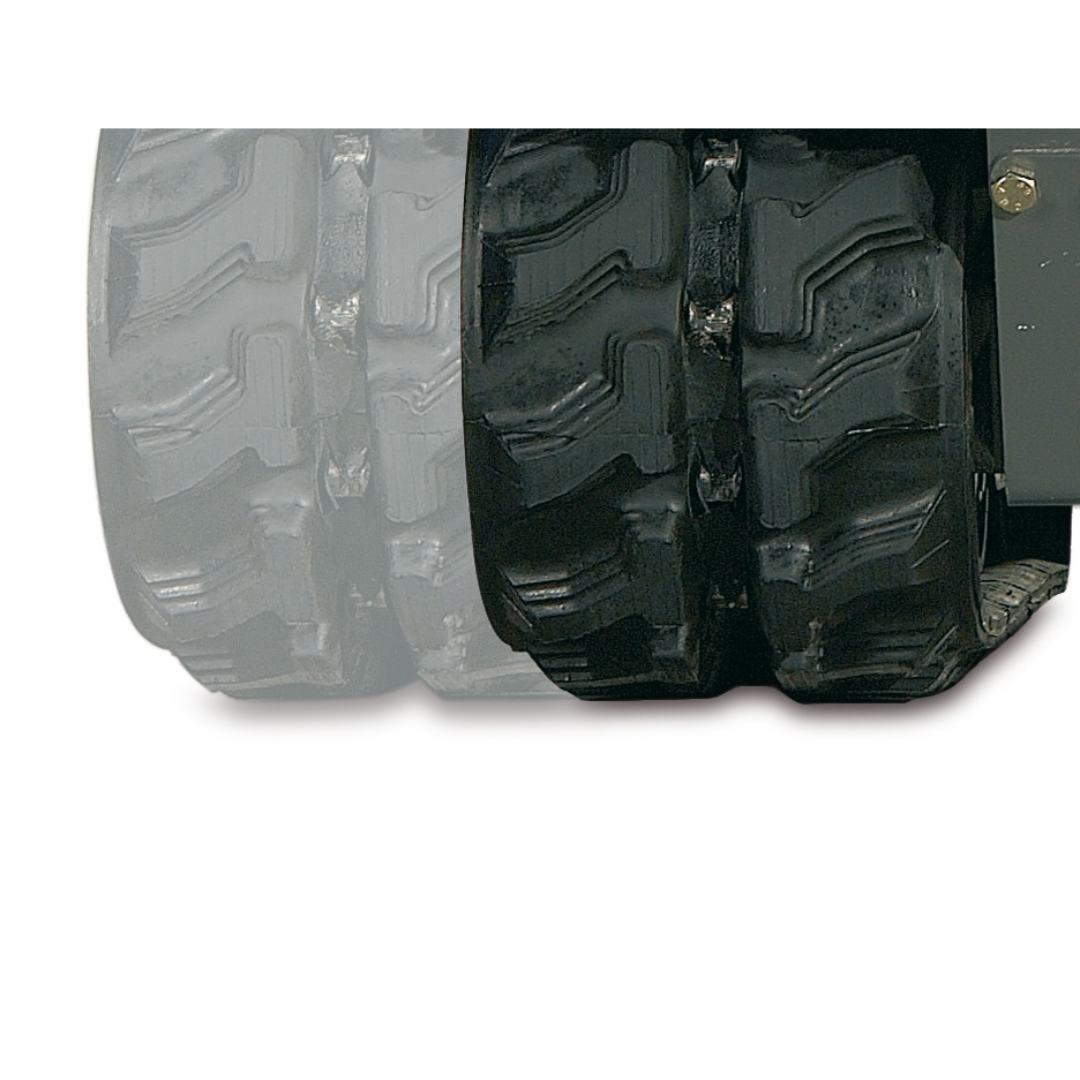

- Heavy-duty rubber tracks provide reliable traction and reduced ground pressure.
- Electric motor for indoor use enables quiet and low-emission operation.
- Air and water outlets in platform basket support specialized service applications.
- AC power supply to platform allows operation of powered tools at elevation.
- Removable wired control box increases operating flexibility and simplifies servicing.
- Three travel speed settings improve maneuverability and operational precision.
- Remote battery charger system provides convenient charging access.
- Quick-detach removable basket allows simplified transportation and narrow-access entry.
- Overload sensor system protects against unsafe operating conditions.
- 120V battery charger supports efficient battery charging performance.
- Proportional controls with diagnostics provide smooth operation and simplified troubleshooting.
- Honda GX390 engine delivers dependable outdoor operating power.
- Hydraulically adjustable track width improves transport flexibility and stability.
- 12V emergency pump system provides emergency backup functionality.
- Oversized 14-inch outrigger pads improve stability and ground pressure distribution.
- Wireless radio remote-control system enhances operator visibility and jobsite safety.
IMER IM R19 ARTICULATED & TELESCOPIC LIFT Optional Equipment
- Non-marking rubber tracks for sensitive flooring applications
- Working light integrated into the platform basket for low-light environments
Optional equipment packages allow the IMER IM R19 Articulated & Telescopic Lift to be configured for specialized indoor environments, sensitive flooring applications, and low-light operating conditions.
IMER IM R19 ARTICULATED & TELESCOPIC LIFT Performance & Construction
- Compact lightweight spider lift construction allows transportation through narrow access points and confined spaces.
- Track-driven mobility system improves maneuverability on rough terrain and delicate flooring surfaces.

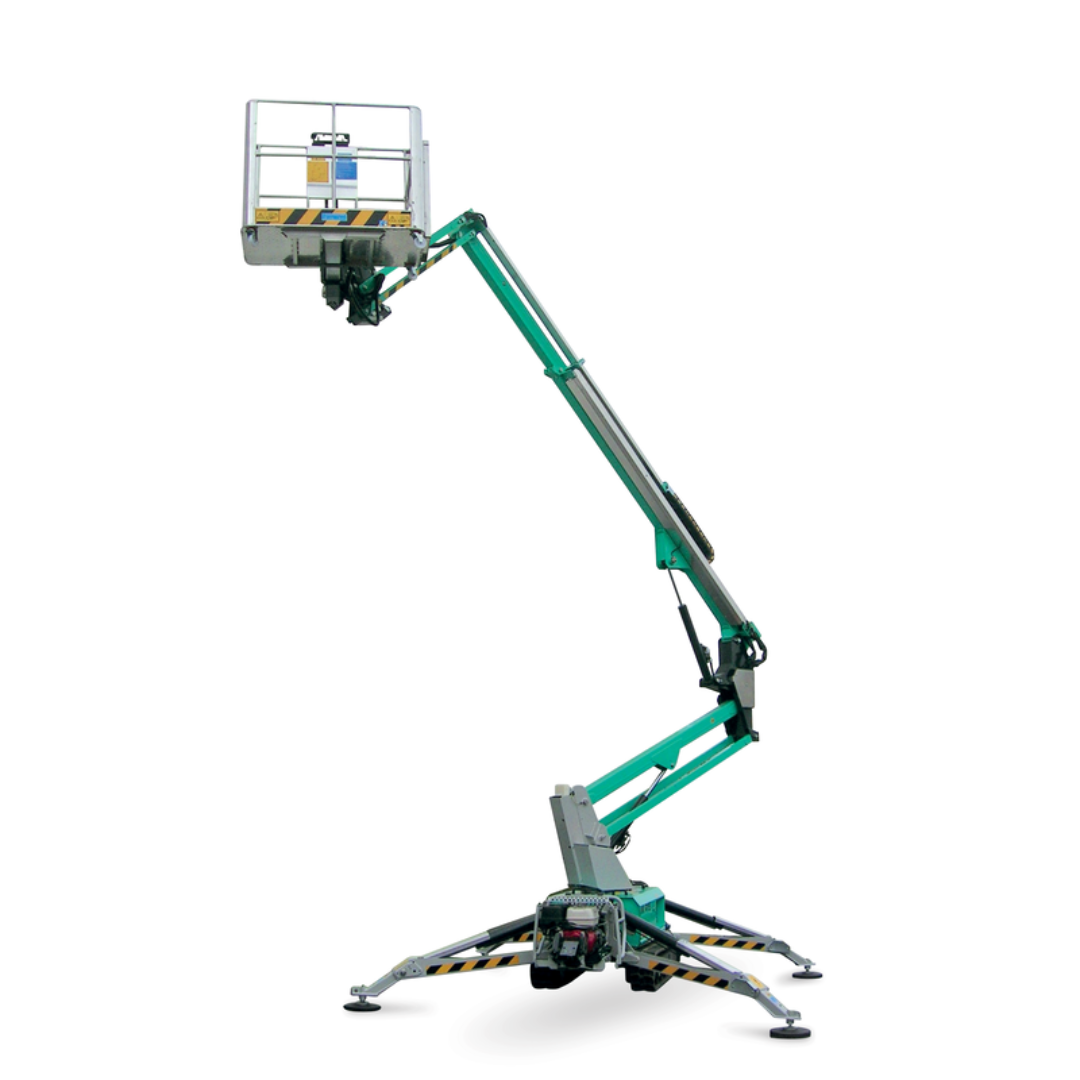

- Articulated and telescopic boom configuration enables precise positioning around obstacles and elevated structures.
- Hydraulically adjustable tracks optimize stability while maintaining compact transport dimensions.
- Automatic outrigger leveling system minimizes setup time and increases operational efficiency.
- Wireless remote-control capability enhances operator visibility and safety during machine positioning.
- Electric and lithium-powered configurations support environmentally conscious indoor operation.

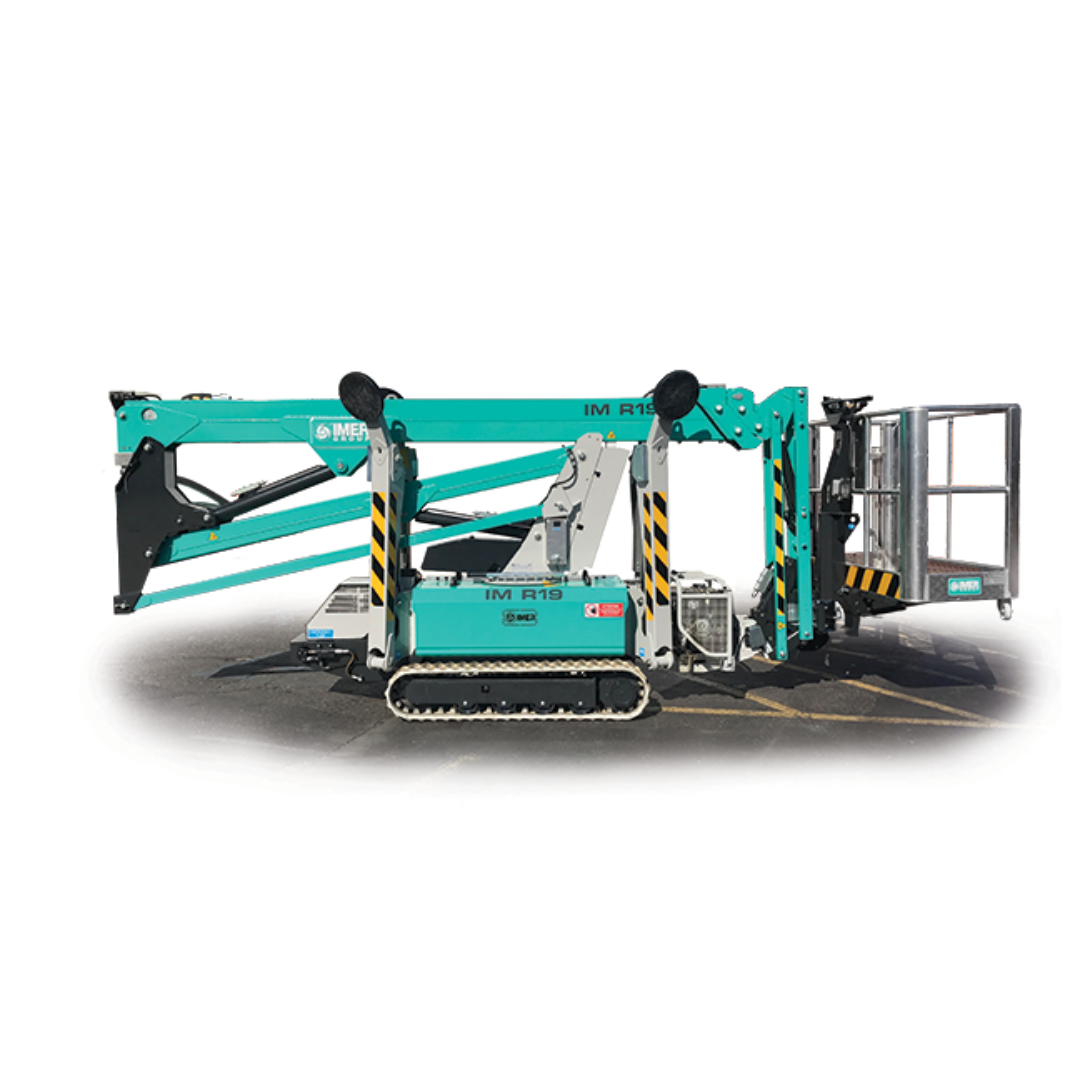

- Compact transport profile simplifies transportation and access into restricted work zones.
Why Choose the IMER IM R19 ARTICULATED & TELESCOPIC LIFT
- 62-foot working height for demanding elevated access applications.
- Compact tracked chassis for restricted-access environments.
- Articulated and telescopic boom design for precise positioning flexibility.
- Electric and lithium-powered operating configurations available.
- Wireless remote-control operation improves productivity and safety.
- Automatic outriggers and adjustable tracks enhance stability.
- Professional-grade construction for industrial, commercial, and maintenance applications.
The IMER IM R19 Articulated & Telescopic Lift combines compact spider lift maneuverability, advanced articulated reach capability, electric-powered versatility, and professional-grade safety systems to deliver exceptional elevated access performance for demanding indoor and outdoor applications.
