IMER IM R15 TELESCOPIC LIFT Applications
- Commercial building maintenance and elevated repairs
- Indoor facility service and difficult-access maintenance work
- Tree care, landscaping, and arborist applications
- Electrical installation and utility maintenance operations
- Glass installation and facade service projects
- Industrial inspection and elevated maintenance work
- Historic building restoration and confined access applications
- Indoor and outdoor elevated access in narrow workspaces
The compact transport dimensions and adjustable track system allow the IMER IM R15 Telescopic Lift to access restricted areas while maintaining excellent elevated reach and positioning flexibility.

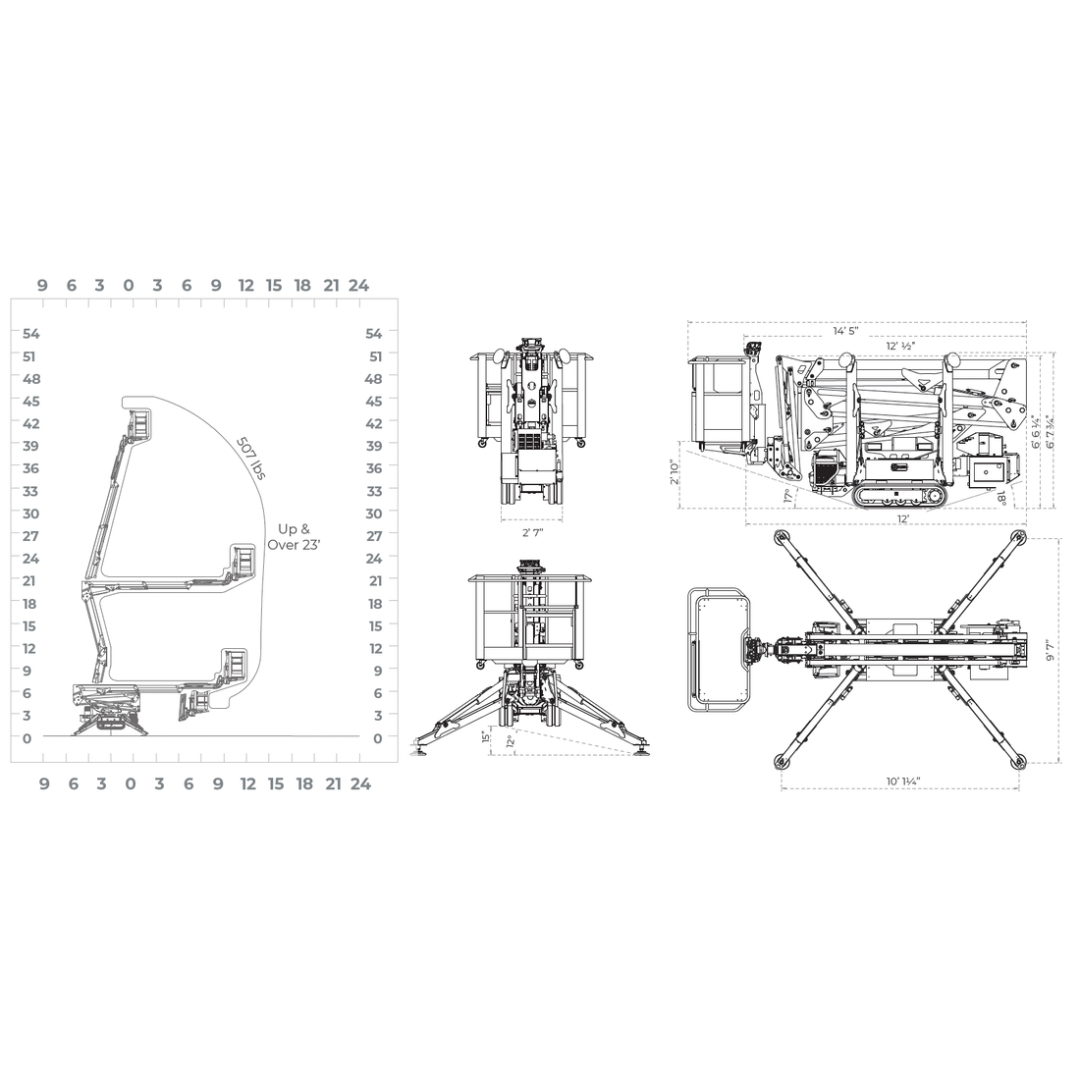

IMER IM R15 TELESCOPIC LIFT Specifications
| Model Number | 1128759 Electric / 1128760 Lithium Powered |
|---|---|
| Working Height | 49 ft 6 in (15.10 m) |
| Platform Height | 43 ft (13.10 m) |
| Horizontal Outreach | 23 ft / 506 lbs |
| Rotation | 355° Non-Continuous |
| Basket Dimensions | 57 in × 27.5 in × 43 in |
| Basket Rotation | 124° Hydraulic Rotation |
| Transport Length (Without Basket) | 14 ft 5 in / 12 ft |
| Transport Width (Without Basket) | Minimum 2 ft 7 in / Maximum 3 ft 5 in |
| Height in Stowed Position | Minimum 6 ft 6 in / Maximum 6 ft 11 in |
| Overall Outrigger Footprint | 9 ft 6 in × 10 ft |
| Driving Speed | 1.12 mph (1.8 km/h) |
| Gradeability | 32% |
| Platform Capacity | 510 lbs (230 kg) |
| Honda iGX390 Engine | 13 HP (9.7 kW) |
| Optional Diesel Engine | Yanmar L100N – 8.9 HP (6.6 kW) |
| Lithium Electric Motor | 48V / 5.4 HP AC (48V / 4 kW AC) |
| Machine Weight | 4,475 lbs (2,030 kg) |
IMER IM R15 TELESCOPIC LIFT Standard Equipment
- Automatic outrigger leveling system improves machine setup speed and operational stability.
- 355-degree non-continuous turret rotation provides flexible positioning capability in confined areas.
- 124-degree hydraulic basket rotation allows precise operator positioning at elevation.
- 120V 15-amp electric motor supports quiet indoor operation with reduced emissions.
- Air and water outlets in the platform basket support specialized elevated service applications.
- 120V AC power to platform allows powered tool operation while elevated.
- Removable wireless control box improves operator visibility and machine maneuverability.
- Tether for wired connectivity provides backup operating control functionality.
- 510-pound basket capacity supports two-person operation with tools and materials.
- Three travel speed settings improve jobsite maneuverability and control.
- Emergency hand pump system supports emergency lowering and backup operation.
- Cylinder holding valves enhance hydraulic safety and platform stability.
- Integrated hour meter assists with maintenance scheduling and operational monitoring.
- Load and tip detection sensors improve operator safety during elevated operation.
- Load cell monitoring system helps maintain safe operating capacities.
- Hydraulic jib system increases positioning flexibility around obstacles.
- Heavy-duty rubber tracks improve traction and reduce ground pressure.
- Remote battery charger system allows convenient charging access.
- Quick-detach removable basket simplifies transportation and narrow-access entry.
- Overload sensor system protects against unsafe platform loading.
- 120V battery charger supports efficient battery charging performance.
- Honda iGX390 engine delivers dependable outdoor operating power.
- Yanmar L100N diesel engine provides additional operating versatility.
- Hydraulically adjustable track width optimizes transport clearance and machine stability.
- Proportional controls with diagnostics provide smooth operation and simplified troubleshooting.
IMER IM R15 TELESCOPIC LIFT Optional Equipment
- Non-marking rubber tracks for sensitive flooring environments
- Working light integrated into the platform basket for low-light applications
- 12V emergency pump system
- 120V desktop remote charging station
- Sliding oversized outrigger shoes for improved ground distribution
- Oversized outrigger pads for enhanced stability on soft terrain
- Double-speed traction drive system
- Aluminum basket 2 ft 11½ in × 2 ft 5 in
- Aluminum basket 4 ft 7 in × 2 ft 3½ in
- IMERVIEW GPS remote monitoring system
Optional configurations allow the IMER IM R15 Telescopic Lift to be customized for sensitive flooring applications, specialized elevated access projects, and advanced fleet monitoring requirements.
IMER IM R15 TELESCOPIC LIFT Performance & Construction
- Compact lightweight spider lift construction allows transportation through narrow doorways and restricted access points.
- Track-driven mobility system improves maneuverability on uneven terrain and delicate surfaces.

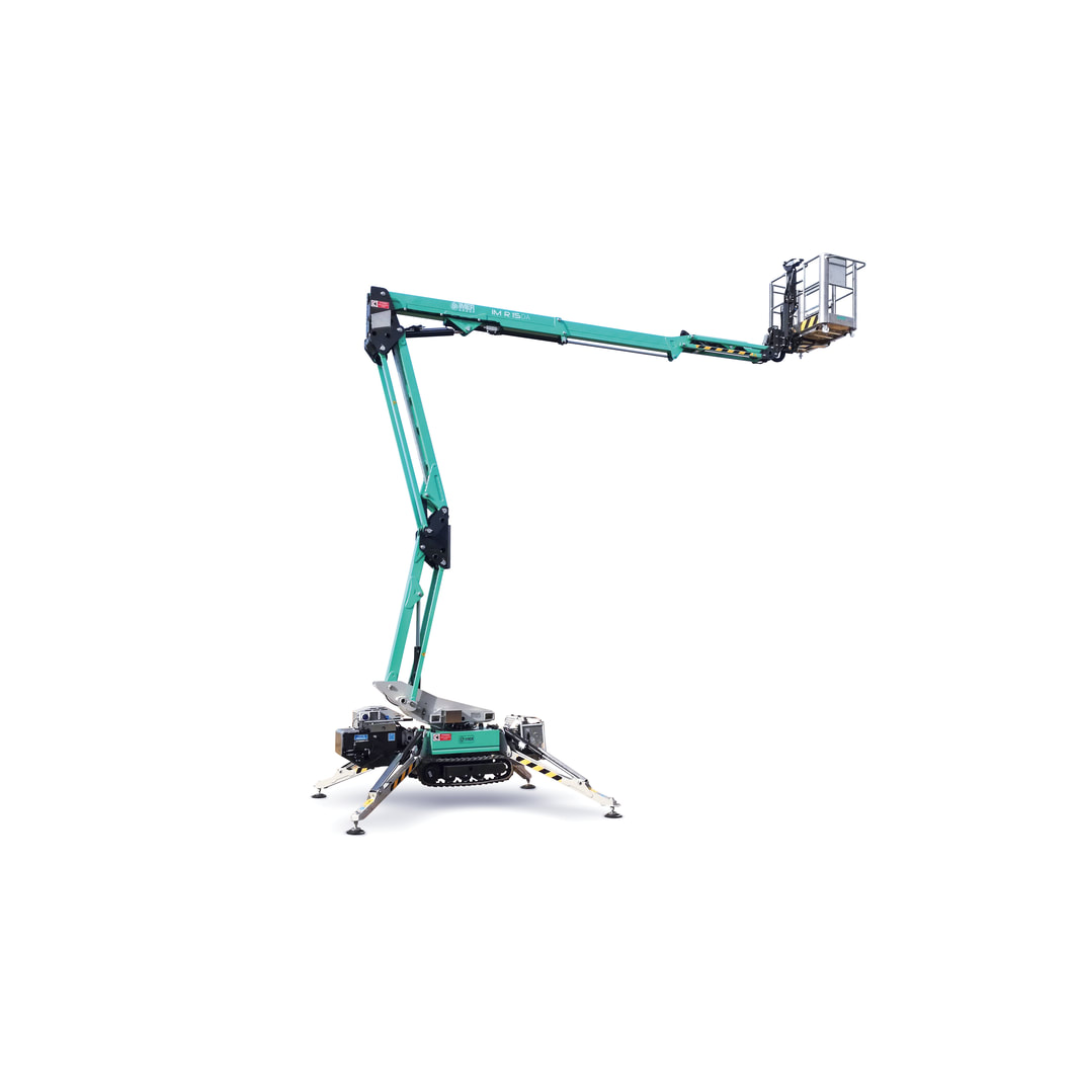

- Telescopic boom configuration enables efficient elevated positioning and horizontal outreach.
- Hydraulically adjustable tracks optimize machine stability while maintaining compact transport dimensions.
- Automatic outriggers reduce setup time and improve operational efficiency.
- Wireless remote-control operation enhances operator safety and positioning visibility.
- Electric and lithium-powered operating capability support environmentally conscious indoor operation.

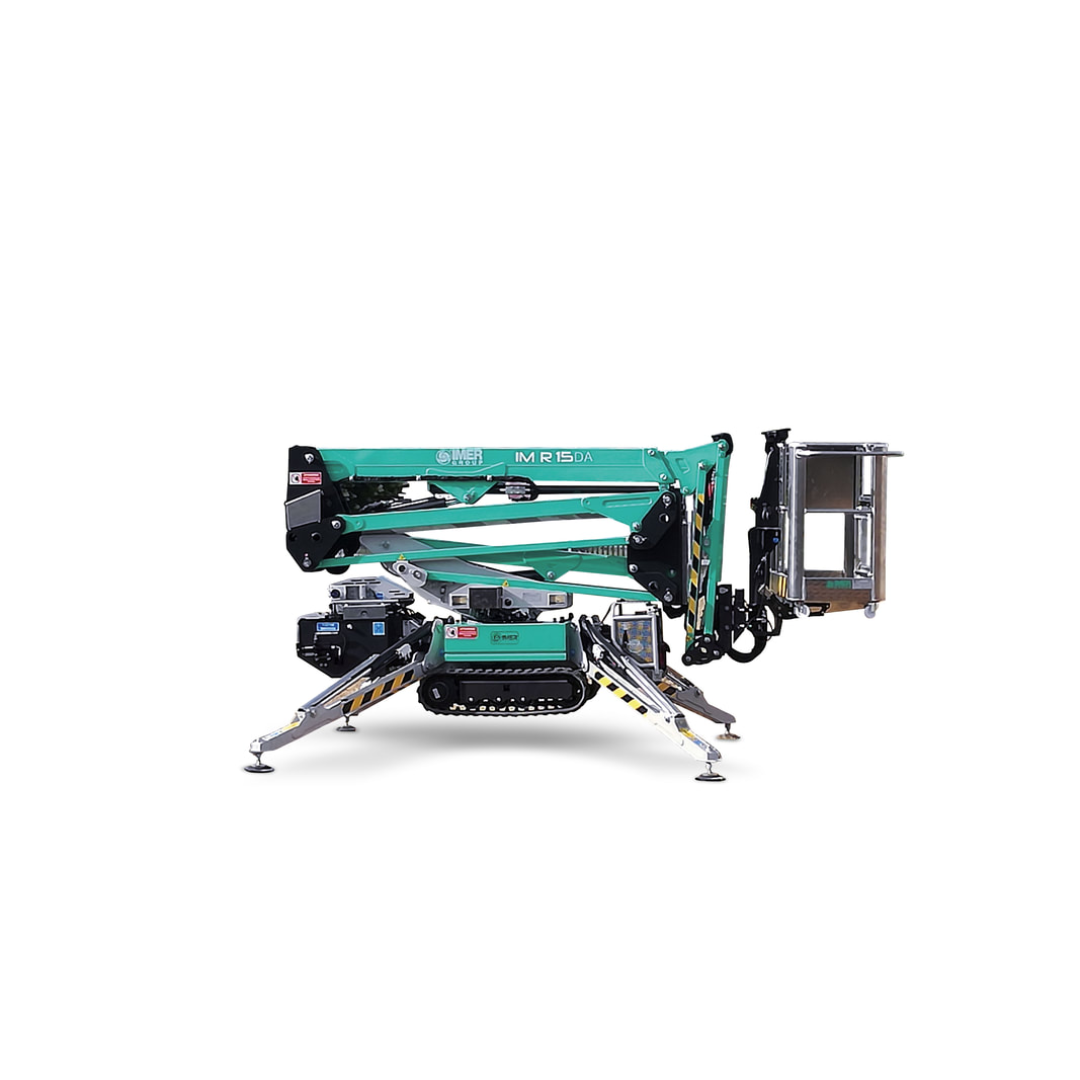

- Compact stowed dimensions simplify transportation and access into confined workspaces.
Why Choose the IMER IM R15 TELESCOPIC LIFT

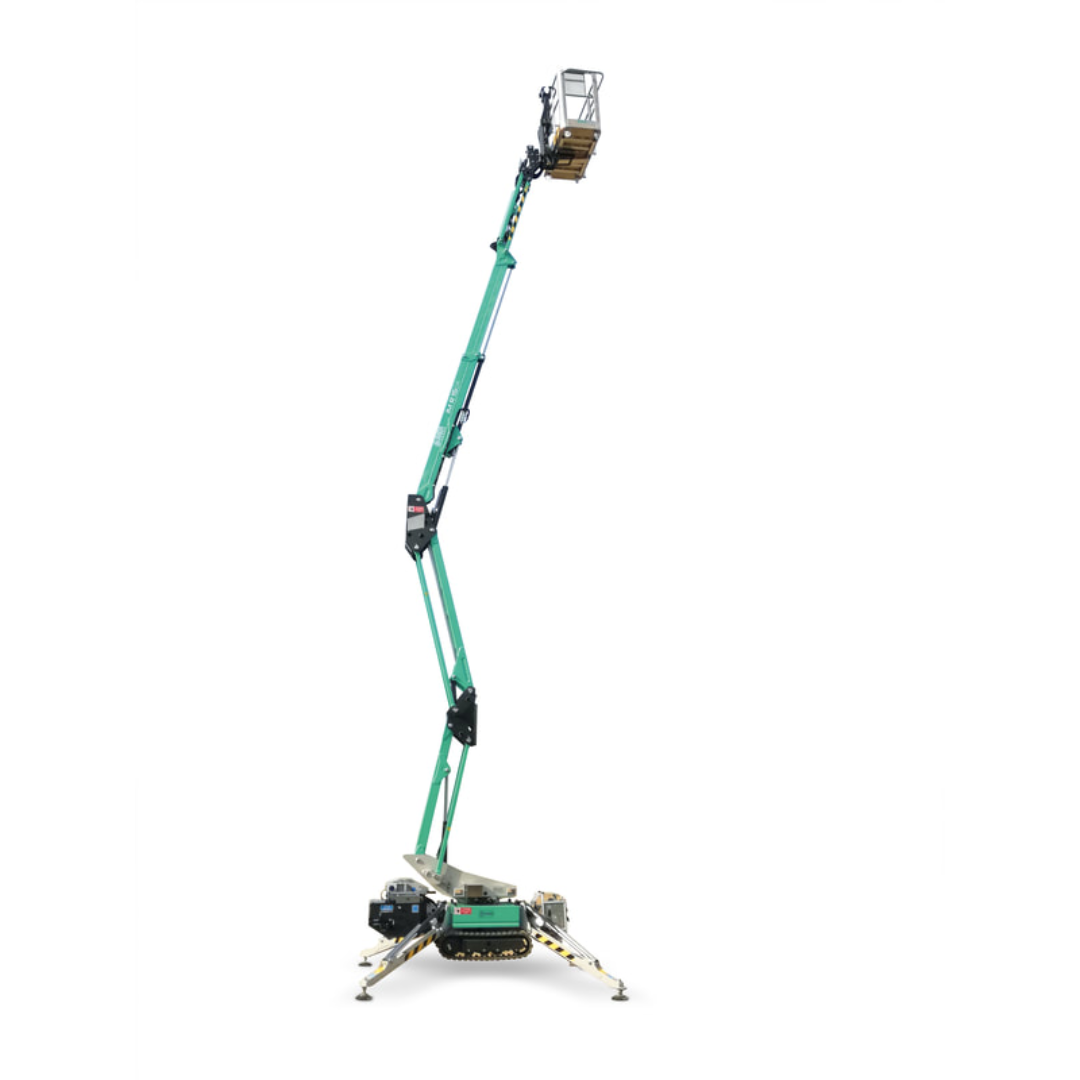

- 49-foot 6-inch working height for professional elevated access applications.
- Compact tracked spider lift design for restricted-access environments.
- 23-foot horizontal outreach with full 506-pound basket capacity.
- Electric and lithium-powered operating configurations available.
- Wireless remote-control system improves safety and maneuverability.
- Automatic outriggers and adjustable tracks enhance setup efficiency.
- Professional-grade construction for indoor and outdoor elevated work.
The IMER IM R15 Telescopic Lift combines compact spider lift maneuverability, telescopic reach performance, advanced safety systems, and versatile indoor/outdoor operating capability to deliver exceptional elevated access performance for professional contractors and maintenance teams.
