IMER IM R13 ARTICULATED & TELESCOPIC LIFT Applications
- Commercial building maintenance and elevated service work
- Indoor facility inspection and repair operations
- Electrical installation and overhead utility maintenance
- Tree care, arborist, and landscaping applications
- Glass installation and facade maintenance projects
- Industrial inspection and elevated access service work
- Historic building restoration and confined-access projects
- Indoor and outdoor elevated access in restricted work environments
The compact tracked chassis and lightweight construction allow the IMER IM R13 Articulated & Telescopic Lift to access narrow work areas while maintaining excellent reach and elevated positioning capability.

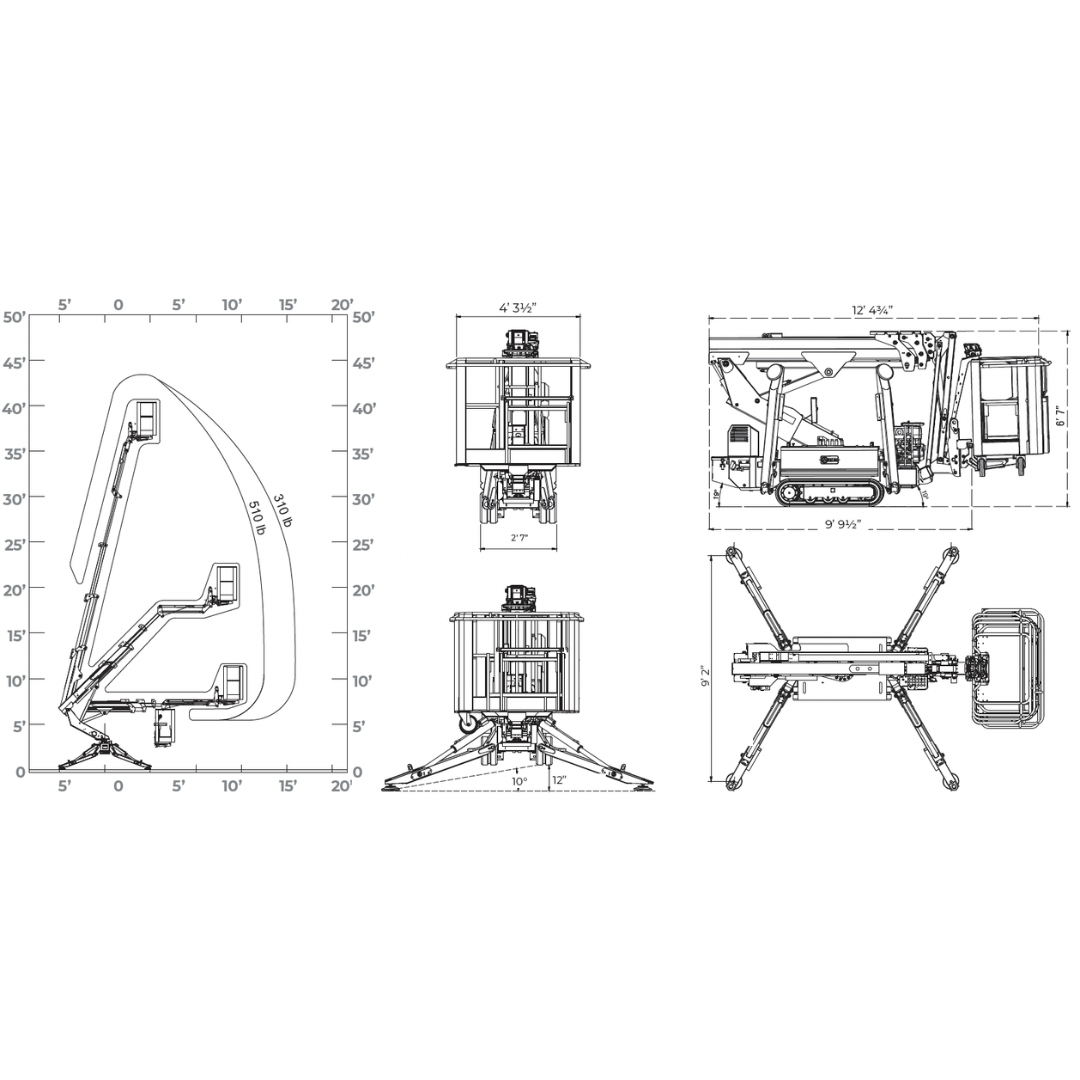

IMER IM R13 ARTICULATED & TELESCOPIC LIFT Specifications
| Model Number | 1128728 |
|---|---|
| Working Height | 42 ft (13 m) |
| Platform Height | 36 ft (11 m) |
| Horizontal Outreach | 17 ft / 510 lbs — 20 ft 6 in / 308 lbs |
| Rotation | 355° Non-Continuous |
| Basket Dimensions | 51 in × 28 in × 43 in |
| Transport Length (Without Basket) | 12 ft 4 in (9 ft 8 in) |
| Transport Width (Without Basket) | 4 ft 3 in (2 ft 6 in) |
| Height in Stowed Position | 6 ft 6¾ in |
| Overall Outrigger Footprint | 8 ft 8 in / 9 ft 2 in |
| Driving Speed | 0.93 mph (1.5 km/h) |
| Gradeability | 30% |
| Platform Capacity | 510 lbs (230 kg) |
| Auxiliary Electric Motor | 120V / 1.5 HP |
| Honda GX390 Engine | 13 HP (9.7 kW) |
| Machine Weight | 3,410 lbs (1,550 kg) |
IMER IM R13 ARTICULATED & TELESCOPIC LIFT Standard Equipment
- Automatic outrigger leveling system improves setup speed and machine stability.
- 360-degree non-continuous rotation provides flexible elevated positioning capability.
- Emergency hand pump system supports emergency lowering and backup operation.
- Cylinder holding valves improve hydraulic safety and platform stability.
- Integrated hour meter assists with maintenance scheduling and machine monitoring.
- Load and tip detection sensors improve operator safety during elevated operation.
- Load cell monitoring system helps maintain safe working capacities.
- Hydraulic jib system allows improved positioning flexibility around obstacles.
- Heavy-duty rubber tracks provide reliable traction and reduced ground pressure.
- Electric motor for indoor use supports low-noise indoor operation.
- Air and water outlets in the platform basket support specialized elevated service applications.
- AC power supply to platform allows powered tool operation while elevated.

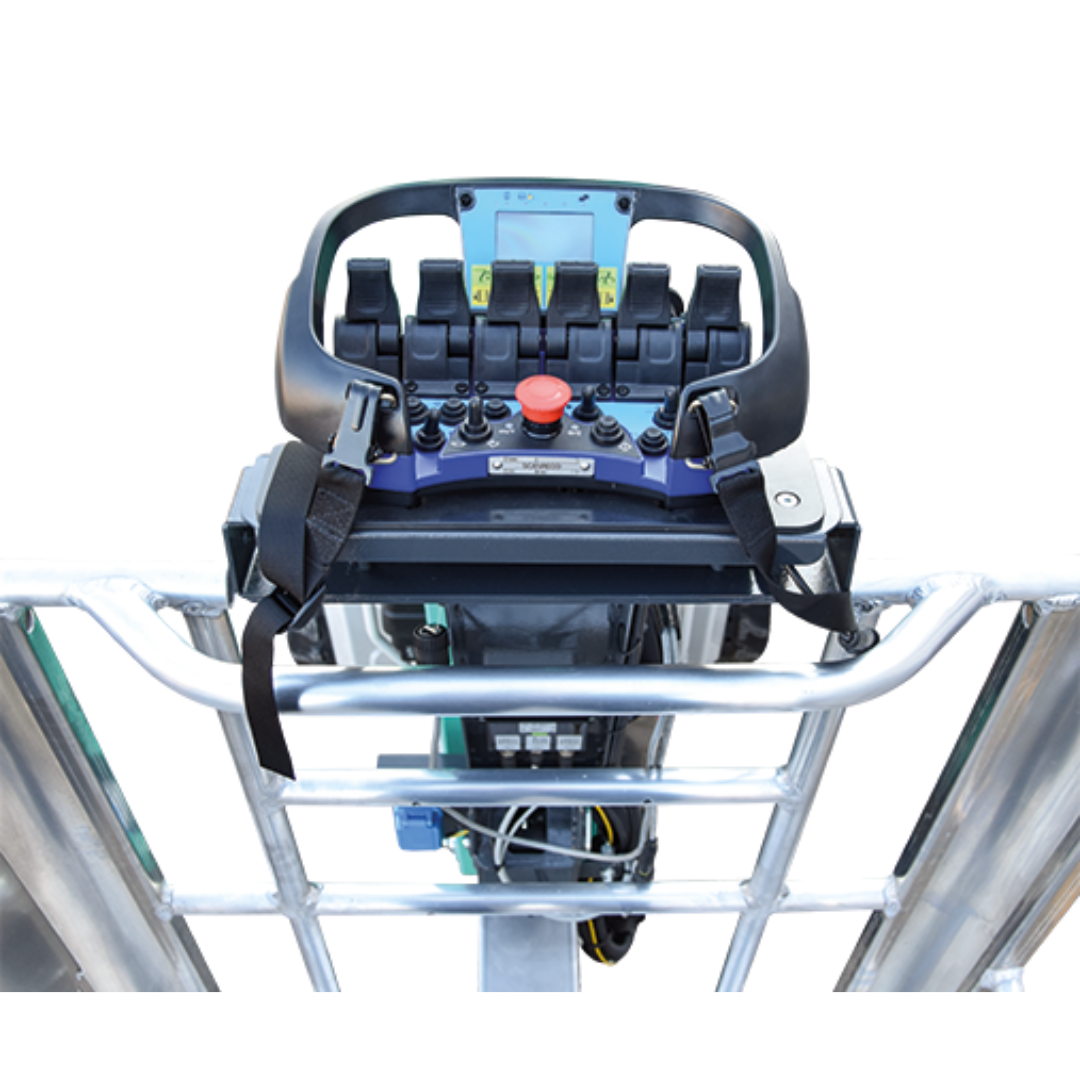

- Removable wired control box improves operating flexibility and servicing access.
- Three travel speed settings improve maneuverability and operational control.
- Wired remote-control operation enhances operator visibility and positioning safety.
- Remote battery charger system simplifies charging access and maintenance.
- Quick-detach removable basket allows transportation through restricted access areas.
- Overload sensor system protects against unsafe platform loading conditions.
- 120V battery charger supports reliable charging performance.
- Proportional controls with diagnostics provide smooth machine operation and simplified troubleshooting.
- Honda GX390 engine delivers dependable outdoor operating performance.
IMER IM R13 ARTICULATED & TELESCOPIC LIFT Optional Equipment
- 12V emergency pump system
- Hydraulically adjustable track system
- Non-marking rubber tracks for sensitive flooring applications
- Wireless radio remote-control box
- Working light integrated into the platform basket
Optional equipment packages allow the IMER IM R13 Articulated & Telescopic Lift to be configured for specialized indoor applications, sensitive flooring environments, and enhanced operator convenience.
IMER IM R13 ARTICULATED & TELESCOPIC LIFT Performance & Construction
- Compact lightweight spider lift construction allows access through narrow pathways and confined workspaces.
- Track-driven mobility system improves maneuverability on uneven terrain and delicate surfaces.

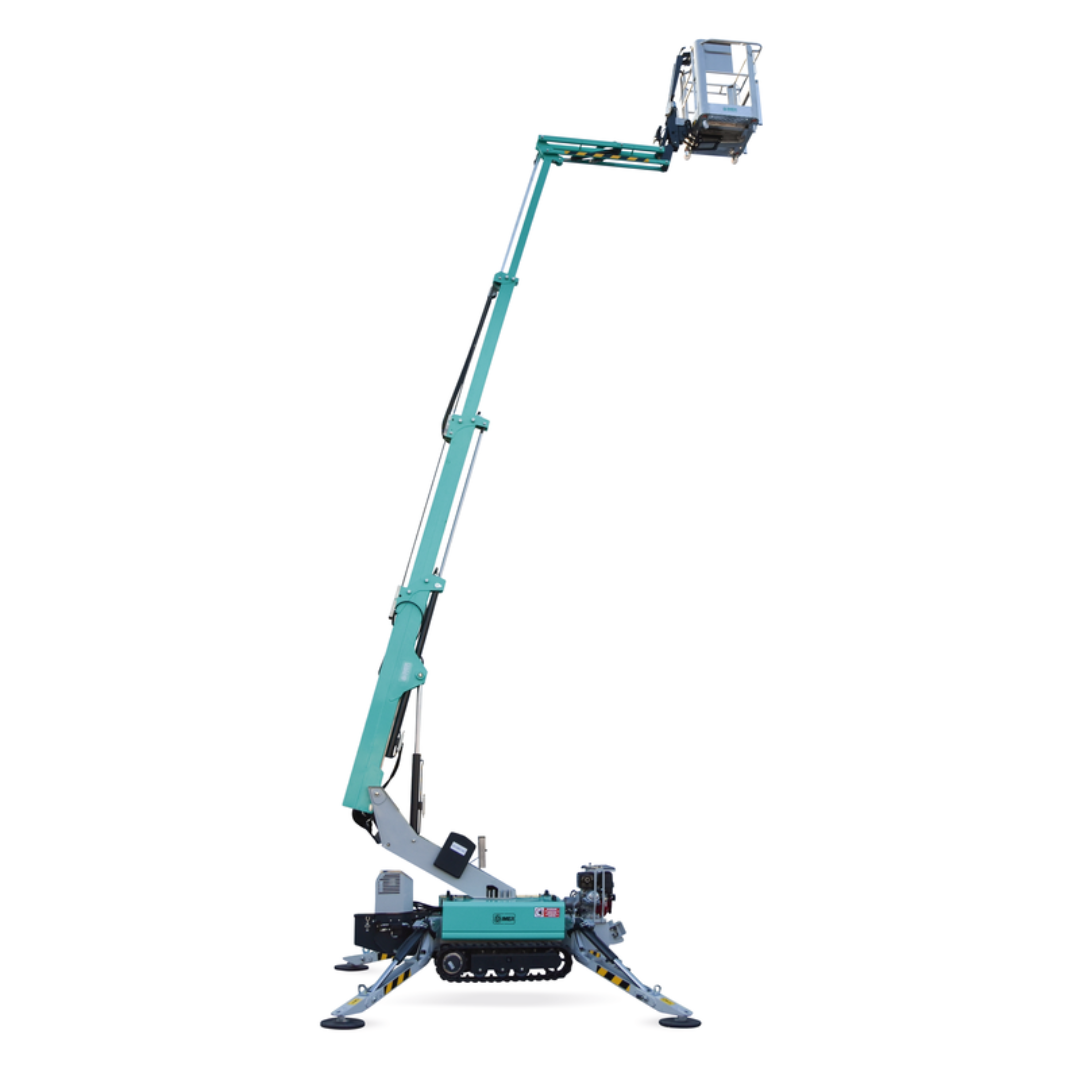

- Articulated and telescopic boom geometry enables precise positioning around overhead obstacles.
- Automatic outriggers reduce setup time and improve operating efficiency.
- Remote-control operation enhances operator visibility and jobsite safety.
- Indoor and outdoor operating capability provides versatile application flexibility.

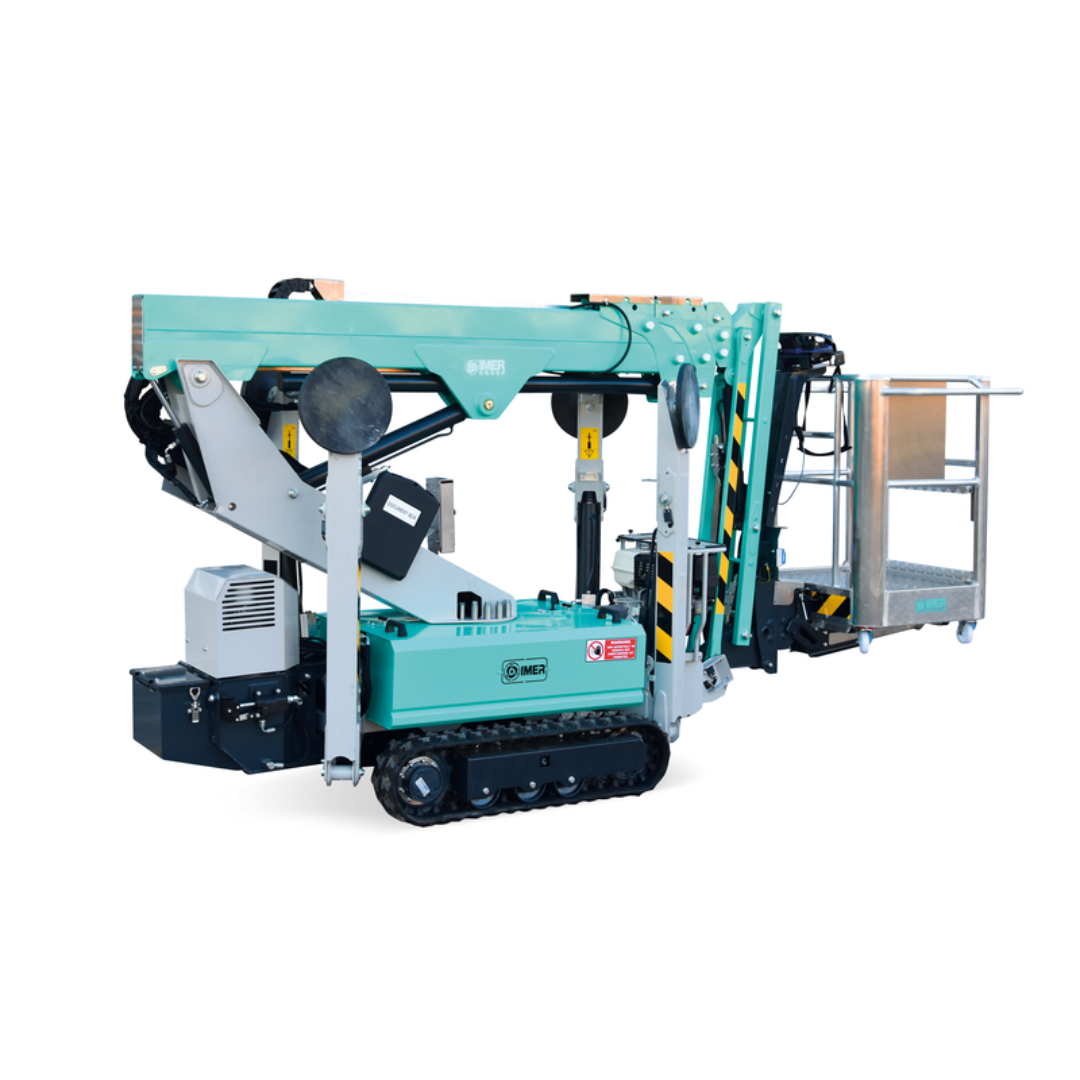

- Compact stowed dimensions simplify transportation and restricted-access entry.
- Professional-grade hydraulic systems deliver dependable elevated access performance.
Why Choose the IMER IM R13 ARTICULATED & TELESCOPIC LIFT
- 42-foot working height for professional elevated access applications.
- Compact tracked spider lift design for narrow-access environments.
- Articulated and telescopic boom system for flexible positioning capability.
- Lightweight construction simplifies transportation and setup.
- Remote-control operation improves operator safety and maneuverability.
- Automatic outriggers improve stability and setup efficiency.
- Professional-grade construction for indoor and outdoor elevated work.
The IMER IM R13 Articulated & Telescopic Lift combines compact spider lift maneuverability, advanced articulated reach performance, professional safety systems, and versatile indoor/outdoor capability to deliver dependable elevated access performance for demanding maintenance, construction, and industrial applications.
