IMER IM 7043 DE ROUGH TERRAIN SCISSORS LIFTS Applications
- Commercial and industrial construction projects
- Steel erection and structural installation applications
- Outdoor building maintenance and repair operations
- Infrastructure projects requiring elevated rough terrain access
- Industrial plants, refineries, and utility facilities
- Large-scale warehouse and logistics center construction
- Mechanical, electrical, and HVAC installation projects
- Outdoor elevated work on uneven or unstable terrain conditions
The IMER IM 7043 DE ROUGH TERRAIN SCISSORS LIFTS is engineered for challenging outdoor environments where high reach, rough terrain mobility, and elevated productivity are essential.

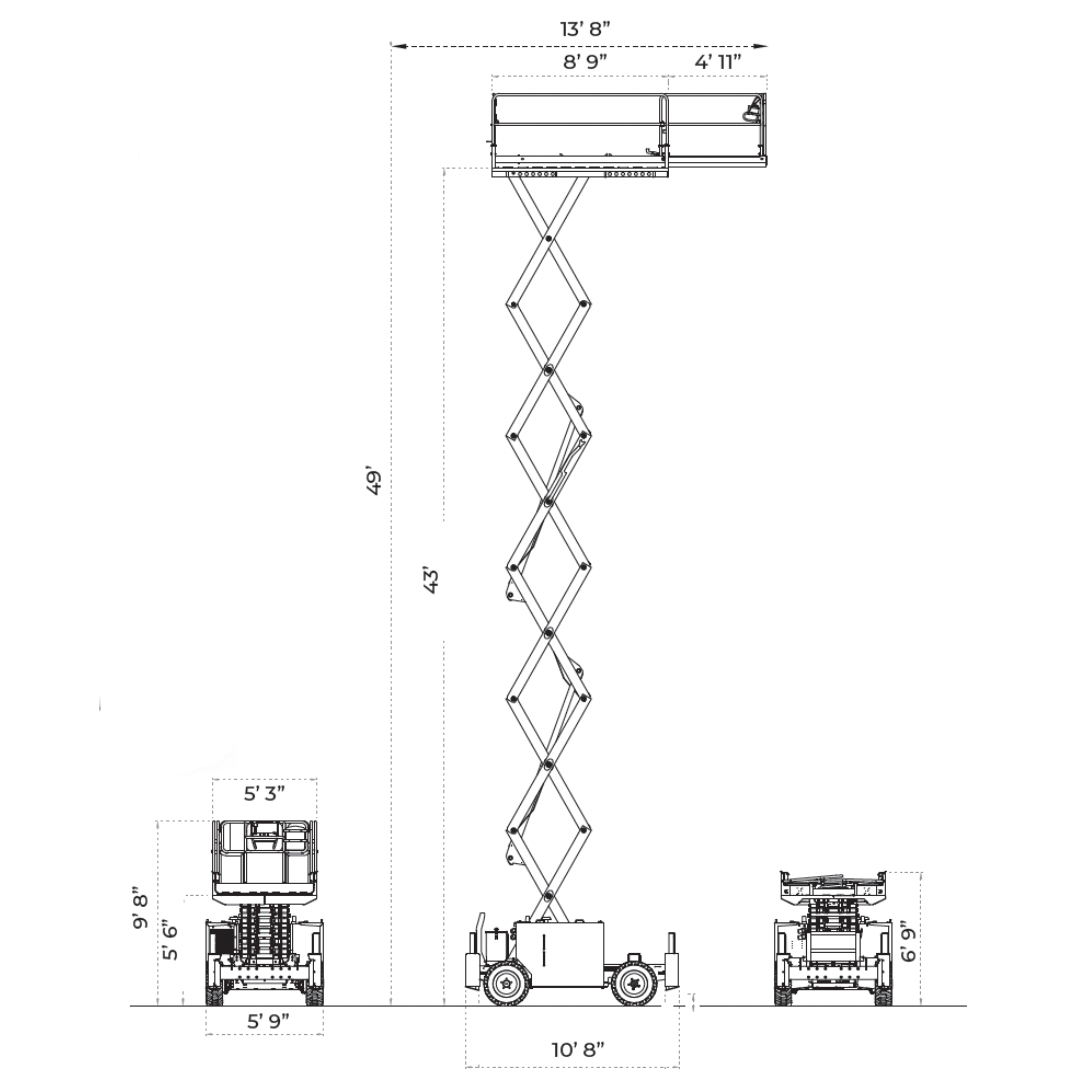

IMER IM 7043 DE ROUGH TERRAIN SCISSORS LIFTS Specifications
| Model Number | 1128696 |
|---|---|
| Platform Height | 43 ft (12,800 mm) |
| Working Height | 49 ft (14,900 mm) |
| Machine Width | 5 ft 11 in (1,800 mm) |
| Height Stowed | 6 ft 9 in (2,056 mm) |
| Height with Guardrails | 9 ft 8 in (2,944 mm) |
| Platform Length | 8 ft 9 in (2,700 mm) |
| Platform Length Extended | 13 ft 8 in (4,200 mm) |
| Extension Deck Length | 4 ft 11 in (1,500 mm) |
| Lift Capacity | 882 lbs (400 kg) Stabilized / 1,100 lbs (500 kg) Optional |
| Maximum Occupants | 4 Persons |
| Ground Clearance | 12 in (300 mm) |
| Electric Drive Motors | 48V / 10 HP (7.2 kW) |
| Diesel Engine | 25 HP Yanmar Water-Cooled Engine |
| Hydraulic Lifting Power Pack | 48V / 3 HP (2.1 kW) |
| Lifting / Lowering Time | 36 Seconds Up / 35 Seconds Down |
| Battery Charger | 48V / 30A Automatic Charger |
| Hydraulic Tank Capacity | 14.8 gal (56 L) |
| Drive Speed | 3.4 mph (5.5 km/h) |
| Safety Drive Speed | 0.4 mph (0.6 km/h) |
| Internal Steering Radius | 5 ft 7 in (1.94 m) |
| External Steering Radius | 15 ft 10 in (4.83 m) |
| External Radius Without Stabilizers | 14 ft 10 in (4.52 m) |
| Gradeability | 2WD: 25% / 4WD: 35% |
| Tire Size | 28 in × 9¼ in (720 mm × 245 mm) |
| Tire Type | Rough Terrain Extra Grip Non-Marking Tires |
| Maximum Tilt Angle | 2.0° Side / 2.5° Longitudinal |
| Total Machine Weight | 10,802 lbs (4,900 kg) |
IMER IM 7043 DE ROUGH TERRAIN SCISSORS LIFTS Standard Equipment
- Manual full-capacity deck extension increases workspace reach without reducing lifting capacity.
- Front-wheel driving and steering system improves maneuverability on challenging terrain.
- 4-wheel drive traction system provides superior outdoor mobility and climbing performance.
- Oscillating axles enhance terrain adaptability and machine stability.

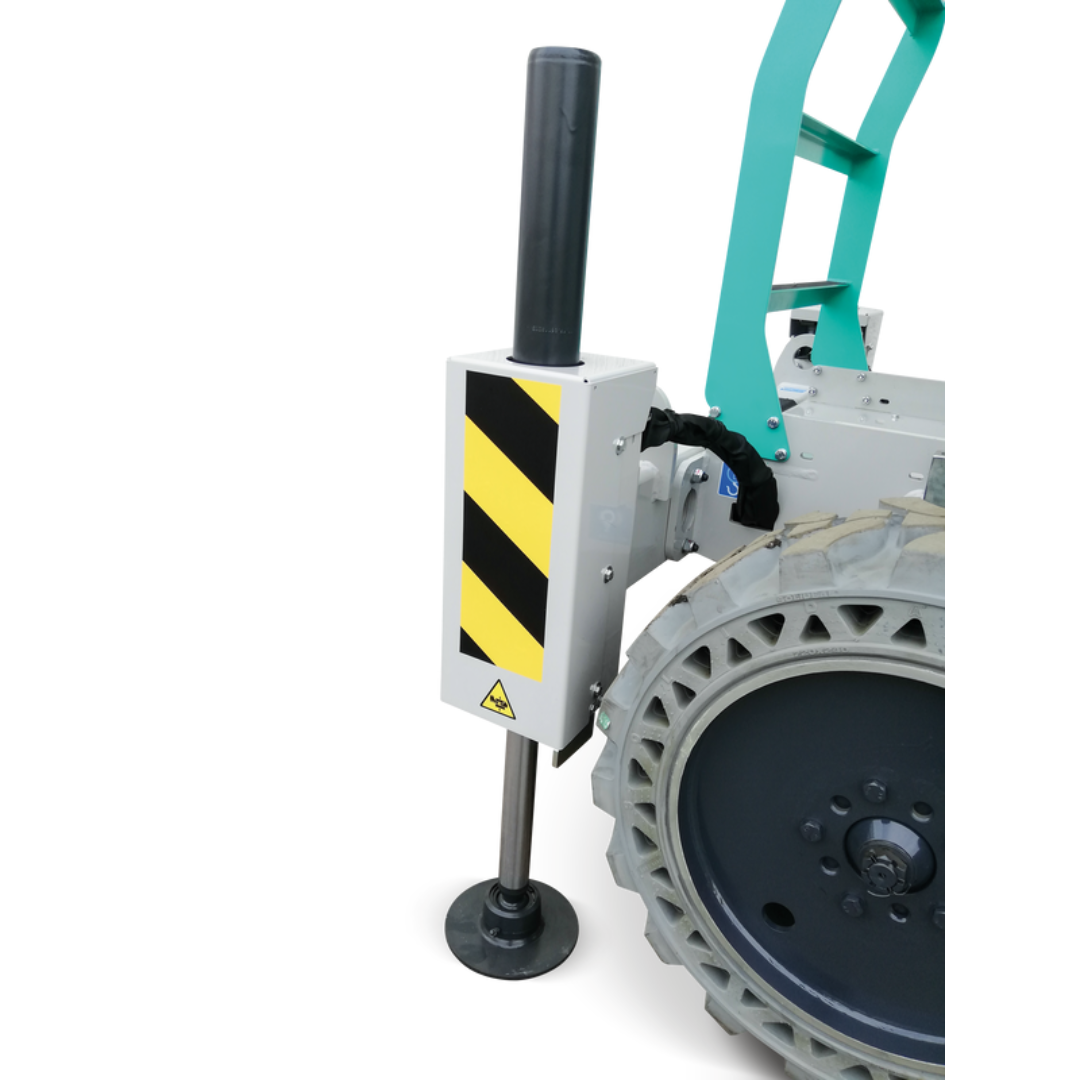

- Auto-leveling outriggers improve elevated platform safety on uneven surfaces.
- Hydraulic 2WD transmission system supports efficient machine movement and power transfer.
- Negative parking brakes provide enhanced operational safety and machine control.
- Mechanical wheel drive disengagement allows emergency towing and hauling when required.
- Manual emergency lowering system enables safe platform descent during power interruptions.
- Proportional controls with integrated diagnostics deliver smooth operation and simplified troubleshooting.
- Hour meter and diagnostic monitoring system assist with preventive maintenance tracking.
- Hydraulic cylinder holding valves improve elevated safety and platform stability.
- Inclinometer with motion cut-out and alarm system protects operators on sloped terrain.
- Overload sensor system helps maintain safe operating capacities.
- Audible motion alarm increases awareness during machine movement.

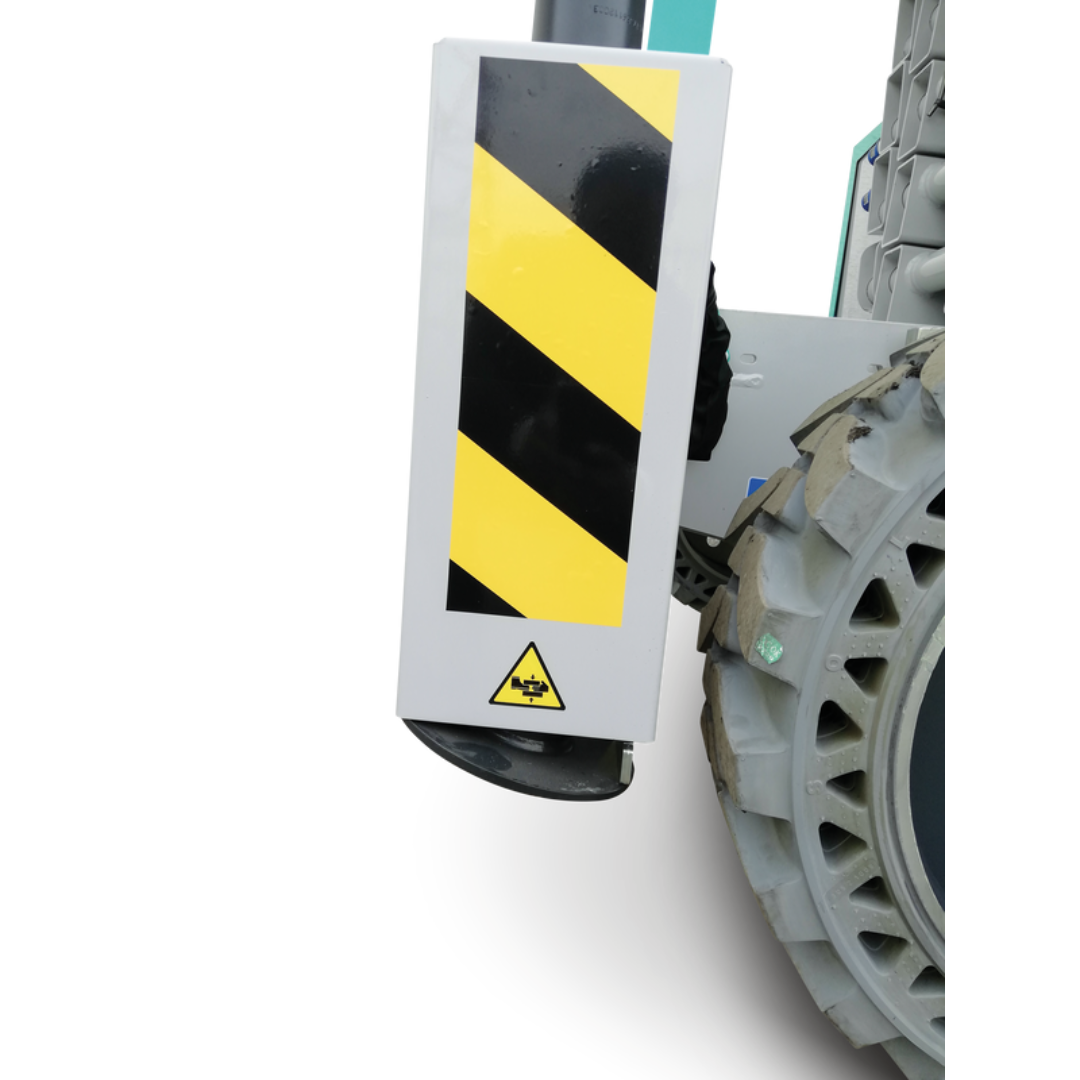

- Electric scissor protection system enhances operator safety during lift operation.
- Extra-grip rough terrain tires improve traction on dirt, gravel, and uneven surfaces.
- Removable control box supports flexible operation and serviceability.
- Fold-down guardrails improve transportation and storage clearance.
- Flashing beacon safety light increases jobsite visibility.
- 120V cable with plug socket and safety cut-out supports powered tools at elevation.
IMER IM 7043 DE ROUGH TERRAIN SCISSORS LIFTS Diesel-Electric Equipment
- Water-cooled Yanmar diesel engine delivers reliable outdoor operating power.
- 12V 66Ah start-up battery supports dependable engine ignition.
- Integrated alternator charging system maintains electrical charging efficiency.
- 48V / 7.2kW electric powerpack provides efficient hybrid drive operation.
- 48V 300Ah traction battery system supports extended machine runtime.
- Automatic battery charger shut-off helps preserve charging system performance.
- Low-voltage battery protection system safeguards battery life and electrical components.
- Battery cut-out handle allows safe electrical isolation during service.
- Extra-grip non-marking rough terrain tires reduce surface marking while maintaining traction.
IMER IM 7043 DE ROUGH TERRAIN SCISSORS LIFTS Optional Equipment
- Electric-only configuration available (Model 11286760)
- 48V / 7.2kW electric powerpack upgrade
- 48V 300Ah traction battery package
- Automatic battery charger with safety shut-off
- Low-voltage battery protection control system
- Battery disconnect handle for electrical safety
- Non-marking rough terrain tires 28 in × 9½ in (720 × 245 mm)
Optional electric-only configurations provide low-emission operation for facilities requiring quiet and environmentally conscious elevated access equipment.
IMER IM 7043 DE ROUGH TERRAIN SCISSORS LIFTS Performance & Construction

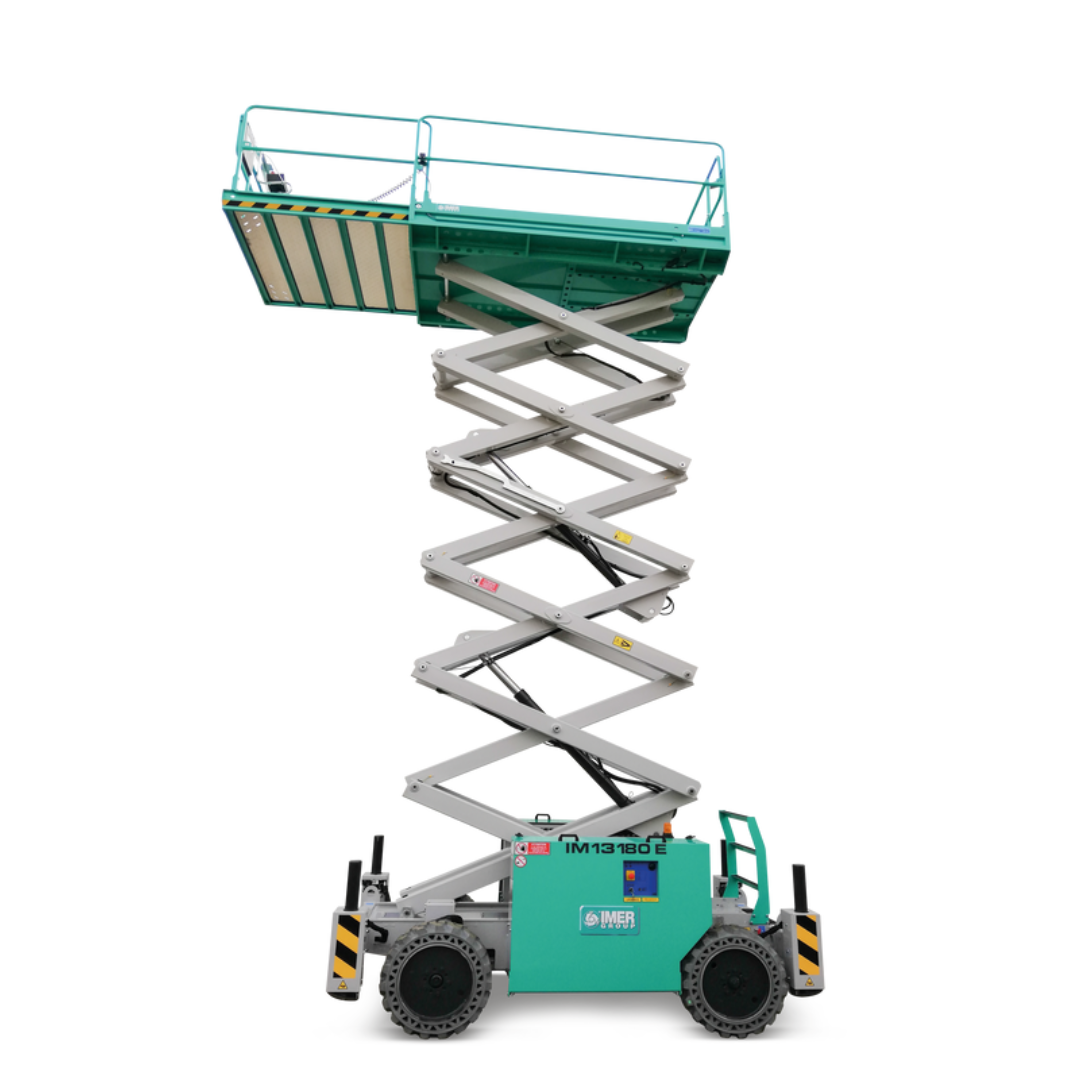

- Drive-at-height capability allows operators to reposition the machine while fully elevated for increased productivity.
- Hybrid diesel-electric power system combines fuel efficiency with powerful rough terrain performance.
- Heavy-duty chassis construction provides long-term durability in demanding outdoor environments.

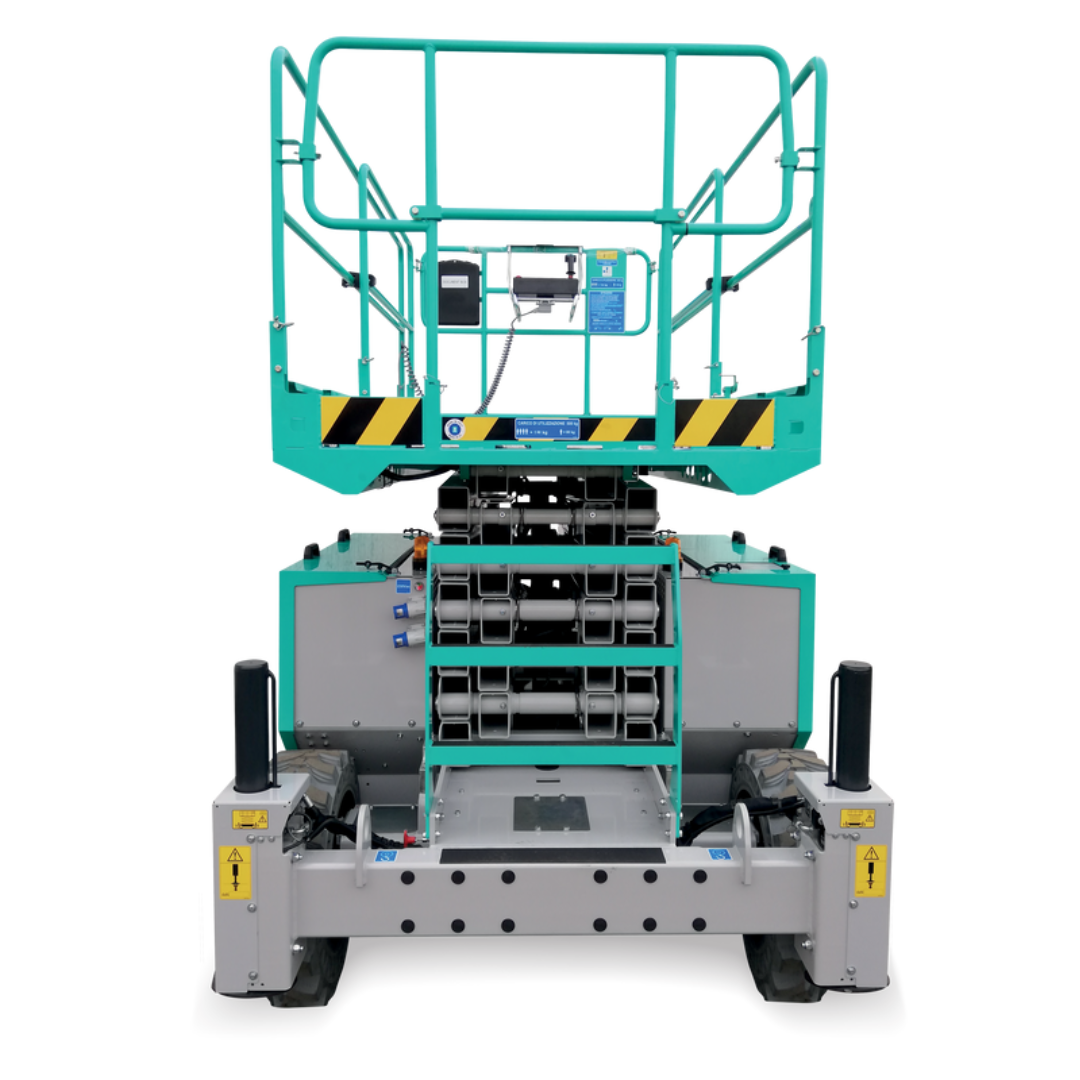

- Auto-leveling outriggers and oscillating axles improve stability on uneven terrain.

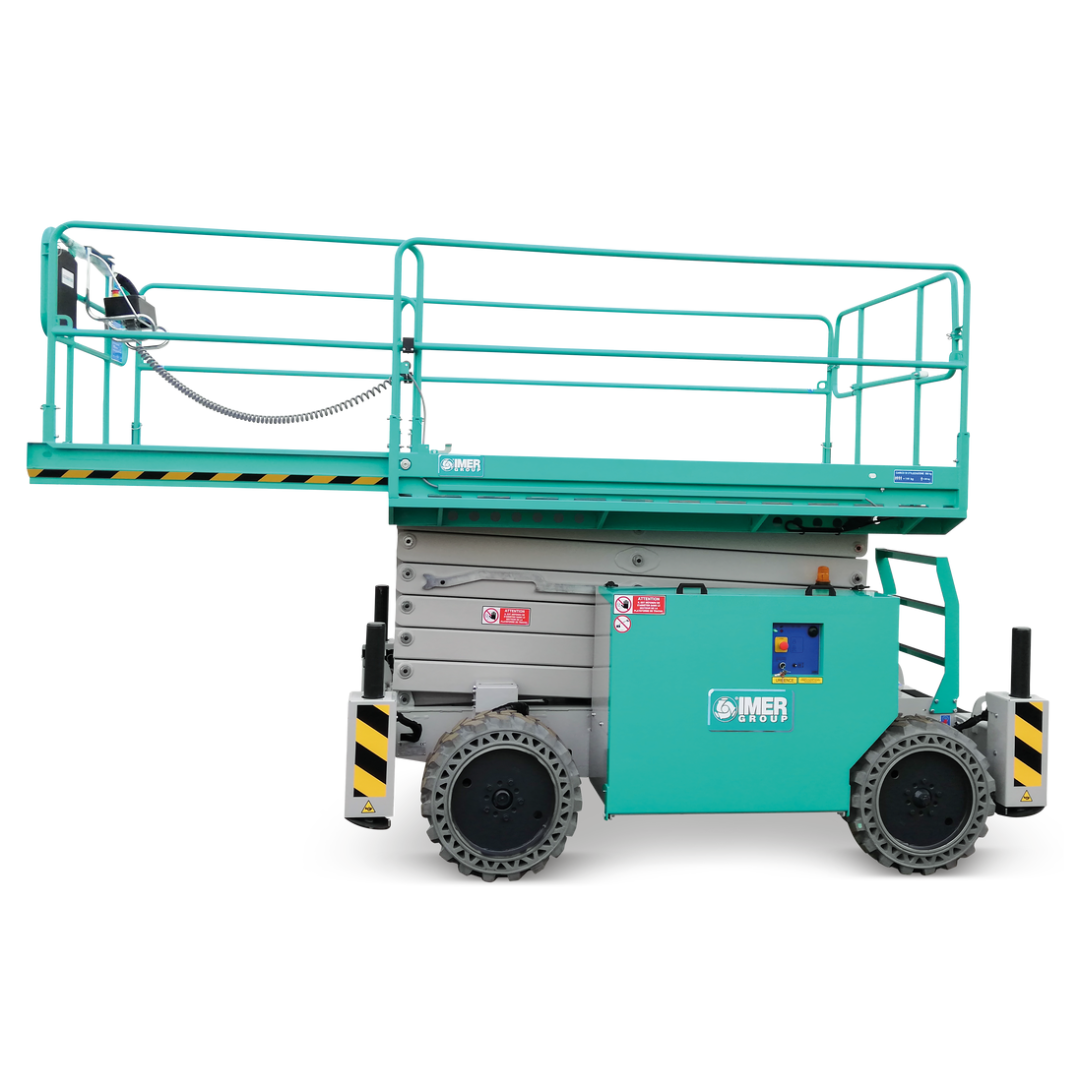

- Extended platform design increases horizontal reach and workspace efficiency.

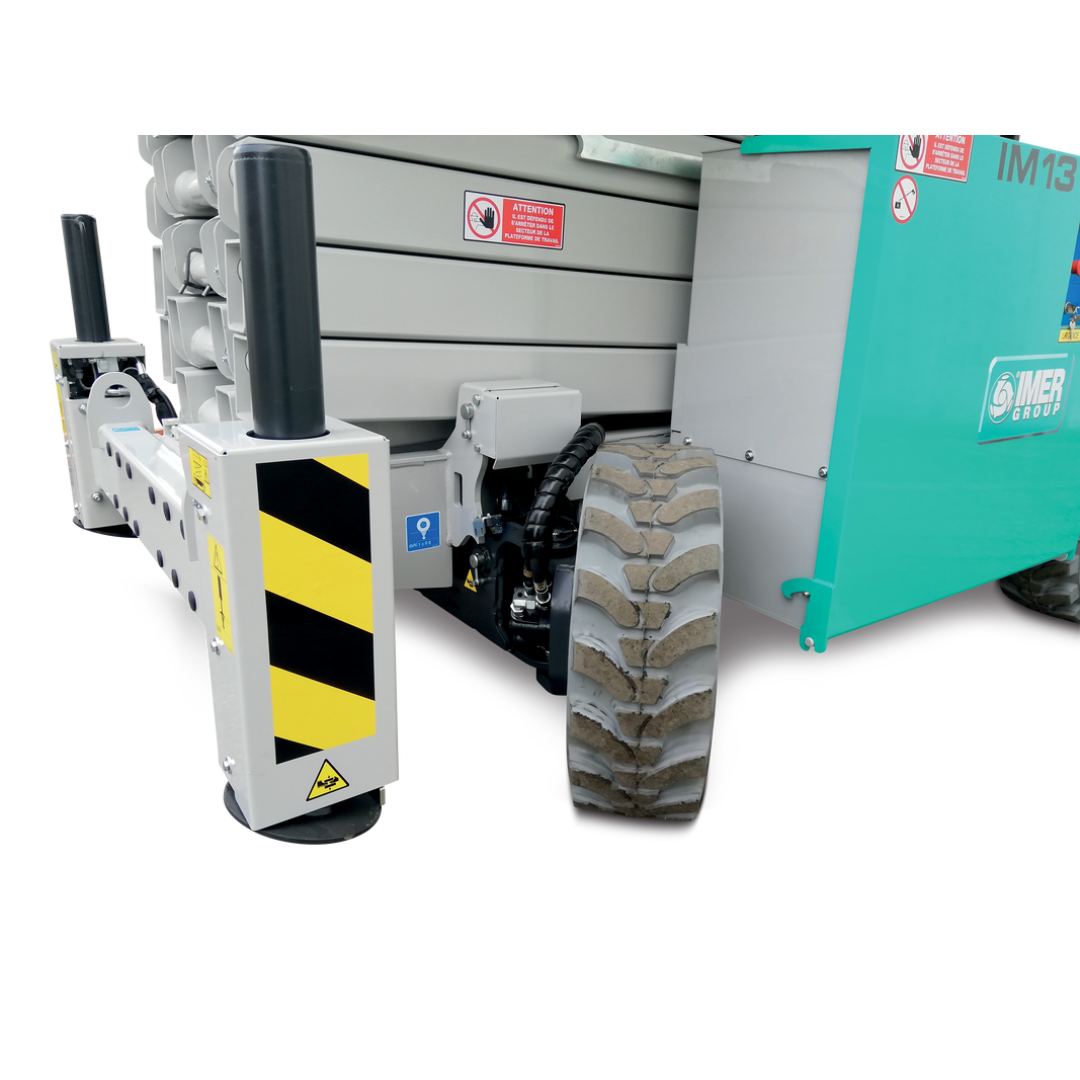

- Large rough terrain tires improve traction and reduce slippage on loose ground surfaces.
- High-capacity platform system supports multiple operators and tools.
- Compact steering geometry enhances maneuverability on crowded jobsites.
Why Choose the IMER IM 7043 DE ROUGH TERRAIN SCISSORS LIFTS
- 49-foot working height for demanding outdoor elevated access projects.
- 4-wheel drive and oscillating axles for superior rough terrain mobility.
- Diesel-electric hybrid system for efficient high-performance operation.
- Drive-at-height capability improves productivity and reduces repositioning time.
- Extended 13-foot 8-inch platform increases working area and reach.
- Heavy-duty construction designed for industrial and construction environments.
- Advanced safety systems with auto-leveling outriggers and overload protection.
The IMER IM 7043 DE ROUGH TERRAIN SCISSORS LIFTS delivers powerful hybrid performance, exceptional rough terrain capability, and professional-grade elevated access functionality for construction, industrial, infrastructure, and outdoor maintenance applications.
