IMER IM 4746 ELECTRIC MICRO SCISSORS LIFTS Applications
- Commercial building maintenance and elevated repair operations
- Warehouse inventory access and overhead material management
- Electrical installation, conduit routing, and lighting system servicing
- HVAC installation, inspection, and maintenance applications
- Industrial production facilities and manufacturing environments
- Retail stores, airports, schools, and institutional maintenance projects
- Indoor construction and finishing operations requiring compact lift access
- High-reach elevated access in narrow aisle and confined work areas
The IMER IM 4746 ELECTRIC MICRO SCISSORS LIFTS combines high working height capability with compact maneuverability, making it ideal for facilities requiring elevated access in restricted environments.

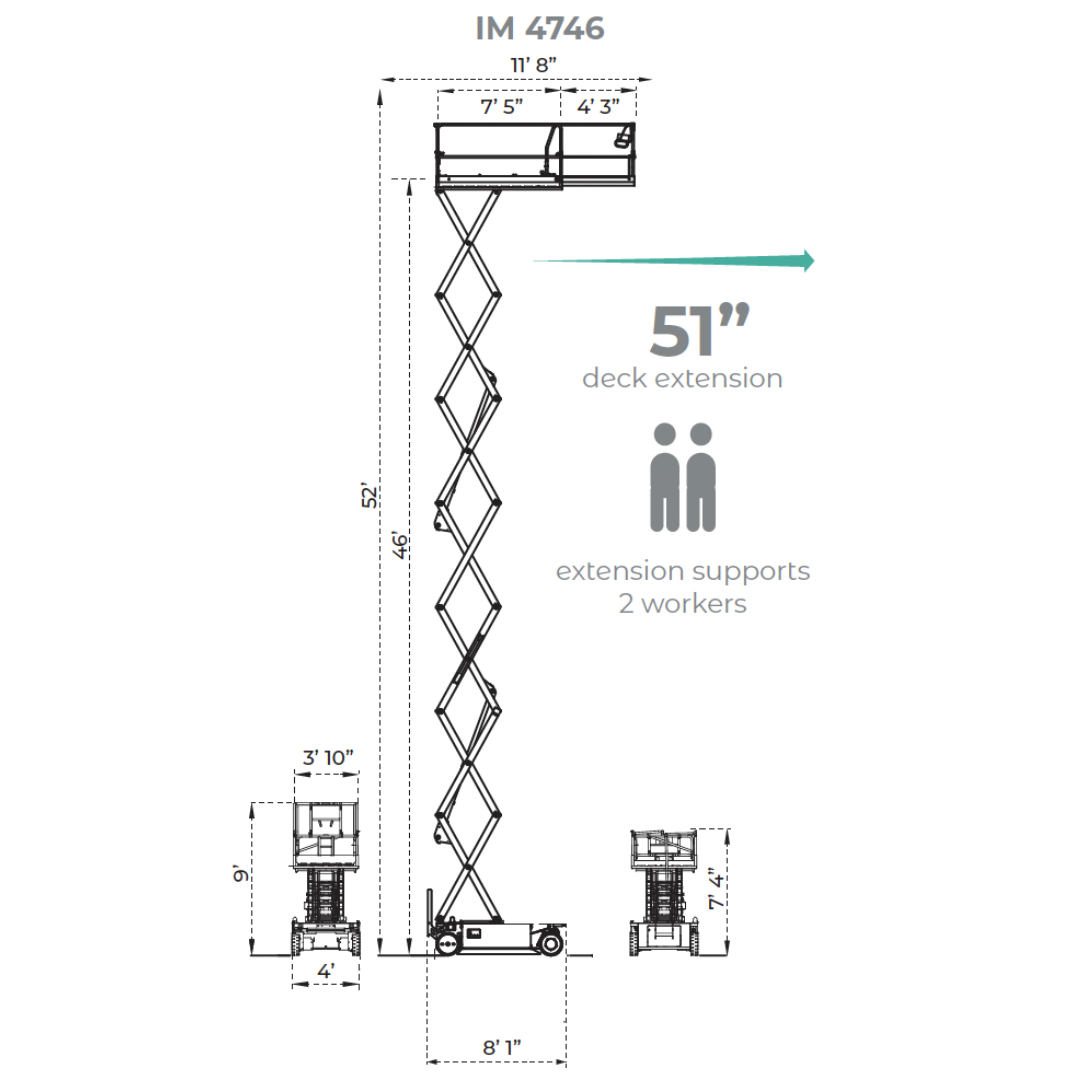

IMER IM 4746 ELECTRIC MICRO SCISSORS LIFTS Specifications
| Model Number | 1128566 |
|---|---|
| Platform Height | 45 ft 7 in (13,900 mm) |
| Working Height | 51 ft 7 in (15,700 mm) |
| Machine Width | 3 ft 11 in (1,194 mm) |
| Height Stowed | 9 ft (2,746 mm) |
| Height with Folded Guardrails | 7 ft 4 in (2,239 mm) |
| Platform Length | 7 ft 5 in (2,270 mm) |
| Platform Length Extended | 11 ft 8 in (3,570 mm) |
| Extension Deck Length | 4 ft 3 in (1,295 mm) |
| Lift Capacity | 550 lbs (250 kg) |
| Maximum Occupants | 2 Persons |
| Electric Drive Motors | 24V / 4.0 HP (3.0 kW) |
| Hydraulic Lifting Power Pack | 24V / 4.0 HP (3.0 kW) |
| Battery System | 24V / 275Ah Traction Battery |
| Battery Charger | 24V / 30A Automatic Charger |
| Hydraulic Tank Capacity | 4.9 gal (17 L) |
| Drive Speed | 2.5 mph (4 km/h) |
| Safety Drive Speed | 0.4 mph (0.6 km/h) |
| Gradeability | 25% |
| Internal Steering Radius | 0 ft (0 m) |
| External Steering Radius | 9 ft 2.5 in (2.35 m) |
| Tire Size | 16 in × 5 in (410 mm × 130 mm) |
| Tire Type | Solid Cushion Non-Marking Tires |
| Maximum Tilt Angle | 1.2° Side / 2.0° Longitudinal |
| Total Machine Weight | 6,548 lbs (2,970 kg) |
| Certifications | ANSI 92.20 / CSA / CE / EN280 Approved |
IMER IM 4746 ELECTRIC MICRO SCISSORS LIFTS Standard Equipment
- Manual deck extension provides additional working reach and accommodates two operators.
- Electric traction front-wheel drive system delivers smooth maneuverability and responsive machine control.
- Negative electromagnetic parking brakes with electric disengagement improve operational safety.
- 90-degree wheel steering capability enhances maneuverability in confined spaces and narrow aisles.
- Manual emergency lowering system ensures safe descent during emergency situations.
- Non-return hydraulic cylinder valves improve lifting stability and safety.
- 24V traction battery system engineered for dependable extended electric operation.
- Automatic battery charger shut-off helps maximize charging efficiency and battery longevity.
- Integrated movement alarm, horn, and hour meter support operational monitoring and maintenance scheduling.
- Tilt meter with motion cut-out and audible alarm increases operator protection on uneven surfaces.
- Mechanical emergency towing release allows safe machine relocation when necessary.
- Solid rubber non-marking tires protect finished indoor flooring surfaces.
- Electric scissor arm protection system enhances safety during platform operation.
- Pot-hole protection system improves elevated machine stability.
- Battery level monitoring with low-voltage protection helps preserve battery performance.
- Foldable guardrails improve transportation and storage clearance.
- Platform weight management system assists with maintaining safe operating loads.
- AC power outlet to platform supports operation of powered tools while elevated.
- Flashing beacon safety light increases visibility and jobsite awareness.
- Proportional controls with onboard diagnostics provide smooth operation and simplified troubleshooting.
IMER IM 4746 ELECTRIC MICRO SCISSORS LIFTS Optional Equipment
- 120V cable with plug, socket, and integrated safety cut-out
- Gel battery upgrade for enhanced operating performance
- Additional flashing beacon safety kit
- Compressed air line system for pneumatic tool applications
Optional equipment allows the IMER IM 4746 ELECTRIC MICRO SCISSORS LIFTS to be customized for specialized industrial, commercial, and maintenance applications.
IMER IM 4746 ELECTRIC MICRO SCISSORS LIFTS Performance & Construction
- Compact lightweight engineering improves accessibility and maneuverability in restricted spaces.
- Optimized weight distribution enhances machine balance and elevated operating stability.
- Drive-at-height functionality reduces repositioning time and increases productivity.
- Extended platform design provides increased horizontal working reach and workspace flexibility.
- Electric drive operation delivers low-noise, zero-emission performance ideal for indoor environments.
- Zero internal steering radius supports precise maneuvering in congested work areas.
- Heavy-duty hydraulic and electrical systems ensure dependable long-term industrial performance.
- Compact chassis width allows access through narrow aisles and restricted entry points.
Why Choose the IMER IM 4746 ELECTRIC MICRO SCISSORS LIFTS
- 52-foot working height capability for demanding elevated access applications.
- Compact 47-inch machine width for maneuverability in restricted spaces.
- Drive-at-height capability improves jobsite productivity and efficiency.
- Electric operation provides clean, quiet indoor performance.
- Extended platform system minimizes machine repositioning.
- Professional-grade safety systems with ANSI, CSA, CE, and EN280 compliance.
- Durable industrial construction built for commercial and maintenance environments.
The IMER IM 4746 ELECTRIC MICRO SCISSORS LIFTS delivers professional-grade elevated access performance by combining compact maneuverability, extended vertical reach, advanced electric drive technology, and comprehensive safety systems for demanding commercial and industrial applications.
