IMER IM 4740 ELECTRIC MICRO SCISSORS LIFTS Applications
- Commercial building maintenance and elevated repair work
- Warehouse inventory access and material handling support
- Electrical installations, conduit work, and lighting systems
- HVAC installation, inspection, and maintenance operations
- Industrial manufacturing facilities and assembly lines
- Retail centers, airports, schools, and public infrastructure maintenance
- Indoor construction and finishing projects requiring compact lift access
- Confined aisle and restricted-access elevated work environments
The compact chassis design and zero internal steering radius make the IMER IM 4740 ELECTRIC MICRO SCISSORS LIFTS ideal for maneuvering in congested workspaces and narrow indoor access areas.

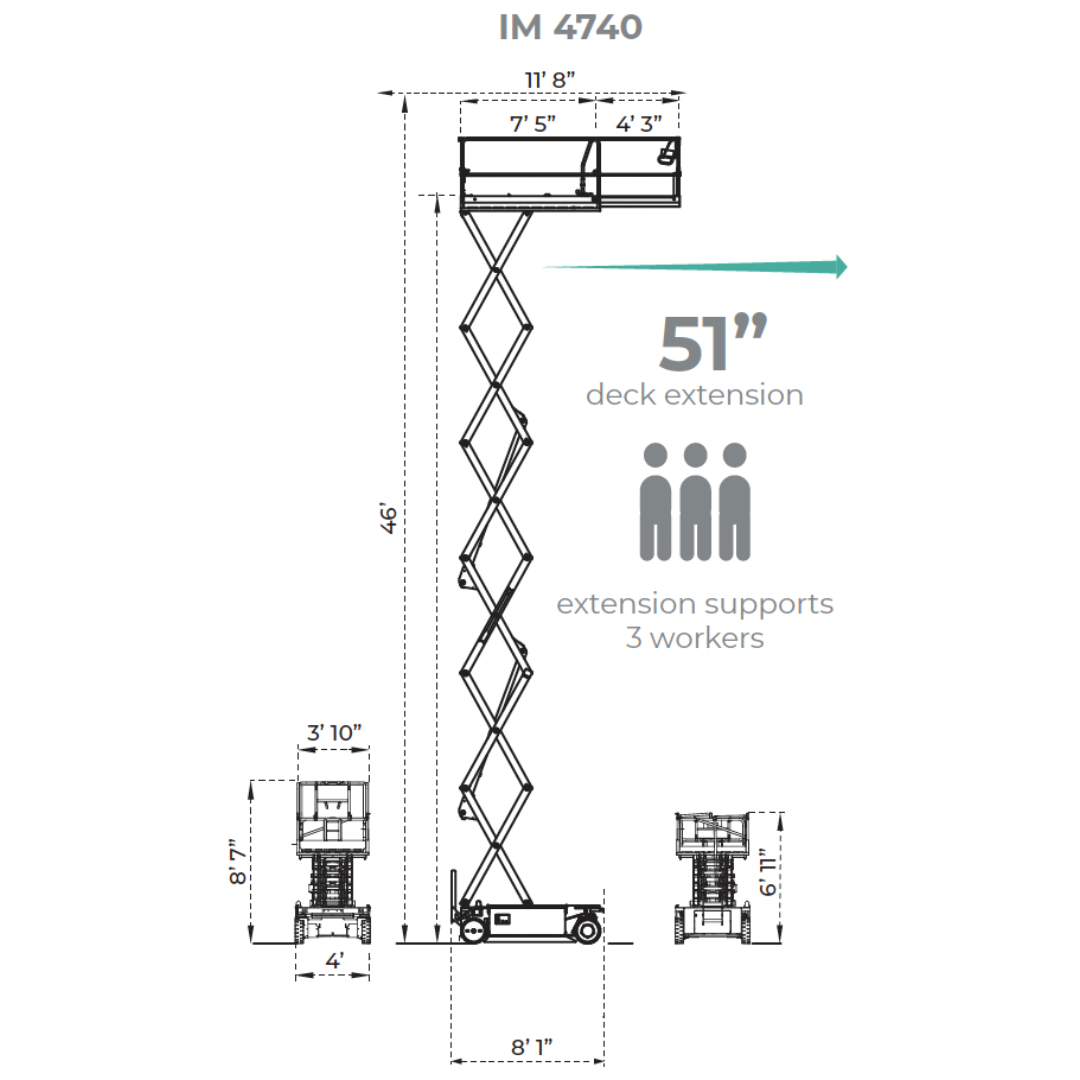

IMER IM 4740 ELECTRIC MICRO SCISSORS LIFTS Specifications
| Model Number | 1128556 |
|---|---|
| Platform Height | 39 ft 4 in (12,000 mm) |
| Working Height | 45 ft 4 in (13,800 mm) |
| Machine Width | 3 ft 11 in (1,194 mm) |
| Height Stowed | 8 ft 7 in (2,619 mm) |
| Height with Folded Guardrails | 6 ft 11 in (2,112 mm) |
| Platform Length | 7 ft 5 in (2,270 mm) |
| Platform Length Extended | 11 ft 8 in (3,570 mm) |
| Extension Deck Length | 4 ft 3 in (1,295 mm) |
| Lift Capacity | 770 lbs (350 kg) |
| Maximum Occupants | 3 Persons |
| Electric Drive Motors | 24V / 4.0 HP (3.0 kW) |
| Hydraulic Lifting Power Pack | 24V / 4.0 HP (3.0 kW) |
| Battery System | 24V / 275Ah Traction Battery |
| Battery Charger | 24V / 30A Automatic Charger |
| Hydraulic Tank Capacity | 4.9 gal (17 L) |
| Drive Speed | 2.5 mph (4 km/h) |
| Safety Drive Speed | 0.4 mph (0.6 km/h) |
| Gradeability | 25% |
| Internal Steering Radius | 0 ft (0 m) |
| External Steering Radius | 9 ft 2.5 in (2.35 m) |
| Tire Size | 16 in × 5 in (410 mm × 130 mm) |
| Tire Type | Solid Cushion Non-Marking Tires |
| Maximum Tilt Angle | 1.8° Side / 3.0° Longitudinal |
| Total Machine Weight | 6,349 lbs (2,880 kg) |
| Certifications | ANSI 92.20 / CSA / CE / EN280 Approved |
IMER IM 4740 ELECTRIC MICRO SCISSORS LIFTS Standard Equipment
- Manual deck extension designed to support multiple operators and improve workspace reach.
- Electric front-wheel traction drive provides smooth maneuverability and excellent control.
- Negative electromagnetic parking brakes with electric disengagement for enhanced operational safety.
- 90-degree steering capability improves maneuverability in tight and congested work environments.
- Manual emergency lowering system ensures safe descent during emergency situations.
- Non-return hydraulic cylinder valves increase lifting safety and hydraulic stability.
- 24V traction battery system engineered for reliable all-day electric operation.
- Automatic battery charger shut-off protects battery performance and charging efficiency.
- Integrated movement alarm, horn, and hour meter for operational monitoring and maintenance tracking.
- Tilt meter with motion cut-out and alarm improves operator safety on uneven terrain.
- Mechanical emergency towing release allows safe machine relocation if required.
- Solid non-marking rubber tires protect finished flooring surfaces during indoor operation.
- Electric scissor arm protection system enhances operational safety during lift movement.
- Pot-hole protection system improves machine stability while elevated.
- Battery level monitoring with low-voltage protection helps maximize battery life.
- Foldable guardrails improve transportation and storage clearance.
- Platform load management system assists in maintaining safe operating capacity.
- AC power outlet to platform allows operation of powered tools at elevation.
- Flashing beacon safety light increases jobsite visibility and operator awareness.
- Proportional controls with onboard diagnostics provide smooth operation and simplified troubleshooting.
IMER IM 4740 ELECTRIC MICRO SCISSORS LIFTS Optional Equipment
- 120V cable with plug, socket, and integrated safety cut-out
- Gel battery upgrade for extended operating efficiency
- Additional flashing beacon safety kit
- Compressed air line system for pneumatic tool operation
Optional accessories allow the IMER IM 4740 ELECTRIC MICRO SCISSORS LIFTS to be configured for specialized maintenance, industrial, and commercial elevated access applications.
IMER IM 4740 ELECTRIC MICRO SCISSORS LIFTS Performance & Construction
- Compact lightweight engineering improves accessibility and transport efficiency.
- Optimized weight distribution enhances machine stability and elevated driving confidence.
- Drive-at-height capability increases productivity by reducing repositioning time during operation.
- Narrow chassis width allows access through restricted aisles and confined work areas.
- Extended working platform provides increased horizontal reach and workspace flexibility.
- Electric drive operation delivers quiet, low-emission performance for indoor applications.
- Zero internal steering radius supports precise maneuverability in tight environments.
- Industrial-grade electrical and hydraulic systems ensure dependable long-term performance.
Why Choose the IMER IM 4740 ELECTRIC MICRO SCISSORS LIFTS
- Approximately 46-foot working height for elevated access applications.
- Compact 40-inch chassis width for maneuverability in restricted areas.
- Drive-at-height capability improves operational productivity.
- Electric operation provides quiet, clean indoor performance.
- Extended platform design reduces repositioning requirements.
- Advanced safety systems with ANSI, CSA, CE, and EN280 compliance.
- Heavy-duty construction built for industrial and commercial environments.
The IMER IM 4740 ELECTRIC MICRO SCISSORS LIFTS combines compact maneuverability, extended reach, advanced electric performance, and professional-grade safety systems to deliver a highly versatile elevated access solution for contractors, maintenance teams, warehouses, and industrial facilities.
