IMER IM 3540 ELECTRIC MICRO SCISSORS LIFTS Applications
- Commercial facility maintenance and elevated repair work
- Warehouse inventory access and overhead stock management
- Electrical installation, conduit routing, and lighting maintenance
- HVAC installation and ceiling-level servicing applications
- Industrial manufacturing plants and assembly facilities
- Indoor construction and finishing operations
- Retail centers, airports, schools, and public infrastructure maintenance
- Tight aisle elevated access where compact machine width is critical
The compact 35-inch base width and zero internal steering radius allow the IMER IM 3540 ELECTRIC MICRO SCISSORS LIFTS to maneuver efficiently in narrow aisles, congested workspaces, and confined indoor environments.

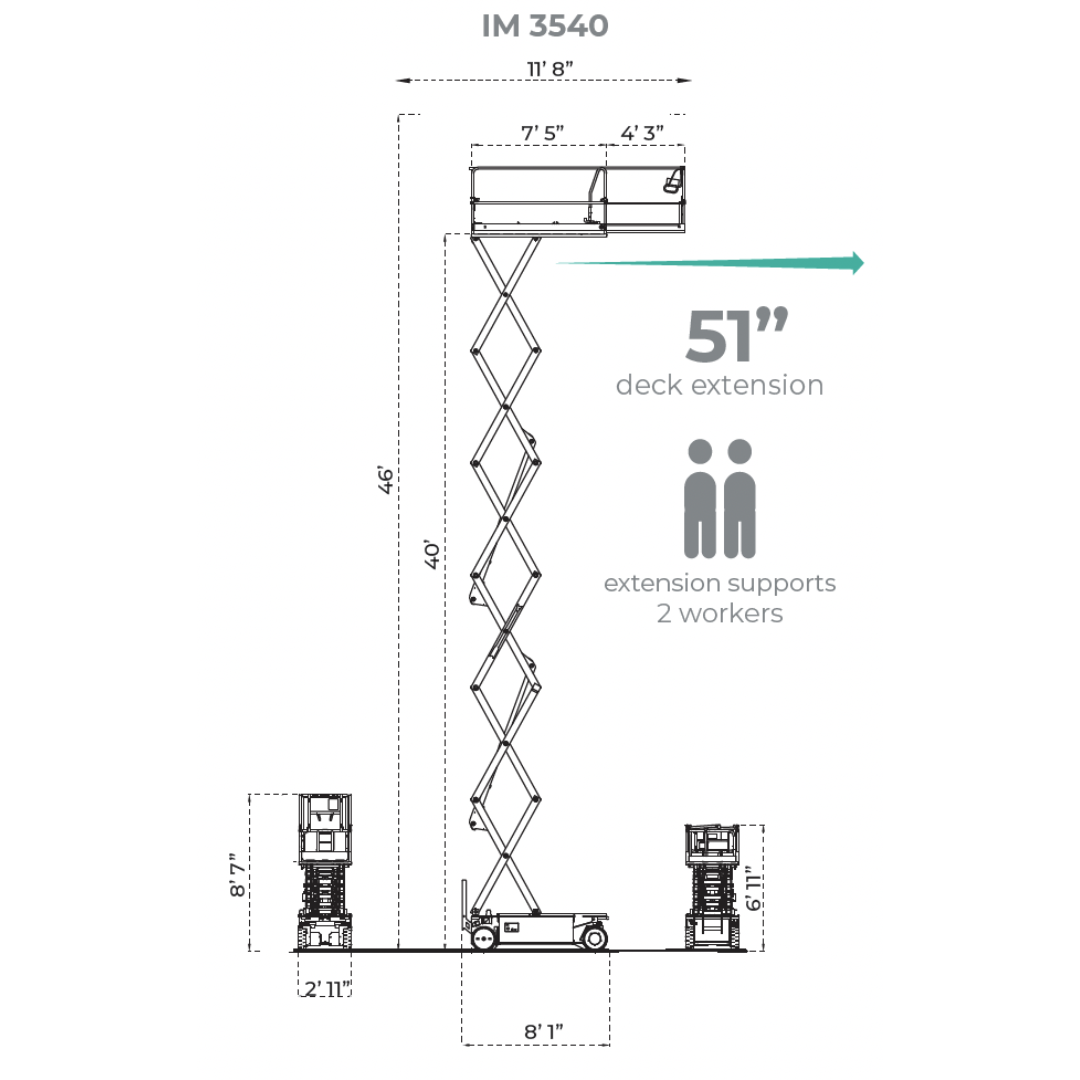

IMER IM 3540 ELECTRIC MICRO SCISSORS LIFTS Specifications
| Model Number | 1128506 |
|---|---|
| Platform Height | 40 ft (12,200 mm) |
| Working Height | 46 ft (14,000 mm) |
| Machine Width | 35 in (892 mm) |
| Height Stowed | 8 ft 7 in (2,619 mm) |
| Height with Folded Guardrails | 6 ft 11 in (2,112 mm) |
| Platform Length | 7 ft 5 in |
| Platform Length Extended | 11 ft 8 in (2,270 mm) |
| Extension Deck Length | 4 ft 3 in (1,300 mm) |
| Lift Capacity | 510 lbs (230 kg) |
| Maximum Occupants | 2 Persons |
| Electric Drive Motors | 24V / 4.0 HP (3.0 kW) |
| Hydraulic Lifting Power Pack | 24V / 4.0 HP (3.0 kW) |
| Battery System | 24V / 182Ah Traction Battery |
| Battery Charger | 24V / 20A Automatic Charger |
| Hydraulic Tank Capacity | 4.9 gal (17 L) |
| Drive Speed | 2.5 mph (4 km/h) |
| Safety Drive Speed | 0.4 mph (0.6 km/h) |
| Gradeability | 25% |
| Internal Steering Radius | 0 ft (0 m) |
| External Steering Radius | 7 ft (1.65 m) |
| Tire Size | 16 in × 5 in (410 mm × 130 mm) |
| Tire Type | Solid Cushion Non-Marking Tires |
| Maximum Tilt Angle | 1.5° Side / 2.5° Longitudinal |
| Total Machine Weight | 7,011 lbs (3,180 kg) |
| Certifications | ANSI 92.20 / CSA / CE / EN280 Approved |
IMER IM 3540 ELECTRIC MICRO SCISSORS LIFTS Standard Equipment
- Manual deck extension designed to safely accommodate two operators.
- Electric traction front-wheel drive system provides smooth maneuverability and improved machine control.
- Negative electromagnetic parking brakes with electric disengagement for added operational safety.
- 90-degree wheel steering capability enhances maneuverability in compact workspaces.
- Manual emergency lowering system for safe descent during power interruptions.
- Non-return hydraulic cylinder valves improve lifting safety and hydraulic stability.
- 24V traction battery system engineered for reliable all-day electric operation.
- Automatic battery charger shut-off helps preserve battery life and charging efficiency.
- Integrated movement alarm, horn, and hour meter for operational awareness and maintenance tracking.
- Tilt sensor with motion cut-out and audible alarm increases operator safety on uneven surfaces.
- Mechanical emergency towing release allows emergency machine relocation if required.
- Solid non-marking rubber tires protect finished indoor flooring surfaces.
- Electric scissor arm protection system enhances operator protection during lift operation.
- Pot-hole protection system increases stability when elevated.
- Battery level monitoring with low-voltage protection helps maximize battery performance.
- Foldable guardrails improve transportation and storage clearance.
- Platform load management system helps maintain safe operating capacities.
- AC power outlet to platform supports powered tools at elevation.
- Flashing beacon safety light improves jobsite visibility.
- Proportional control system with diagnostics enables smooth lift functions and simplified troubleshooting.
IMER IM 3540 ELECTRIC MICRO SCISSORS LIFTS Optional Equipment
- 120V cable with plug, socket, and integrated safety cut-out
- Gel battery upgrade for IM 35 Series models
- Additional flashing beacon safety kit
- Compressed air line system for pneumatic tool support
Optional accessories allow the IMER IM 3540 ELECTRIC MICRO SCISSORS LIFTS to be configured for specialized industrial, maintenance, and indoor service applications.
IMER IM 3540 ELECTRIC MICRO SCISSORS LIFTS Performance & Construction
- Compact lightweight engineering improves transportability and allows access through restricted work zones.
- Optimized weight distribution enhances machine stability and driving confidence at elevation.
- Drive-at-height capability allows operators to reposition the lift while fully elevated for increased productivity.
- Narrow 35-inch machine width enables access through tight aisles, doorways, and congested indoor workspaces.
- Extended working platform increases horizontal reach and reduces machine repositioning frequency.
- Electric drive system delivers low-noise, zero-emission operation suitable for indoor environments.
- Zero internal steering radius supports precise maneuvering in confined areas.
- Industrial-grade hydraulic and electrical systems provide dependable daily performance in demanding applications.
Why Choose the IMER IM 3540 ELECTRIC MICRO SCISSORS LIFTS
- 46-foot working height for demanding elevated access applications.
- Compact 35-inch width for maneuverability in restricted spaces.
- Drive-at-height functionality improves operator productivity.
- Electric operation delivers quiet, clean indoor performance.
- Extended platform provides additional workspace and reach.
- Advanced safety systems with ANSI, CSA, CE, and EN280 compliance.
- Heavy-duty construction designed for industrial and commercial environments.
The IMER IM 3540 ELECTRIC MICRO SCISSORS LIFTS combines high-reach performance, compact maneuverability, advanced safety systems, and efficient electric operation to deliver a versatile elevated access solution for professional contractors, maintenance teams, warehouses, and industrial facilities.
