IMER IM 3534 Electric Micro Scissor Lift Applications
- Indoor commercial construction and finishing operations
- Warehouse maintenance and elevated inventory access
- Electrical, HVAC, and lighting installation projects
- Industrial facility inspection and maintenance work
- Retail, office, and institutional building service applications
- Elevated maintenance tasks in narrow indoor workspaces
- Signage installation and facility upgrade projects
- Professional elevated access operations requiring extended reach
The IMER IM 3534 Electric Micro Scissor Lift is ideal for operators requiring maximum indoor working height, compact maneuverability, and large platform workspace for demanding elevated access applications.

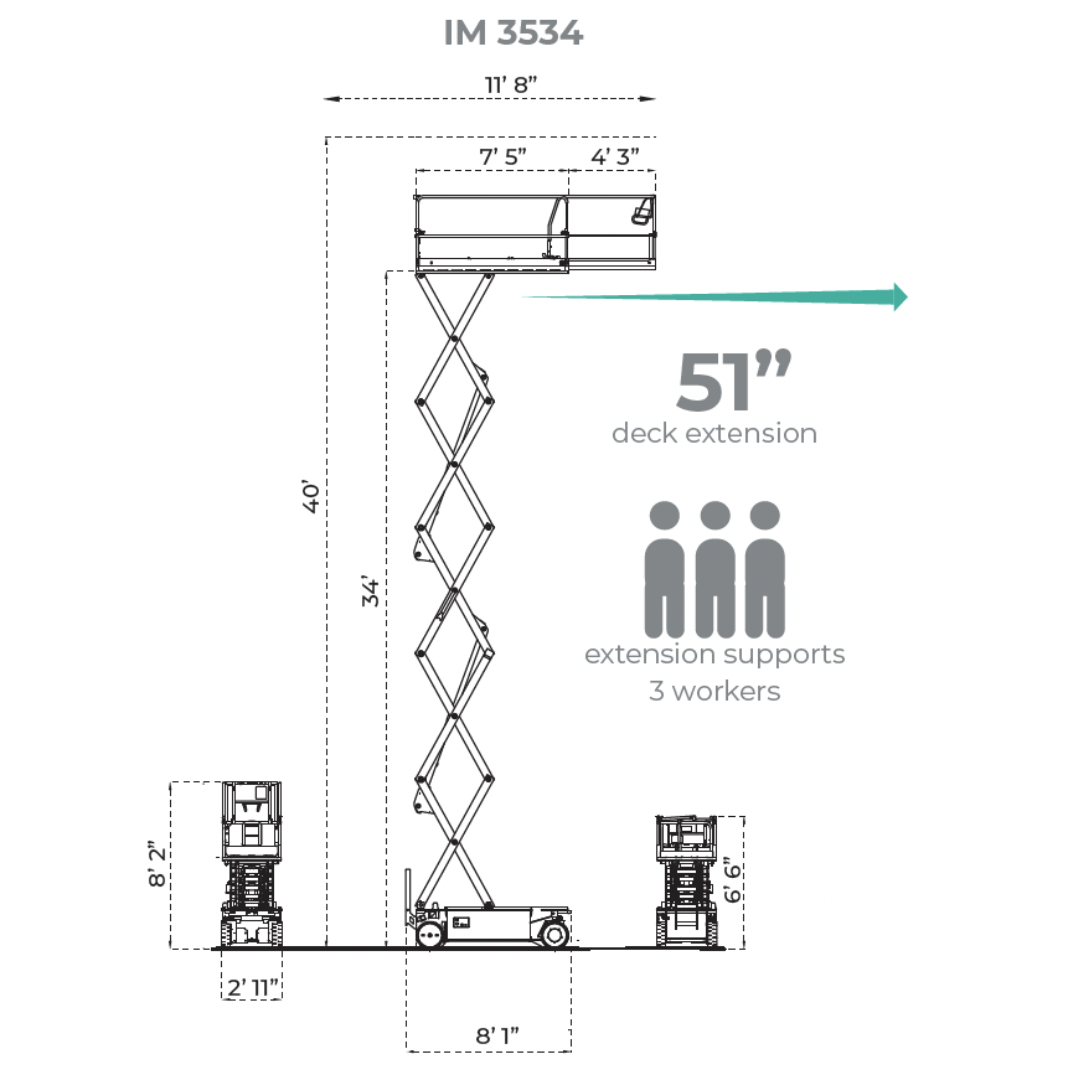

IMER IM 3534 Electric Micro Scissor Lift Specifications
| Model Number | 1128496 |
|---|---|
| Platform Height | 33 ft / 10,000 mm |
| Working Height | 39 ft / 11,900 mm |
| Ground Clearance (Raised / Lowered) | 5 in / 1 in |
| Stowed Height | 8 ft 2 in / 2,492 mm |
| Height to Platform Bottom | 4 ft 5.5 in / 1,362 mm |
| Storage Height (With Guardrails) | 6 ft 6 in / 1,985 mm |
| Width (Outside Tires) | 35 in / 892 mm |
| Platform Length – Extended | 11 ft 8 in / 2,270 mm |
| Platform Length | 7 ft 5 in |
| Extension Platform Length | 4 ft 3 in / 1,300 mm |
| Capacity / Number of People | 660 lbs / 3 Persons |
| Electric Drive Motors | 24V / 4.0 HP |
| Lifting Power Pack | 24V / 4.0 HP Hydraulic System |
| Battery System | 24V / 182Ah Traction Battery |
| Battery Charger | 24V / 20A |
| Hydraulic Tank Capacity | 4.9 gal / 17 L |
| Drive Speed | 2.5 mph / 4 km/h |
| Safety Traction Speed | 0.4 mph / 0.6 km/h |
| Gradeability | 25% |
| Internal Steering Radius | 0 ft / 0 m |
| External Steering Radius | 7 ft 2 in / 1.65 m |
| Tire Size | 16 in × 5 in / 410 mm × 130 mm |
| Wheel Type | Cushion Non-Marking Tires |
| Maximum Side / Longitudinal Tilt Angle | 1.5° / 2.5° |
| Total Machine Weight | 6,283 lbs / 2,850 kg |
IMER IM 3534 Electric Micro Scissor Lift Features & Performance
- 39-foot working height provides exceptional elevated access capability for professional indoor applications.
- Compact 35-inch-wide chassis allows easy access through restricted indoor pathways and narrow operating environments.
- Extended platform length of 11'8" provides increased workspace and improved productivity for elevated operations.
- 51-inch platform extension enhances reach capability and operator flexibility during elevated tasks.
- Drive-at-height functionality allows operators to reposition the machine while elevated for greater efficiency.
- Electric front-wheel traction system delivers smooth machine movement and excellent maneuverability indoors.
- 90° wheel steering improves steering precision and operation in confined spaces.
- Quiet zero-emission electric operation makes the machine ideal for indoor and environmentally sensitive applications.
- Heavy-duty traction battery system delivers reliable performance and long operating runtime.
- Foldable guardrails reduce storage and transport height for easier movement and accessibility.
- Proportional controls with onboard diagnostics provide smooth operation and simplified machine monitoring.
- Advanced safety systems include tilt monitoring, overload management, pothole protection, emergency lowering, flashing beacon, electric scissor protection, and low-voltage battery protection.
- ANSI 92.20, CSA, CE & EN280 approved for elevated safety compliance and operational reliability.
IMER IM 3534 Electric Micro Scissor Lift Standard Equipment
- Manual deck extension designed to hold two operators
- Electric traction on front wheels
- Negative electromagnetic parking brakes with electric disengagement
- 90° wheel steering system
- 39½" manual deck extension
- Manual emergency lowering system
- Non-return valve on lifting cylinders
- 24V-185Ah traction batteries
- Battery charger with automatic cut-off
- Movement alarm, horn, and hour meter
- Tilt meter with motion cut-out and alarm
- Mechanical release for emergency hauling
- Solid rubber non-marking tires
- Electric scissor protection system
- Pothole protection system
- Battery level control with low-voltage protection
- Foldable guardrails
- Platform weight management system
- AC power to platform
- Flashing beacon
- Proportional controls with diagnostics
IMER IM 3534 Electric Micro Scissor Lift Optional Equipment
| Optional Kit | Description |
|---|---|
| 120V Cable Kit | Includes plug, socket, and safety cut-out for convenient platform power access. |
| Gel Battery Kit – IM 35 Series | Alternative battery configuration designed for extended operational flexibility and maintenance reduction. |
| Additional Flashing Beacon Kit | Enhances machine visibility and improves jobsite safety. |
| Compressed Air Line Kit | Provides pneumatic tool access directly from the elevated platform. |
Optional accessory packages allow the IMER IM 3534 Electric Micro Scissor Lift to be customized for specialized elevated maintenance, installation, and industrial access applications.
Why Choose the IMER IM 3534 Electric Micro Scissor Lift
- 39-foot working height with compact micro-lift dimensions.
- 35-inch-wide chassis designed for restricted indoor access areas.
- Large extended platform improves elevated workspace efficiency.
- Quiet zero-emission electric operation for indoor environments.
- Drive-at-height capability improves productivity and maneuverability.
- Advanced safety systems with ANSI, CSA, CE, and EN280 compliance.
- Ideal for construction, maintenance, warehouse, and facility service applications.
The IMER IM 3534 Electric Micro Scissor Lift combines maximum indoor reach, compact maneuverability, extended platform workspace, and advanced safety systems into a highly versatile electric aerial work platform designed for demanding professional elevated access applications.
