IMER IM 3224 Electric Micro Scissor Lift Applications
- Indoor construction and commercial finishing work
- Warehouse inventory access and maintenance operations
- Facility management and elevated repair applications
- Electrical, HVAC, lighting, and signage installation
- Industrial maintenance and inspection operations
- Retail and institutional building maintenance
- Elevated access tasks in narrow aisles and confined spaces
- Professional service and installation applications

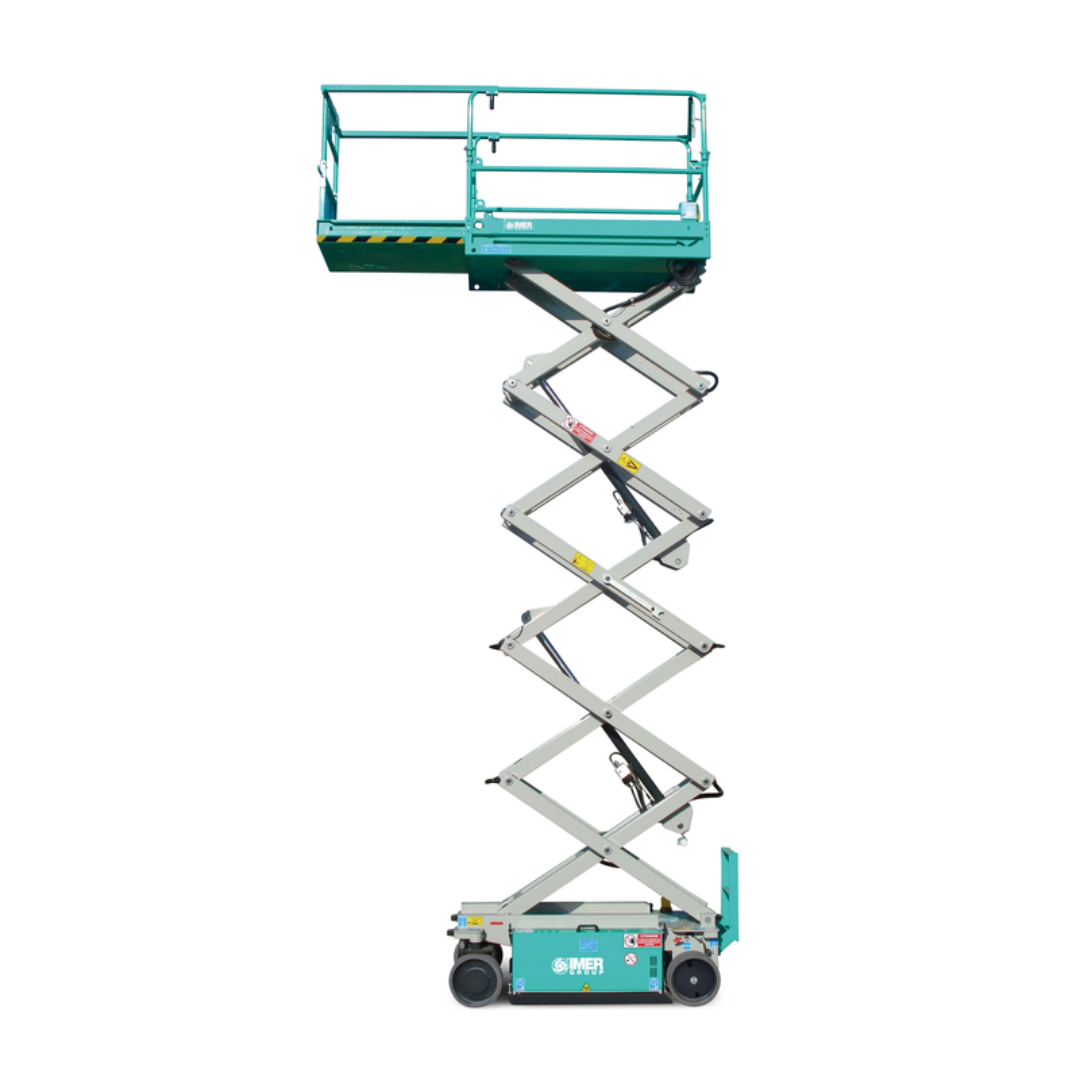

The IMER IM 3224 Electric Micro Scissor Lift is designed for operators who require maximum indoor working height, compact maneuverability, and reliable electric-powered elevated access performance.

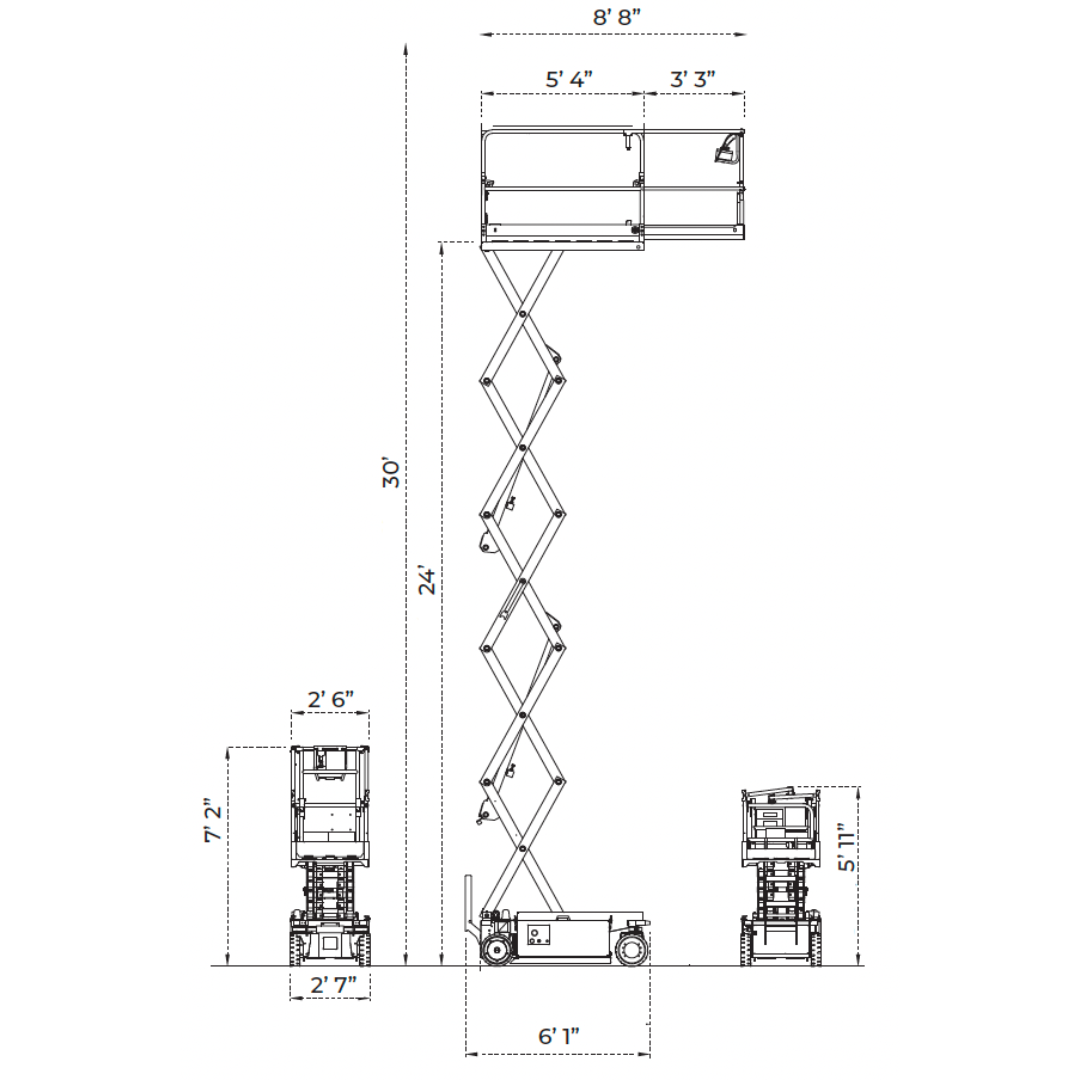

IMER IM 3224 Electric Micro Scissor Lift Specifications
| Model Number | 1128923 |
|---|---|
| Number of Scissors | 4 |
| Platform Height – Indoor | 24 ft / 7,200 mm |
| Platform Height – Outdoor | 17 ft 9 in / 5,400 mm |
| Working Height – Indoor | 30 ft / 9,200 mm |
| Working Height – Outdoor | 24 ft 3 in / 7,300 mm |
| Ground Clearance (Pothole Up/Down) | 3.5 in / 0.85 in |
| Stowed Height | 7 ft 3 in / 2,200 mm |
| Height with Guardrails Folded | 5 ft 11 in / 1,800 mm |
| Platform Capacity | 507 lbs / 230 kg |
| Capacity on Deck Extension (Outdoor) | 507 lbs (287 lbs Outdoor) / 230 kg (130 kg Outdoor) |
| Allowed Operators | 2 Indoor / 1 Outdoor |
| Traction Motors | 24V / 3.2 HP |
| Powerpack | 24V / 3 HP |
| Batteries | 24V / 182 Ah Traction Batteries |
| Battery Weight | 64 lbs / 29 kg |
| Battery Charger | 24V / 20 Ah |
| Oil Tank Capacity | 1.85 gal / 7 L |
| Maximum Driving Speed | 2.5 mph / 4 km/h |
| Safety Speed | 0.25 mph / 0.4 km/h |
| Gradeability | 25% |
| Internal Turning Radius | 0 ft / 0 m |
| External Turning Radius | 5 ft 5 in / 0.24 m |
| Tire Dimensions | 12.8 in × 3.9 in / 325 × 100 mm |
| Tire Type | Cushion Non-Marking Tires |
| Maximum Side / Longitudinal Tilt Angle | 1.5° / 2.5° |
| Machine Weight | 2,850 lbs / 1,300 kg |
IMER IM 3224 Electric Micro Scissor Lift Features & Performance
- 30-foot indoor working height provides exceptional elevated access capability for professional indoor applications.
- Compact 32-inch-wide chassis allows access through standard doorways, elevators, and narrow interior spaces.
- Extended platform length of 8'8" increases available workspace and improves productivity during elevated tasks.
- 39-inch manual deck extension supports two operators while improving reach and work flexibility.
- Drive-at-height functionality allows repositioning while elevated to reduce downtime and improve efficiency.
- Front-wheel electric traction system provides smooth machine movement and responsive control.
- 90° wheel steering enhances maneuverability and precision operation in tight spaces.
- Quiet zero-emission electric operation makes the lift ideal for indoor and environmentally sensitive applications.
- Maintenance-free traction battery system delivers reliable daily operation and long runtime performance.

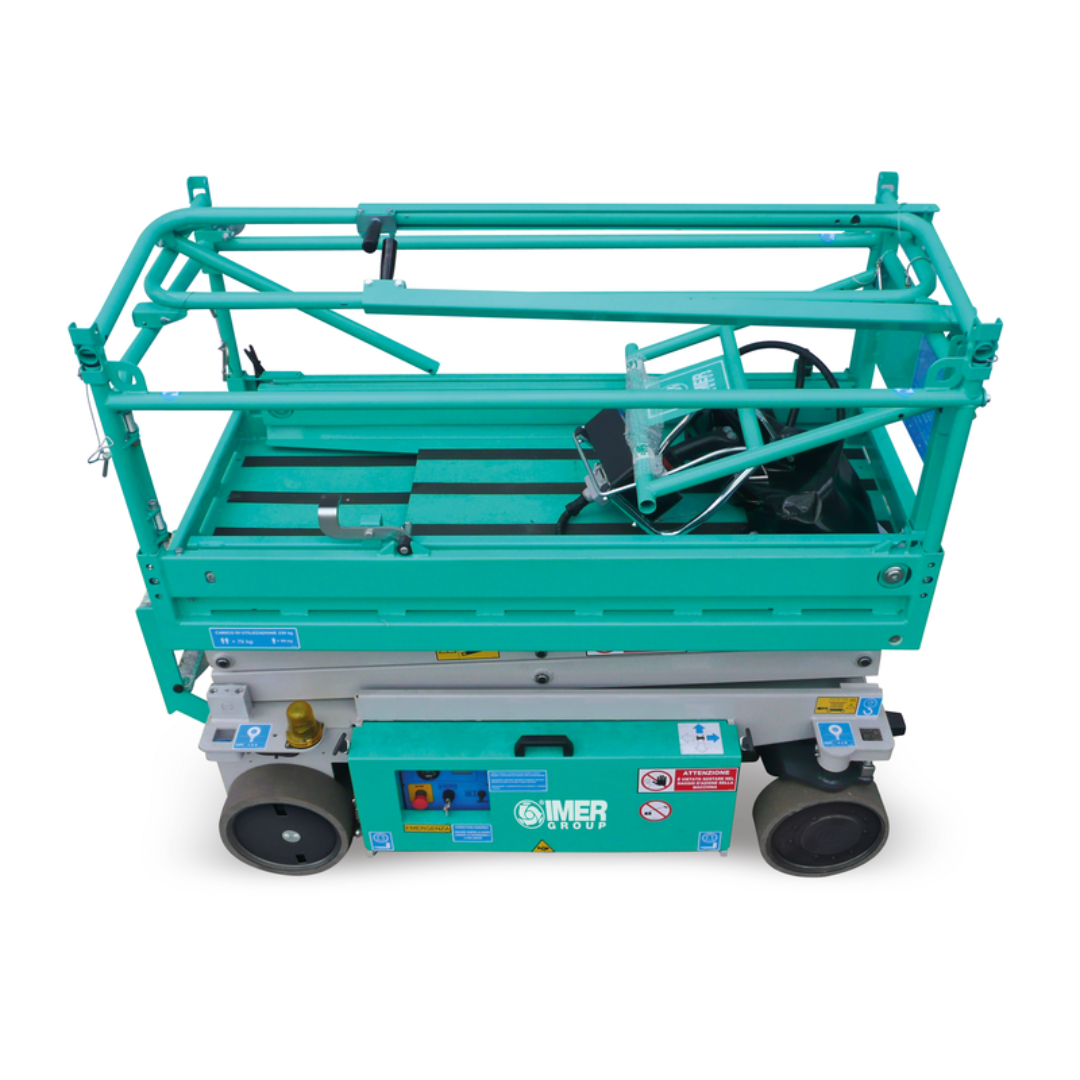

- Foldable guardrails reduce transport height and improve storage flexibility.
- Proportional controls with onboard diagnostics provide smooth operation and simplified machine monitoring.
- Integrated safety systems include overload management, pothole protection, tilt monitoring with motion cut-out, emergency lowering, flashing beacon, and electric scissor protection.
- ANSI 92.20, CSA, CE & EN280 approved for elevated safety compliance and operational reliability.
IMER IM 3224 Electric Micro Scissor Lift Standard Equipment
- Manual deck extension designed to hold two operators
- Electric traction on front wheels
- Negative electromagnetic parking brakes with electric disengagement
- 90° wheel steering system
- 39½" manual deck extension
- Manual emergency lowering system
- Non-return valve on lifting cylinders
- 24V-185Ah traction batteries
- Battery charger with automatic cut-off
- Movement alarm, horn, and hour meter
- Tilt meter with motion cut-out and alarm
- Mechanical release for emergency hauling
- Solid rubber non-marking tires
- Electric scissor protection system
- Pothole protection system
- Battery level control with low-voltage protection
- Foldable guardrails
- Platform weight management system
- AC power to platform
- Flashing beacon
- Proportional controls with diagnostics
IMER IM 3224 Electric Micro Scissor Lift Optional Equipment
| Optional Kit | Description |
|---|---|
| 120V Cable Kit | Includes plug, socket, and safety cut-out for convenient platform power access. |
| Additional Flashing Beacon Kit | Enhances machine visibility and jobsite safety during operation. |
| Compressed Air Line at Platform | Provides pneumatic tool access directly from the elevated work platform. |
| Gel Battery Kit – IM 32 Series | Alternative battery configuration designed for extended operational flexibility and maintenance reduction. |
Optional equipment packages allow the IMER IM 3224 Electric Micro Scissor Lift to be configured for specialized maintenance, installation, and professional indoor elevated access applications.
Why Choose the IMER IM 3224 Electric Micro Scissor Lift
- 30-foot indoor working height with compact micro-lift dimensions.
- 32-inch-wide chassis designed for narrow indoor access areas.
- Extended platform improves elevated workspace efficiency.
- Quiet zero-emission electric operation for indoor environments.
- Drive-at-height capability improves jobsite productivity.
- Advanced safety systems with ANSI, CSA, CE, and EN280 compliance.
- Ideal for maintenance, construction, warehouse, and facility service applications.
The IMER IM 3224 Electric Micro Scissor Lift combines maximum indoor working height, compact maneuverability, advanced safety systems, and reliable electric-powered performance into a highly versatile aerial work platform built for demanding professional applications.
