IMER IM 3219 Electric Micro Scissor Lift Applications
- Indoor construction and finishing operations
- Facility maintenance and repair applications
- Warehouse inventory access and stock management
- Electrical, HVAC, and lighting installation projects
- Retail store maintenance and signage installation
- Industrial facility inspections and service work
- Commercial building maintenance operations
- Elevated access tasks in confined indoor environments
The IMER IM 3219 Electric Micro Scissor Lift is ideal for operators requiring increased elevated access capability, compact dimensions, and quiet electric-powered operation for professional indoor applications.

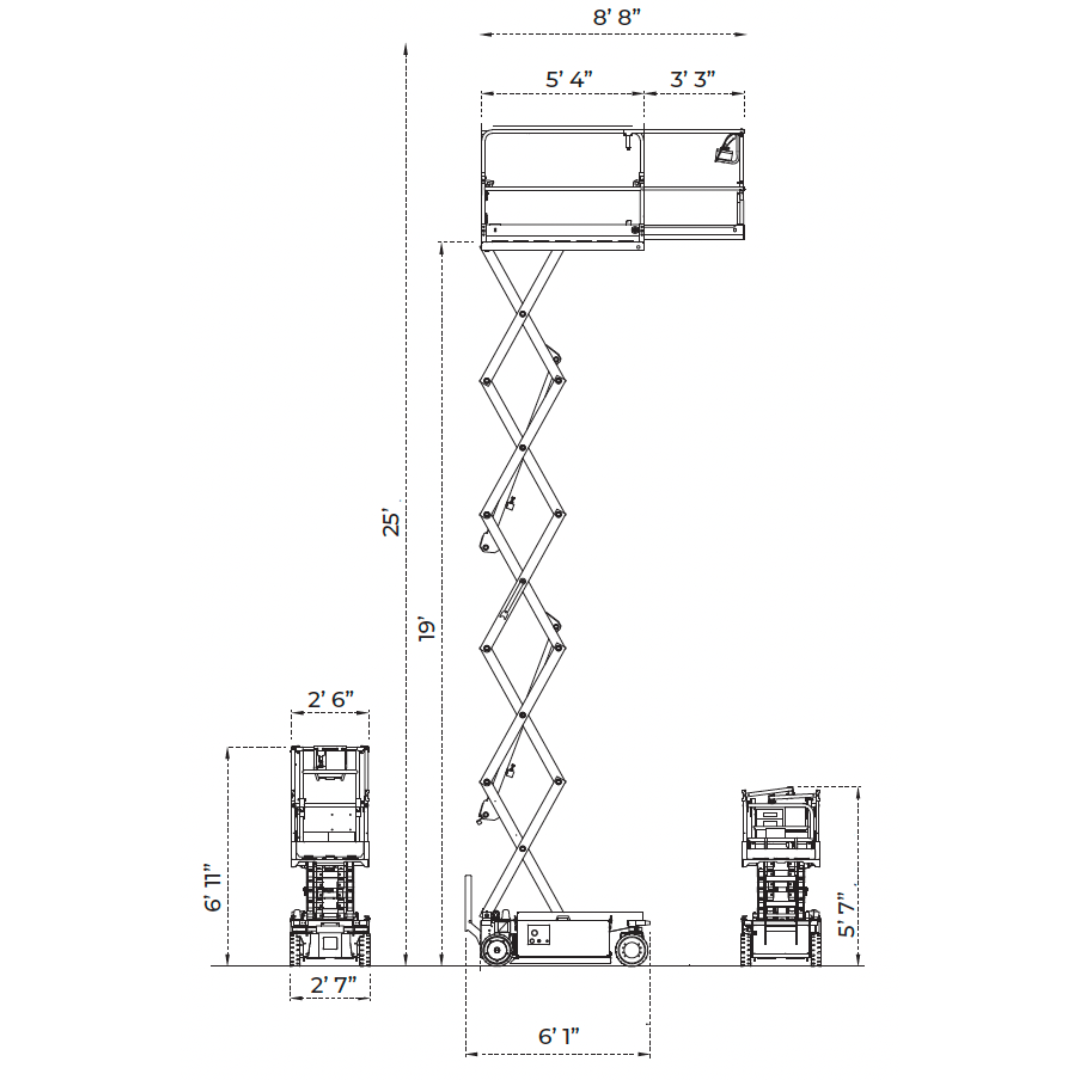

IMER IM 3219 Electric Micro Scissor Lift Specifications
| Model Number | 1128936 |
|---|---|
| Number of Scissors | 3 |
| Platform Height – Indoor | 19 ft / 5,800 mm |
| Platform Height – Outdoor | 14 ft 5 in / 4,400 mm |
| Working Height – Indoor | 25 ft / 7,600 mm |
| Working Height – Outdoor | 21 ft / 6,400 mm |
| Ground Clearance (Pothole Up/Down) | 3.5 in / 0.85 in |
| Stowed Height | 6 ft 11 in / 2,100 mm |
| Height with Guardrails Folded | 5 ft 7 in / 1,700 mm |
| Platform Capacity | 507 lbs / 230 kg |
| Capacity on Deck Extension (Outdoor) | 507 lbs (287 lbs Outdoor) / 230 kg (130 kg Outdoor) |
| Allowed Operators | 2 Indoor / 1 Outdoor |
| Traction Motors | 24V / 3.2 HP |
| Powerpack | 24V / 3 HP |
| Batteries | 24V / 182 Ah AGM Batteries |
| Battery Weight | 64 lbs / 29 kg |
| Battery Charger | 24V / 20 Ah |
| Oil Tank Capacity | 1.85 gal / 7 L |
| Maximum Driving Speed | 2.5 mph / 4 km/h |
| Safety Speed | 0.25 mph / 0.4 km/h |
| Gradeability | 25% |
| Internal Turning Radius | 0 ft / 0 m |
| External Turning Radius | 5 ft 5 in / 0.24 m |
| Tire Dimensions | 12.8 in × 3.9 in / 325 × 100 mm |
| Tire Type | Cushion Non-Marking Tires |
| Maximum Side / Longitudinal Tilt Angle | 1.5° / 2.5° |
| Machine Weight | 2,350 lbs / 1,070 kg |
IMER IM 3219 Electric Micro Scissor Lift Features & Performance
- 25-foot indoor working height provides excellent elevated access capability for maintenance and installation applications.
- Compact 32-inch-wide chassis allows operation in narrow aisles, doorways, elevators, and confined indoor workspaces.
- Extended platform length of 8'8" improves operator workspace and jobsite productivity.

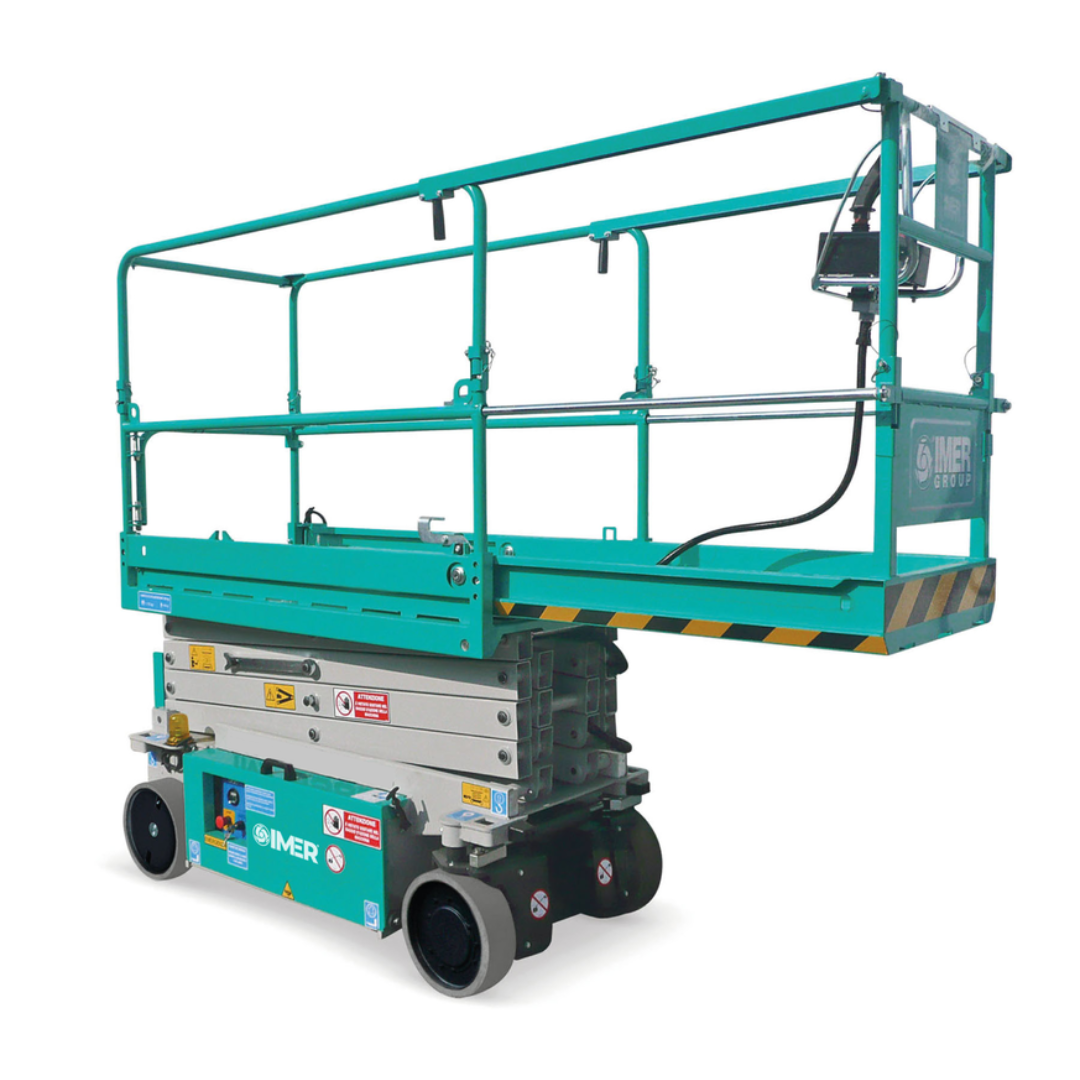

- 39-inch manual deck extension increases reach and platform flexibility during elevated tasks.
- Drive-at-height capability allows operators to reposition the machine while elevated for improved efficiency.
- Front-wheel electric traction system delivers smooth movement and precise maneuverability.
- 90° wheel steering enhances steering responsiveness and improves operation in tight spaces.
- Maintenance-free AGM battery system provides quiet, zero-emission indoor operation.
- Proportional platform controls with diagnostics deliver smooth control and simplified troubleshooting.
- Foldable guardrails reduce transport and storage height for easier mobility and access.
- Non-marking solid rubber tires protect finished floors and sensitive indoor surfaces.
- Integrated safety systems include overload sensor, inclinometer with motion cut-out, pothole protection, emergency lowering, electric scissor protection, flashing beacon, and low-voltage battery protection.
- CE – EN 280 compliant design helps ensure elevated operator safety and equipment reliability.
IMER IM 3219 Electric Micro Scissor Lift Standard Equipment
- Electric traction on front wheels
- Negative electromagnetic parking brakes with electric disengagement
- 90° wheel steering system
- 39" manual deck extension
- Manual emergency lowering system
- Non-return valve on lifting cylinders
- AGM batteries 24V 170Ah C5
- Battery charger with automatic cut-off
- Movement alarm, horn, and hour meter
- Inclinometer with motion cut-out and alarm
- Mechanical release for emergency hauling
- Solid rubber non-marking tires
- Electric scissor protection system
- Pothole protection system
- Battery level control with low-voltage protection
- Foldable guardrails
- Overload sensor
- Prearranged cable for 220V outlet on platform
- Flashing beacon
- Platform control panel with capacitive buttons, proportional controls, and diagnostics
IMER IM 3219 Electric Micro Scissor Lift Optional Equipment
| Optional Kit | Description |
|---|---|
| 220V Platform Outlet Kit | Includes socket, plug, and differential switch for convenient power access on the platform. |
| Additional Flashing Beacon Kit | Improves visibility and enhances jobsite safety during operation. |
| Compressed Air Line on Platform | Provides pneumatic tool access directly from the work platform. |
Optional accessory kits allow the IMER IM 3219 Electric Micro Scissor Lift to be configured for specialized maintenance, service, and indoor elevated access applications.
Why Choose the IMER IM 3219 Electric Micro Scissor Lift
- 25-foot indoor working height with compact micro-lift dimensions.
- 32-inch-wide chassis fits through standard doorways and restricted access areas.
- Extended work platform improves elevated workspace efficiency.
- Quiet zero-emission electric operation for indoor applications.
- Drive-at-height capability improves productivity and maneuverability.
- Advanced safety systems and CE – EN 280 compliance.
- Ideal for maintenance, warehouse, construction, and facility service operations.
The IMER IM 3219 Electric Micro Scissor Lift combines compact maneuverability, increased elevated access capability, advanced safety systems, and efficient electric-powered performance into a versatile aerial work platform built for professional indoor applications.
