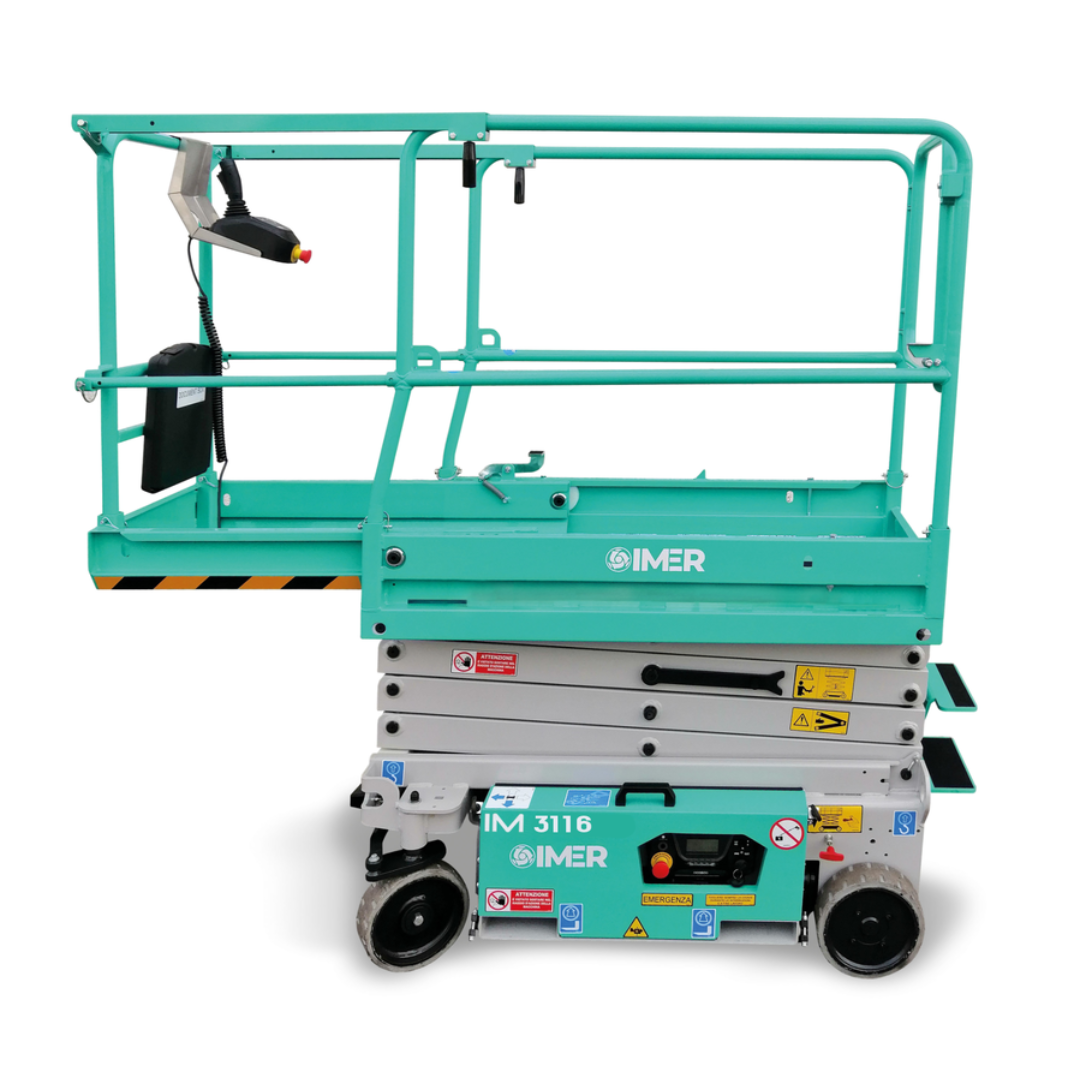

IMER IM 3116 Electric Micro Scissor Lift Applications
- Indoor building maintenance and repair operations
- Electrical, lighting, and HVAC installation work
- Warehouse inventory access and facility management
- Commercial construction and interior finishing applications
- Retail store setup and signage installation
- Industrial plant inspections and maintenance operations
- Elevated access tasks in narrow aisles and confined spaces
- Institutional, office, and facility service applications
The IMER IM 3116 Electric Micro Scissor Lift is ideal for operators who need compact dimensions, quiet electric-powered operation, and increased working height for demanding indoor elevated access applications.

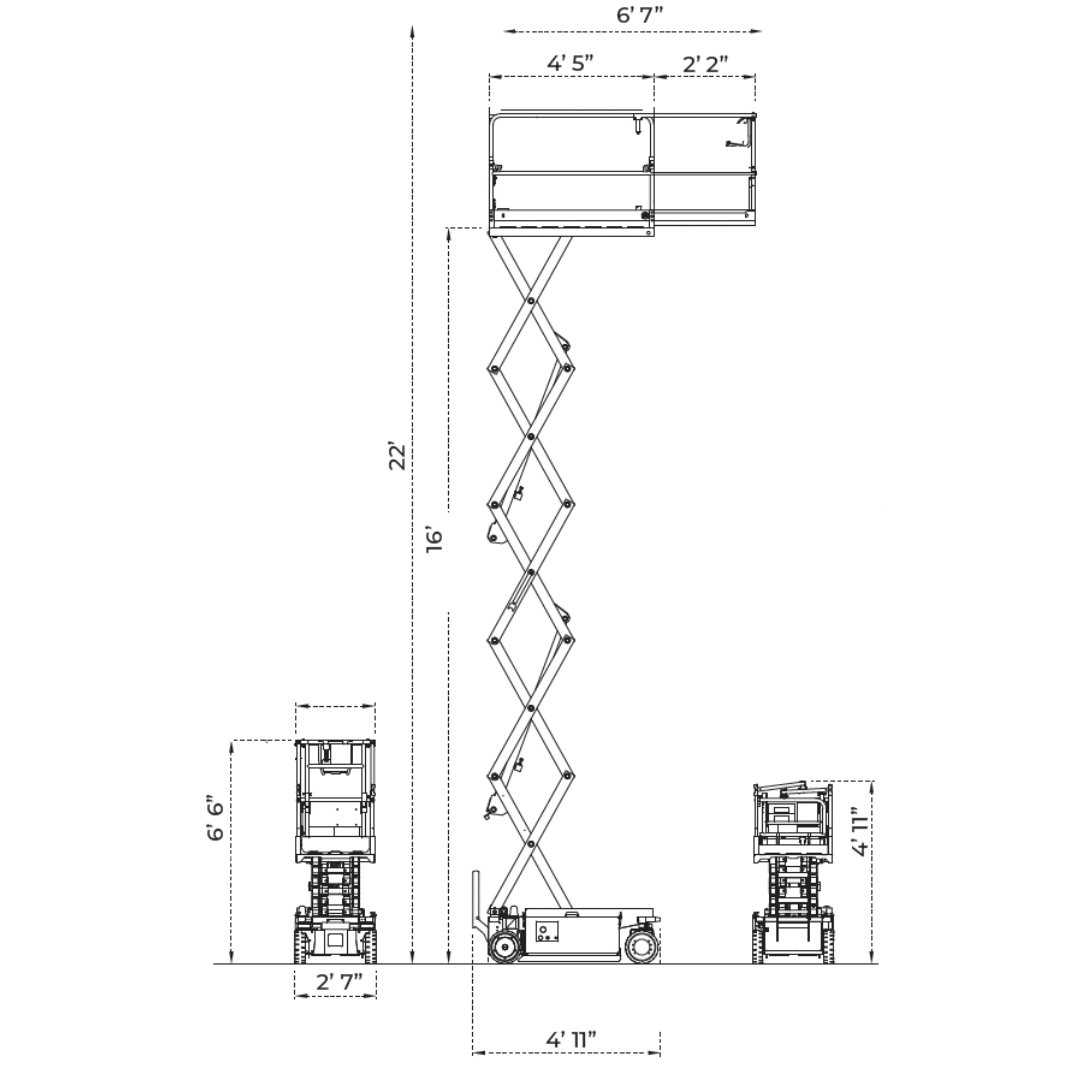

IMER IM 3116 Electric Micro Scissor Lift Specifications
| Model Number | 1128918 |
|---|---|
| Number of Scissors | 4 |
| Platform Height – Indoor | 16 ft / 4,900 mm |
| Platform Height – Outdoor | 8 ft / 2,450 mm |
| Working Height – Indoor | 22 ft / 6,700 mm |
| Working Height – Outdoor | 14 ft / 4,250 mm |
| Stowed Height | 6 ft 6 in / 1,990 mm |
| Folded Height | 4 ft 11 in / 1,500 mm |
| Length (Without Ladder) | 4 ft 11 in / 1,490 mm |
| Compact Length | 4 ft 5 in / 1,335 mm |
| Width | 2 ft 6 in / 780 mm |
| Platform Extension | 2 ft 2 in / 660 mm |
| Platform Capacity | 507 lbs / 230 kg |
| Capacity on Platform Extension | 287 lbs / 130 kg |
| Authorized Persons | 1 |
| Traction Motors | 24 DC |
| Batteries | 2 × 12V 85Ah AGM Batteries |
| Battery Charger | 24V / 20 Ah |
| Oil Tank Capacity | 0.5 gal / 2 L |
| Maximum Inclination | 1.5° Lateral / 2.5° Longitudinal |
| Maximum Driving Speed | 2.5 mph / 4 km/h |
| Safety Speed | 0.4 mph / 0.6 km/h |
| Gradeability | 25% |
| Internal Turning Radius | 9.5 in / 0.24 m |
| External Turning Radius | 61 in / 1.55 m |
| Tire Dimensions | 9.8 in × 3.1 in / 250 mm × 80 mm |
| Tire Type | Cushion Non-Marking Tires |
| Machine Weight | 1,653 lbs / 750 kg |
IMER IM 3116 Electric Micro Scissor Lift Features & Performance
- Compact 31-inch-wide chassis allows easy access through doorways, elevators, and restricted indoor work areas.
- 22-foot indoor working height provides expanded elevated access capability for maintenance and installation projects.
- Drive-at-height functionality enables operators to reposition the machine while elevated for improved productivity.
- 2'2" manual platform extension increases workspace reach and operational flexibility.
- Rear-wheel electric traction system delivers smooth and precise indoor maneuverability.
- Front-wheel electric steering improves handling and control in confined spaces and narrow aisles.
- Maintenance-free AGM battery system provides quiet, zero-emission operation for indoor environments.
- Proportional platform controls with onboard diagnostics improve operational precision and simplify troubleshooting.
- Automatic battery charger with cut-off protection enhances charging efficiency and battery longevity.
- Foldable guardrails reduce transport height and improve storage flexibility.
- Solid non-marking cushion tires help protect finished flooring and sensitive indoor surfaces.
- Integrated safety systems include overload sensor, inclinometer with motion cut-out, pothole protection, emergency lowering system, anti-shearing protection, flashing beacon, and battery low-voltage protection.
IMER IM 3116 Electric Micro Scissor Lift Optional Equipment
| Optional Kit | Description |
|---|---|
| 220V Outlet Platform Kit | Provides convenient electrical power access directly on the platform for tools and equipment. |
| Compressed Air Kit | Allows operation of pneumatic tools while working at elevated heights. |
| Additional Flashing Beacon Kit | Improves machine visibility and jobsite awareness for enhanced safety. |
| IMERVIEW Kit | Advanced machine monitoring and operational diagnostics system for improved fleet management and visibility. |
Optional accessory kits allow the IMER IM 3116 Electric Micro Scissor Lift to be configured for specialized maintenance, service, and indoor elevated access applications.
Why Choose the IMER IM 3116 Electric Micro Scissor Lift
- Ultra-compact design optimized for restricted indoor access areas.
- 22-foot indoor working height with drive-at-height capability.
- Quiet zero-emission electric operation for indoor environments.
- 31-inch-wide chassis easily fits through standard doorways and aisles.
- Advanced safety systems improve operator protection and machine stability.
- Excellent maneuverability with extremely tight turning radius.
- Ideal for maintenance, construction, warehouse, and facility service applications.
The IMER IM 3116 Electric Micro Scissor Lift combines compact maneuverability, increased elevated access capability, advanced safety systems, and reliable electric-powered performance into a highly versatile aerial work platform designed for professional indoor applications.
