IMER IM 3113 Electric Micro Scissor Lift Applications
- Indoor facility maintenance and repair operations
- Warehouse inventory access and stock management
- Electrical, lighting, and HVAC installation projects
- Commercial construction and finishing work
- Retail store maintenance and signage installation
- Office building and institutional maintenance applications
- Industrial plant service and inspection operations
- Elevated access tasks in confined interior spaces
The IMER IM 3113 Electric Micro Scissor Lift is ideal for operators requiring compact dimensions, quiet electric operation, and safe elevated access performance in tight indoor environments and restricted-access workspaces.

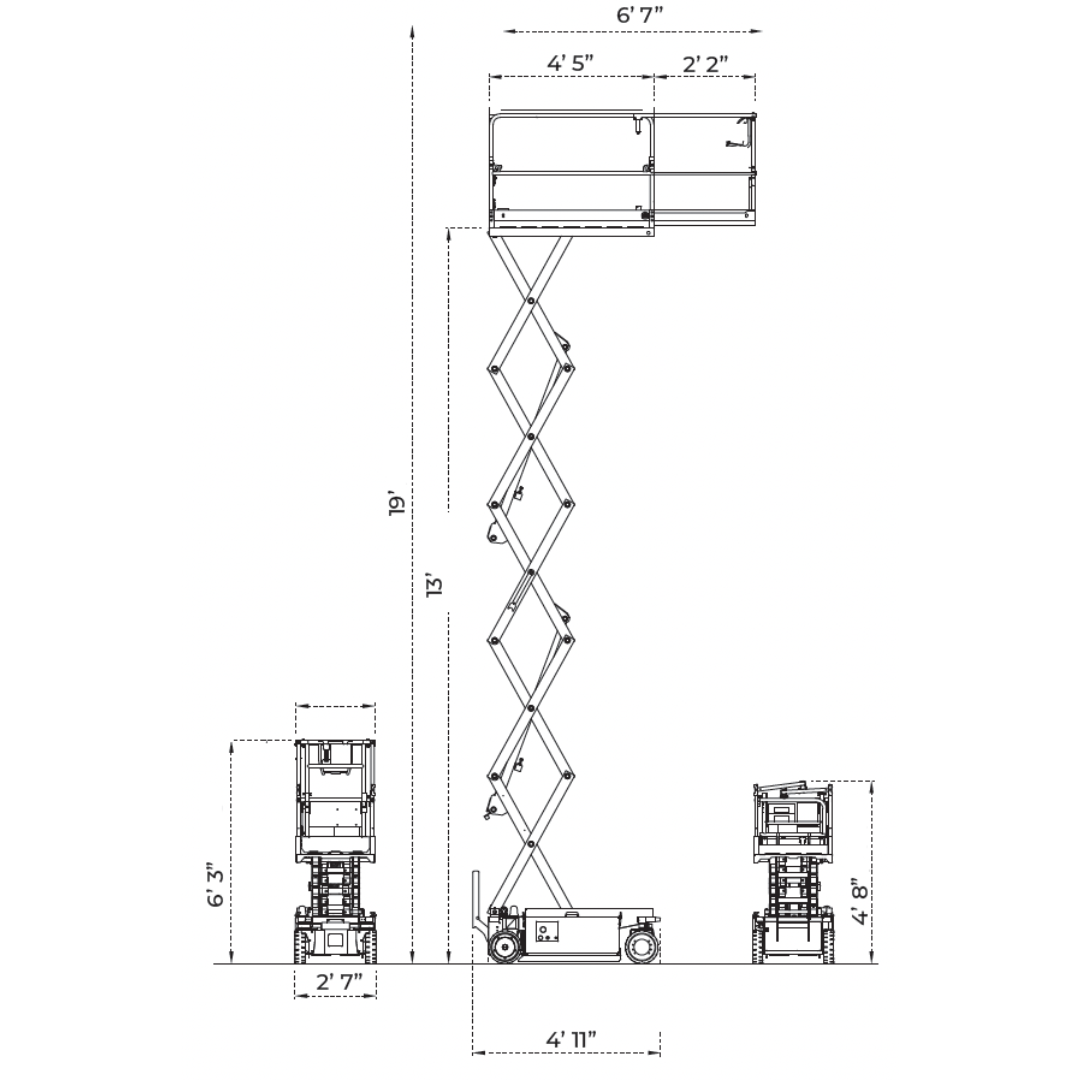

IMER IM 3113 Electric Micro Scissor Lift Specifications
| Model Number | 1128908 |
|---|---|
| Number of Scissors | 3 |
| Platform Height – Indoor | 13 ft / 3,800 mm |
| Platform Height – Outdoor | 7 ft 4 in / 2,250 mm |
| Working Height – Indoor | 19 ft / 5,800 mm |
| Working Height – Outdoor | 13 ft 11 in / 4,250 mm |
| Stowed Height | 6 ft 3 in / 1,900 mm |
| Folded Height | 4 ft 8 in / 1,410 mm |
| Length (Without Ladder) | 4 ft 11 in / 1,490 mm |
| Compact Length | 4 ft 5 in / 1,335 mm |
| Width | 2 ft 6 in / 780 mm |
| Platform Extension | 2 ft 2 in / 660 mm |
| Platform Capacity | 507 lbs / 230 kg |
| Capacity on Platform Extension | 287 lbs / 130 kg |
| Authorized Persons | 1 |
| Traction Motors | 24 DC |
| Batteries | 2 × 12V 85Ah AGM Batteries |
| Battery Charger | 24V / 20 Ah |
| Oil Tank Capacity | 0.5 gal / 2 L |
| Maximum Inclination | 1.5° Lateral / 3.0° Longitudinal |
| Maximum Driving Speed | 2.5 mph / 4 km/h |
| Safety Speed | 0.4 mph / 0.6 km/h |
| Gradeability | 25% |
| Internal Turning Radius | 9.5 in / 0.24 m |
| External Turning Radius | 61 in / 1.55 m |
| Tire Dimensions | 9.8 in × 3.1 in / 250 mm × 80 mm |
| Tire Type | Cushion Non-Marking Tires |
| Machine Weight | 1,543 lbs / 700 kg |
IMER IM 3113 Electric Micro Scissor Lift Features & Performance
- Compact 31-inch-wide chassis allows operation through standard doorways, elevators, and narrow access areas.
- 19-foot indoor working height provides efficient elevated access for maintenance and installation tasks.
- Drive-at-height capability improves productivity by allowing machine movement while elevated.
- 2'2" manual platform extension increases workspace reach and operator flexibility.
- Rear-wheel electric traction system delivers smooth and efficient machine movement indoors.
- Front-wheel electric steering improves maneuverability and precision control in confined spaces.
- Maintenance-free AGM batteries provide quiet, zero-emission operation for indoor applications.
- Proportional platform controls with diagnostics offer smooth operation and simplified machine monitoring.
- Automatic battery charger with cut-off protection improves charging efficiency and battery longevity.
- Foldable guardrails reduce overall machine height for easier transportation and storage.
- Non-marking solid rubber cushion tires help protect finished flooring surfaces.
- Integrated safety systems include overload sensor, pothole protection, inclinometer with motion cut-out, emergency lowering, flashing beacon, and anti-shearing electric protection.
IMER IM 3113 Electric Micro Scissor Lift Optional Equipment
| Optional Kit | Description |
|---|---|
| 220V Outlet Platform Kit | Provides convenient electrical power access directly on the platform for tools and equipment. |
| Compressed Air Kit | Allows operators to utilize pneumatic tools while working at height. |
| Additional Flashing Beacon Kit | Enhances machine visibility and jobsite safety in active work areas. |
| IMERVIEW Kit | Advanced monitoring and operational visibility system for improved machine management and diagnostics. |
Available optional equipment allows the IMER IM 3113 Electric Micro Scissor Lift to be customized for specialized maintenance, service, and elevated access applications.
Why Choose the IMER IM 3113 Electric Micro Scissor Lift
- Ultra-compact design ideal for tight indoor access environments.
- 19-foot indoor working height with drive-at-height capability.
- Quiet zero-emission electric operation for indoor facilities.
- 31-inch width easily fits through standard doorways and elevators.
- Advanced safety systems improve operator protection and stability.
- Non-marking tires protect finished floors and sensitive surfaces.
- Excellent maneuverability with extremely tight turning radius.
The IMER IM 3113 Electric Micro Scissor Lift delivers compact maneuverability, reliable electric-powered performance, advanced safety features, and efficient elevated access capability for professional indoor maintenance, construction, and facility service applications.
