IMER GERRIS 800 Powered Crawler Concrete Placement Boom Applications

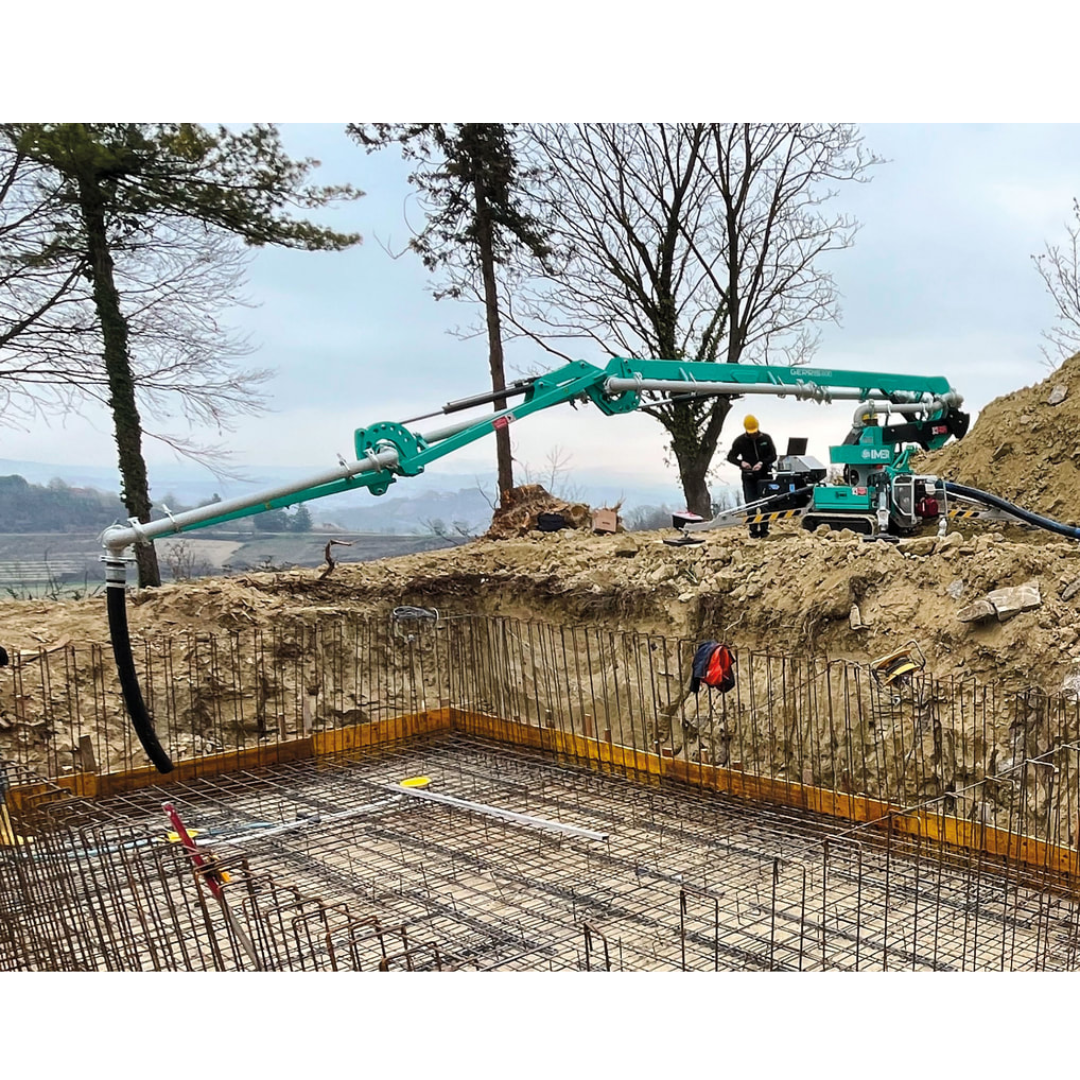

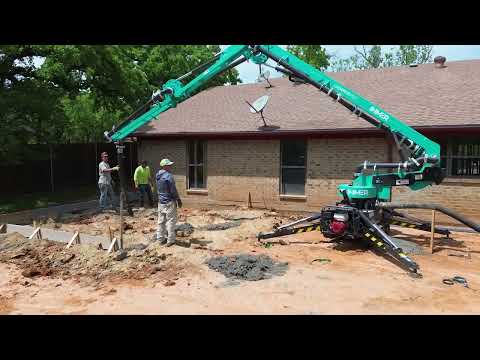

- Concrete slab and foundation placement
- Residential and commercial concrete pouring projects
- Concrete distribution in confined or low-clearance environments
- Concrete placement for elevated decks and upper-floor applications
- Infrastructure and civil construction projects
- Indoor concrete placement using auxiliary electric power mode
- Concrete distribution in areas inaccessible to larger boom systems
- Concrete pumping support for structural and reinforced slab installations
- Construction projects requiring controlled and accurate material placement
The IMER GERRIS 800 Powered Crawler Concrete Placement Boom is specifically engineered for contractors who need efficient concrete distribution in compact spaces while maintaining excellent reach, placement accuracy, and operational flexibility.
IMER GERRIS 800 Powered Crawler Concrete Placement Boom Specifications
| Model Number (Gas) | 1128758 |
|---|---|
| Model Number (Lithium) | 1128787 |
| Maximum Height | 37 ft |
| Maximum Reach | 26 ft |
| Maximum Depth | 16.5 ft |
| Maximum Aggregate Size | 1" |
| Overall Stabilized Dimensions | 9' 7" × 10' 1" |
| Maximum Travel Speed | 1.6 mph |
| Gradeability | 25% |
| Turret Rotation | 355° |
| Gas Engine | 13 HP Honda GX390 |
| Lithium Motor | 5.4 HP 48V AC |
| Auxiliary Electric Motor | 1.5 HP 120V |
| Transport Width | 2' 7" |
| Transport Length | 16' 1" |
| Transport Height | 6' 6" |
| Weight | 5,512 lbs |
IMER GERRIS 800 Powered Crawler Concrete Placement Boom Features & Performance

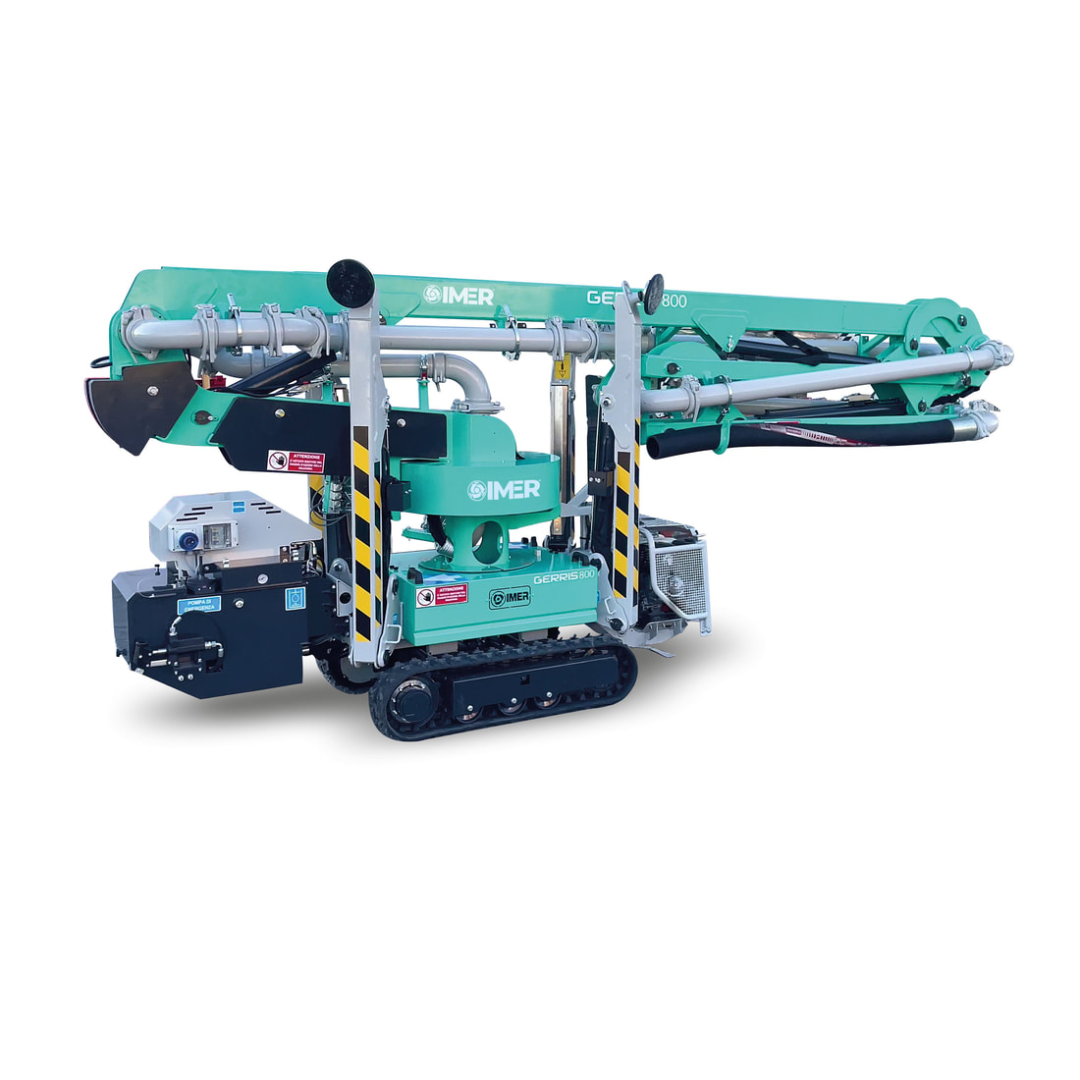

- Self-propelled crawler drive system provides excellent maneuverability and mobility across uneven terrain and confined jobsites.

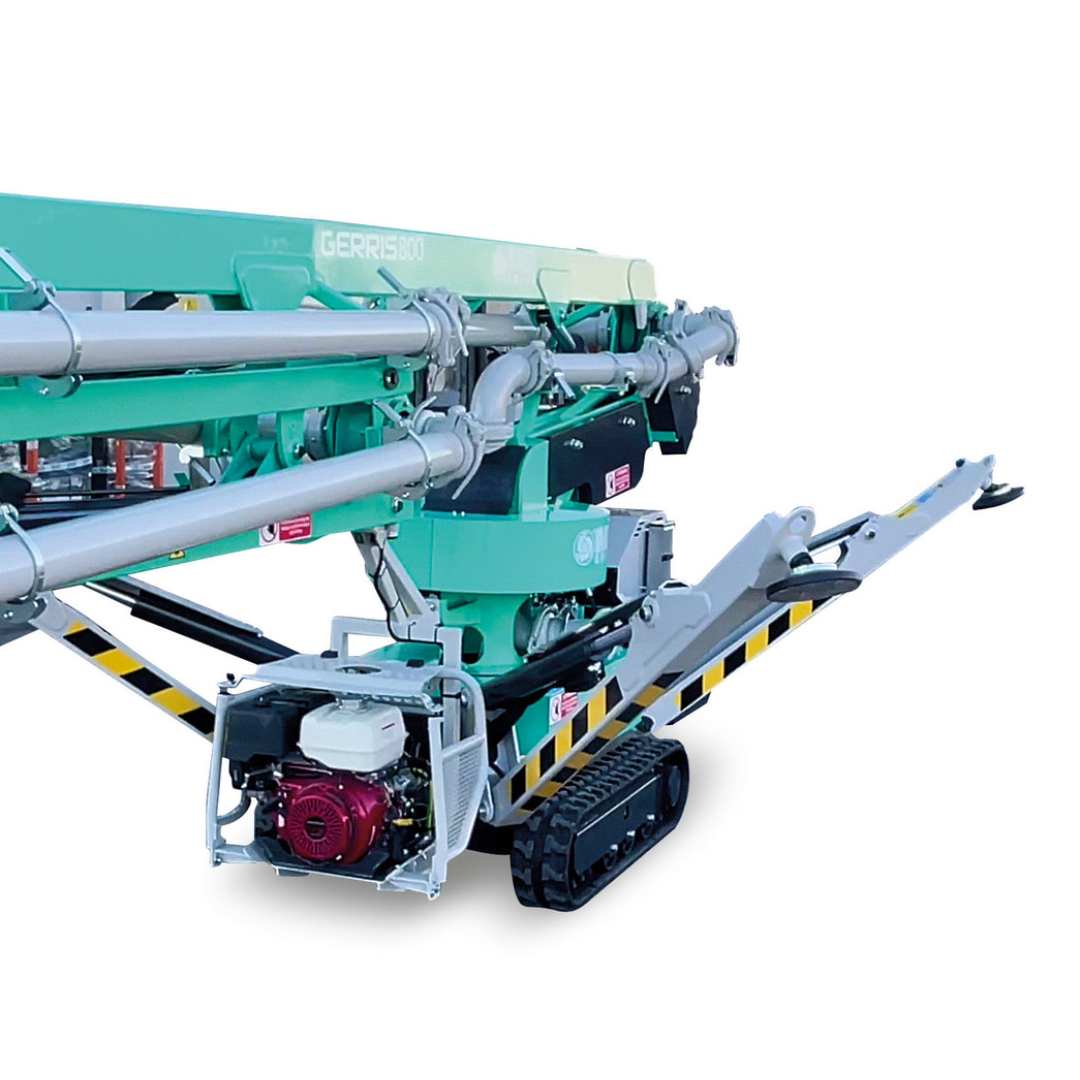

- Compact transport footprint allows the machine to pass through narrow access points and operate in limited-space environments.

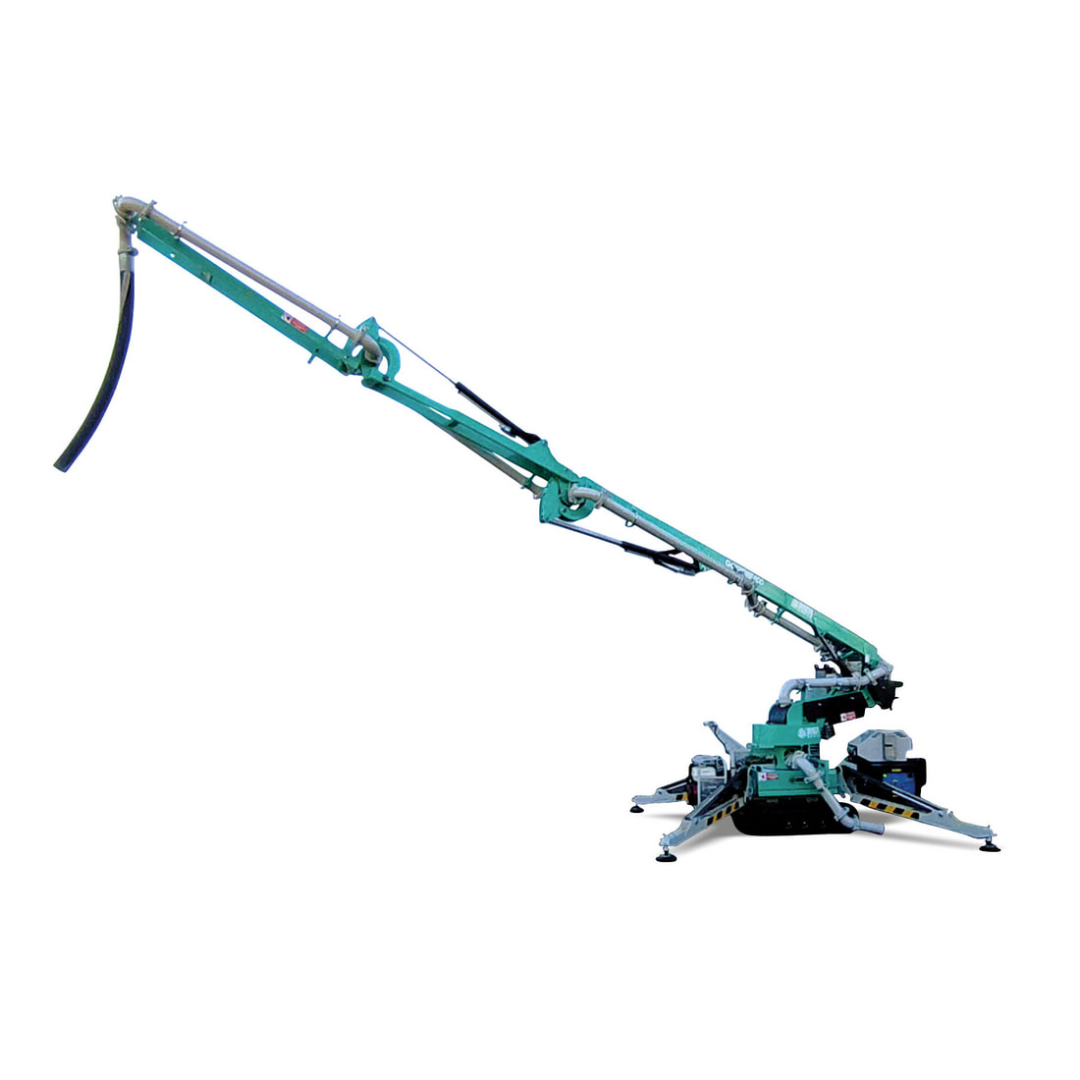

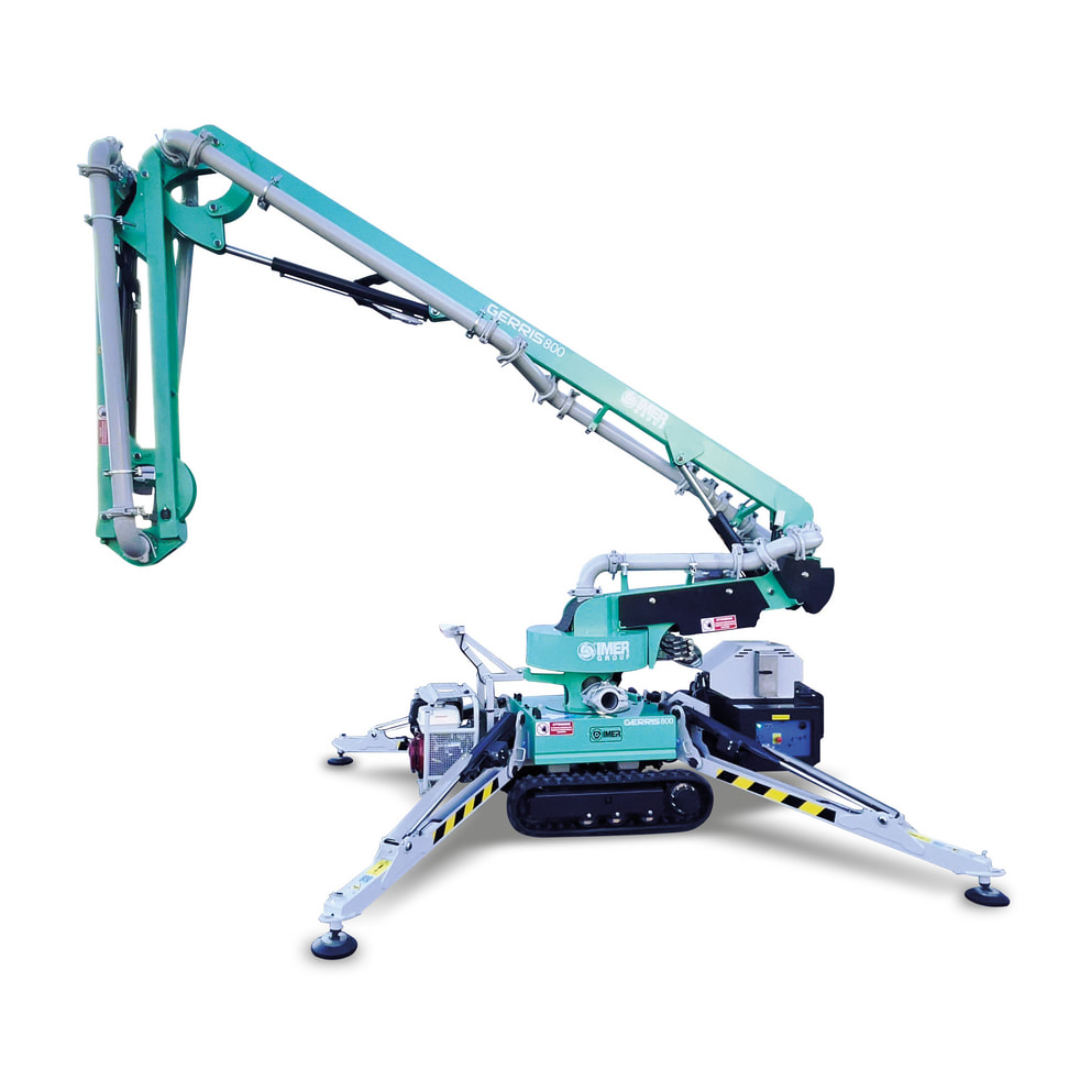

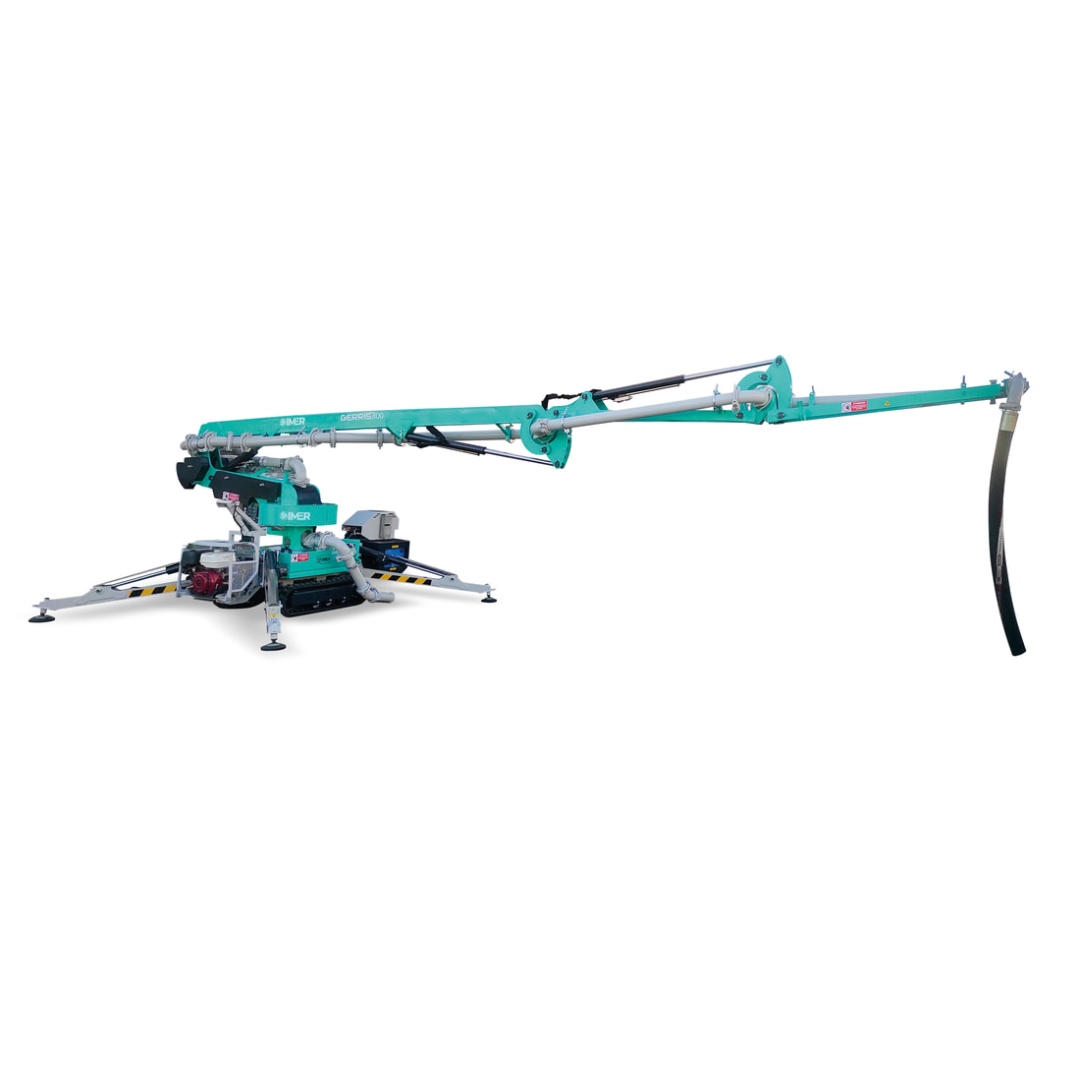

- Articulated placing boom delivers accurate and controlled concrete distribution with a maximum reach of approximately 26 feet.

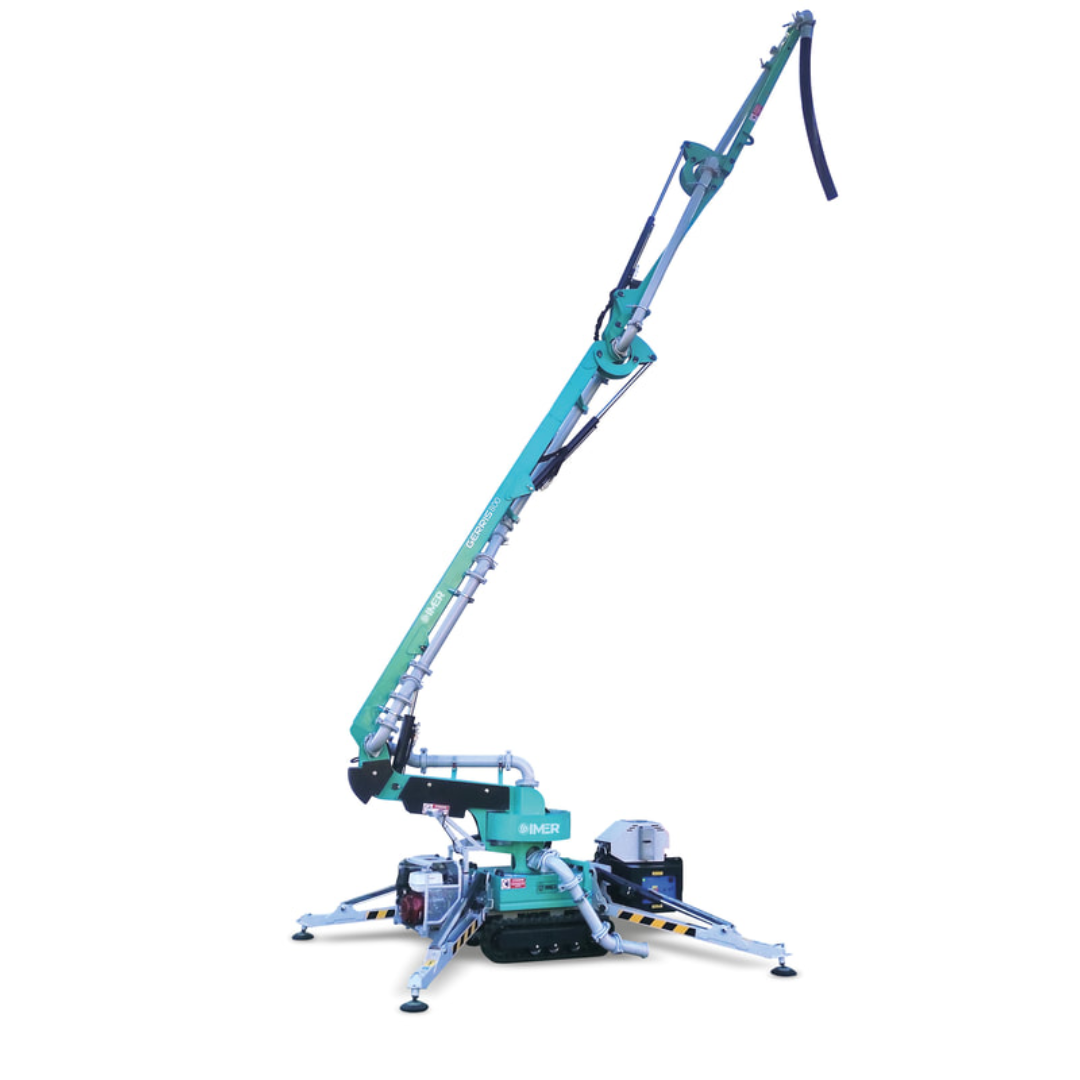

- Vertical placement capability up to 37 feet supports elevated slab, deck, and structural concrete applications.
- 355-degree turret rotation improves flexibility and operational coverage while minimizing repositioning requirements.
- Wireless remote control operation allows operators to maneuver and position the boom safely and efficiently from a distance.
- Bi-energy operation combines a Honda gas engine with an auxiliary electric motor for flexible indoor and outdoor operation.
- Low-clearance operating capability enables the boom to function effectively in areas with restricted overhead clearance.
- Compatible with standard 4” heavy-duty concrete pump fittings for simplified integration with existing pumping equipment.
- Supports pumped concrete with up to 1” aggregate for a wide range of concrete placement applications.

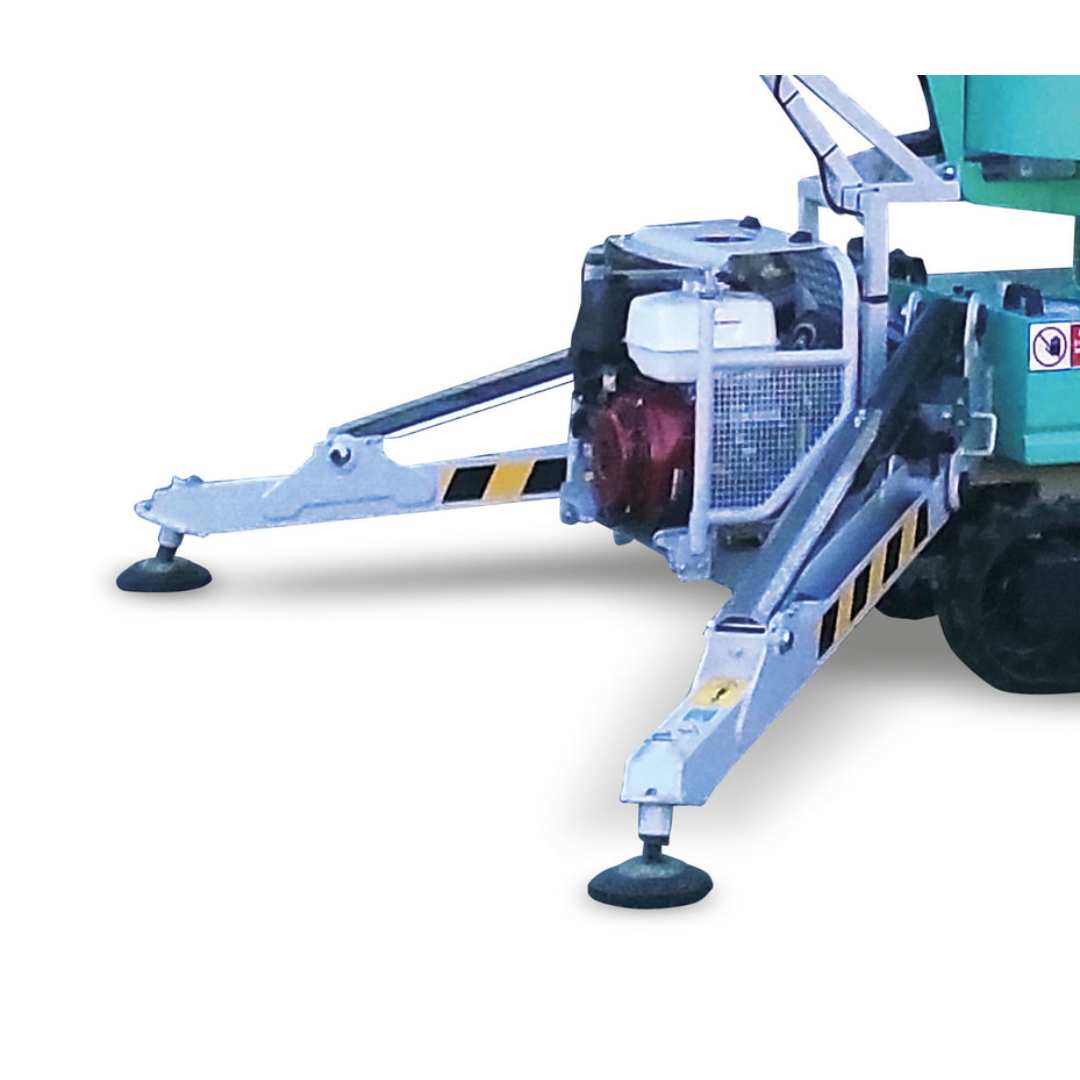

- Stable outrigger system improves operational safety and precise concrete placement during extended boom operation.
IMER GERRIS 800 Powered Crawler Concrete Placement Boom Standard Equipment
- Wireless remote control system
- Self-propelled crawler drive assembly
- Articulated concrete placing boom
- Gas engine power system

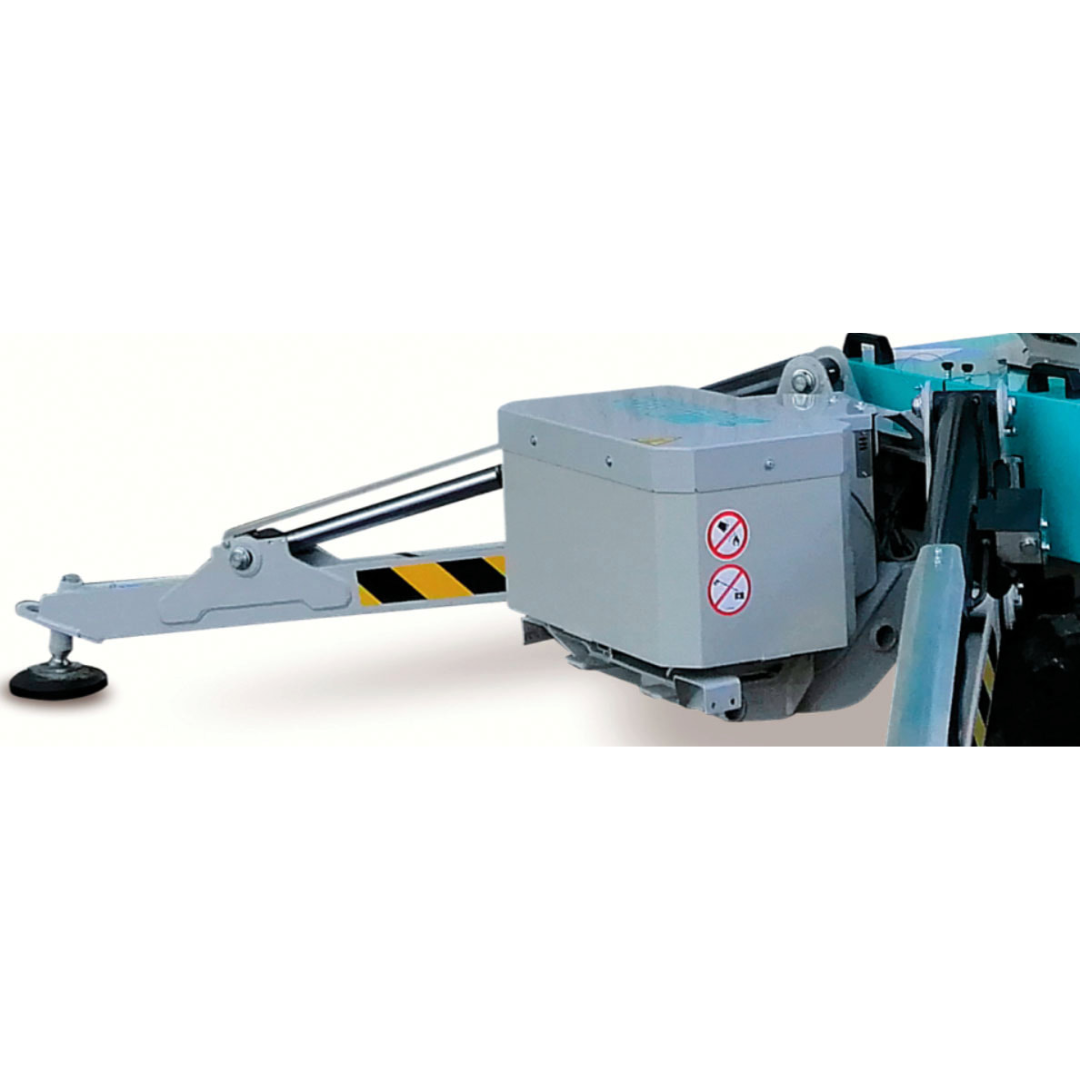

- Auxiliary electric motor system
- Stabilizer and outrigger system
- Heavy-duty concrete delivery hose assembly
The IMER GERRIS 800 Powered Crawler Concrete Placement Boom includes advanced mobility, remote-control functionality, and multi-power operation to improve efficiency and reduce labor requirements during concrete placement operations.
IMER GERRIS 800 Powered Crawler Concrete Placement Boom Advantages
- Compact crawler design allows access to tight and restricted jobsites.
- Wireless remote control improves placement precision and operator safety.
- Bi-energy operation supports both indoor and outdoor use.
- Minimal setup space requirements improve operational flexibility.
- Extended boom reach reduces the need for manual concrete handling.
- Excellent maneuverability improves efficiency across uneven terrain.
- Compatible with existing concrete pumping systems using standard 4” fittings.
- Improves placement speed and consistency for large slab and foundation pours.
The IMER GERRIS 800 Powered Crawler Concrete Placement Boom helps contractors improve productivity, reduce labor strain, and achieve more controlled concrete placement in challenging jobsite environments.
Why Choose the IMER GERRIS 800 Powered Crawler Concrete Placement Boom
- Compact self-propelled crawler system for superior mobility.
- Precision articulated boom with excellent reach and placement control.
- Bi-energy operation supports flexible indoor and outdoor applications.
- Wireless remote control improves safety and operational efficiency.
- Low-clearance functionality allows operation in confined workspaces.
- Heavy-duty construction designed for professional concrete contractors.
- Compatible with standard concrete pump systems and fittings.
- Ideal for foundations, slabs, decks, and structural concrete placement.
The IMER GERRIS 800 Powered Crawler Concrete Placement Boom delivers a powerful combination of mobility, precision, and operational flexibility for modern concrete placement applications. Designed to work efficiently in confined and challenging environments, the GERRIS 800 improves productivity while providing contractors with safer, faster, and more accurate concrete distribution capabilities.
