IMER COMBICUT 250/1000 Overhead Rail Saw Applications
- Large format porcelain and ceramic tile installations
- Professional tile cutting and remodeling applications
- Residential and commercial flooring projects
- Precision miter and angle cutting operations
- Stone, masonry, and hard material wet cutting
- Bathroom, kitchen, and backsplash tile installations
- Contractors requiring portable high-capacity wet saw systems
- Jobsite cutting stations needing fast setup and mobility

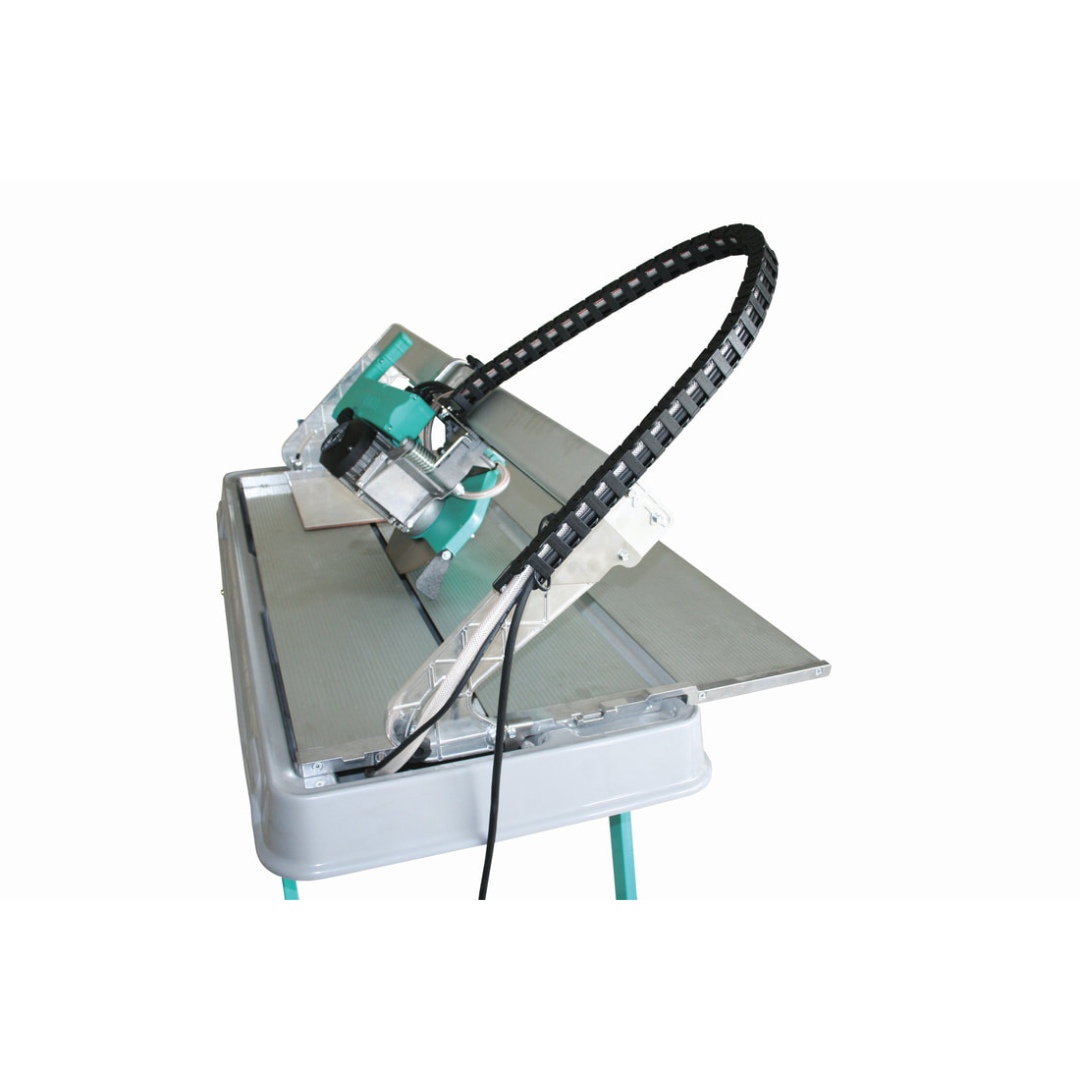

The IMER COMBICUT 250/1000 Overhead Rail Saw is ideal for contractors who need large cutting capacity, lightweight portability, and highly accurate overhead rail cutting performance in one professional machine.
IMER COMBICUT 250/1000 Overhead Rail Saw Specifications
| Model Number | 1188174 |
|---|---|
| Product Type | Overhead Rail Wet Saw |
| Blade Diameter | 10 in |
| Blade Shaft Diameter | 5/8 in |
| Maximum Cut Length | 37 in |
| Maximum Cut Length with Plunge | 40 in |
| Maximum Cutting Depth | 3.75 in |
| Motor Rating | 1.75 HP / 120V |
| Electrical Requirements | 110V / 60Hz / Single-Phase |
| Blade Speed | 2,800 RPM |
| Water Pan Capacity | 12 Gallons |
| Water Pump Flow | 3 GPM |
| Machine Dimensions (L × H × W) | 55 in × 24 in × 25 in |
| Operating Weight | 92 lbs |
| Boxed Weight | 98 lbs |
| Included Blade | 10 in Continuous Rim Porcelain Blade |
IMER COMBICUT 250/1000 Overhead Rail Saw Features & Performance

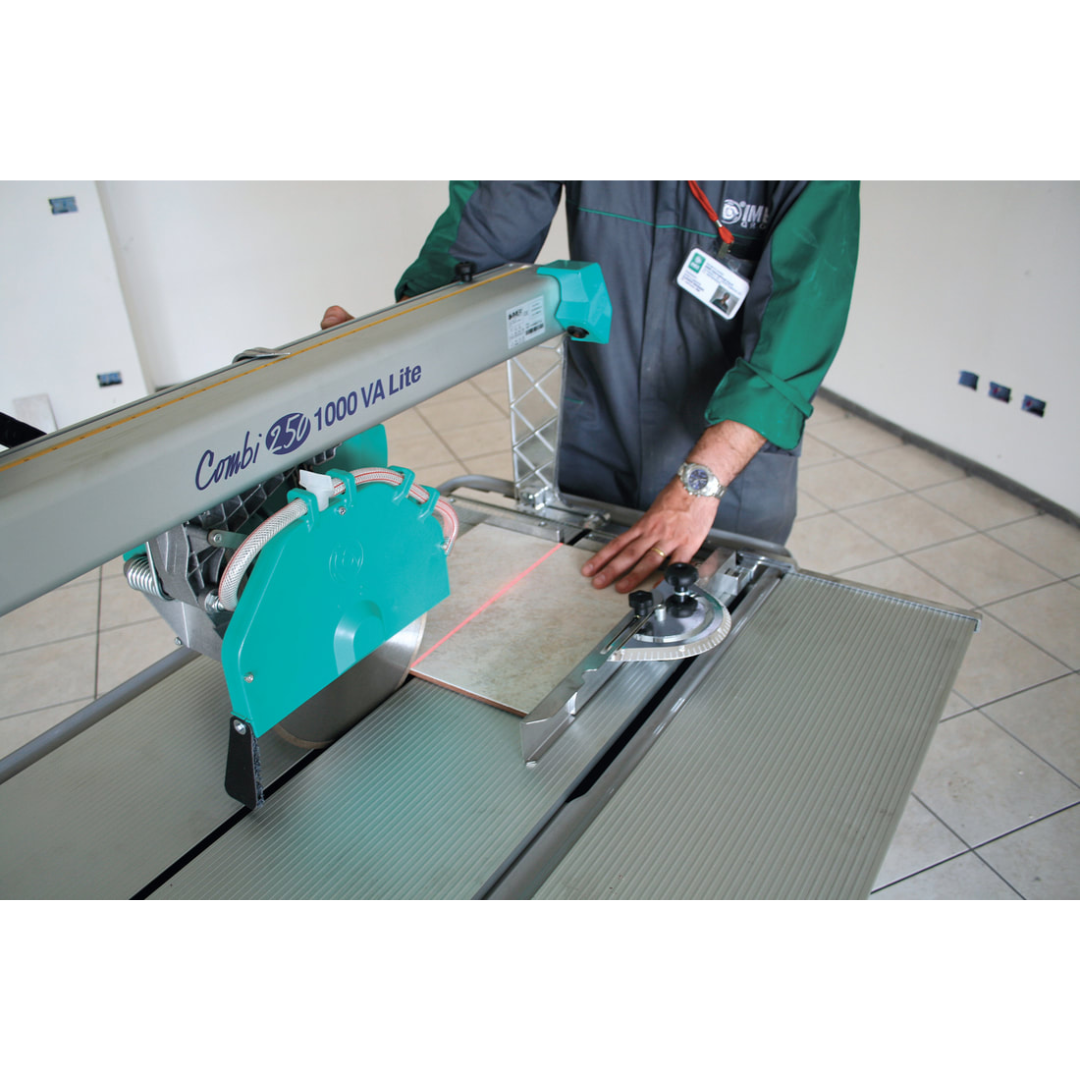

- Precision overhead rail cutting system provides smooth, accurate blade travel for clean straight cuts, angle cuts, and professional miter applications.
- Large 37-inch cutting capacity supports large format porcelain and tile installations commonly used in modern residential and commercial projects.
- 40-inch plunge cutting capability expands cutting versatility for specialty cuts and oversized material applications.
- Powerful 1.75 HP motor delivers consistent cutting performance for tile, porcelain, stone, and masonry materials.
- Integrated laser guide system improves cutting accuracy and speeds up alignment for fast and precise operation.
- 10-inch continuous rim blade included produces smooth finished cuts while minimizing material chipping.
- 2,800 RPM blade speed ensures efficient cutting action and professional edge quality.
- Integrated stand with wheel kit simplifies transportation and allows quick movement around jobsites.
- Side support table included provides additional support for large format materials and oversized tile.
- 180-degree protractor guide enables accurate angle and miter cutting for detailed finishing work.
- High-flow water pump system continuously cools the blade while helping reduce dust and extend blade life.
- Adjustable water control valve allows operators to manage water flow and reduce excess mist during cutting.
- High-impact removable poly water pan with baffle improves water containment, cleanup, and maintenance efficiency.
- Portable lightweight construction keeps the saw easy to transport despite its larger cutting capacity and professional features.
- Minimal assembly required with nearly complete factory assembly and only two bolts needed for stand installation.
IMER COMBICUT 250/1000 Overhead Rail Saw Standard Equipment
- 10-inch continuous rim porcelain blade included
- Integrated stand with wheel kit
- Large side support table for oversized materials
- 180° protractor guide
- Laser cutting guide system
- High-flow water pump assembly
- Adjustable water control valve
- High-impact removable poly water pan with integrated baffle
- Professional wet cutting setup ready for operation
The IMER COMBICUT 250/1000 Overhead Rail Saw includes advanced cutting accessories and mobility features designed to improve productivity, cutting precision, and ease of use on professional jobsites.
IMER COMBICUT 250/1000 Overhead Rail Saw Replacement Blade Information
| Part #1193922 | 10 in × .060 Continuous Rim Porcelain & Hard Materials Blade |
|---|---|
| Part #1193932 | 10 in × .110 Segmented Premium Masonry Blade |
| Part #1193942 | 10 in × .110 Concrete Turbo Blade with Teardrop Gullets |
| Applications | Tile, porcelain, stone, masonry, and concrete cutting |
Why Choose the IMER COMBICUT 250/1000 Overhead Rail Saw
- Large 37-inch cutting capacity for modern large format tile applications
- Integrated laser guide improves cutting speed and precision
- Lightweight design with wheel kit for easy transport
- Precision overhead rail system for smooth professional cuts
- Complete accessory package including stand, side table, and protractor
- High-flow wet cutting system improves blade cooling and dust reduction
- Excellent portability with minimal assembly requirements
- Professional-grade cutting performance for demanding contractors
The IMER COMBICUT 250/1000 Overhead Rail Saw combines professional cutting precision, large format capacity, advanced laser guidance, and lightweight portability into a complete wet saw solution designed for serious tile and masonry professionals.
