IMER BOOSTER 20 Piston Pump Applications
- Concrete pumping for commercial and residential construction
- Shotcrete applications for structural and repair work
- High-strength grout pumping and placement
- Foundation and slab pouring projects
- Repair and rehabilitation construction applications
- Material pumping on confined or limited-access jobsites
- Infrastructure and civil construction projects
- Material transfer for demanding high-pressure pumping applications
- Contractor operations requiring compact towable pumping equipment
The IMER BOOSTER 20 Piston Pump is specifically designed for contractors who need high-output concrete and grout pumping performance in jobsites where larger trailer pumps cannot efficiently operate.
IMER BOOSTER 20 Piston Pump Specifications
| Model Number | 1106427 |
|---|---|
| Engine Type | 3-Cylinder Diesel |
| Engine Power | 28 HP |
| Pumping System | 2-Cylinder with Hydraulic Control |
| Maximum Aggregate Size | 1" |
| Flow Rate | 3 – 20 cu yd per hour |
| Pumping Pressure | 1,000 psi |
| Outlet | 4" Heavy Duty |
| Hopper Capacity | 7 cu ft |
| Loading Height | 42.5" |
| Dimensions (W × L × H) | 58" × 161" × 60" |
| Weight | 3,100 lbs |
IMER BOOSTER 20 Piston Pump Features & Performance
- Compact towable chassis design allows the machine to operate efficiently in restricted-access and space-limited jobsites.
- High-performance dual-cylinder hydraulic pumping system delivers consistent material flow and dependable pumping pressure for demanding applications.

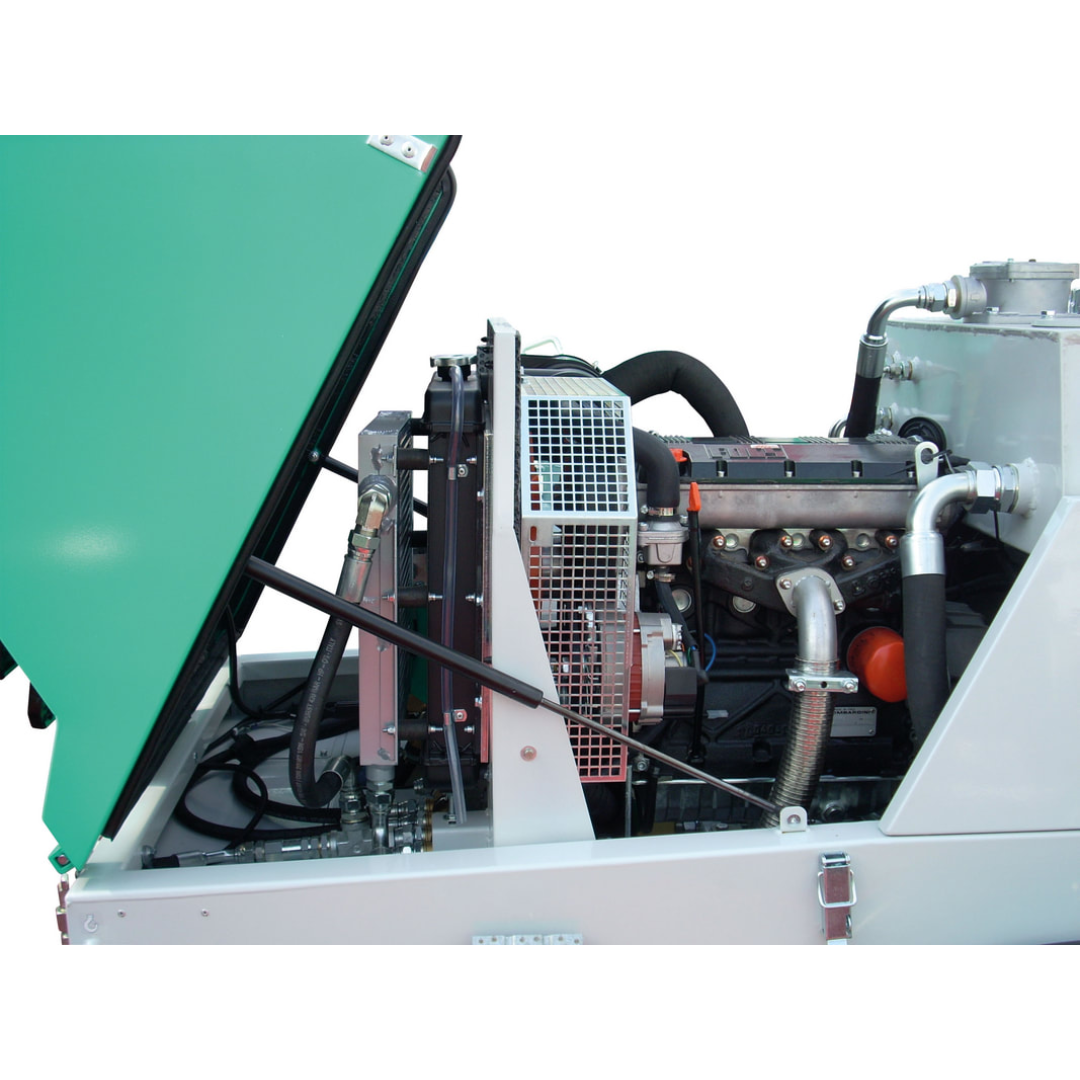

- 28 HP liquid-cooled diesel engine provides powerful independent operation without requiring external electrical power.
- Capable of pumping up to 20 cubic yards per hour for efficient concrete, grout, and shotcrete placement.
- Heavy-duty S-valve pumping system features automatic compensation for wear and clearance to improve long-term reliability.
- Hydraulic reverse function helps clear blockages and improve pumping efficiency during operation.

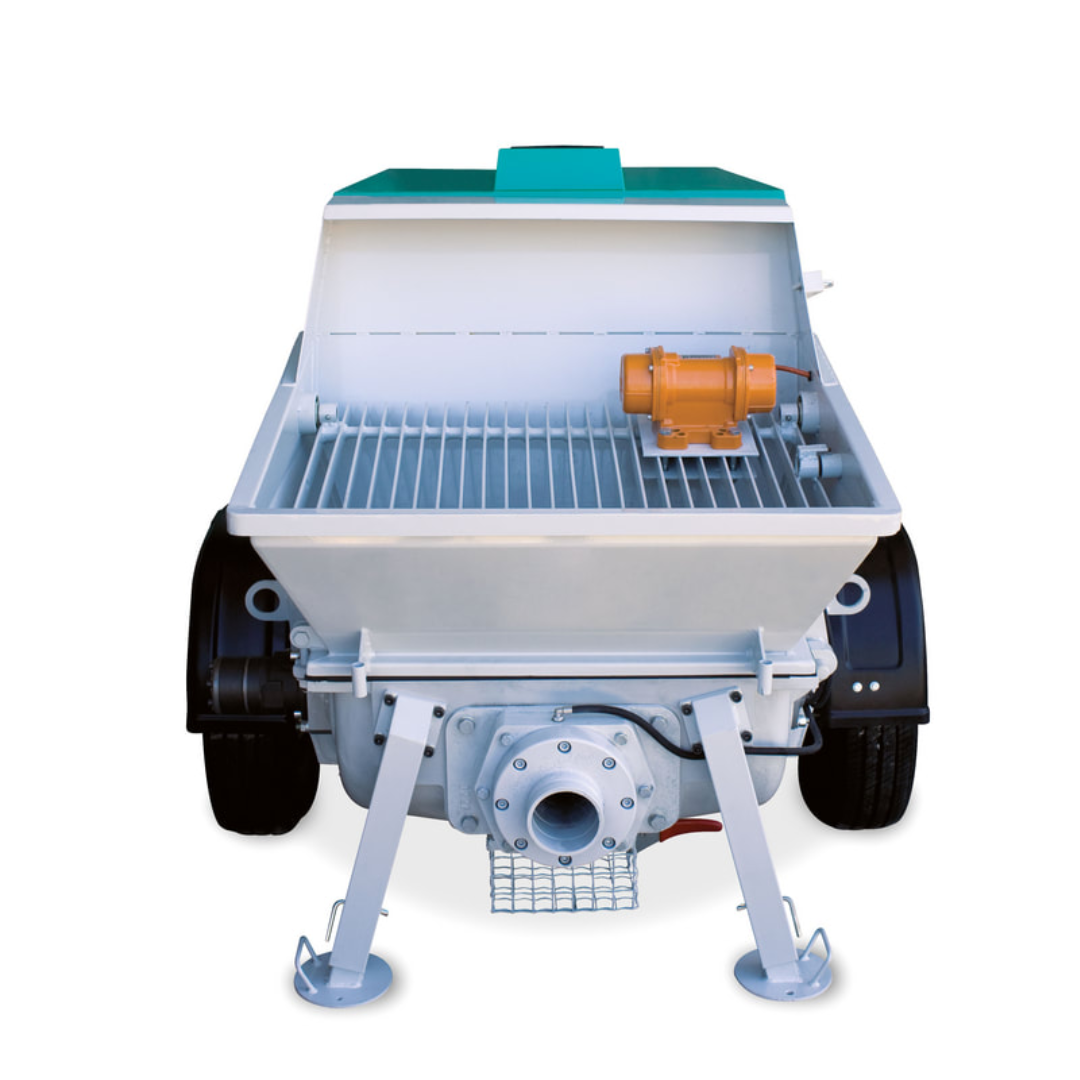

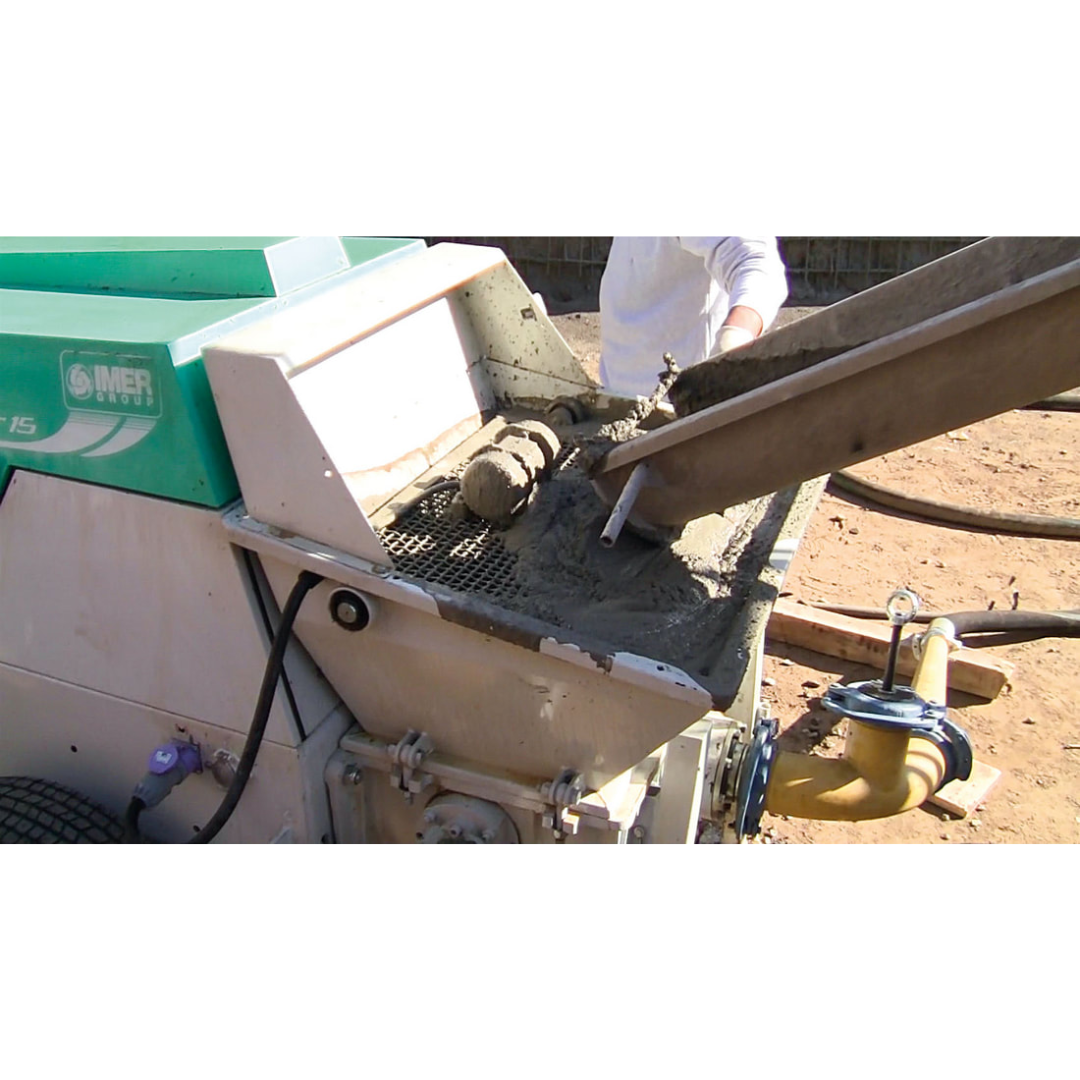

- Concrete hopper with integrated agitator maintains material consistency and reduces segregation during pumping.
- Automatic greasing system simplifies maintenance and helps extend component service life.
- Vibrating grid system improves material flow into the hopper while helping filter oversized debris.
- Centralized grease ports provide easier service access and faster maintenance procedures.
- 1,000 psi pumping pressure supports demanding material transfer and long-distance pumping applications.
IMER BOOSTER 20 Piston Pump Standard Equipment
- 3-cylinder liquid-cooled 28 HP diesel engine
- Automatic greasing system
- Concrete hopper with agitator
- 12V vibrating grid
- Hydraulic system with reverse
- Pumping unit with S-valve and automatic wear compensation
- 4” heavy-duty delivery manifold

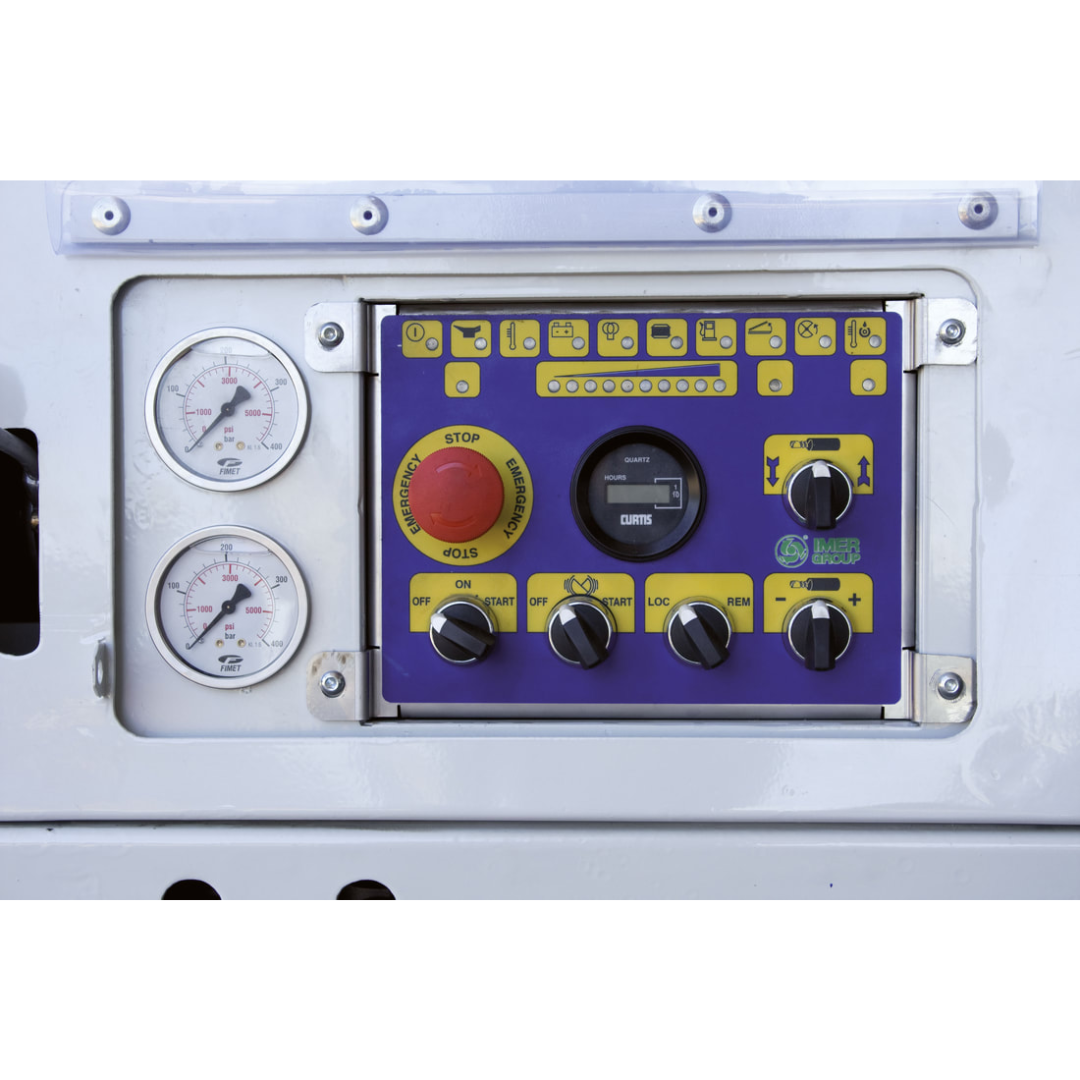

- Electromechanical control panel
- Piston head installation and extraction tool kit
- Heavy-duty highway tow package
- Accessory box with grease pump
- Centralized grease ports
- 4” cleaning balls
The IMER BOOSTER 20 Piston Pump comes fully equipped with heavy-duty pumping, maintenance, and transport components designed to maximize contractor productivity and simplify field operation.
IMER BOOSTER 20 Piston Pump Optional Equipment
| Optional Accessory | Part Number |
|---|---|
| Hydraulic power washer | 1107208 |
| 5 function radio remote | 1107001 |
| 4 function remote control | 1107086 |
| Rubber hopper extension kit (13 cu ft) | 1107196 |
| Steel hopper extension kit (17 cu ft) | 1107197 |
IMER BOOSTER 20 Piston Pump Production Advantages
- Compact size allows access to jobsites where larger pumps cannot operate.
- High-pressure hydraulic pumping system supports demanding material applications.
- Capable of pumping concrete, shotcrete, and high-strength grout materials.
- Automatic greasing and centralized maintenance points reduce downtime.
- Heavy-duty S-valve system improves durability and pumping consistency.
- Towable highway-ready design improves transport flexibility between projects.
- Hydraulic reverse functionality assists with blockage management and system cleaning.
- High flow output improves production efficiency on commercial jobsites.
The IMER BOOSTER 20 Piston Pump combines compact mobility with industrial-level pumping performance, making it an ideal solution for contractors handling demanding concrete and grout placement applications in challenging environments.
Why Choose the IMER BOOSTER 20 Piston Pump 1106427
- Powerful 28 HP diesel engine for independent high-performance operation.
- Compact trailer-mounted design for limited-access jobsites.
- Delivers up to 20 cubic yards per hour for efficient material placement.
- Handles aggregates up to 1" for expanded material compatibility.
- Heavy-duty hydraulic dual-cylinder pumping system ensures reliable performance.
- Integrated agitator and vibrating grid improve material consistency and flow.
- Automatic greasing system simplifies maintenance and increases durability.
- Built for professional commercial and industrial construction environments.
The IMER BOOSTER 20 Piston Pump 1106427 delivers the ideal combination of compact mobility, high-pressure pumping capability, and contractor-grade durability. Whether pumping concrete, shotcrete, or high-strength grout materials, the BOOSTER 20 provides dependable production performance and versatile operation for demanding professional construction applications.
