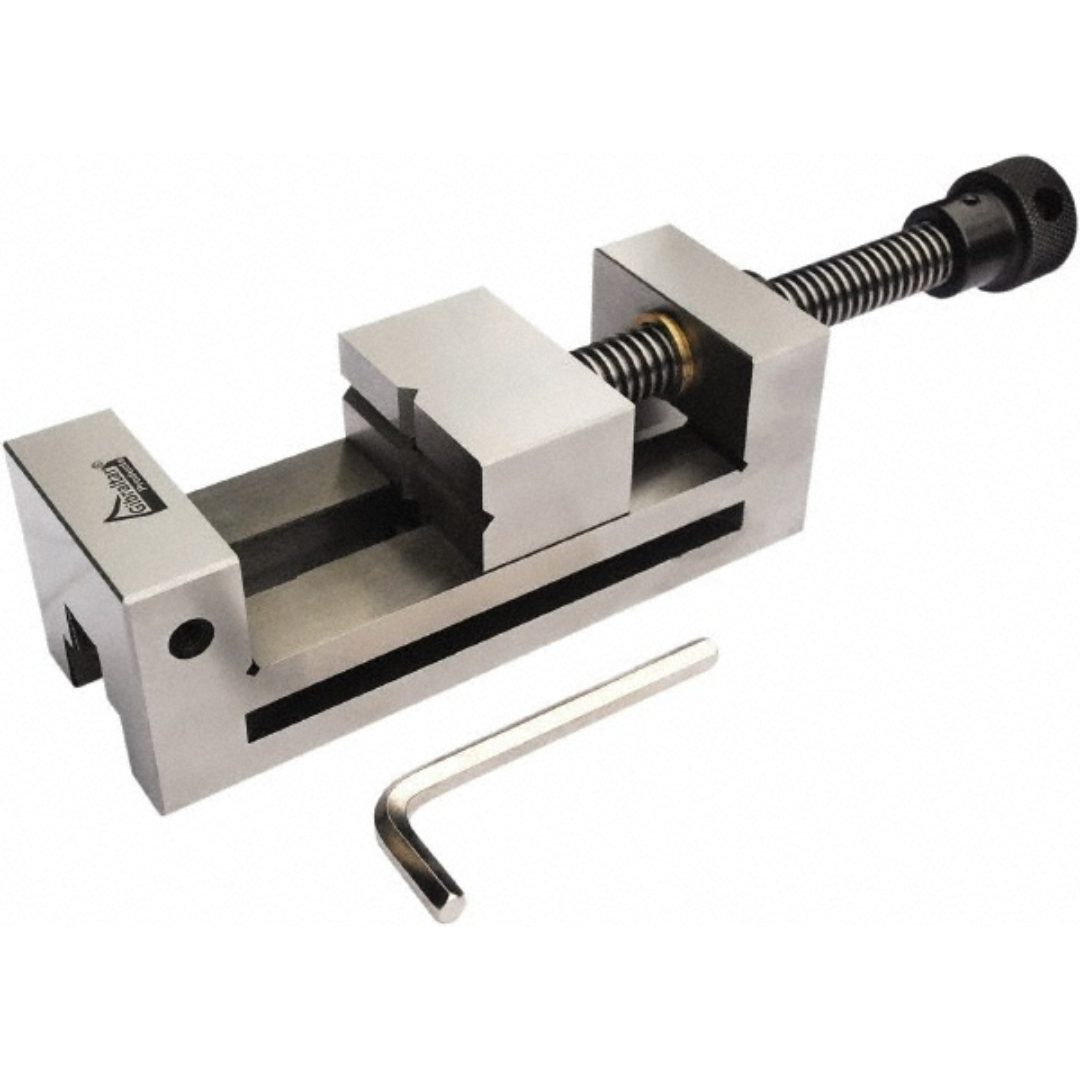

Gibraltar Toolmakers Vise XTMV/ST/4 Applications
- Surface grinding operations requiring precise workholding
- EDM (Electrical Discharge Machining)
- Precision milling and drilling
- Tool and die manufacturing
- Inspection and quality control laboratories
- Fixture building and precision assembly work
- Prototype machining and production environments
- Machine shops requiring accurate, repeatable clamping
Designed for applications where workpiece accuracy, repeatability, and rigid clamping are essential for producing high-quality finished components.
Gibraltar Toolmakers Vise XTMV/ST/4 Specifications
| Model | XTMV/ST/4 |
|---|---|
| Jaw Width | 2.87 in. (Approximately 2-3/4 in.) |
| Maximum Jaw Opening | 4.02 in. (102 mm) |
| Jaw Opening (Nominal) | 3 in. (76.2 mm) |
| Jaw Height | 1.38 in. (Approximately 1-9/16 in.) |
| Jaw Shape | Flat |
| Material | Precision Ground Steel |
| Parallelism | 0.0030 in. |
| Squareness | 0.0050 in. |
| Overall Length | 10 in. (254 mm) |
| Overall Height | 2.85 in. (Approximately 4-1/4 in.) |
| UNSPSC | 27112100 |
| Country of Origin | Various |
Gibraltar Toolmakers Vise XTMV/ST/4 Features & Performance
- Precision-ground steel construction provides exceptional rigidity and long-term dimensional stability.
- Flat precision jaws securely clamp workpieces for grinding, inspection, and machining operations.
- Excellent parallelism tolerance of 0.0030" helps maintain consistent accuracy across the entire clamping surface.
- Squareness tolerance of 0.0050" supports repeatable setups and precision machining applications.
- Smooth precision lead screw delivers controlled jaw movement and dependable clamping force.
- Compact low-profile design maximizes accessibility while minimizing interference during machining operations.
- Hardened steel body resists wear and maintains accuracy during continuous professional use.
- Ideal for toolrooms and inspection departments where precision workholding is critical to maintaining tight manufacturing tolerances.
- Versatile workholding solution suitable for grinding, EDM, milling, inspection, layout work, and fixture building.
Why Choose the Gibraltar Toolmakers Vise XTMV/ST/4
- Precision-ground steel construction for maximum durability and accuracy.
- Excellent parallelism and squareness for repeatable machining results.
- Compact design ideal for grinders, EDM machines, and inspection stations.
- Rigid clamping improves machining precision and workpiece stability.
- Professional-grade toolmaker's vise built for demanding manufacturing environments.
- Dependable performance for toolrooms, quality control, and precision machining applications.
