Gibraltar Machine Vise: Single-Station Swivel Base, Precision 110054 Applications
- Precision vertical and horizontal milling operations
- Toolrooms and mold manufacturing facilities
- Surface grinding and precision machining
- Inspection and quality control applications
- Prototype development and fixture building
- General machine shop and industrial manufacturing
- Angular machining requiring compound positioning
- Holding flat, square, and round workpieces using V-groove jaws

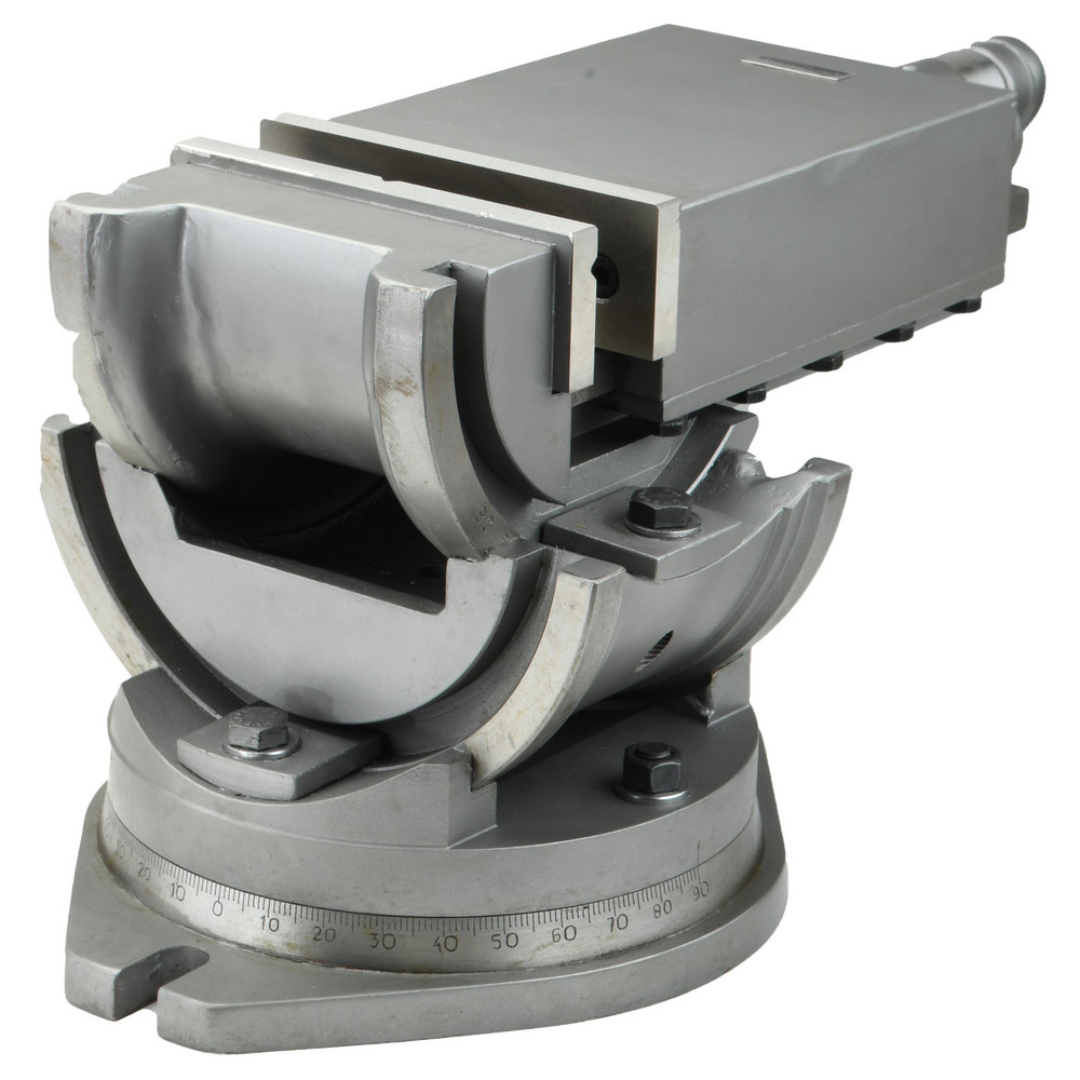

The 3-way angle design allows the vise to tilt along the X, Y, and Z axes while the 360° swivel base provides unlimited rotational positioning, minimizing setup time for complex machining operations.
Gibraltar Machine Vise: Single-Station Swivel Base, Precision 110054 Specifications
| Manufacturer | Gibraltar |
|---|---|
| Model Number | TLT;SP |
| Product Number | 110054 |
| Operation Type | Manual |
| Number of Stations | 1 |
| Precision Rated | Yes |
| Orientation | 3-Way Angle |
| Base Motion | 360° Swivel |
| Jaw Width | 6.0000" (150 mm) |
| Jaw Height | 2.0000" |
| Maximum Jaw Opening | 6" |
| Throat Depth | 2" |
| Jaw Style | V-Groove |
| Jaw Material | Steel |
| Vise Material | Cast Iron |
| Base Length | 11.5000" |
| Base Width | 9.25" |
| Base Height | 1.3700" |
| Overall Length | 18.0000" (455 mm) |
| Overall Width | 9.25" |
| Overall Height | 9.5000" |
| For Use With | Machine Tools |
| UNSPSC | 27112100 |
| Country of Origin | India |
Gibraltar Machine Vise: Single-Station Swivel Base, Precision 110054 Features & Performance
- 3-way angle adjustment allows precise tilting along the X, Y, and Z axes, making complex machining operations faster and more accurate.
- 360° swivel base enables complete rotational positioning without removing or reclamping the workpiece, reducing setup time and improving workflow.
- Heavy-duty cast iron construction provides outstanding rigidity, vibration resistance, and long-term durability in demanding machining environments.

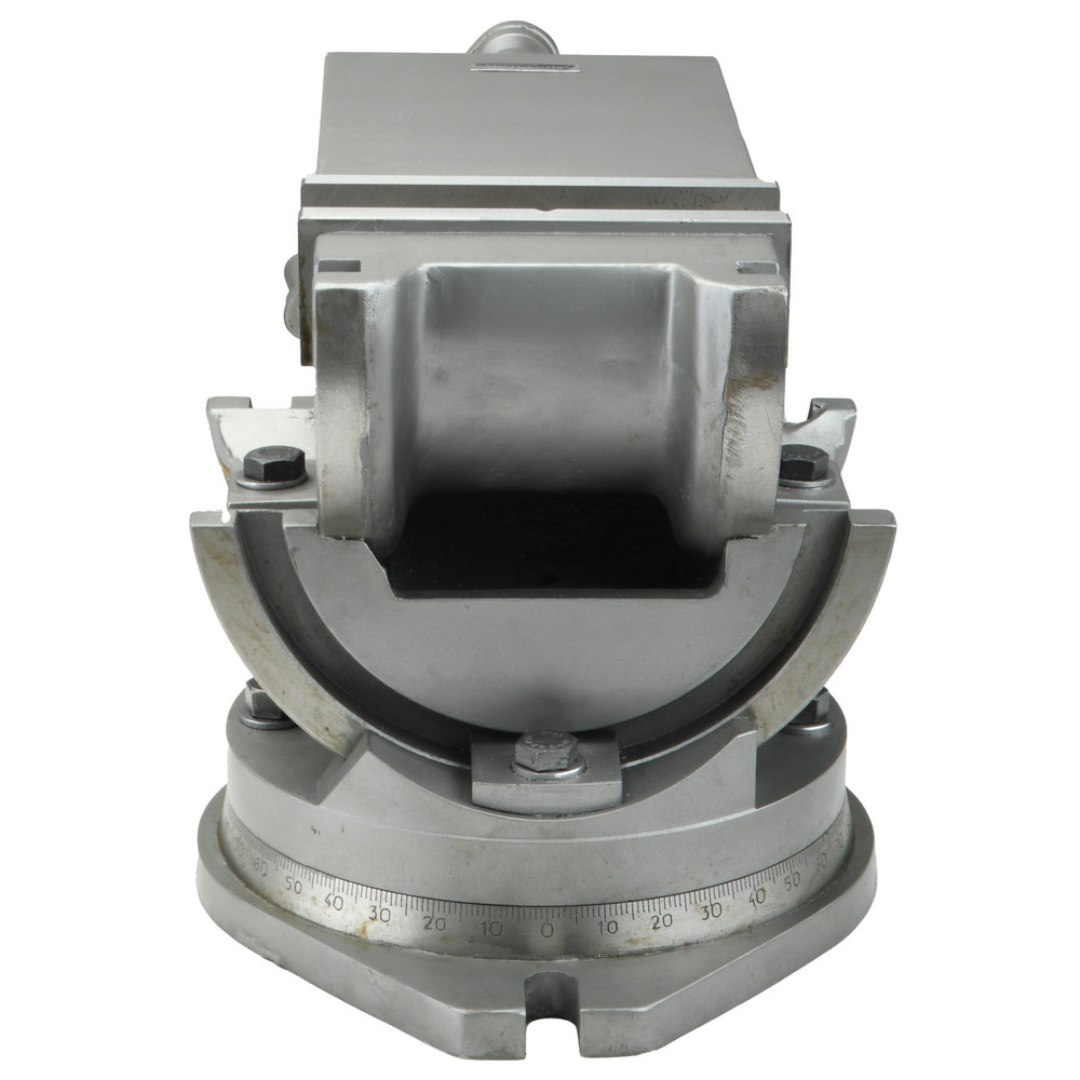

- Precision-ground steel V-groove jaws securely clamp both flat and cylindrical workpieces while maintaining excellent positioning accuracy.
- Large 6-inch jaw width and 6-inch opening capacity accommodate a broad range of workpiece sizes for milling, drilling, grinding, and inspection.

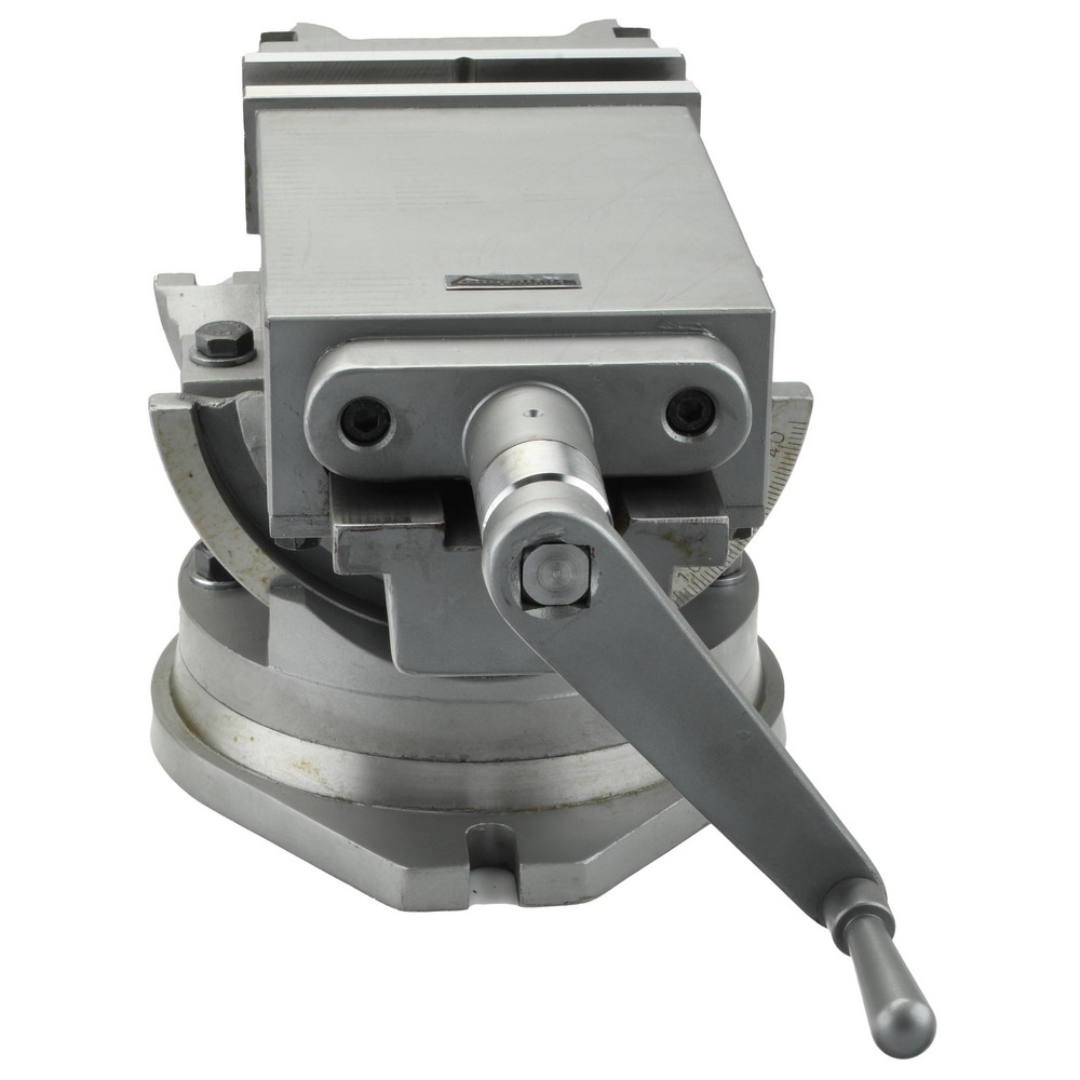

- Manual screw-driven clamping mechanism delivers smooth, consistent clamping force with dependable long-term performance.
- Precision-rated design is ideal for applications requiring repeatable setups and accurate machining results.
- Industrial-grade versatility makes this vise suitable for CNC machining centers, conventional milling machines, toolrooms, maintenance departments, and manufacturing facilities.
Why Choose the Gibraltar Machine Vise: Single-Station Swivel Base, Precision 110054
- Precision-rated workholding for demanding machining applications.
- 3-way angle adjustment provides exceptional setup flexibility.
- 360° swivel base enables accurate rotational positioning.
- Heavy-duty cast iron construction ensures rigidity and long service life.
- Steel V-groove jaws securely hold both flat and round workpieces.
- Large 6-inch jaw capacity supports a wide range of machining operations.
- Excellent choice for milling, grinding, inspection, toolrooms, and precision manufacturing.
California Proposition 65 Warning: This product contains Nickel, a chemical known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov.
The Gibraltar Machine Vise: Single-Station Swivel Base, Precision 110054 combines precision engineering, rugged construction, and advanced positioning capabilities into one professional-grade workholding solution. With its 3-way angle adjustment, full 360° swivel base, and precision V-groove jaws, it is an outstanding choice for machinists who require maximum flexibility, repeatable accuracy, and dependable performance in demanding industrial environments.
