Gibraltar Machine Vise: Single-Station Swivel Base, Precision 110051 Applications
- Vertical and horizontal milling machines
- Precision drilling and tapping operations
- Tool rooms and machine shops
- Prototype and production machining
- Fixture building and maintenance departments
- Angle drilling, milling, and contour machining
- Precision fabrication and metalworking operations
- Holding round, square, and irregular workpieces using V-groove jaws
The 3-way angle design and rotating swivel base allow complex machining operations to be completed without removing or repositioning the workpiece, improving accuracy and reducing setup time.

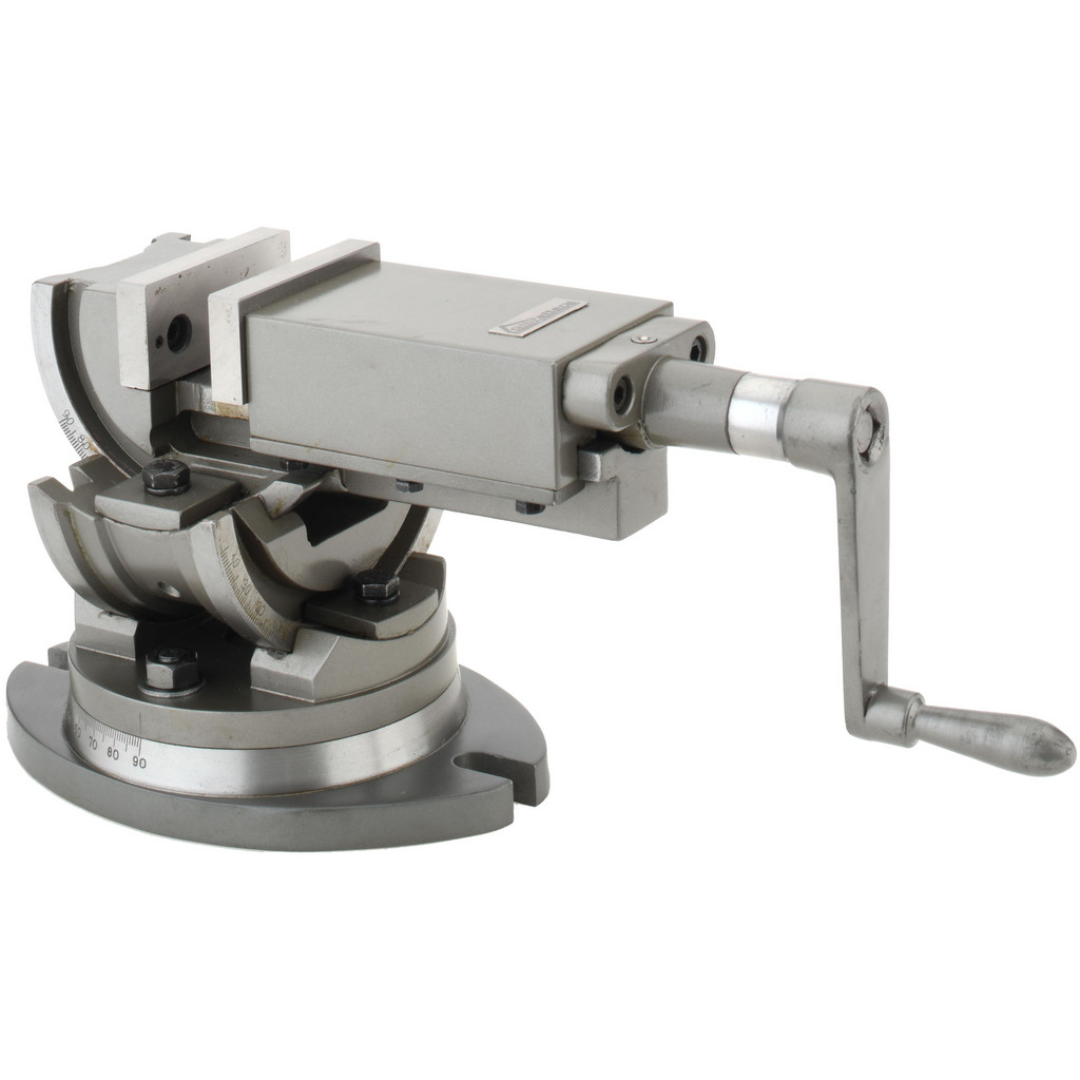

Gibraltar Machine Vise: Single-Station Swivel Base, Precision 110051 Specifications
| Model | 110051 |
|---|---|
| Product Type | Precision Machine Vise |
| Number of Stations | 1 |
| Jaw Width | 3 in. (75 mm) |
| Jaw Height | 1.25 in. |
| Maximum Jaw Opening | 3 in. |
| Jaw Style | V-Groove |
| Jaw Material | Steel |
| Throat Depth | 1-1/4 in. |
| Operation Type | Manual |
| Orientation | 3-Way Angle |
| Base Motion | 360° Swivel |
| Base Length | 7.75 in. |
| Base Width | 5.38 in. |
| Base Height | 1.10 in. |
| Overall Length | 11.375 in. (290 mm) |
| Overall Width | 5.38 in. |
| Overall Height | 6.375 in. (Approx. 8 in. overall) |
| Body Material | Cast Iron |
| Precision | Yes |
| Features | TLT; SP |
| UNSPSC | 27112100 |
Gibraltar Machine Vise: Single-Station Swivel Base, Precision 110051 Performance & Construction

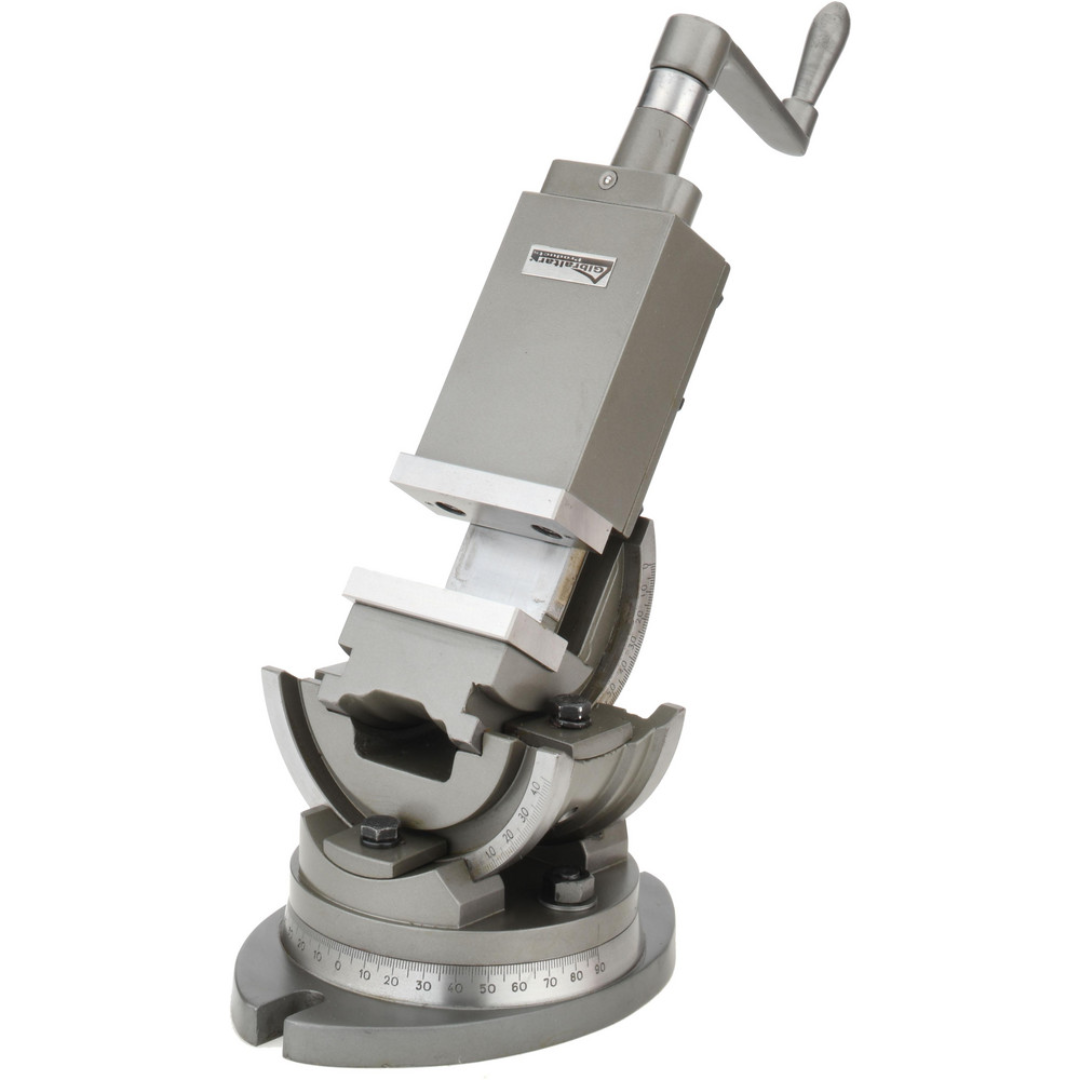

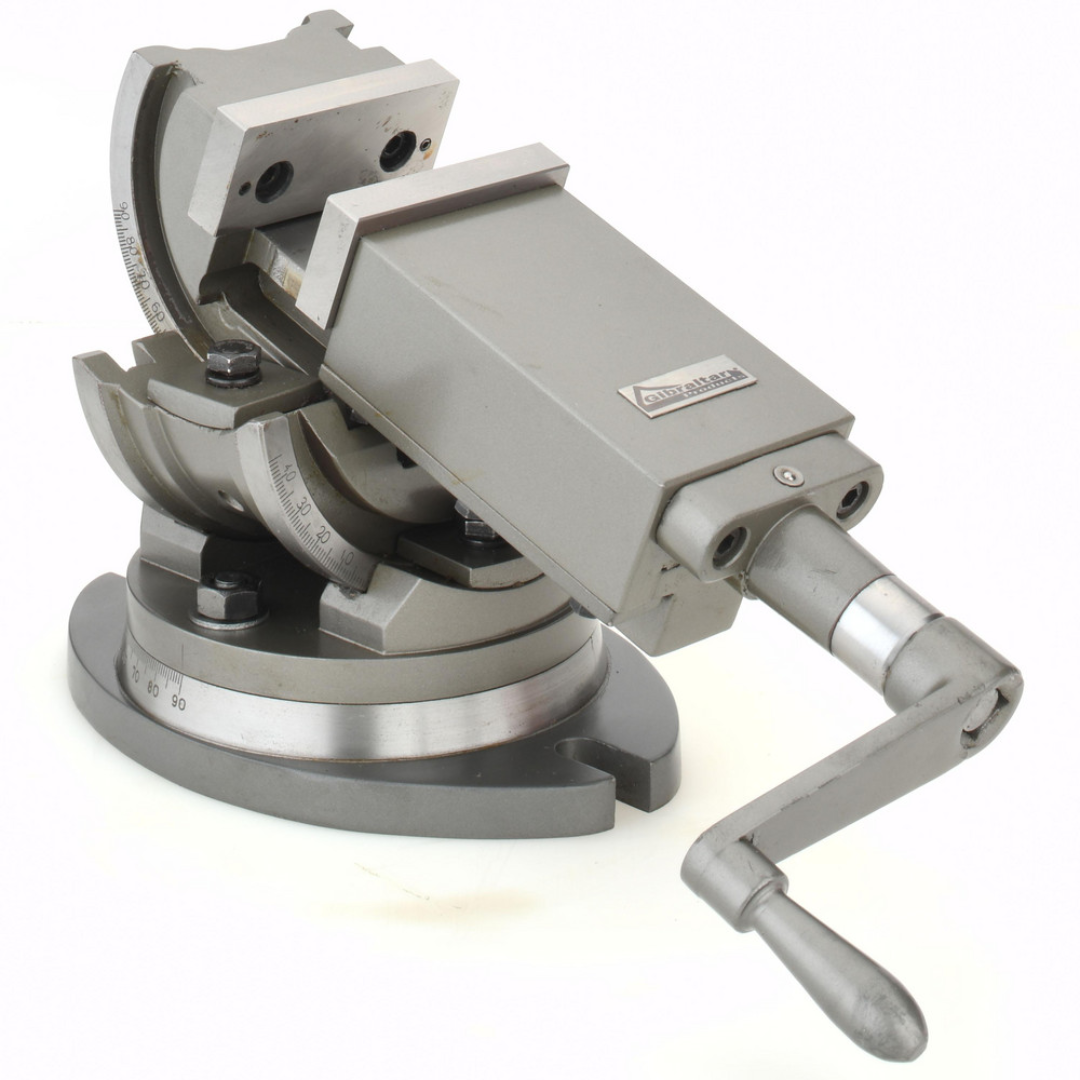

- 3-way angle positioning allows the vise to tilt around the X, Y, and Z axes, providing outstanding flexibility for compound-angle drilling, milling, grinding, and machining operations.

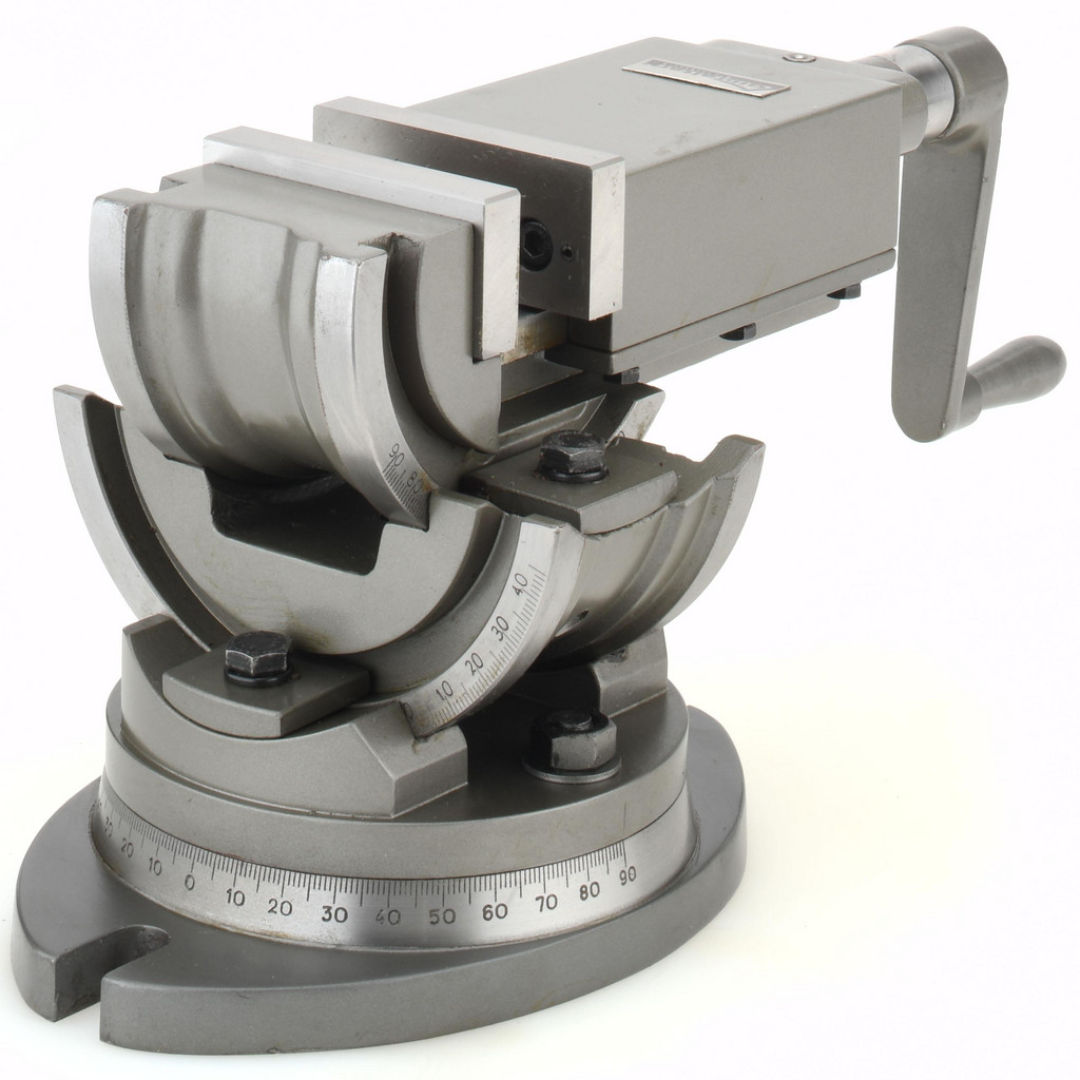

- 360-degree swivel base enables complete rotation without removing or repositioning the workpiece, increasing efficiency while maintaining machining accuracy.
- Heavy-duty cast iron body provides exceptional rigidity, vibration dampening, and long-lasting durability under demanding shop conditions.
- Precision steel V-groove jaws securely clamp both flat and round workpieces, making the vise suitable for a broad range of machining applications.
- Manual operation offers smooth, controlled jaw movement with dependable clamping force for repeatable setups.
- Single-station precision design maximizes machining accuracy while maintaining a compact footprint on machine tables.
- 3-inch jaw width and opening capacity accommodate a variety of workpiece sizes commonly found in maintenance, production, and toolroom environments.
- Ideal for precision machining requiring angular positioning, accurate workholding, and repeatable setups for complex parts.
Why Choose the Gibraltar Machine Vise: Single-Station Swivel Base, Precision 110051
- Precision 3-way angle adjustment for maximum machining flexibility.
- 360° swivel base allows complete rotation without unclamping the workpiece.
- Heavy-duty cast iron construction delivers excellent rigidity and durability.
- Steel V-groove jaws securely hold flat, round, and irregular stock.
- Manual precision operation provides consistent, repeatable clamping performance.
- Excellent choice for milling machines, drill presses, toolrooms, production shops, and precision fabrication facilities.
The Gibraltar Machine Vise: Single-Station Swivel Base, Precision 110051 combines precision workholding, multi-axis positioning, and rugged industrial construction to deliver exceptional versatility and machining accuracy for professional metalworking applications.
Gibraltar Machine Vise: Single-Station Swivel Base, Precision 110051 Compliance & Safety Information
California Proposition 65 Warning: This product contains Nickel, a chemical known to the State of California to cause cancer. For additional information, visit www.P65Warnings.ca.gov.
