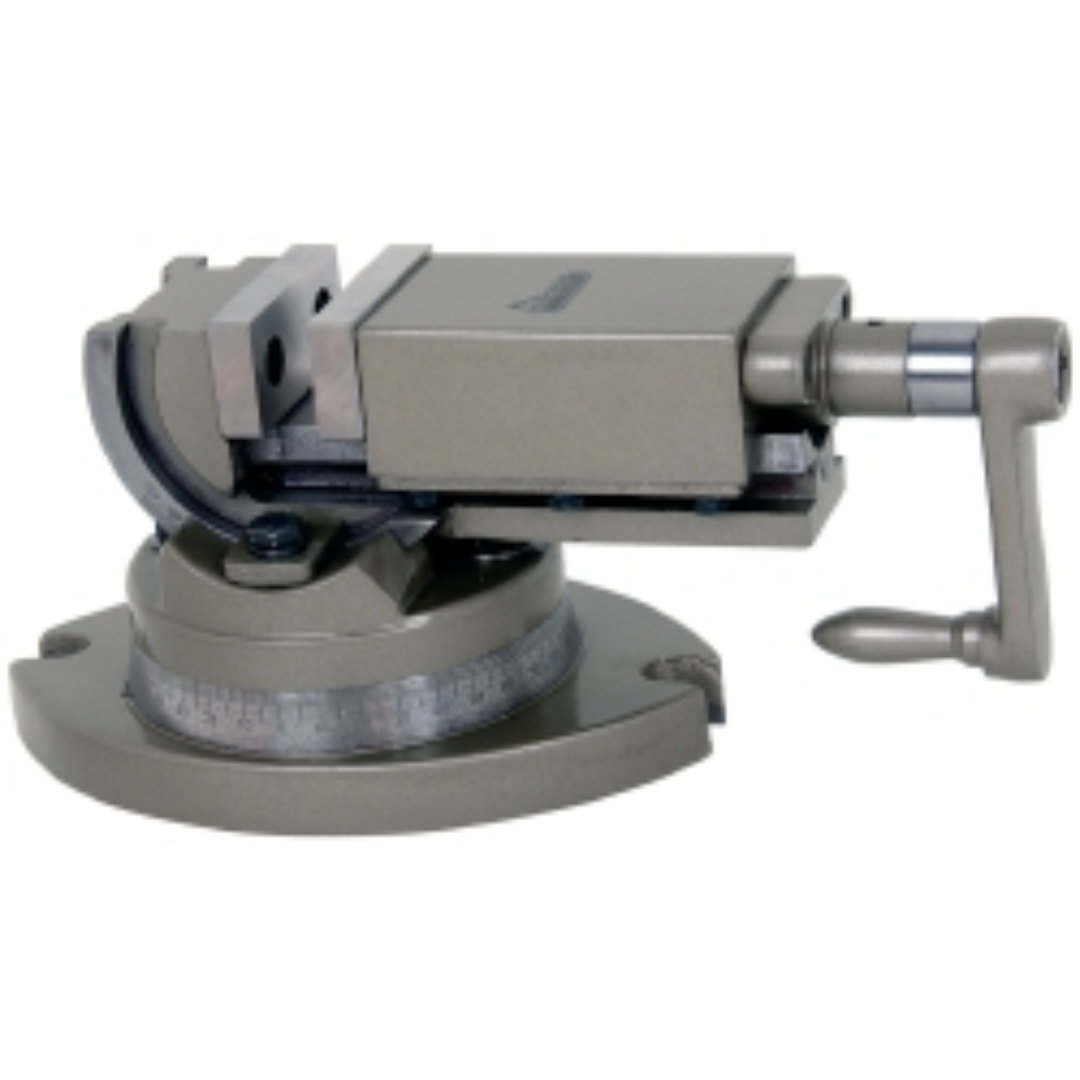

Gibraltar Machine Vise: Single-Station Swivel Base, Precision 110029 Applications
- Vertical and horizontal milling machine operations
- Precision drilling, boring, and tapping
- Surface grinding and toolroom machining
- Inspection and quality control work
- Fixture building and prototype manufacturing
- General industrial machining and fabrication
- Angular machining requiring two-axis positioning
- Holding flat, square, and round workpieces using V-groove jaws
The 2-way angle design allows tilting along the X and Y axes, while the integrated 360° swivel base provides complete rotational positioning for faster setups and greater machining flexibility.
Gibraltar Machine Vise: Single-Station Swivel Base, Precision 110029 Specifications
| Manufacturer | Gibraltar |
|---|---|
| Model Number | AMV;SP |
| Product Number | 110029 |
| Operation Type | Manual |
| Number of Stations | 1 |
| Precision Rated | Yes |
| Orientation | 2-Way Angle |
| Base Motion | 360° Swivel |
| Jaw Width | 6.0000" (150 mm) |
| Jaw Height | 2.0000" |
| Maximum Jaw Opening | 6" |
| Throat Depth | 2" |
| Jaw Style | V-Groove |
| Jaw Material | Steel |
| Vise Material | Cast Iron |
| Base Length | 11.6250" |
| Base Width | 9.25" |
| Base Height | 1.3700" |
| Overall Length | 17-3/4" (17.5000" / 450 mm) |
| Overall Width | 9.25" |
| Overall Height | 6.7500" |
| For Use With | Machine Tools |
| UNSPSC | 27112100 |
| Country of Origin | India |
Gibraltar Machine Vise: Single-Station Swivel Base, Precision 110029 Features & Performance
- 2-way angle adjustment allows the vise to tilt along the X and Y axes, making angled machining operations faster and more accurate.
- 360° swivel base enables full rotational positioning without removing the workpiece, improving efficiency and reducing setup time.
- Heavy-duty cast iron construction provides excellent rigidity, vibration resistance, and long service life in demanding machining environments.
- Precision-ground V-groove steel jaws securely grip flat, square, and round stock while maintaining excellent workpiece alignment.
- Large 6-inch jaw width and 6-inch opening capacity accommodate a wide variety of workpiece sizes for milling, drilling, grinding, and inspection.
- Precision-rated construction supports repeatable setups and accurate machining results for professional manufacturing applications.
- Manual screw-driven clamping mechanism delivers smooth operation, dependable holding force, and minimal maintenance requirements.
- Ideal for CNC machining centers, milling machines, toolrooms, maintenance facilities, and precision manufacturing environments.
Why Choose the Gibraltar Machine Vise: Single-Station Swivel Base, Precision 110029
- Precision-rated vise designed for demanding machining applications.
- 2-way angle adjustment provides flexible workpiece positioning.
- 360° swivel base enables fast, accurate rotational alignment.
- Heavy-duty cast iron body ensures stability and durability.
- V-groove steel jaws securely hold flat and round materials.
- Large 6-inch capacity accommodates a wide range of workpieces.
- Excellent choice for milling, grinding, drilling, inspection, and precision manufacturing.
California Proposition 65 Warning: This product contains Nickel, a chemical known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov.
The Gibraltar Machine Vise: Single-Station Swivel Base, Precision 110029 combines precision engineering, rugged cast iron construction, and versatile multi-angle positioning to deliver dependable workholding for professional machine shops and manufacturing facilities. Its 2-way angle adjustment, 360° swivel base, and precision V-groove jaws provide the flexibility and accuracy needed for complex machining operations while maximizing productivity and repeatable results.
