Gibraltar Machine Vise: Single-Station Swivel Base 110953 Applications
- Vertical and horizontal milling machines
- CNC machining centers
- Precision drilling, boring, and tapping operations
- Angular machining and compound angle setups
- Toolrooms and maintenance departments
- Prototype manufacturing and custom fabrication
- Production machining environments
- General industrial metalworking applications
The combination of 3-way angular positioning and a 360° swivel base allows operators to machine multiple faces and complex angles without repeatedly removing and repositioning the workpiece, improving productivity and setup accuracy.
Gibraltar Machine Vise: Single-Station Swivel Base 110953 Specifications
| Model Number | E3W |
|---|---|
| Product Type | Single-Station Machine Vise |
| Jaw Width | 5-1/8 in. (130 mm) |
| Jaw Height | 2.00 in. |
| Jaw Style | Smooth |
| Jaw Material | Steel |
| Maximum Jaw Opening | 5-23/32 in. |
| Throat Depth | 2.00 in. (52 mm) |
| Operation Type | Manual |
| Orientation | 3-Way Angle (X, Y & Z Axis) |
| Base Motion | 360° Swivel Base |
| Number of Stations | 1 |
| Vise Material | Cast Iron |
| Base Length | 13.75 in. |
| Base Width | 10.00 in. |
| Base Height | 1.50 in. |
| Overall Length | 22-1/8 in. (562 mm) |
| Overall Width | 10.00 in. |
| Overall Height | 8.00 in. |
| Precision | No |
| Application | Machine Workholding |
| UNSPSC | 27112100 |
| Country of Origin | China |
Gibraltar Machine Vise: Single-Station Swivel Base 110953 Features & Performance
- Heavy-duty cast iron body provides outstanding rigidity, vibration resistance, and long service life in demanding machining environments.

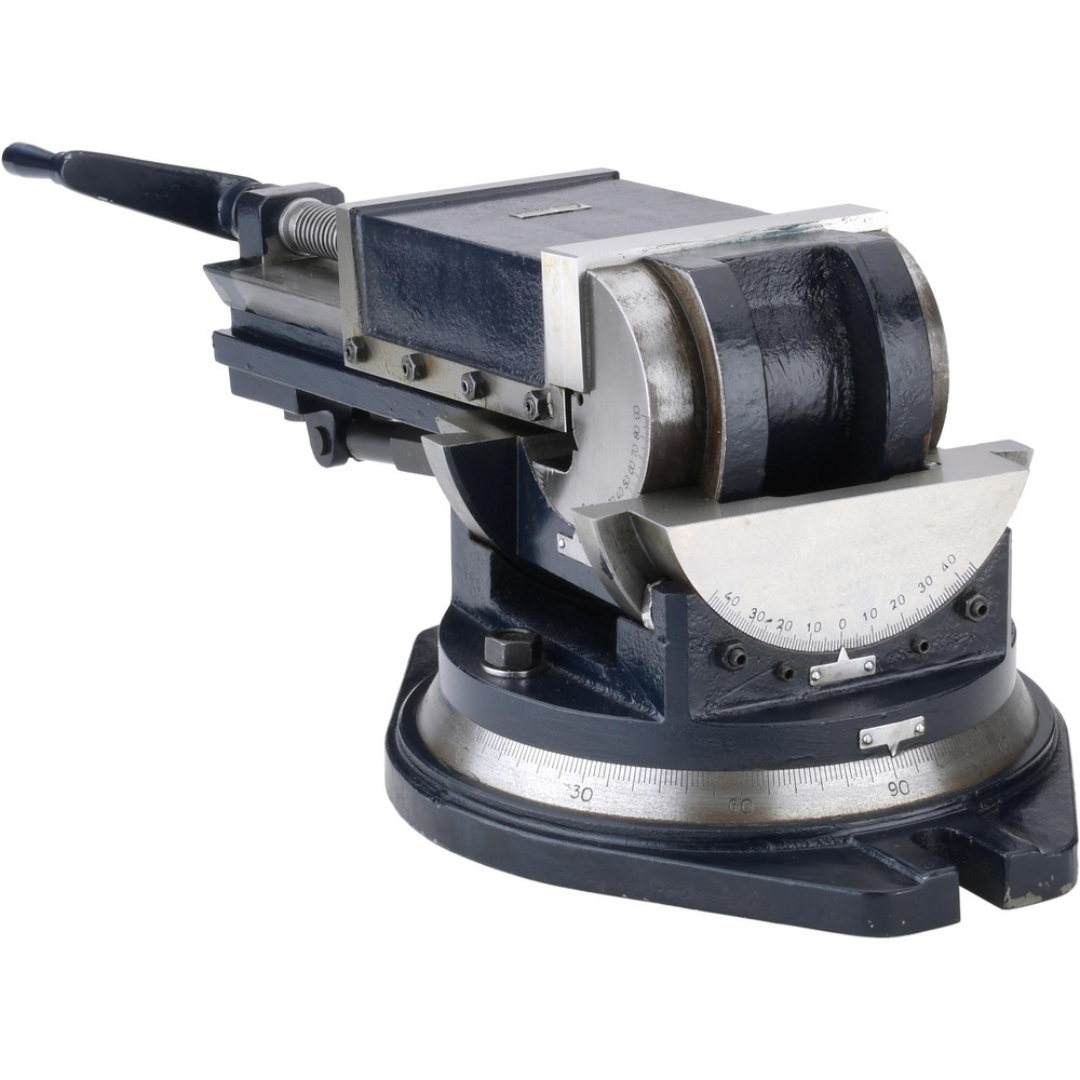

- 3-way angle design allows the vise to tilt around the X, Y, and Z axes, providing exceptional flexibility for compound-angle machining operations.

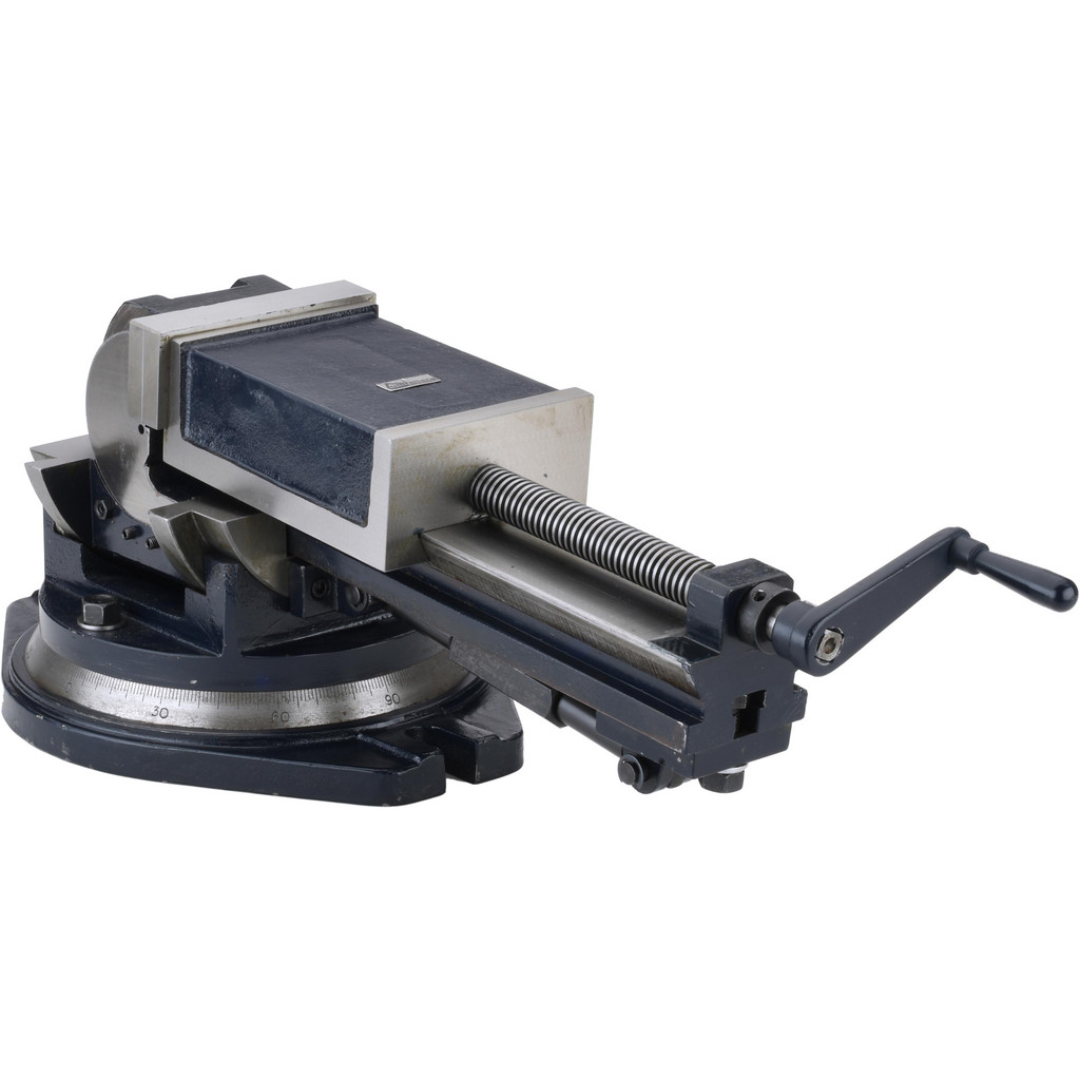

- 360-degree swivel base enables complete rotation without removing the workpiece, reducing setup time and increasing machining efficiency.
- 5-1/8-inch precision steel smooth jaws securely grip finished or machined components while providing even clamping pressure.
- Generous 5-23/32-inch jaw opening accommodates a broad range of workpiece sizes for versatile machining applications.
- 2-inch throat depth provides solid workpiece engagement and dependable holding power during milling and drilling operations.

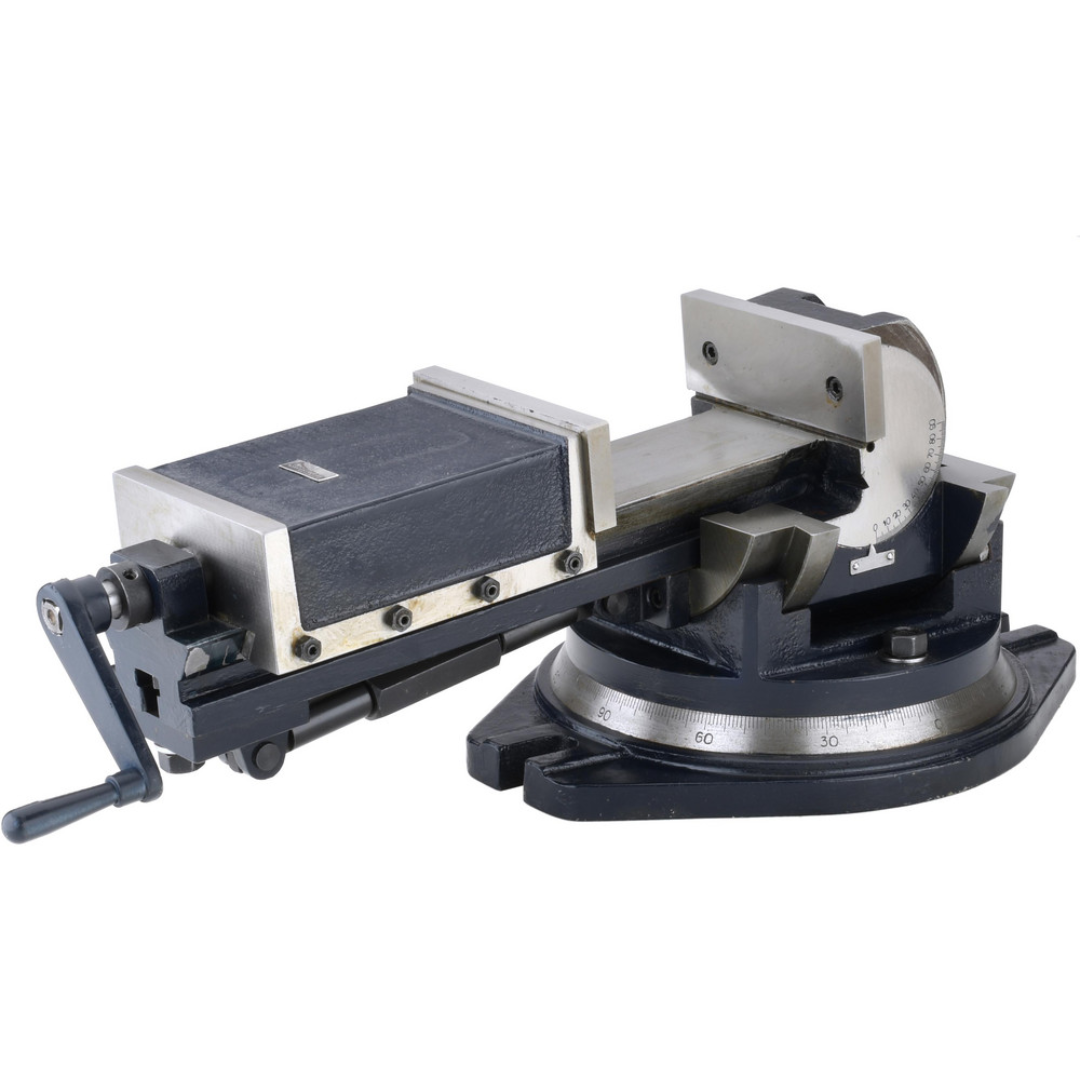

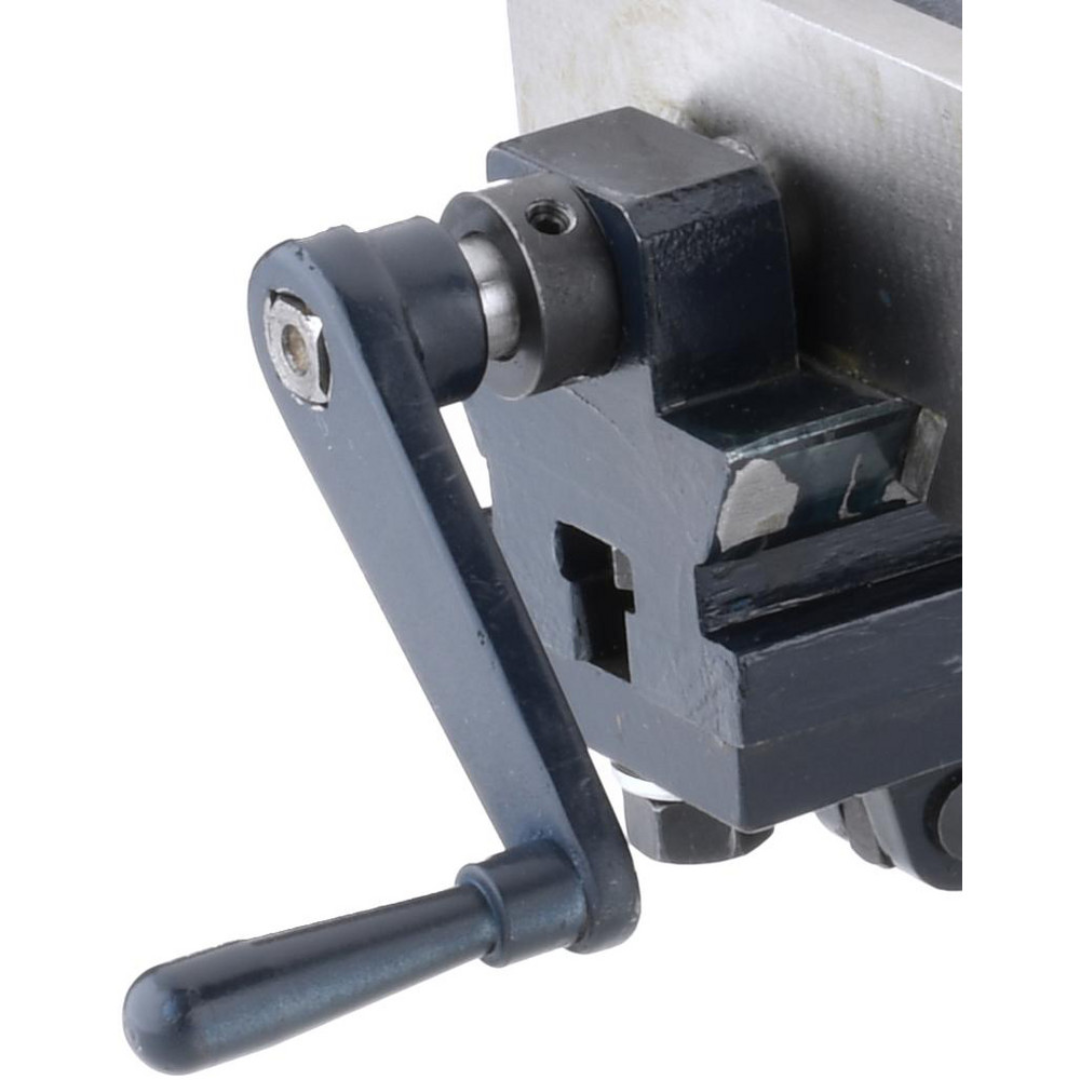

- Manual lead screw operation offers smooth jaw movement with controlled clamping force for accurate workholding.
- Large base dimensions increase overall stability while supporting demanding machining operations involving larger components.
- Single-station configuration maximizes rigidity while maintaining easy workpiece access.
- Ideal for milling, fabrication, drilling, maintenance, and production machining where flexible workpiece positioning is required.
Why Choose the Gibraltar Machine Vise: Single-Station Swivel Base 110953
- Advanced 3-way angle positioning supports complex machining operations.
- 360° swivel base improves setup flexibility without disturbing the workpiece.
- Heavy-duty cast iron construction delivers industrial-grade durability.
- Smooth steel jaws provide secure clamping while protecting finished surfaces.
- Large workholding capacity accommodates a wide variety of part sizes.
- An excellent choice for machine shops, fabrication facilities, maintenance departments, and production machining environments.
California Proposition 65 Warning: This product contains Nickel, a chemical known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov.
