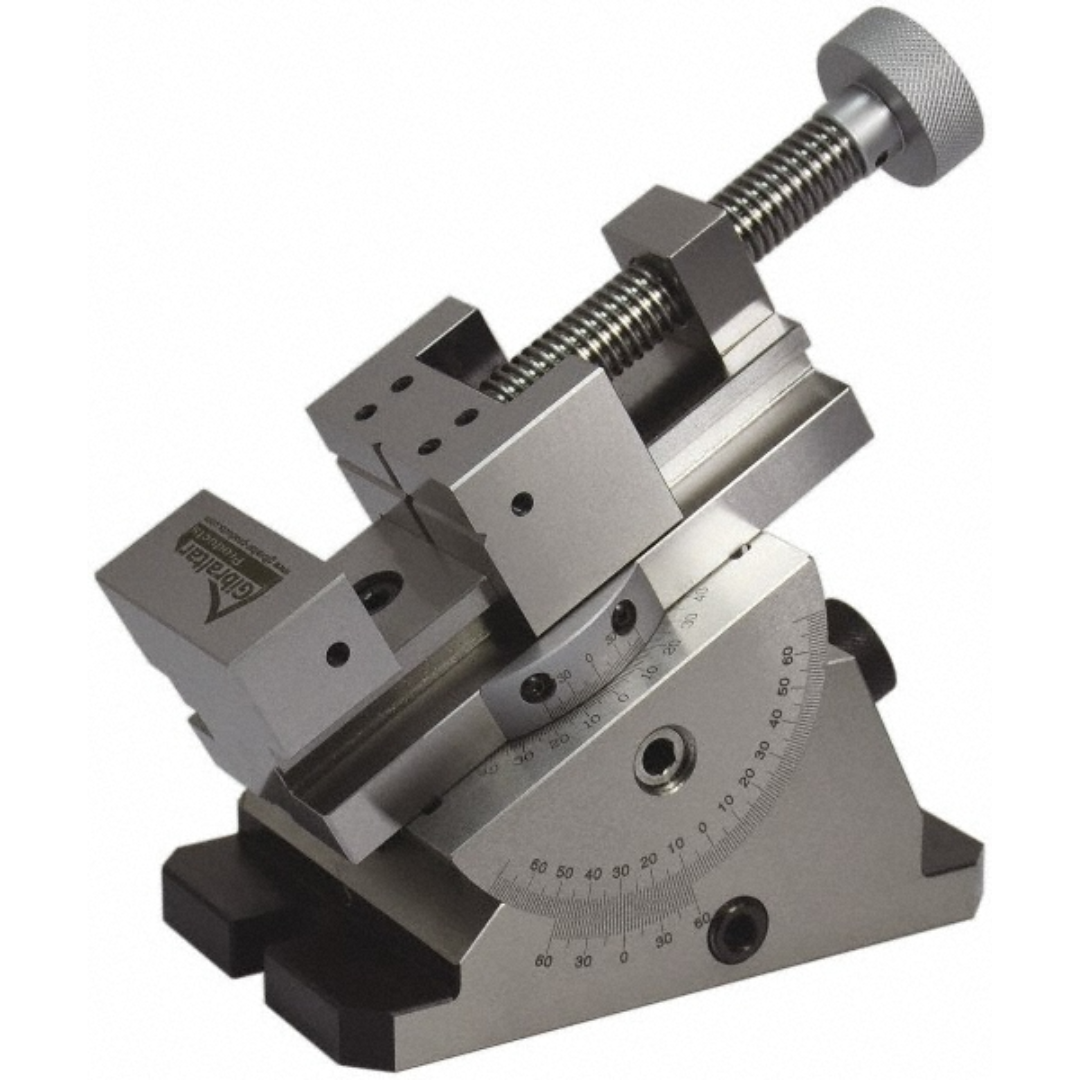

Gibraltar Machine Vise: Single-Station Swivel Base 110090 Applications
- Milling machine workholding
- Drill press operations
- Surface grinding and light machining
- Inspection and measurement setups
- Toolrooms and maintenance departments
- Prototype manufacturing and repair work
- Machining round stock using integrated V-groove jaws
- General fabrication and industrial machining applications
The 360° swivel base allows quick angular positioning while keeping the workpiece securely clamped, reducing setup time and improving machining efficiency.
Gibraltar Machine Vise: Single-Station Swivel Base 110090 Specifications
| Manufacturer | Gibraltar |
|---|---|
| Model Number | TCHM |
| Product Number | 110090 |
| Operation Type | Manual |
| Number of Stations | 1 |
| Orientation | Horizontal |
| Base Motion | 360° Swivel |
| Jaw Width | 2-3/4" (70 mm) |
| Jaw Height | 1.2500" |
| Maximum Jaw Opening | 3" |
| Throat Depth | 1-3/16" |
| Jaw Style | V-Groove |
| Jaw Material | Steel |
| Vise Material | Steel |
| Base Length | 7.1250" |
| Overall Length | 7-5/8" (7.6250" / 195 mm) |
| Overall Width | 4.31" |
| Base Width | 4.84" |
| Overall Height | 5.5110" |
| Precision Rated | No |
| For Use With | Machine Tools |
| UNSPSC | 27112100 |
| Country of Origin | Taiwan |
Gibraltar Machine Vise: Single-Station Swivel Base 110090 Features & Performance
- 360-degree swivel base allows precise angular positioning without removing or repositioning the workpiece, improving machining efficiency and reducing setup time.
- Heavy-duty steel construction provides exceptional rigidity, durability, and long service life in demanding industrial machining environments.
- Precision V-groove steel jaws securely grip both flat and round workpieces, making the vise ideal for machining shafts, tubing, and cylindrical components.
- 2-3/4-inch jaw width with 3-inch opening capacity accommodates a variety of workpiece sizes for milling, drilling, grinding, and inspection applications.
- Manual screw-driven clamping mechanism delivers smooth, reliable, and consistent clamping force while requiring minimal maintenance.
- Horizontal single-station configuration provides stable workholding for everyday machining tasks on mills, drill presses, and other machine tools.
- Compact footprint allows installation on smaller machine tables while maintaining excellent accessibility around the workpiece.
- Designed for professional machining environments including manufacturing facilities, maintenance shops, fabrication departments, educational labs, and toolrooms.
Why Choose the Gibraltar Machine Vise: Single-Station Swivel Base 110090
- 360° swivel base enables fast and accurate workpiece positioning.
- Steel V-groove jaws securely hold both flat and round materials.
- Heavy-duty steel construction ensures long-lasting durability.
- Compact design fits a wide variety of milling machines and drill presses.
- Manual operation provides dependable, maintenance-friendly performance.
- Ideal for machining, fabrication, inspection, maintenance, and production applications.
California Proposition 65 Warning: This product contains Nickel, a chemical known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov.
The Gibraltar Machine Vise: Single-Station Swivel Base 110090 combines rugged steel construction, precision V-groove jaws, and a full 360° swivel base to provide flexible, dependable workholding for professional machining operations. Built for durability and versatility, it delivers reliable performance for milling, drilling, grinding, inspection, and general industrial manufacturing.
