Evolution Power Tools Single Bevel Sliding Miter Saw R255SMS+ Applications
- Finish carpentry and trim installation.
- Cutting hardwoods including oak, maple, walnut, and engineered lumber.

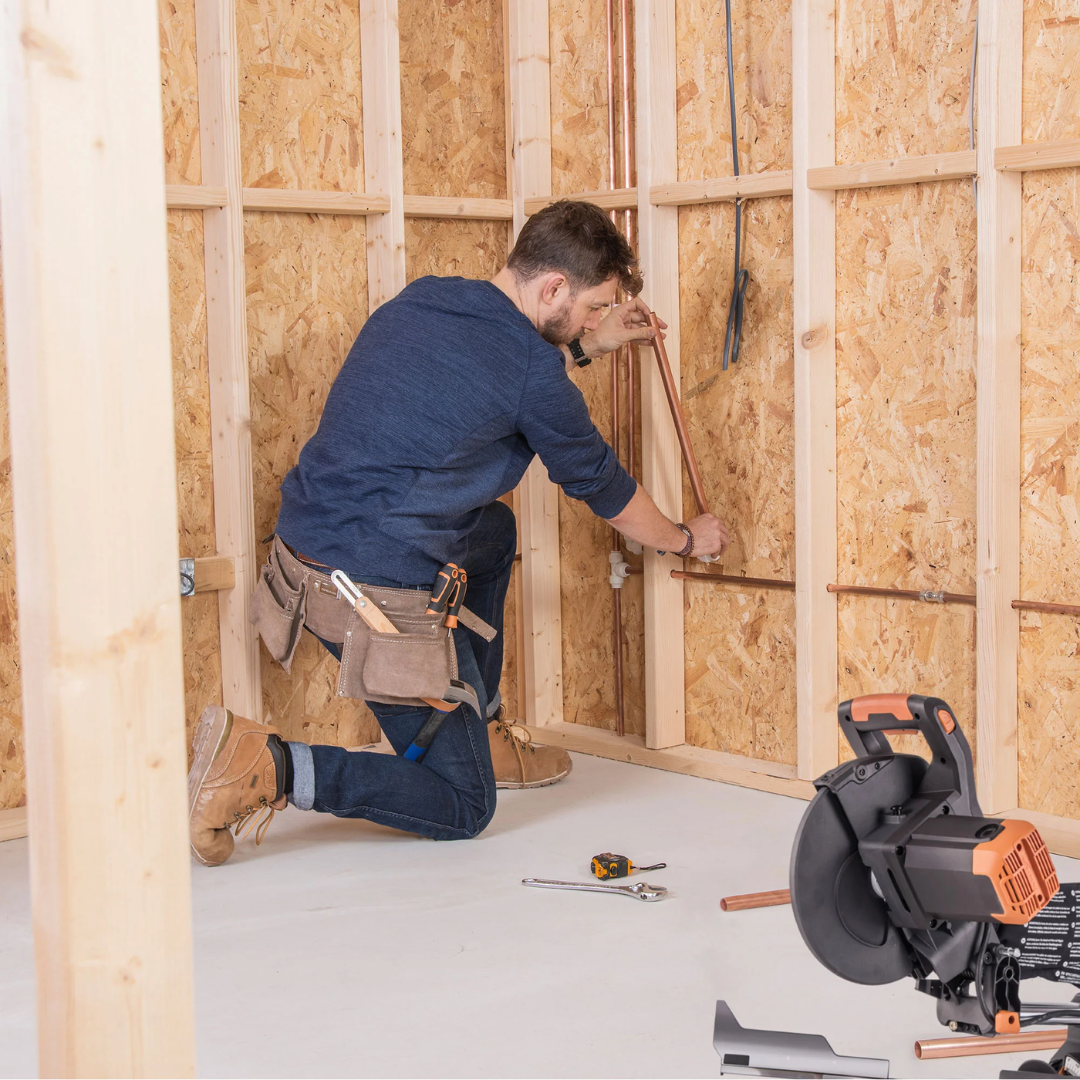

- Construction, remodeling, and framing projects.
- Cutting 4×4 posts, dimensional lumber, skirting boards, and cornices.
- Metal fabrication using mild steel, aluminum, and non-ferrous materials.
- Workshop production and repetitive precision cutting.
- General-purpose compound, bevel, crosscut, and miter cutting.
- Optional diamond blade compatibility for ceramic tile and ornamental stone.
One saw, one blade, multiple materials—designed to eliminate blade changes while delivering professional accuracy across wood, metal, and plastic cutting applications.
Evolution Power Tools Single Bevel Sliding Miter Saw R255SMS+ Specifications
| Manufacturer | Evolution Power Tools |
|---|---|
| Model | R255SMS+ |
| Power Type | Corded Electric |
| Motor | 15 Amp (120V / 60Hz) |
| No-Load Speed | 2,500 RPM |
| Blade Diameter | 10 in. |
| Blade Type | 28-Tooth Japanese TCT Multi-Material Blade |
| Blade Bore | 1 in. |
| Blade Kerf | 0-5/64 in. |

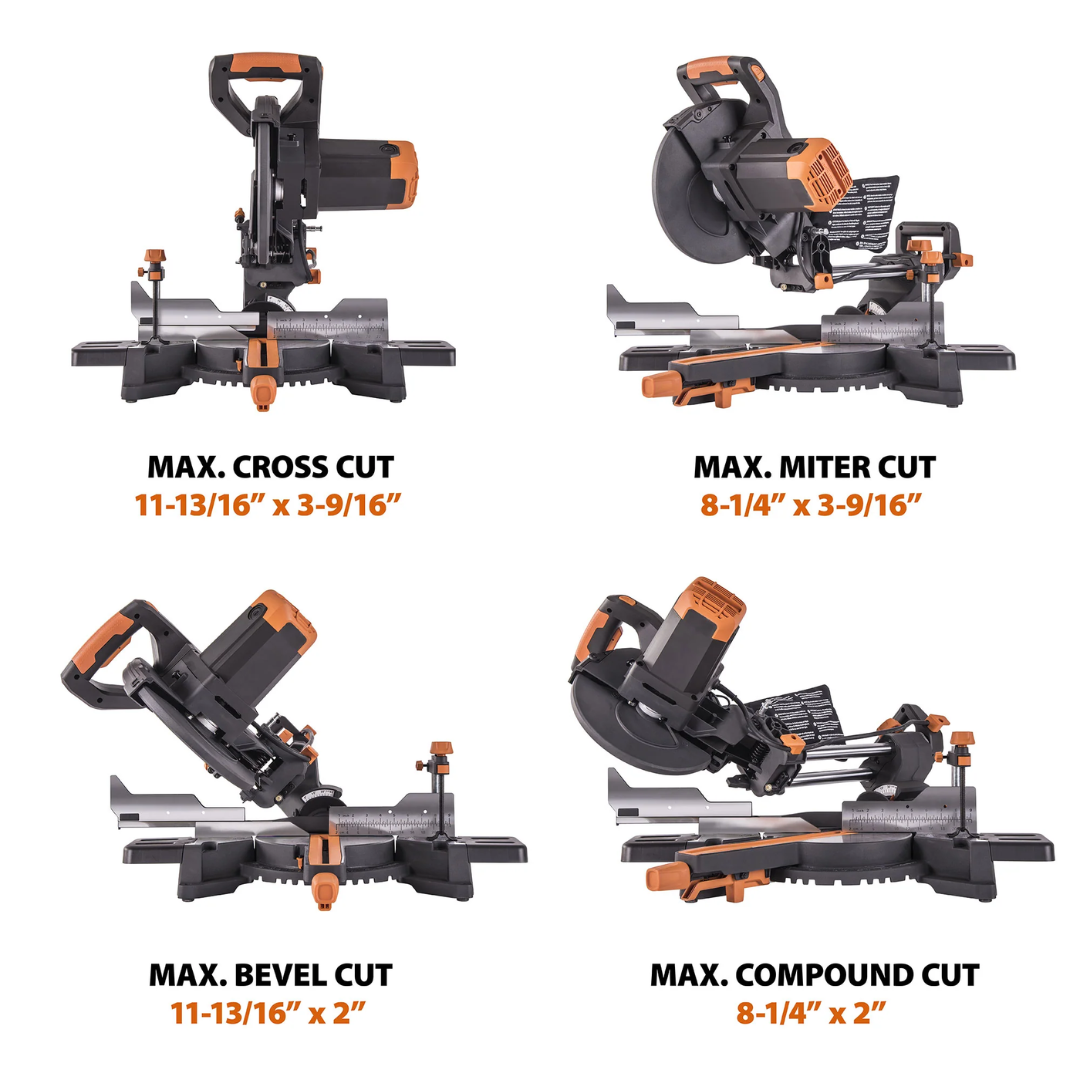

| Maximum Crosscut Capacity | 11-3/4 in. × 3-9/16 in. |
| Sliding Travel | 11-3/4 in. |
| Maximum Bevel | 0° – 45° Left |
| Maximum Miter | 50° Left / 50° Right |
| Miter Stops | 0°, 15°, 22.5°, 30°, 45° (Left & Right) |
| Laser Guide | Yes |
| Cable Length | 10 ft. |
| Product Dimensions | 14-3/16 × 27-3/4 × 28-47/64 in. |
| Packaging Dimensions | 22-1/4 × 14-3/8 × 20-15/32 in. |
| Product Weight | 33.7 lbs |
| Packaged Weight | 39.2 lbs |
| Sound Pressure Level (LPA) | 95.8 dB(A) |
| Sound Power Level (LWA) | 108.8 dB(A) |
| EAN / UPC | 00849713083869 |
Evolution Power Tools Single Bevel Sliding Miter Saw R255SMS+ Performance & Construction

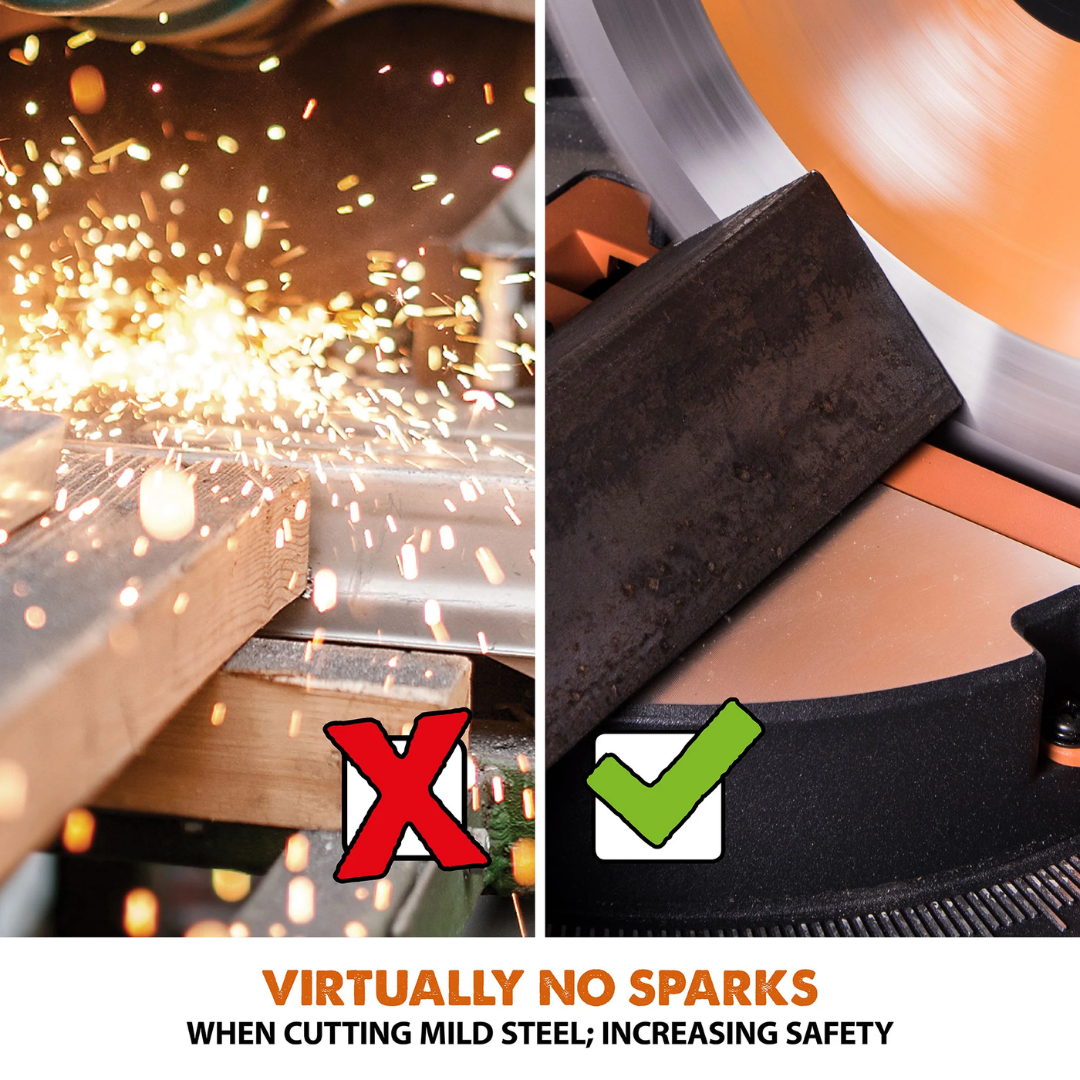

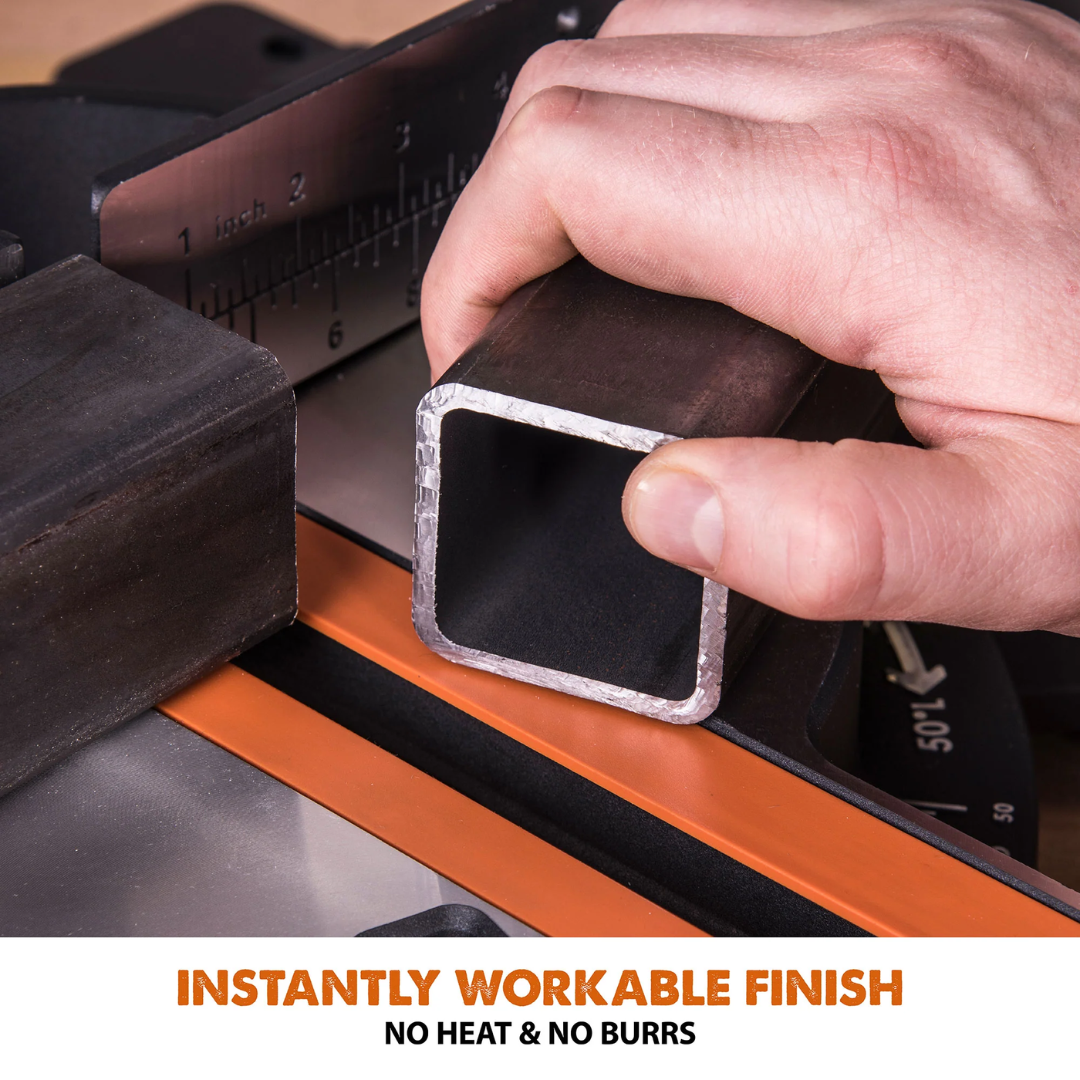

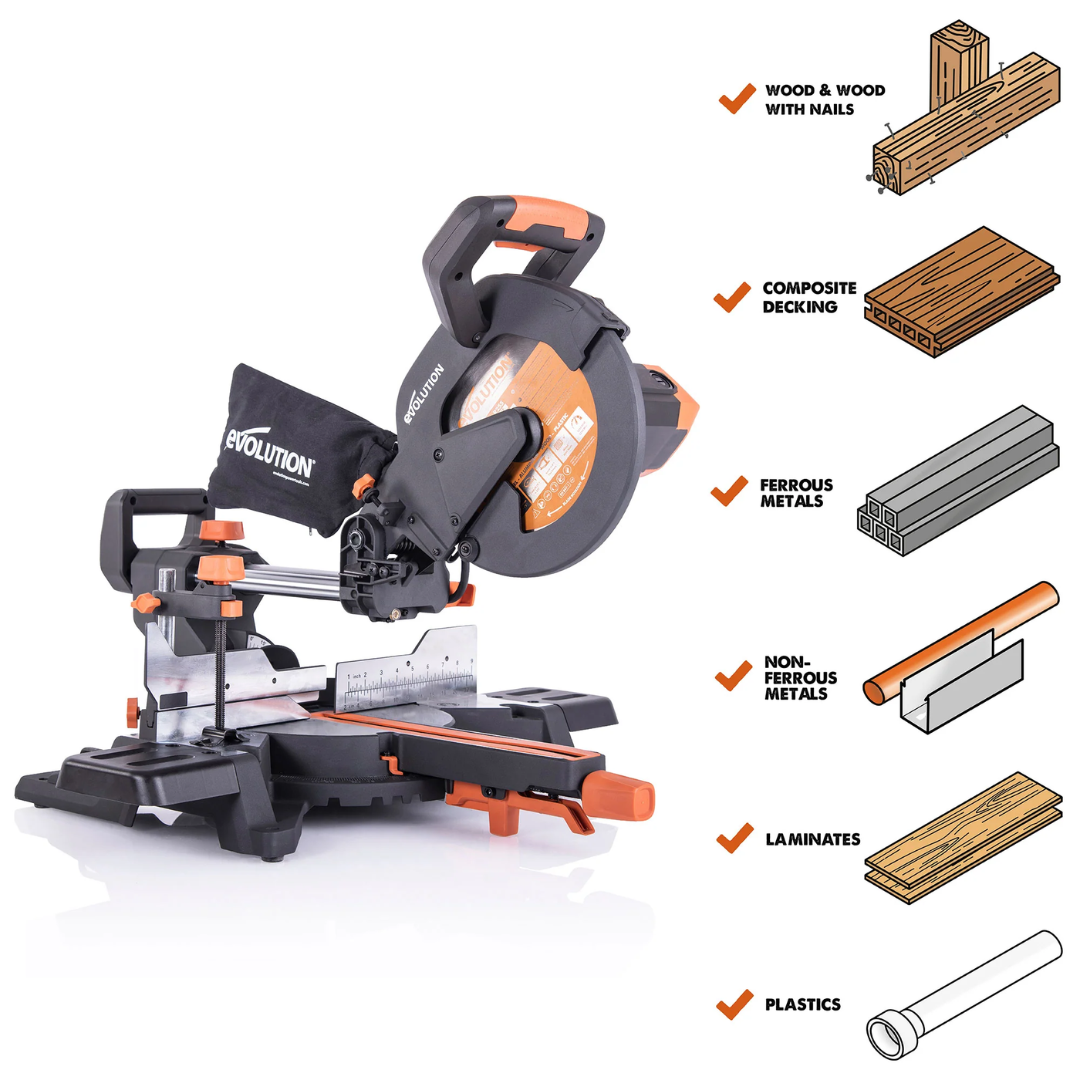

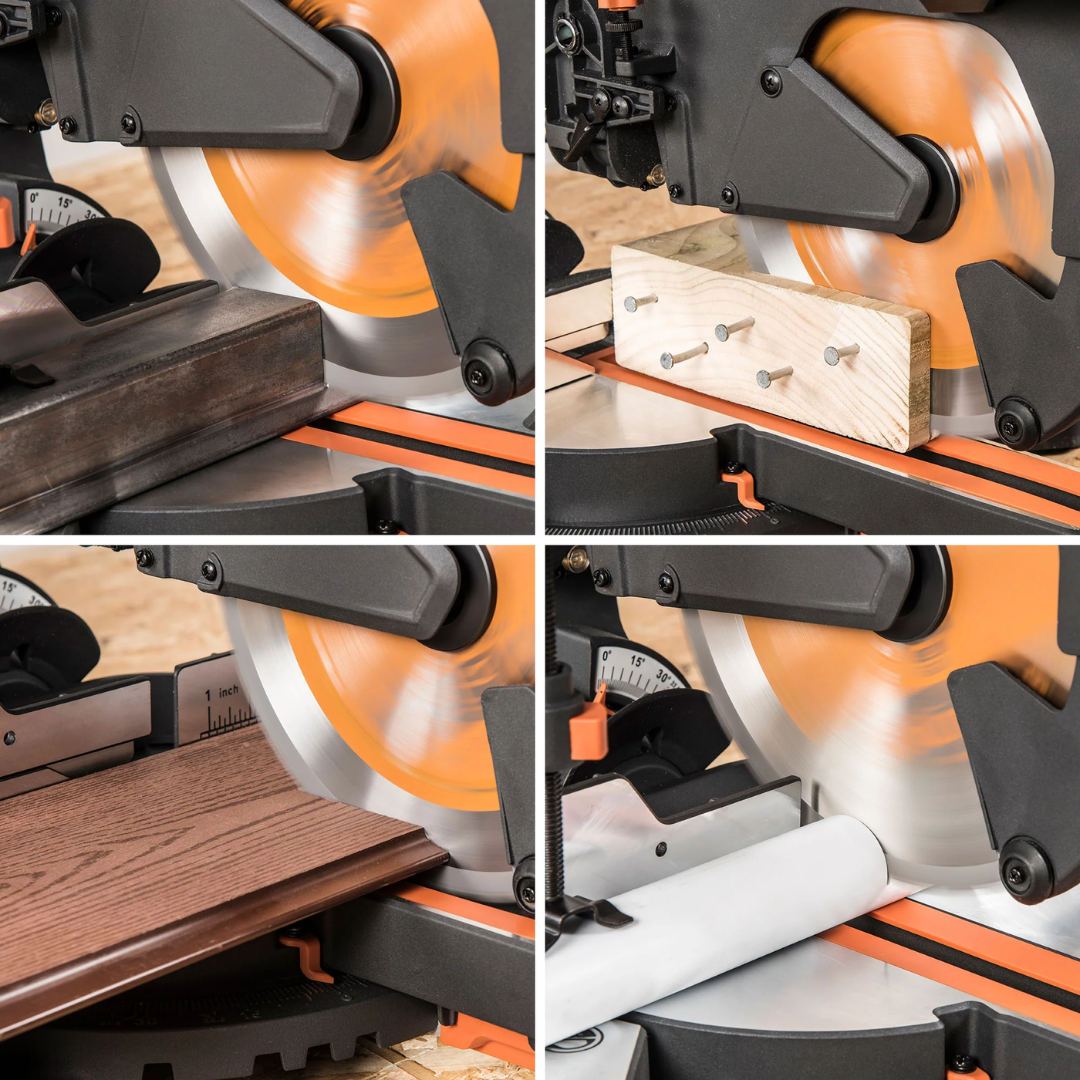

- Multi-material cutting technology allows one blade to cut wood, hardwood, mild steel, aluminum, plastics, and wood containing embedded nails without changing blades.

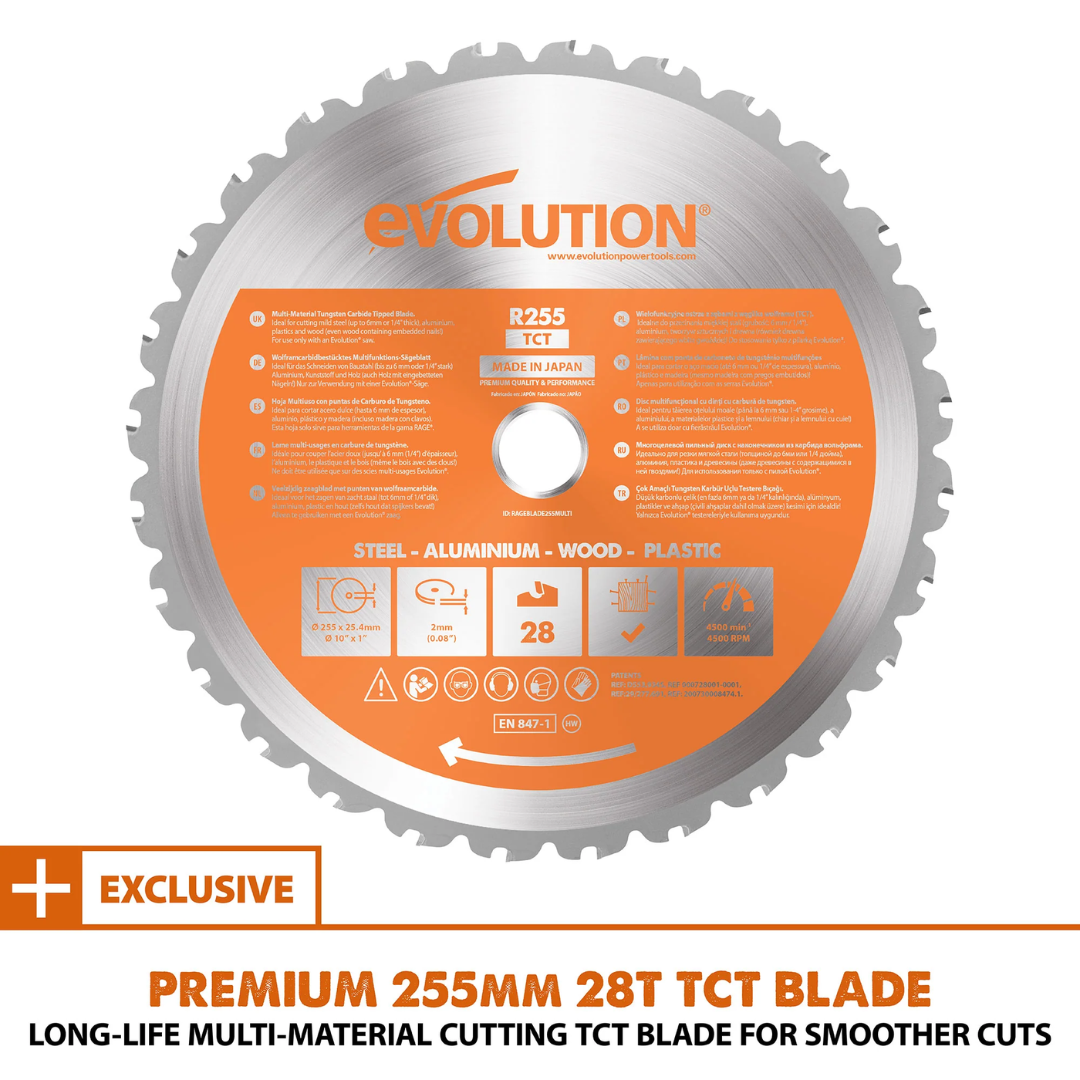

- Premium 10-inch Japanese Tungsten Carbide Tipped blade delivers exceptional cutting life, clean finishes, and long-lasting performance.

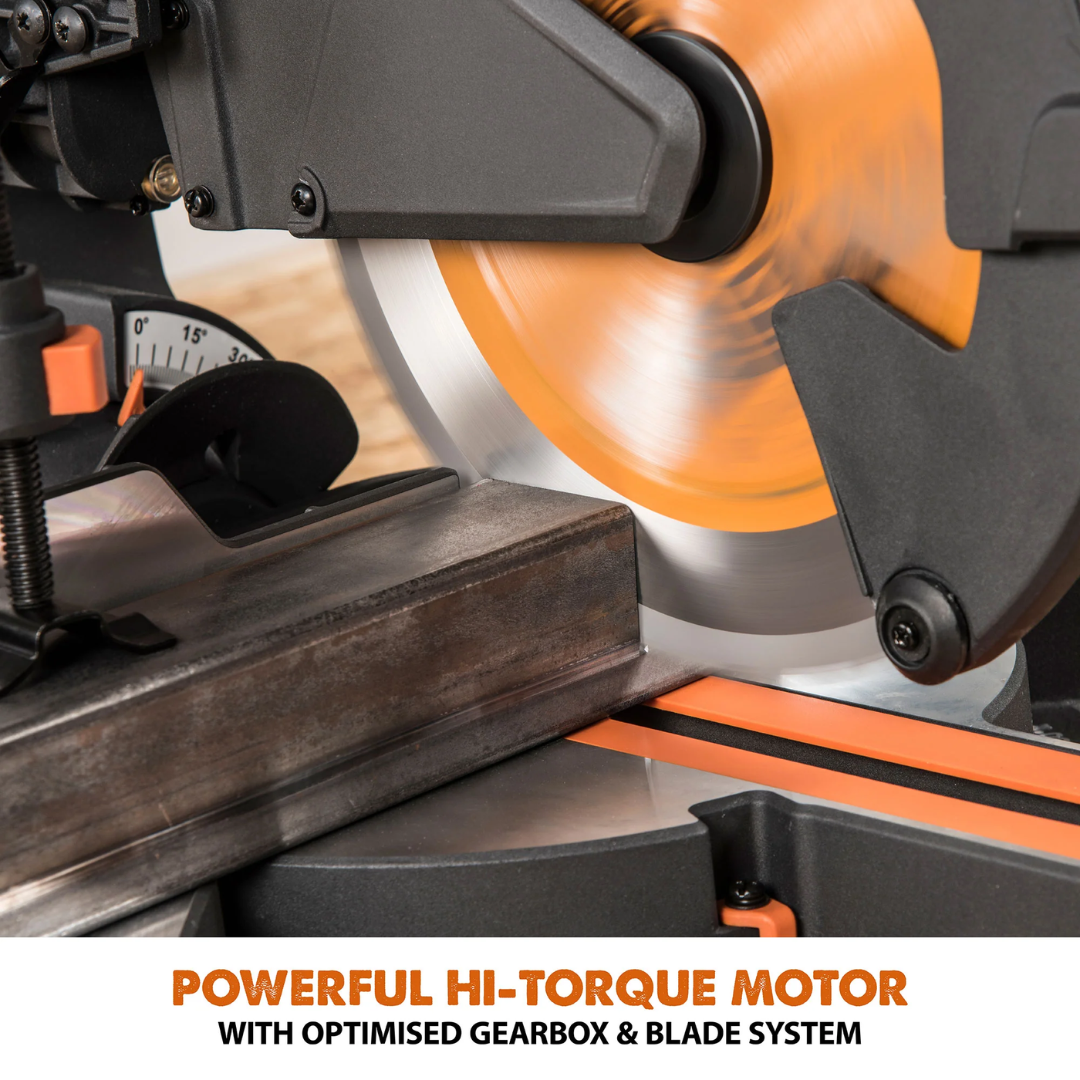

- 15 Amp hi-torque motor with an optimized gearbox provides the power required for demanding cutting applications while extending motor and blade life.

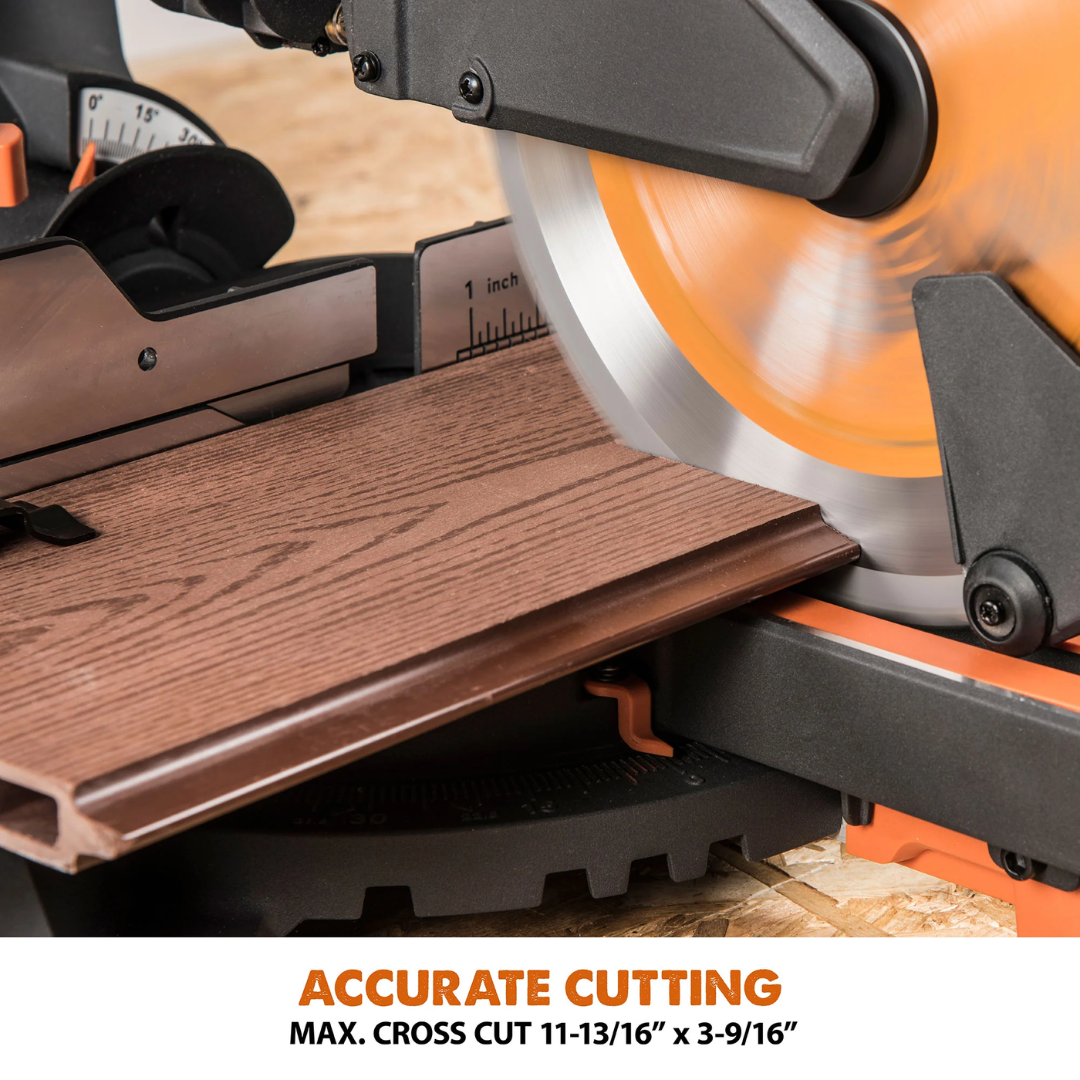

- 11-3/4 inch sliding rail system produces smooth, accurate crosscuts with a large cutting capacity capable of handling 4×4 posts in a single pass.

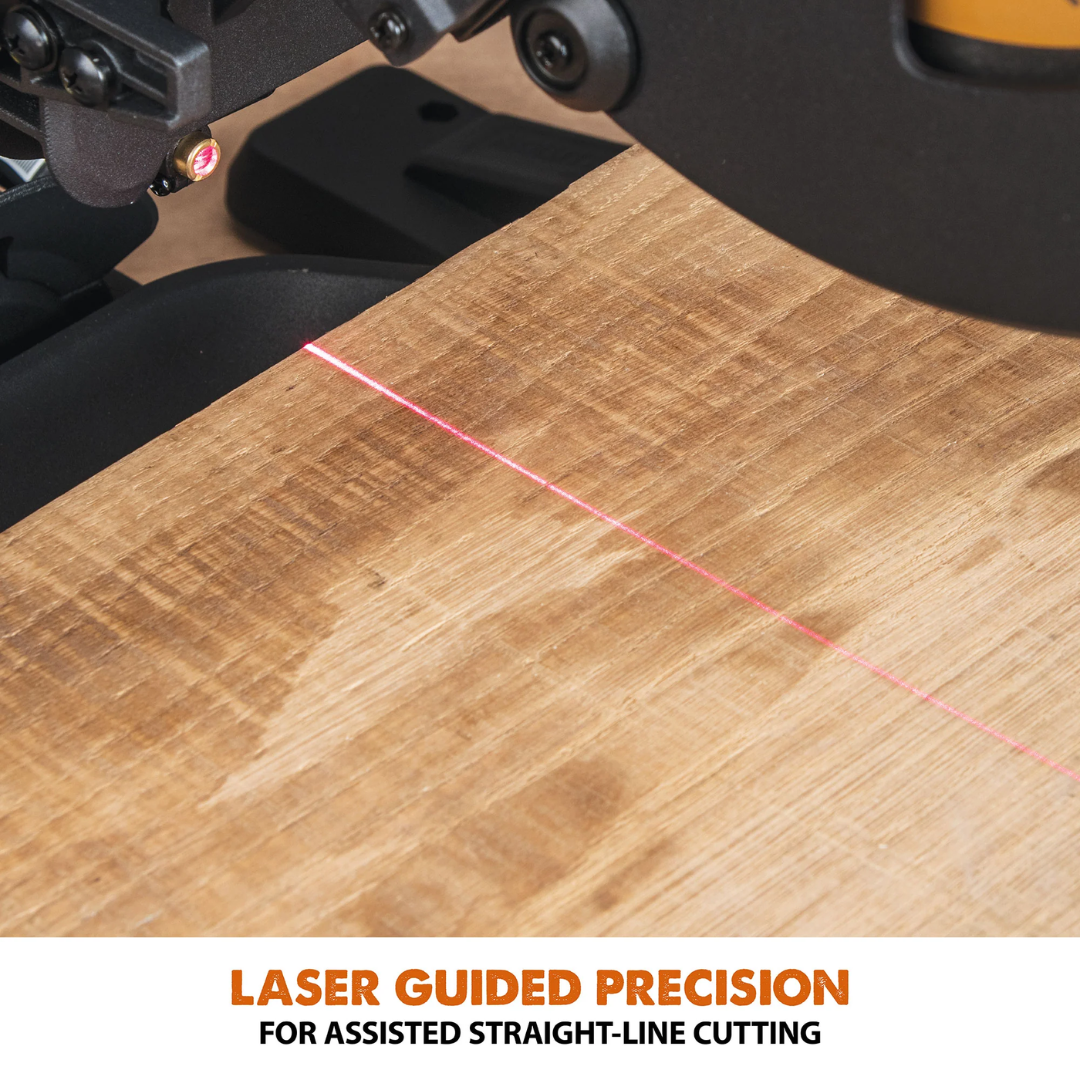

- Laser-guided cutting system projects the cutting path directly onto the workpiece, improving accuracy and reducing setup time.

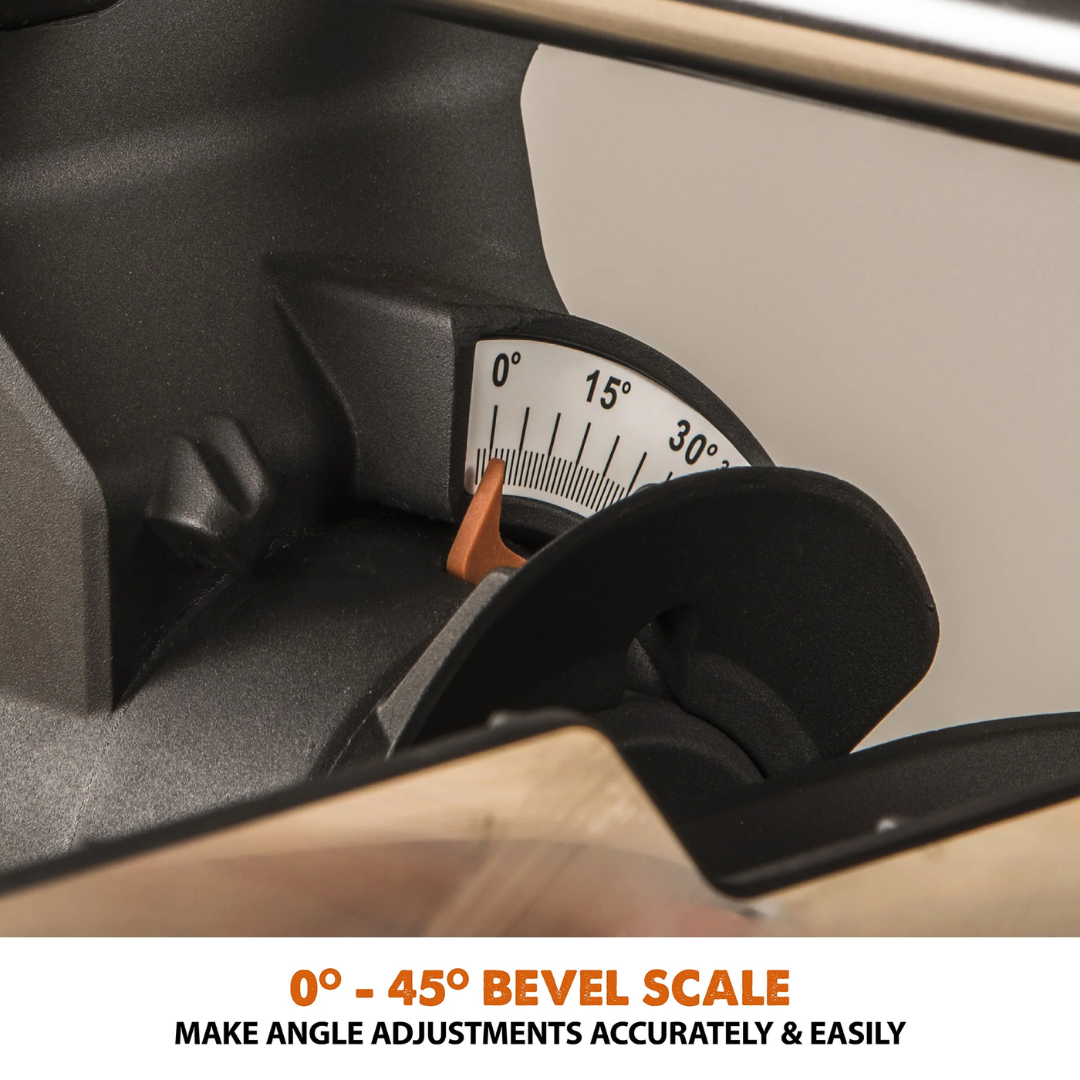

- Single bevel adjustment with 0°–45° left bevel capacity supports precise bevel and compound cuts.

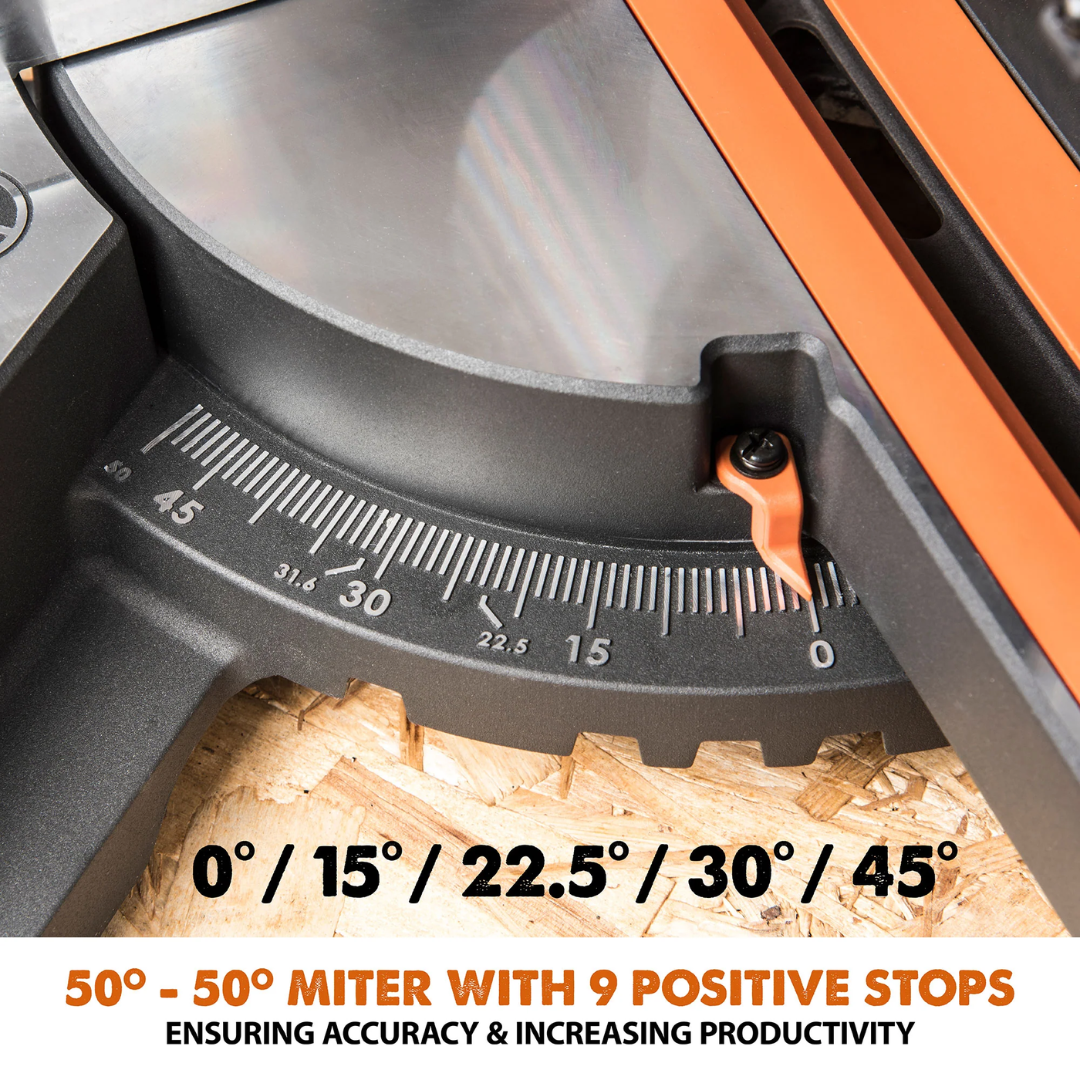

- 50° left and right miter capability with positive stops at common angles ensures fast, repeatable setup for production work.

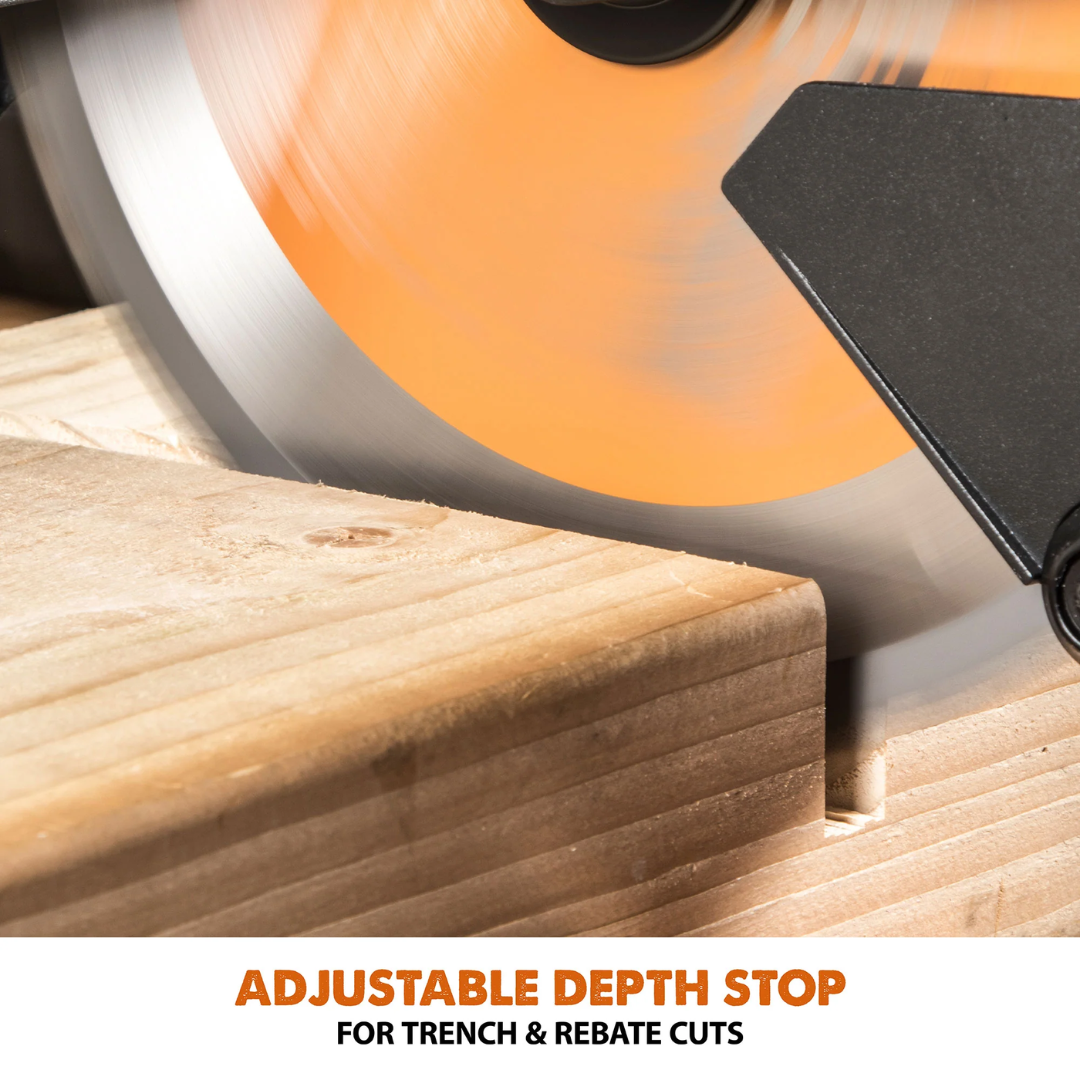

- Adjustable depth stop enables trenching and controlled-depth cuts for joinery and specialty woodworking applications.

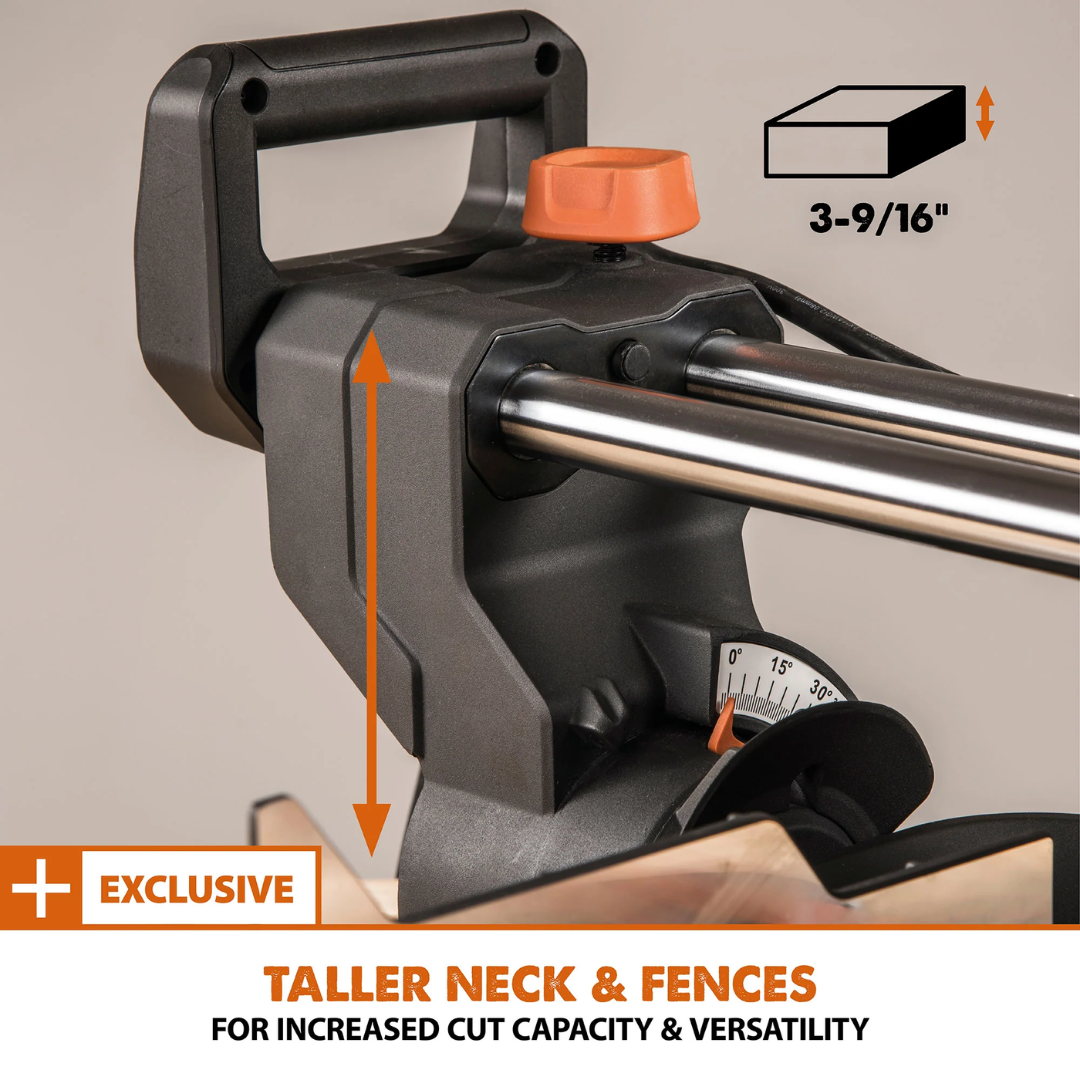

- Tall fences and extended neck design improve support for upright materials such as crown molding, skirting boards, and cornices.

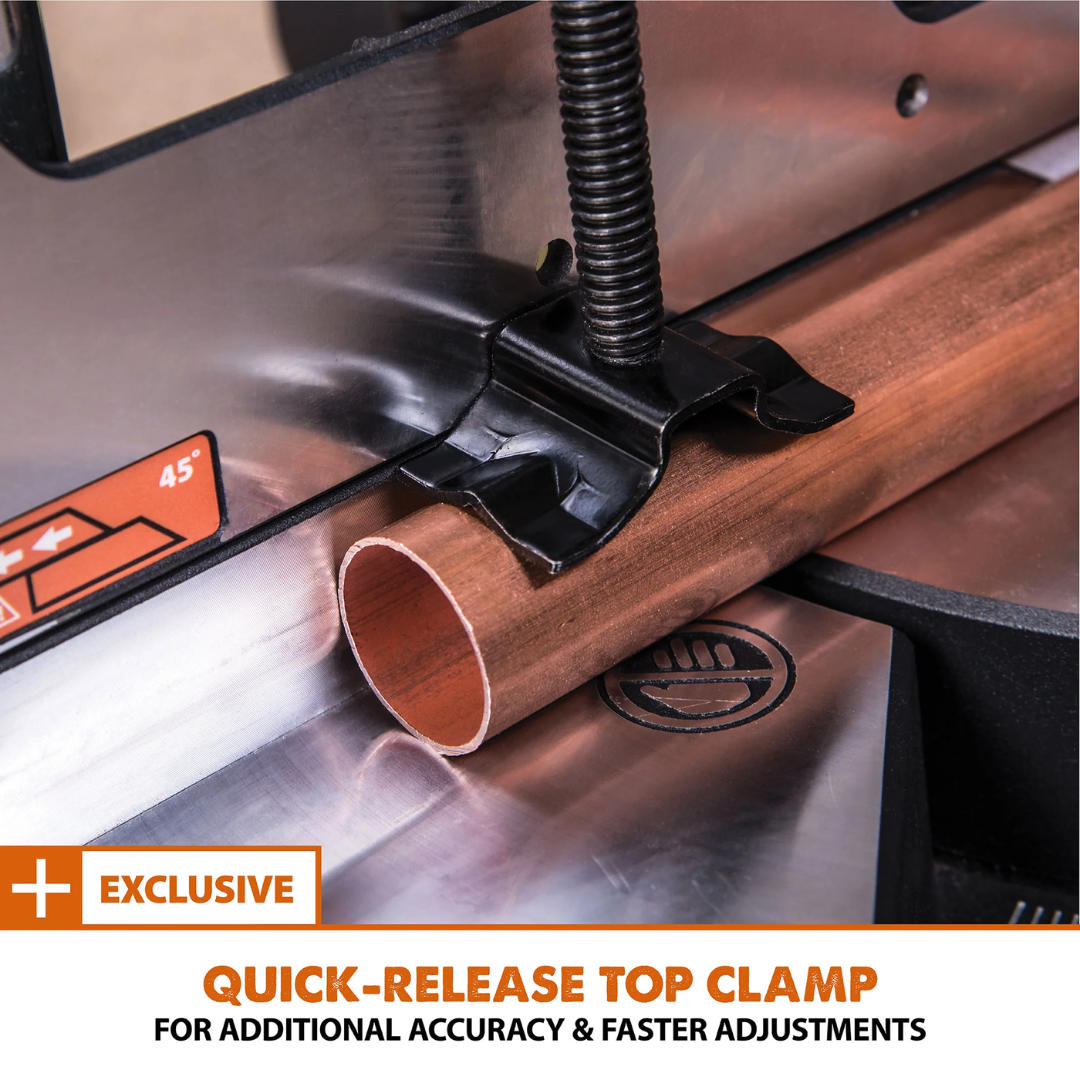

- Quick-release top clamp securely holds workpieces while allowing rapid adjustments between cuts.

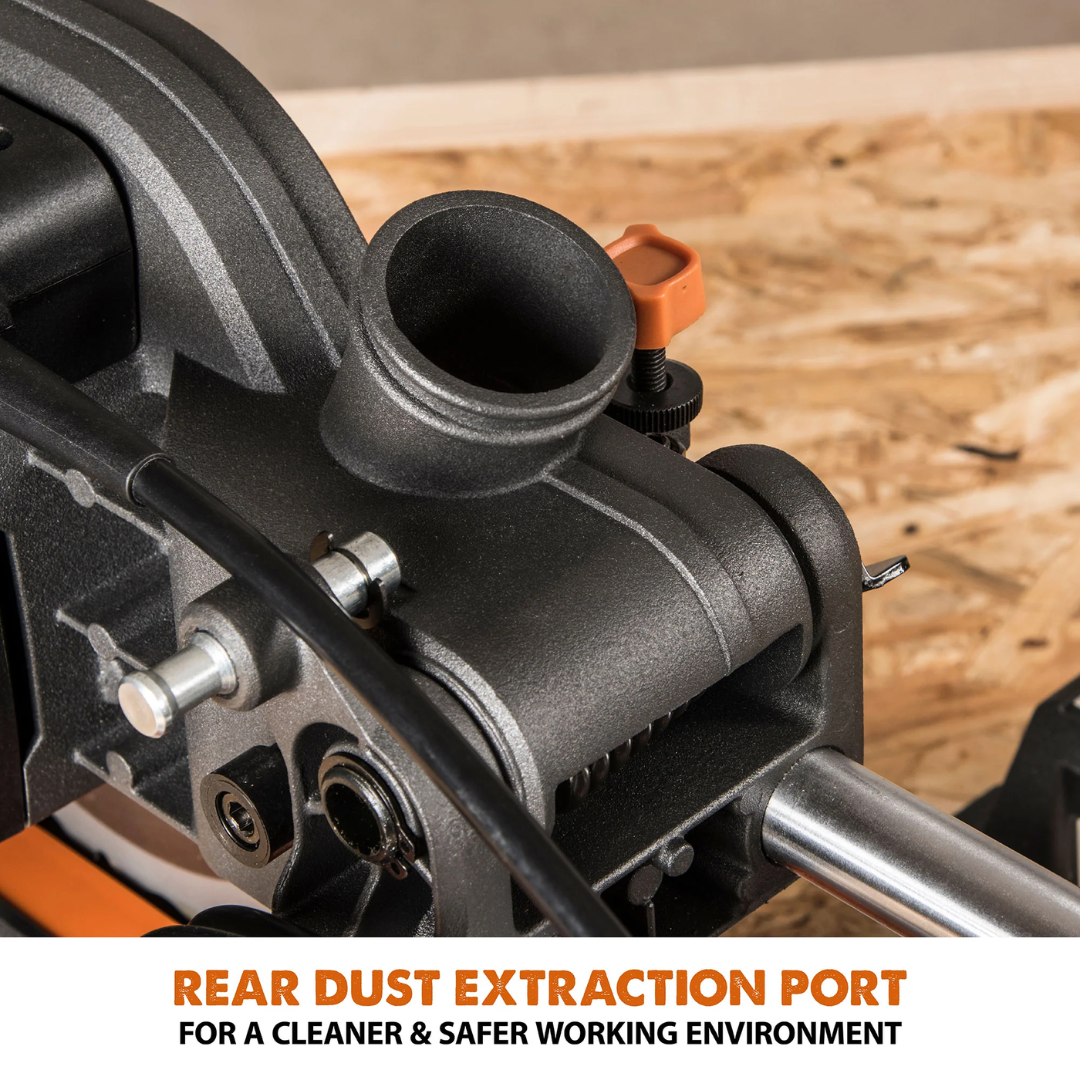

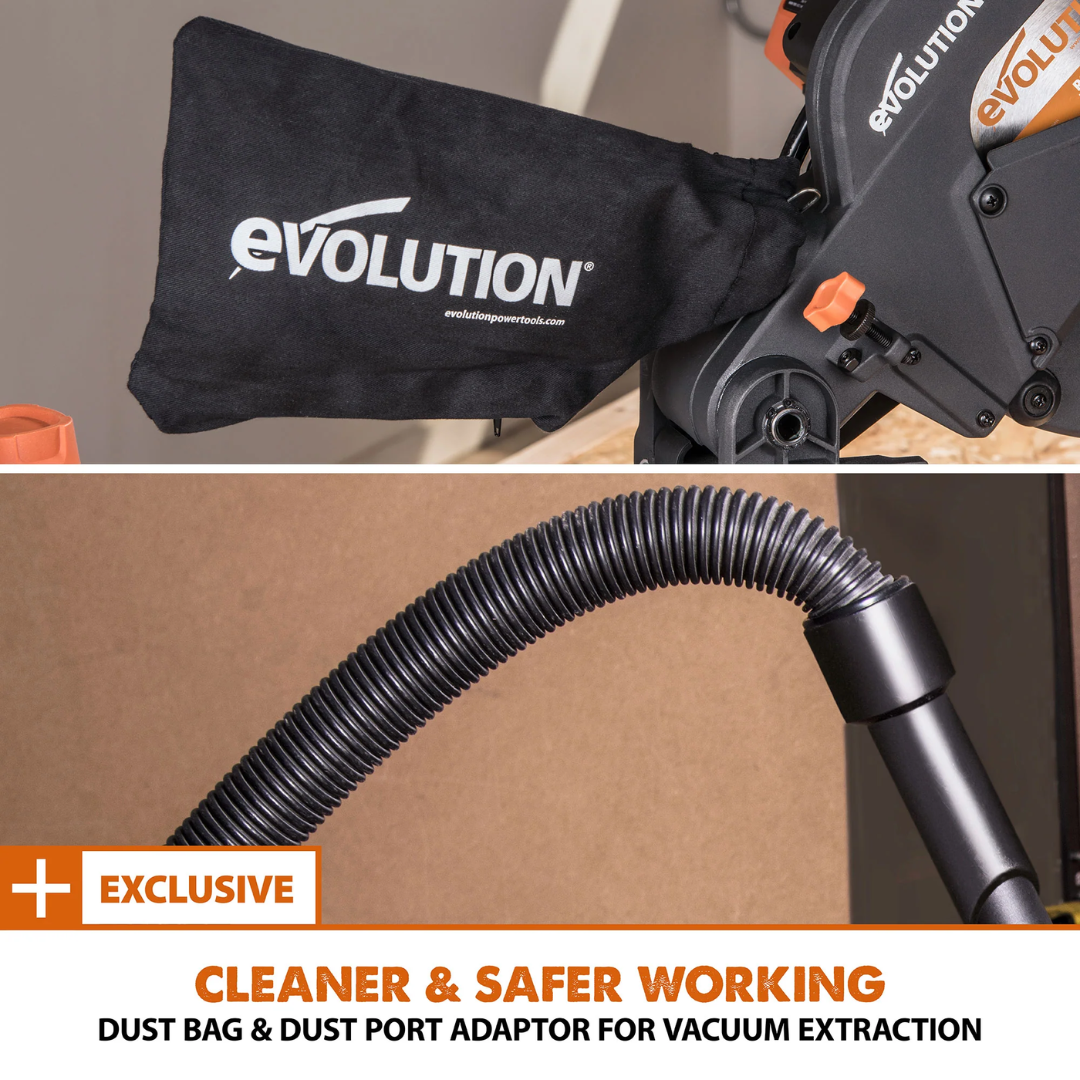

- Dust collection bag and vacuum adaptor help maintain a cleaner work environment and improve visibility during cutting.

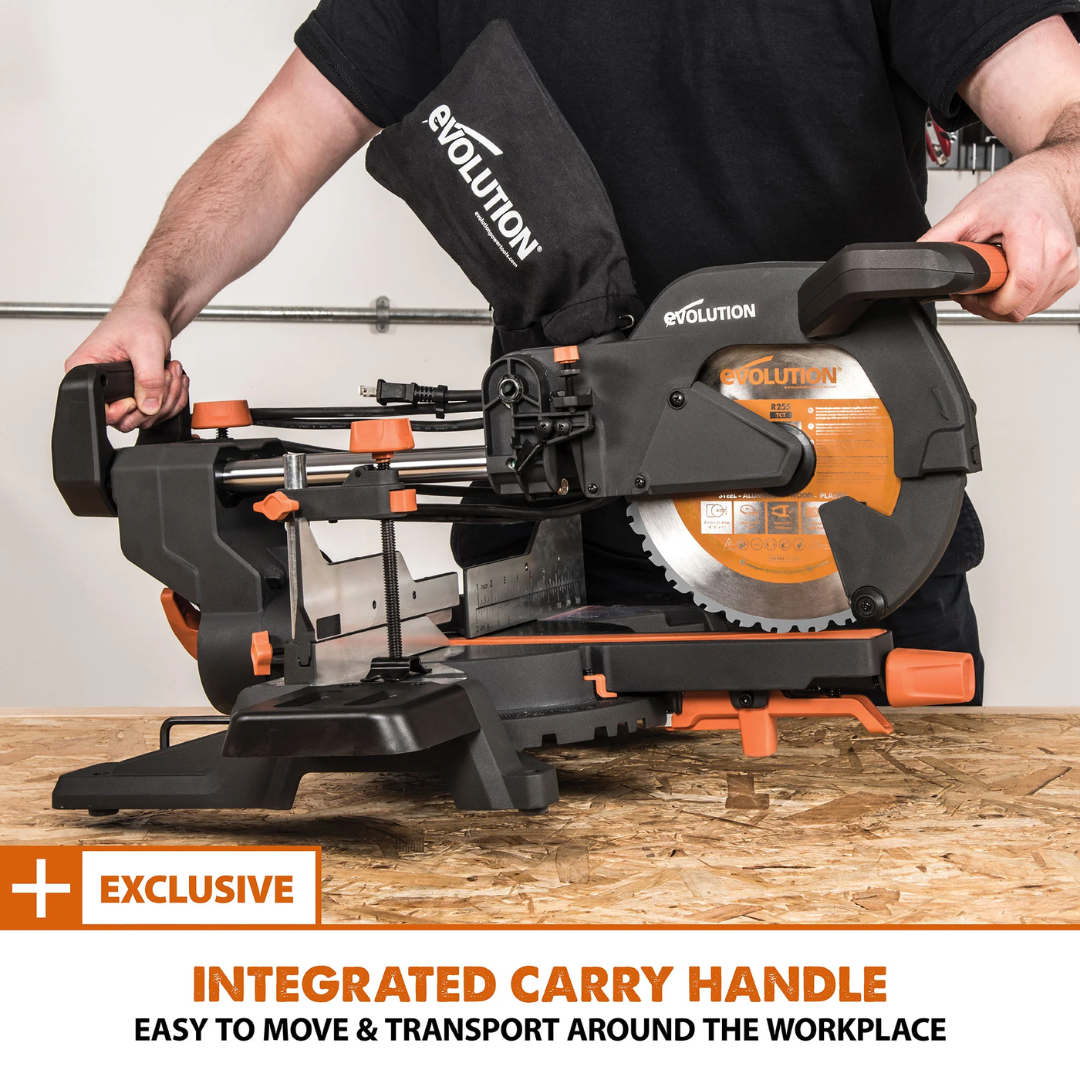

- Integrated carry handles make transportation around the workshop or jobsite easier.

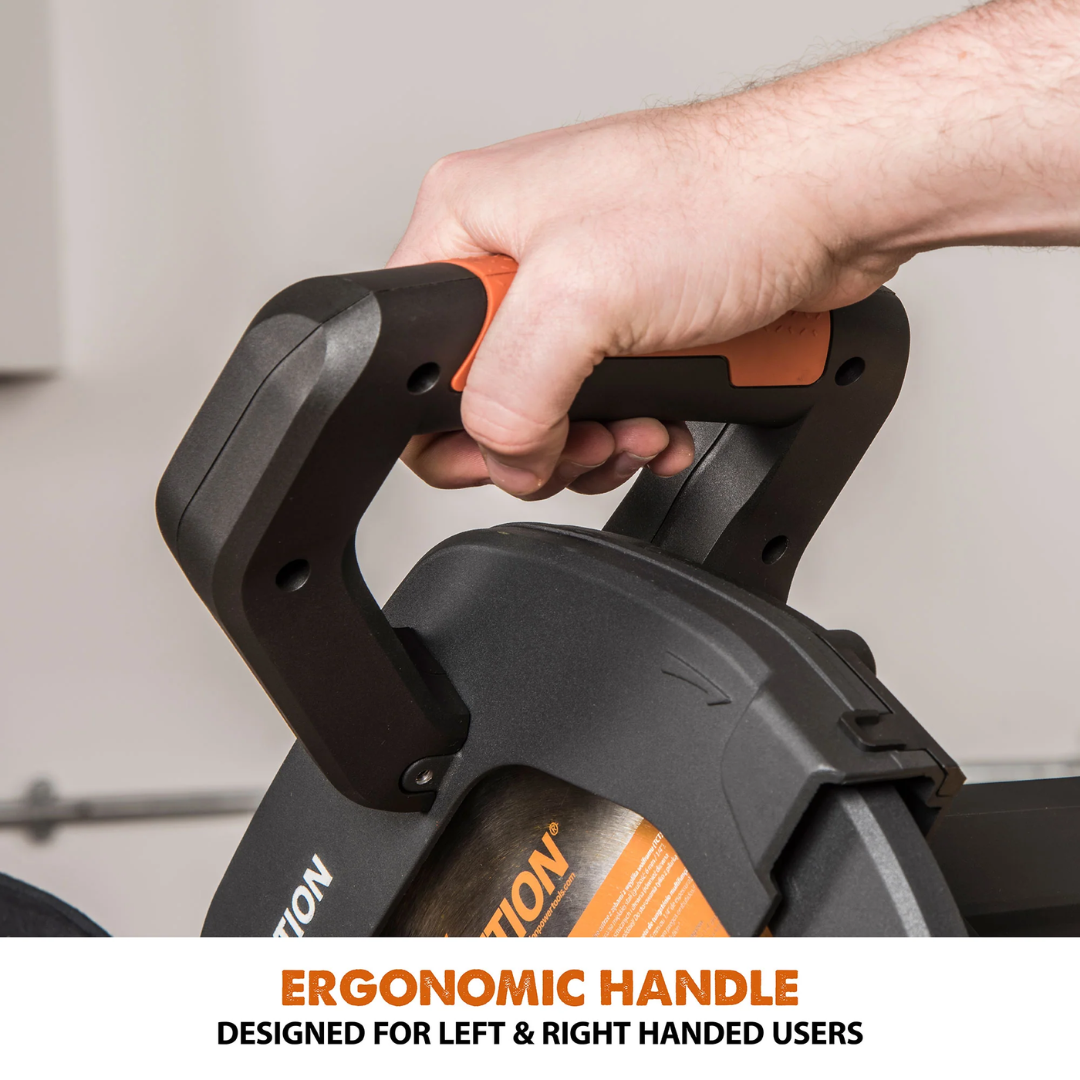

- Ergonomic ambidextrous horizontal trigger handle with rubber over-mold reduces operator fatigue during repetitive cutting tasks.

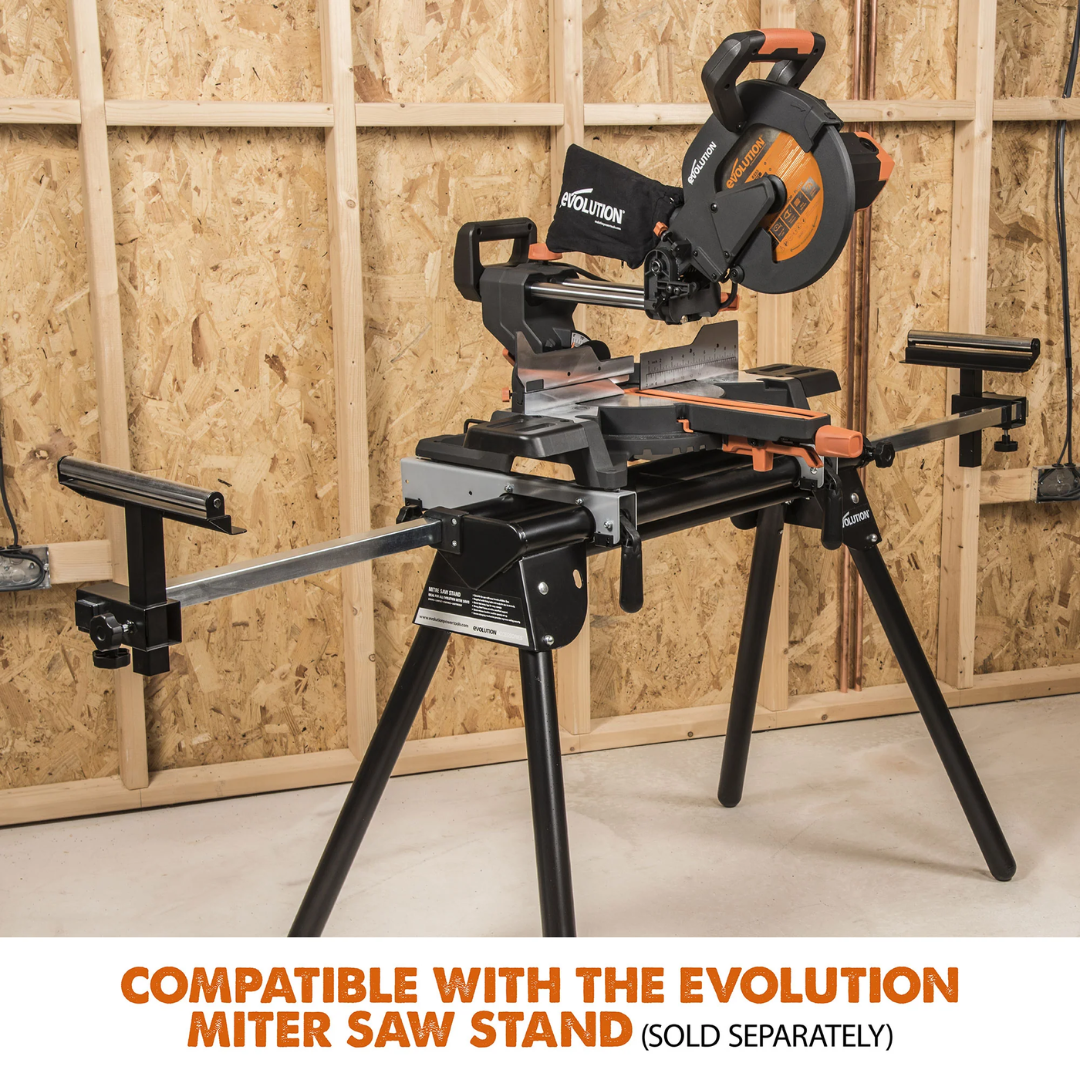

- Compatible with Evolution Mitre Saw Stand for enhanced support when cutting long boards, trim, and sheet materials (stand sold separately).
- Optional 10-inch Evolution Diamond Blade compatibility expands the saw's capabilities for cutting ceramic tile and ornamental stone.
- Backed by a 3-Year Limited Warranty for dependable long-term ownership.
Evolution Power Tools Single Bevel Sliding Miter Saw R255SMS+ Includes
- 10 in. 28-Tooth Multi-Material TCT Blade
- Machine Table Extensions
- Tall Fence
- 3-Piece Hold Down Clamp
- Dust Collection Bag
- Dust Port Adaptor
- Carry Handle
- Double-Ended M6/M5 Hex Key
- Rotary Table and Neck Assembly
- Cutting Head and Carriage Slides
- Mitre Locking Knob
- Mains Cable Guide and Clamp
- Laser Lens Cap
- Cable Clips and Fasteners
Why Choose the Evolution Power Tools Single Bevel Sliding Miter Saw R255SMS+
- One blade cuts wood, steel, aluminum, plastics, and wood with embedded nails.
- Powerful 15 Amp hi-torque motor delivers outstanding cutting performance.
- Large 11-3/4 inch sliding capacity easily handles 4×4 posts and wide material.
- Laser guidance and positive miter stops maximize cutting precision.
- Quick-release clamp, tall fences, and adjustable depth stop increase versatility.
- Dust collection system helps maintain a cleaner, safer workspace.
- Compatible with Evolution miter saw stands for production cutting.
- Professional-grade construction backed by a 3-year limited warranty.

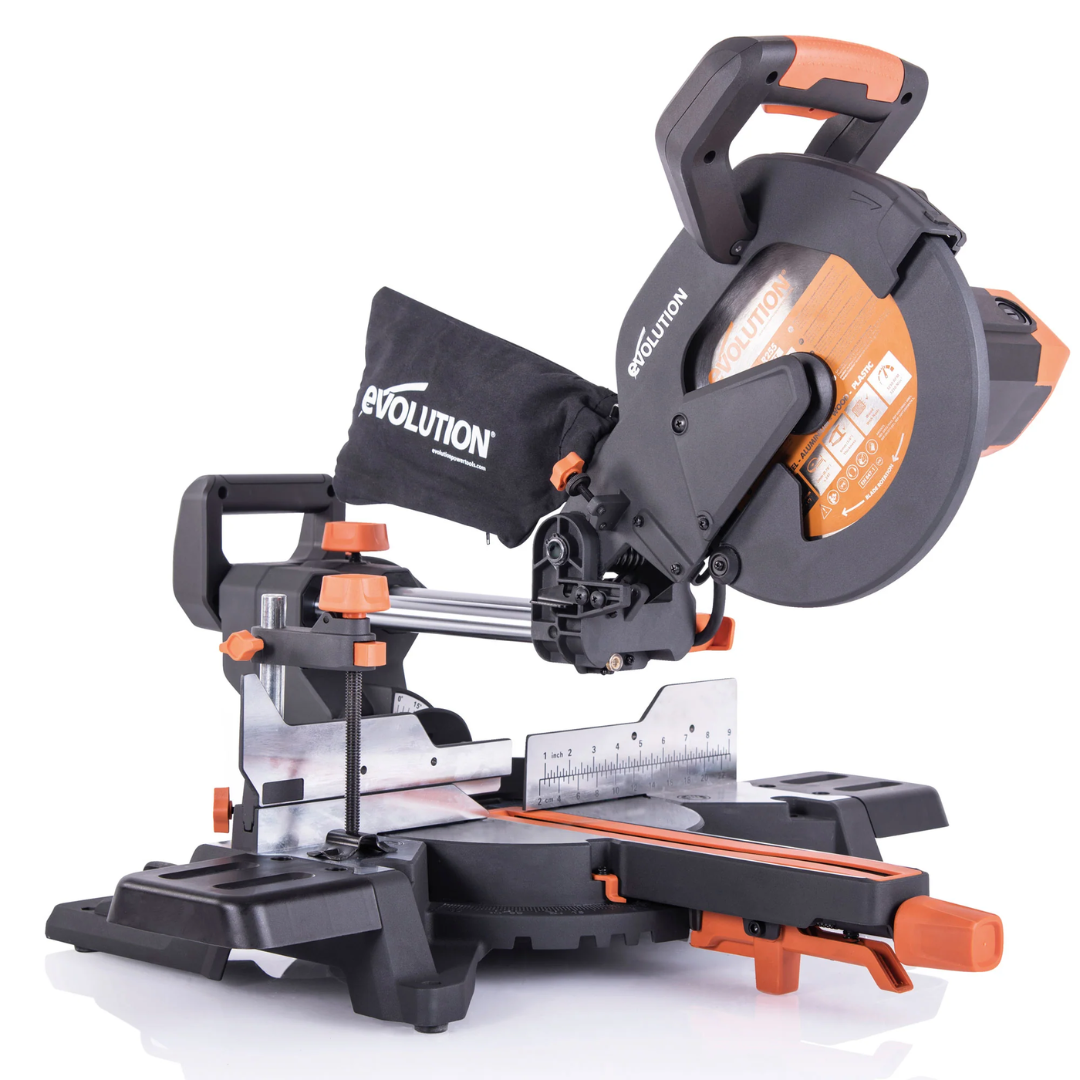

The Evolution Power Tools Single Bevel Sliding Miter Saw R255SMS+ delivers the versatility of true multi-material cutting with the precision of a professional sliding compound miter saw. Combining a high-torque motor, premium Japanese TCT blade, laser guidance, large crosscut capacity, and rugged construction, it is an excellent solution for contractors, woodworkers, fabricators, and professionals seeking one saw capable of handling virtually every cutting task.
