Euroboor VAC.50S+ Vacuum Drilling Machine Applications
- Drilling stainless steel, aluminum, brass, copper, and other non-magnetic metals
- Industrial fabrication and metalworking shops
- Construction and installation work on non-ferrous materials
- Shipbuilding, transportation manufacturing, and aerospace fabrication
- Maintenance and repair operations requiring vacuum-mounted drilling systems
Designed for horizontal drilling applications on smooth non-magnetic materials where traditional magnetic drills cannot be used.
Euroboor VAC.50S+ Vacuum Drilling Machine Specifications
| Model | VAC.50S+ |
|---|---|
| Machine Type | Vacuum Drilling Machine |
| Maximum Annular Cutter Diameter | 2" (50 mm) |
| Minimum Annular Cutter Diameter | 7/16" |
| Countersinking Capacity | Up to 2 3/16" |
| Twist Drill Capacity | 1/16" – 15/16" |
| Spindle | MT3 Morse Taper / 3/4" Weldon |
| Stroke | 6 11/16" |
| Rotation Direction | Clockwise |
| No-Load Speed | 380 RPM / 690 RPM |
| Load Speed | 235 RPM / 415 RPM |
| Motor Power | 1,250 W |
| Total Power | 1,300 W |
| Power Supply Voltage | 110 – 120 Volt |
| Power Supply Frequency | 60 Hertz |
| Power Connection | Plug according to NEMA 5-15 |
| Vacuum Suction Force | 661 lbs |
| Machine Weight | 21.8 lbs |

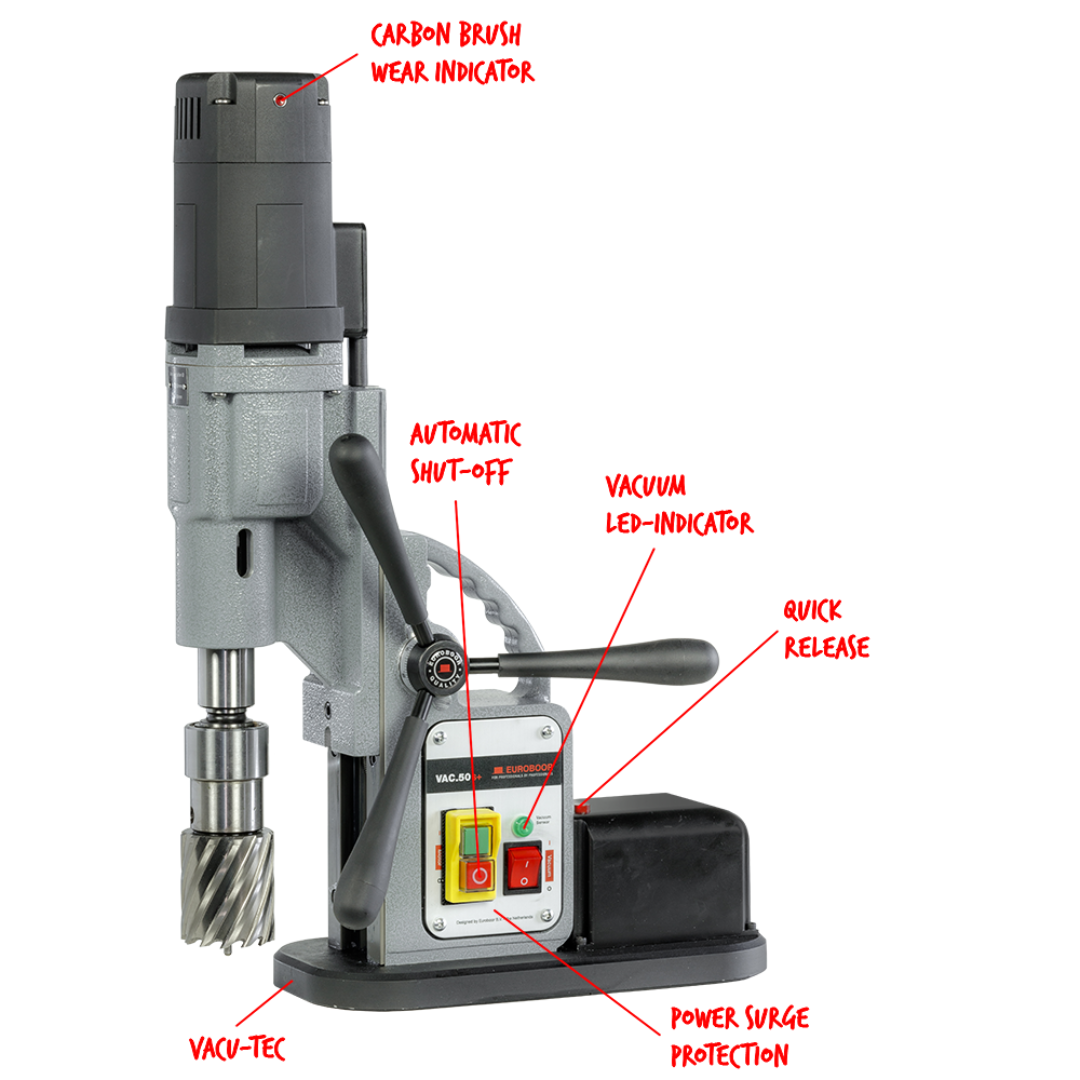

Euroboor VAC.50S+ Vacuum Drilling Machine Performance & Technology
- Vacuum Mounting Technology securely attaches the Euroboor VAC.50S+ Vacuum Drilling Machine to smooth non-magnetic materials such as stainless steel, aluminum, plastics, and composites.
- Powerful Industrial Motor with Oil-Lubricated Gearbox delivers smooth drilling performance, improved efficiency, and extended component lifespan.
- Dual Speed Gearbox provides optimized cutting speeds for different drilling and material applications.
- Vacuum LED Indicator continuously monitors suction strength to ensure safe and secure operation during drilling.
- Vac-Tec Safety System enhances operational safety by monitoring the vacuum connection and machine stability.
- Integrated Motor Cable improves durability and reduces cable wear in demanding jobsite environments.
- Automatic Shut-Off and Carbon Brush Wear Indicator protect internal motor components and prevent costly damage or downtime.
- Power Surge and Fluctuation Protection safeguards electronics and maintains reliable performance in environments with unstable power supply.
- Designed for Maximum Versatility allowing professional operators to drill precisely on surfaces that traditional magnetic drills cannot handle.
Euroboor VAC.50S+ Vacuum Drilling Machine Package Contents
- 1 × Metal carrying case
- 1 × Euroboor VAC.50S+ vacuum drilling machine with vacuum base
- 1 × Spindle holder MT3 – 19.05 mm (3/4")
- 1 × Spindle drift key
- 3 × Capstan hub handles
- 1 × 100 ml can of IBP.70 drilling paste

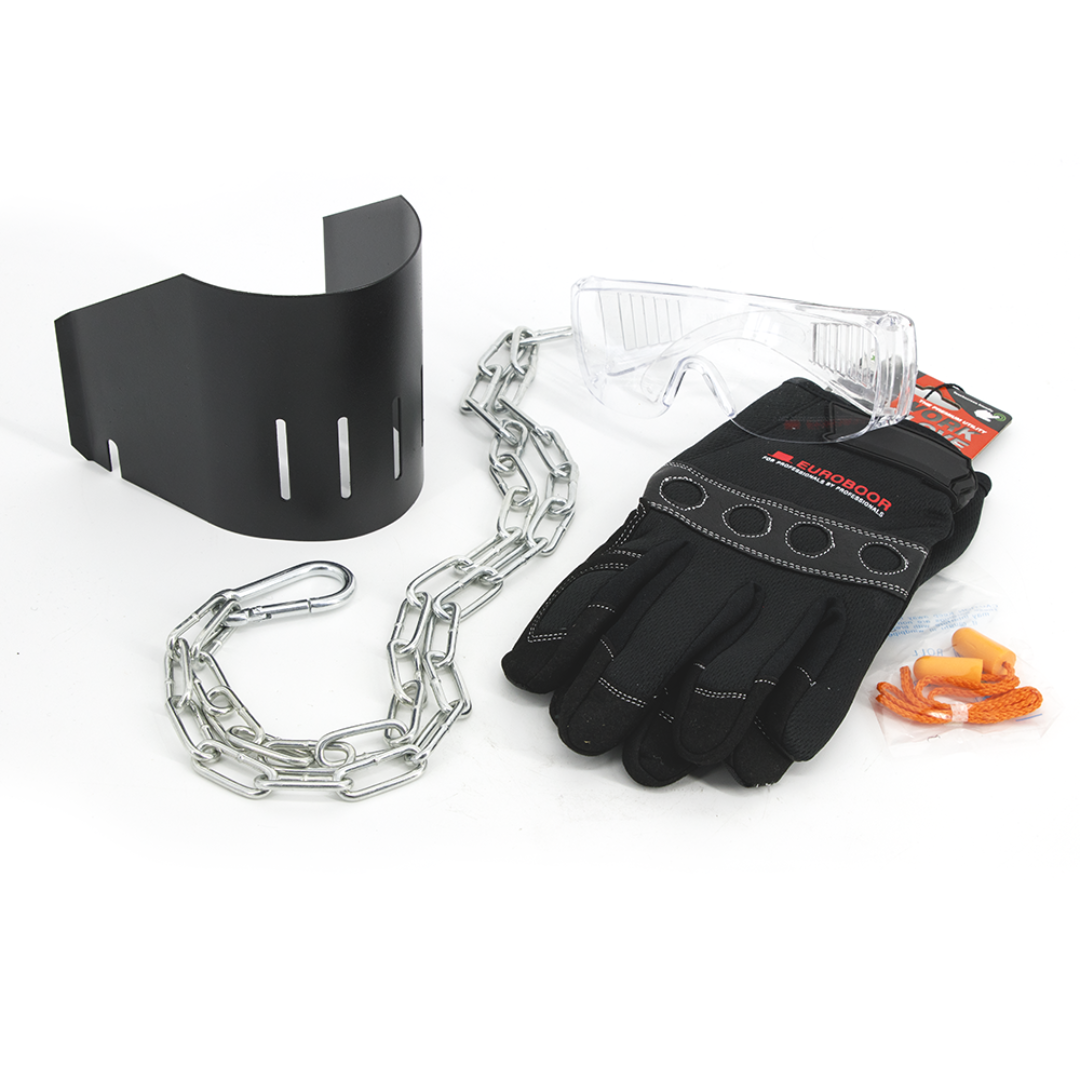

- 1 × Protective cover
- 1 × Safety chain
- 1 × Spare sealing rubber
- Allen keys: 2.5 mm, 4 mm, and 5 mm
- 1 × Ear protection
- 1 × Safety glasses
- 1 × Safety gloves
- 1 × User manual
Why Choose the Euroboor VAC.50S+ Vacuum Drilling Machine
- Vacuum technology allows drilling on non-magnetic materials
- Up to 2" annular cutting capacity for heavy-duty fabrication
- Oil-lubricated gearbox for smoother drilling and longer machine life
- Advanced safety electronics and vacuum monitoring system
- Portable and efficient solution for professional metalworking environments
The Euroboor VAC.50S+ Vacuum Drilling Machine opens new possibilities for drilling on non-magnetic materials, delivering industrial precision, safety, and performance where traditional magnetic drills cannot operate.
