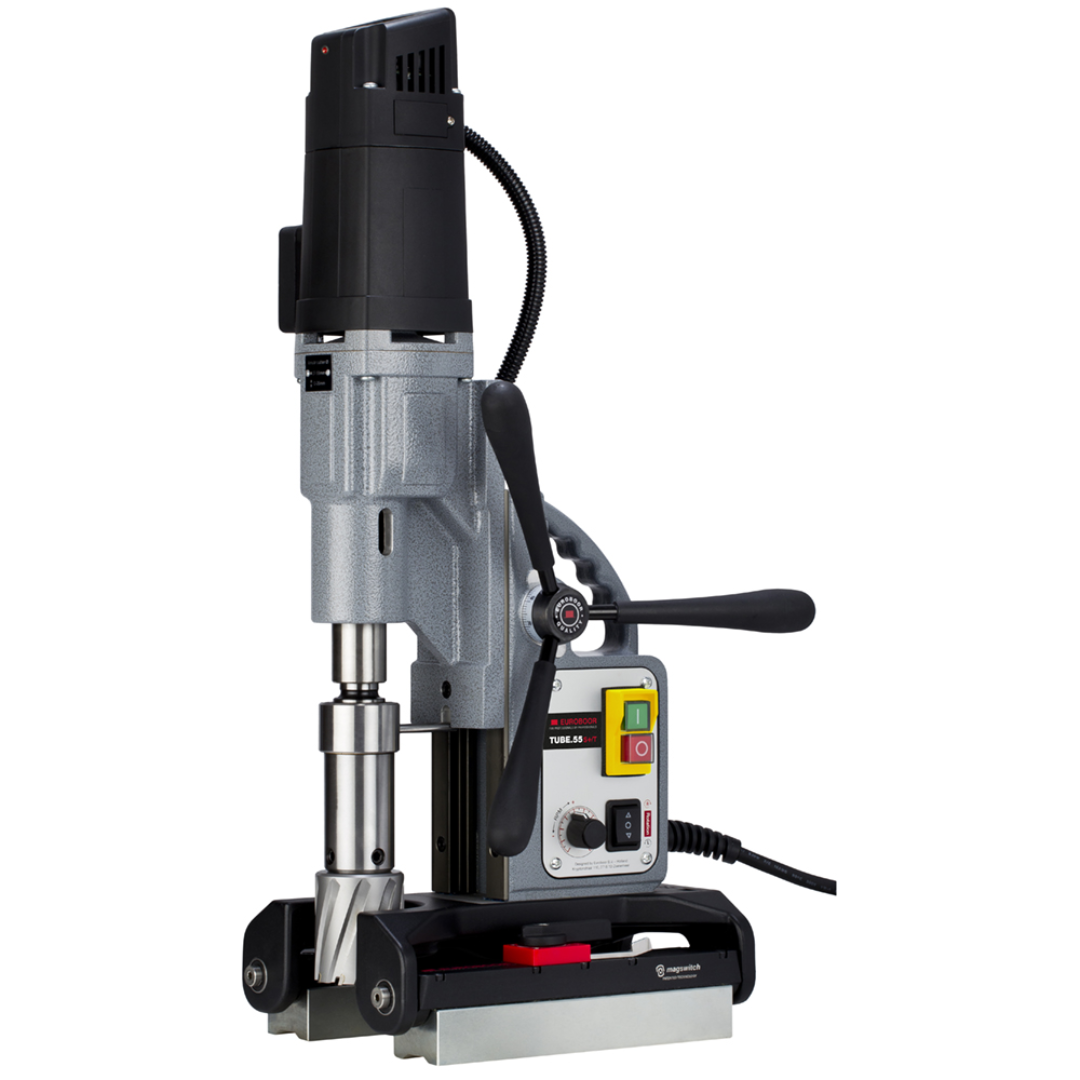

Euroboor TUBE.55S+/T Magnetic Drilling Machine Applications
- Pipeline construction and pipe fabrication
- Drilling and tapping holes in structural pipe systems
- Industrial steel fabrication and maintenance work
- Oil & gas, petrochemical, and energy installations
- Metal fabrication shops and field construction work
- Drilling and threading on curved tube surfaces or flat steel plates

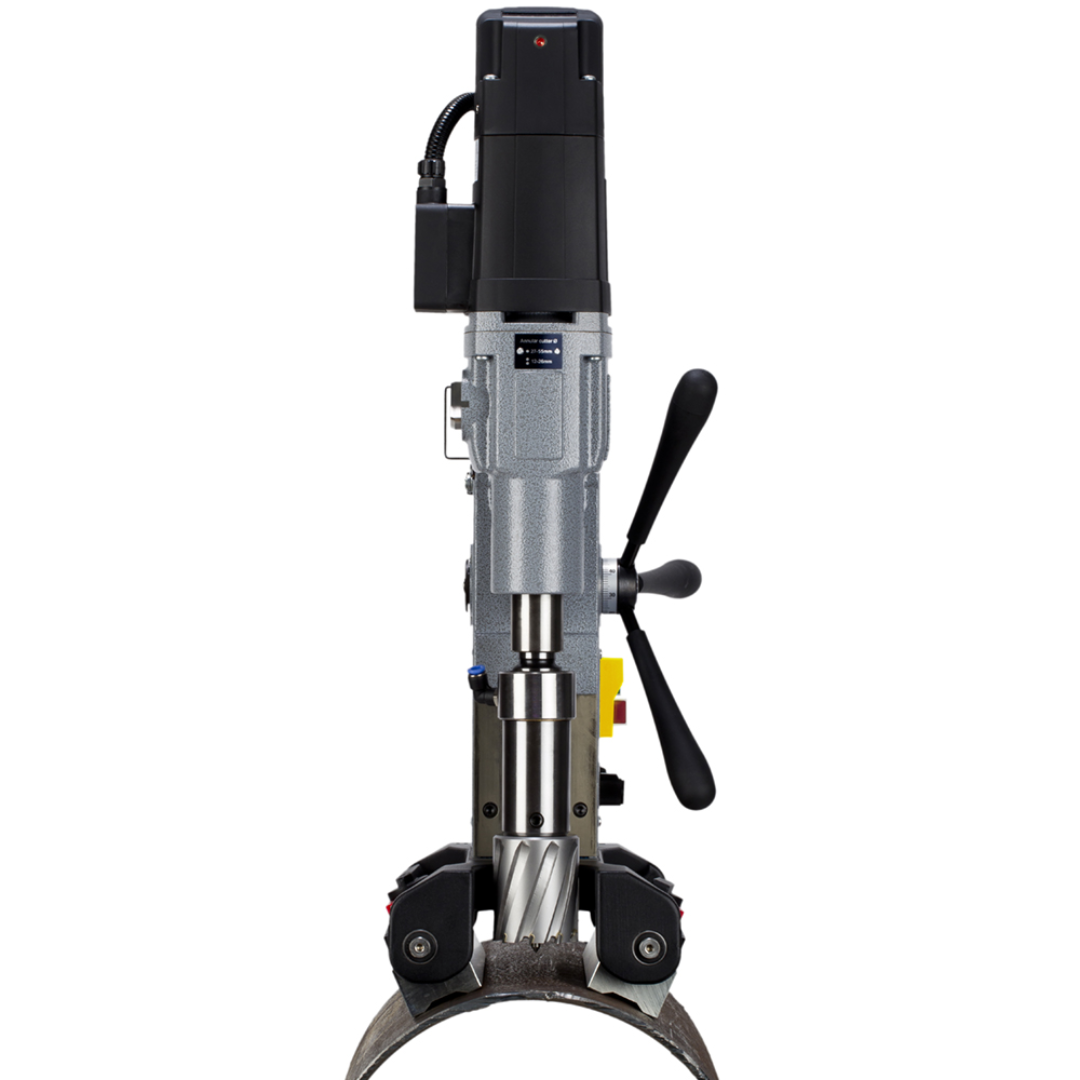

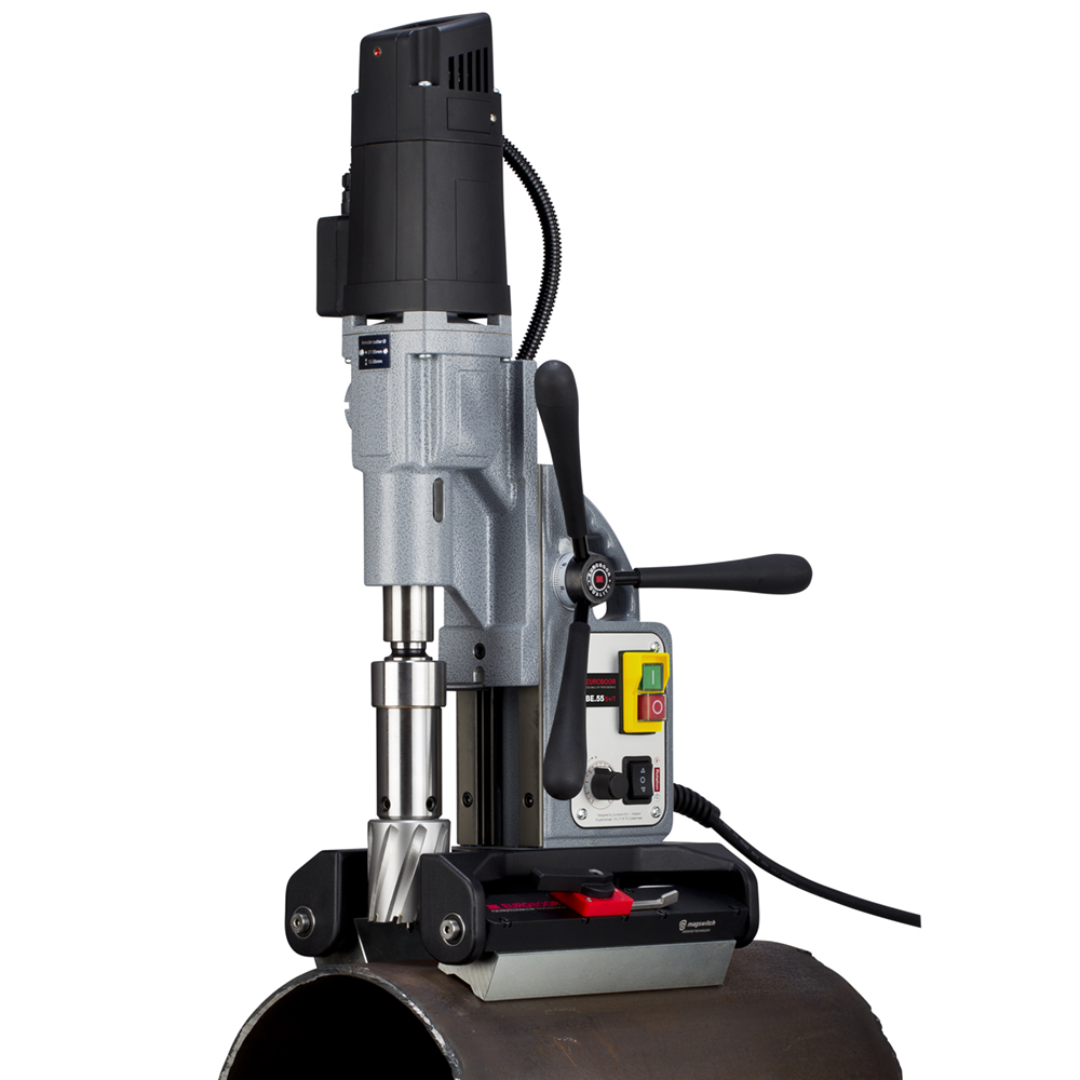

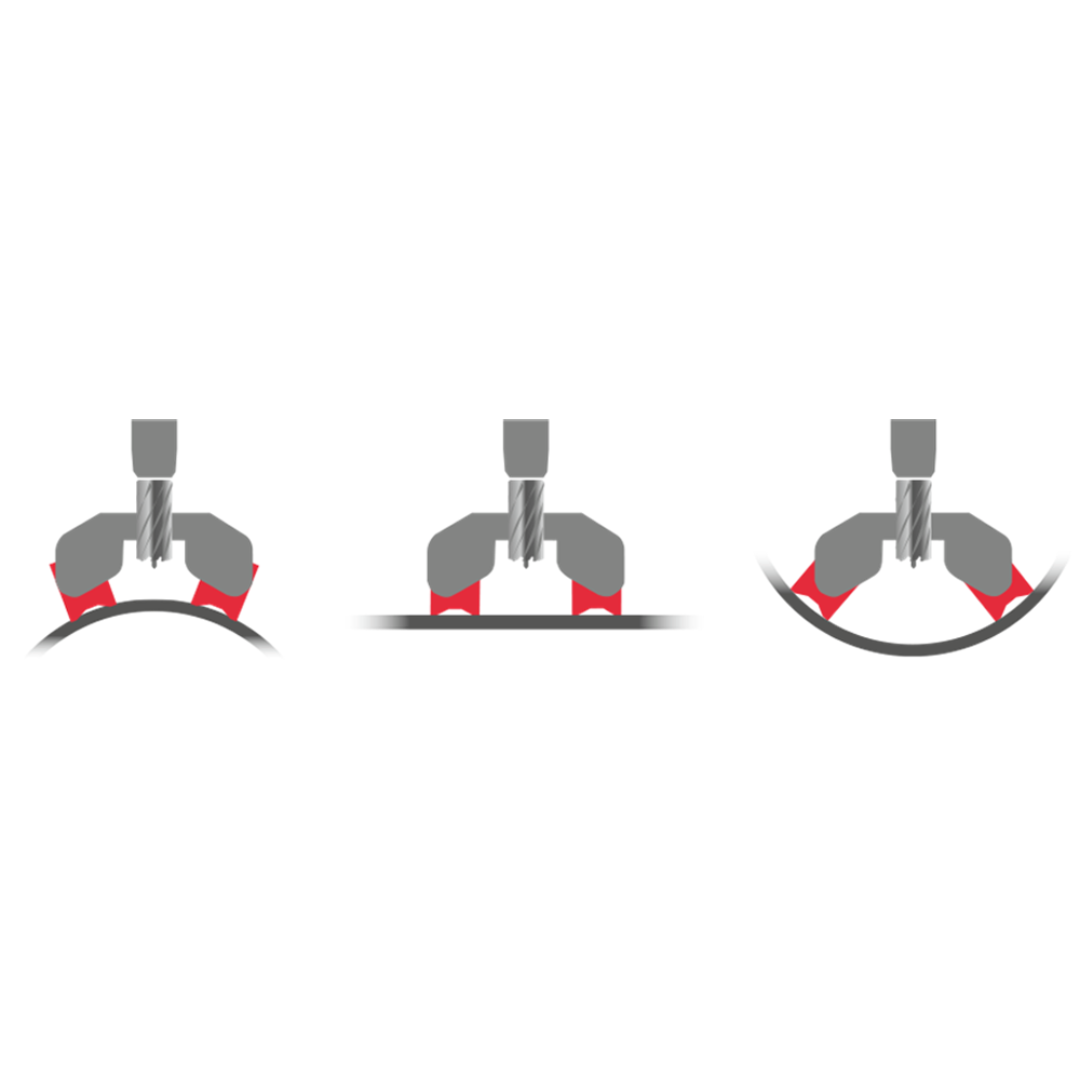

The pivoting magnetic base allows the Euroboor TUBE.55S+/T Magnetic Drilling Machine to securely attach to both flat steel surfaces and round pipes for highly stable drilling and tapping operations.
Euroboor TUBE.55S+/T Magnetic Drilling Machine Specifications
| Model | TUBE.55S+/T |
|---|---|
| Annular Cutter Capacity | Up to 2 3/16" |
| Twist Drill Capacity | Up to 15/16" |
| Tapping Capacity | M3 – M20 |
| Spindle | Morse Taper 3 (MT3) |
| Rotation Direction | Bidirectional (Right / Left) |
| Speed (No Load) | Gear 1: 60 – 275 RPM Gear 2: 100 – 500 RPM |
| Magnetic Force | 1,984 lb |
| Stroke | 6 11/16" |
| Minimum Material Thickness | 1/8" |
| Minimum Pipe Diameter | 3 1/8" |
| Motor Power | 1,600 W |
| Total Power | 1,700 W |
| Power Supply | 110 – 120 Volt / 60 Hz |
| Power Connection | NEMA 5-15 Plug |
| Weight | 35.3 lb |
| Maximum Height | 27 1/4" |

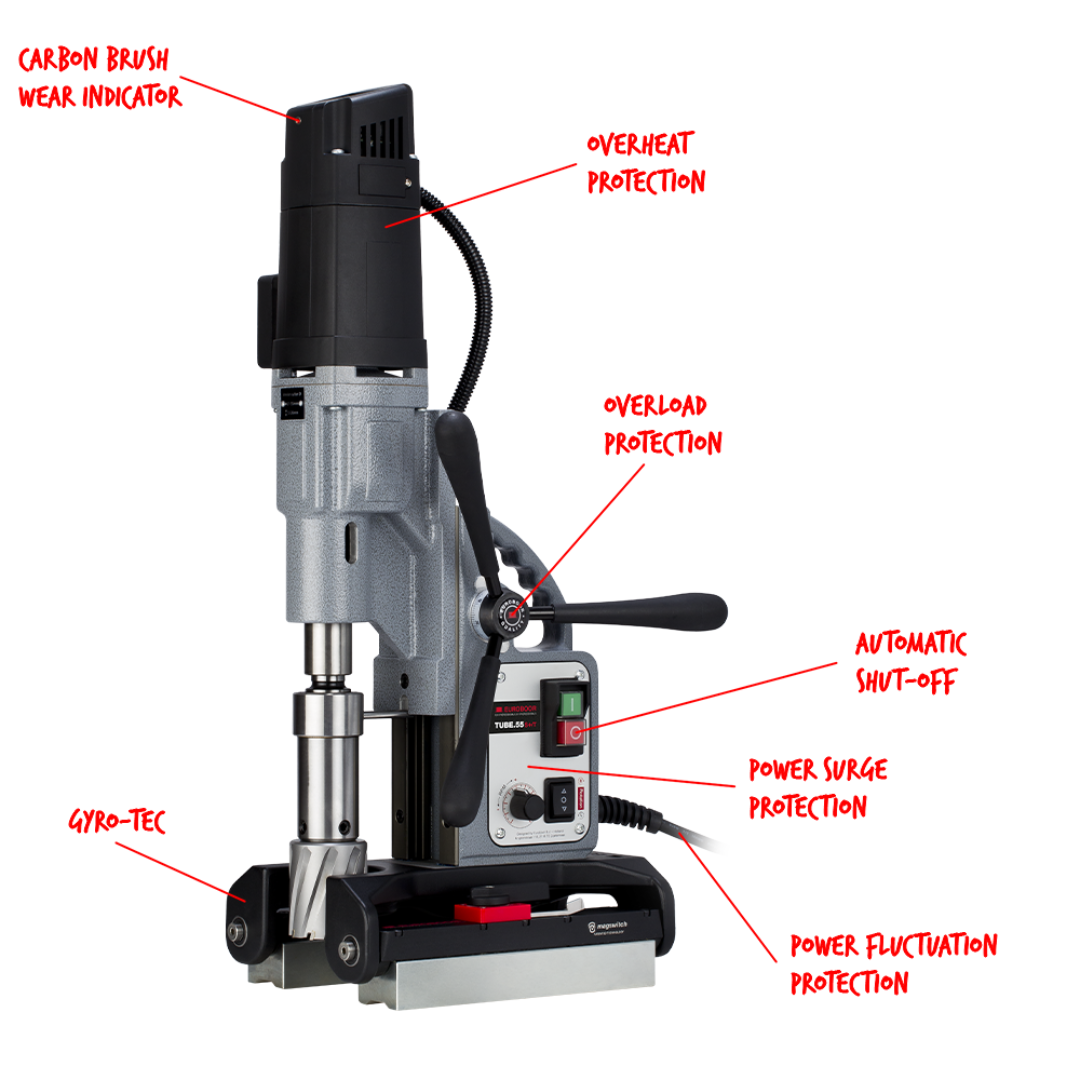

Euroboor TUBE.55S+/T Magnetic Drilling Machine Performance & Construction

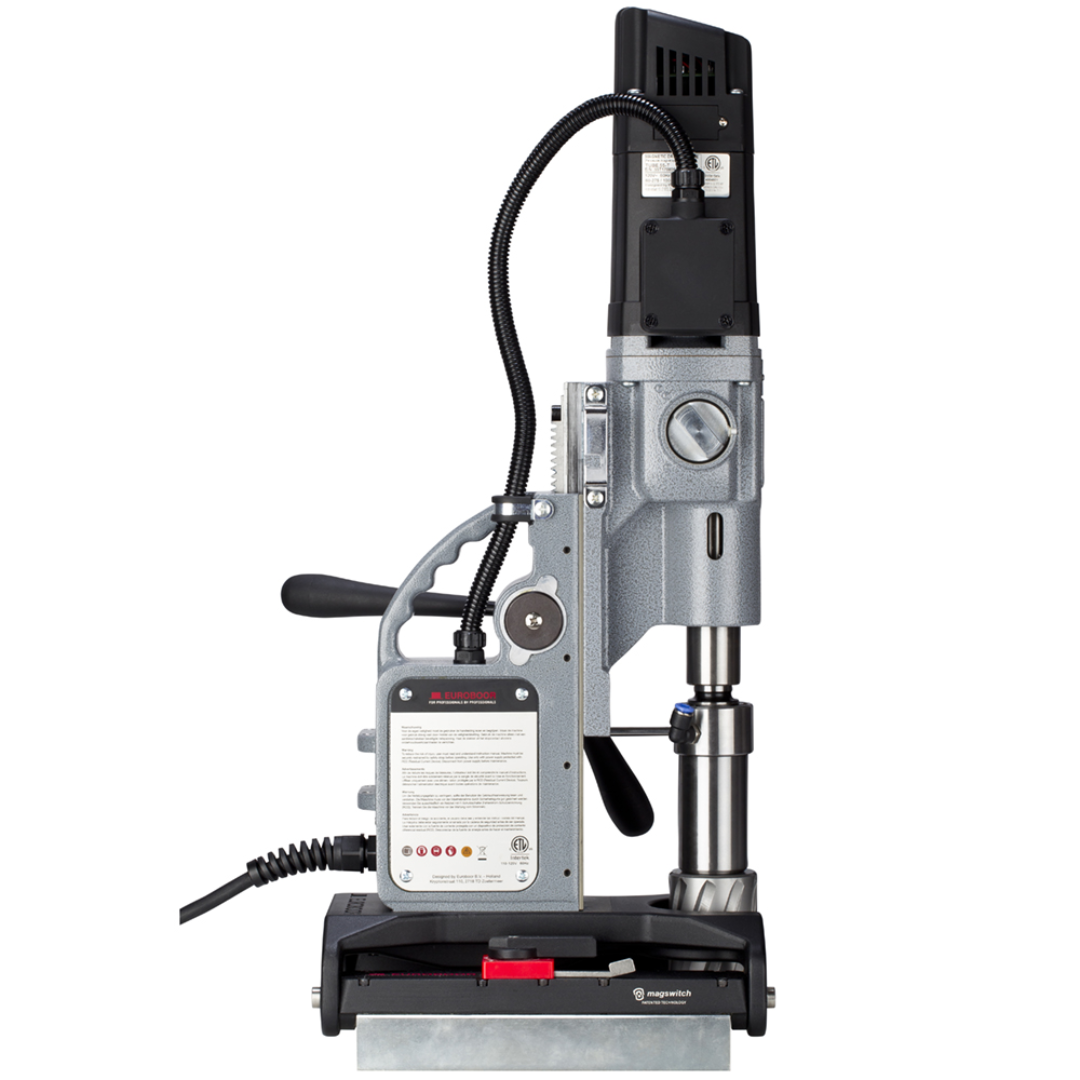

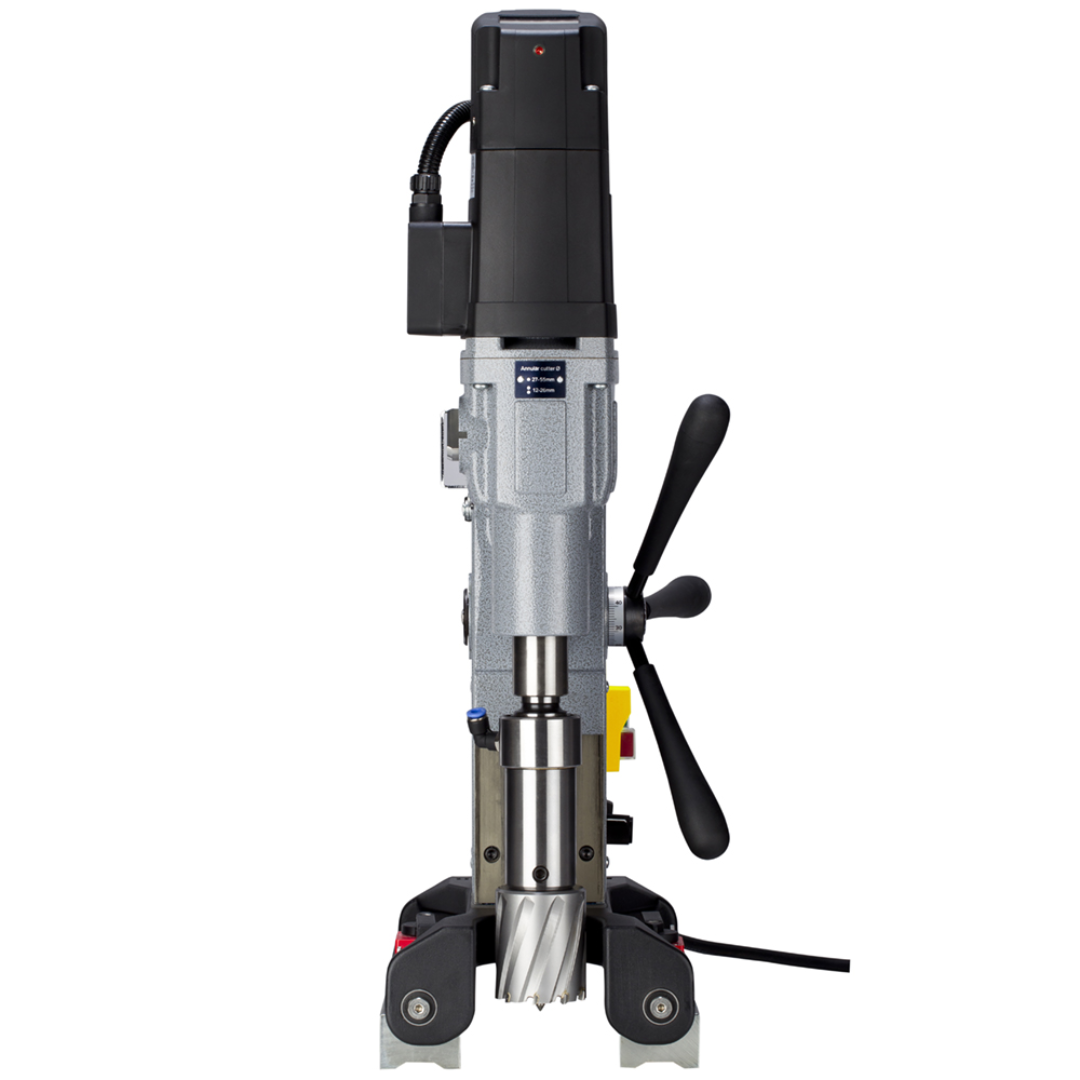

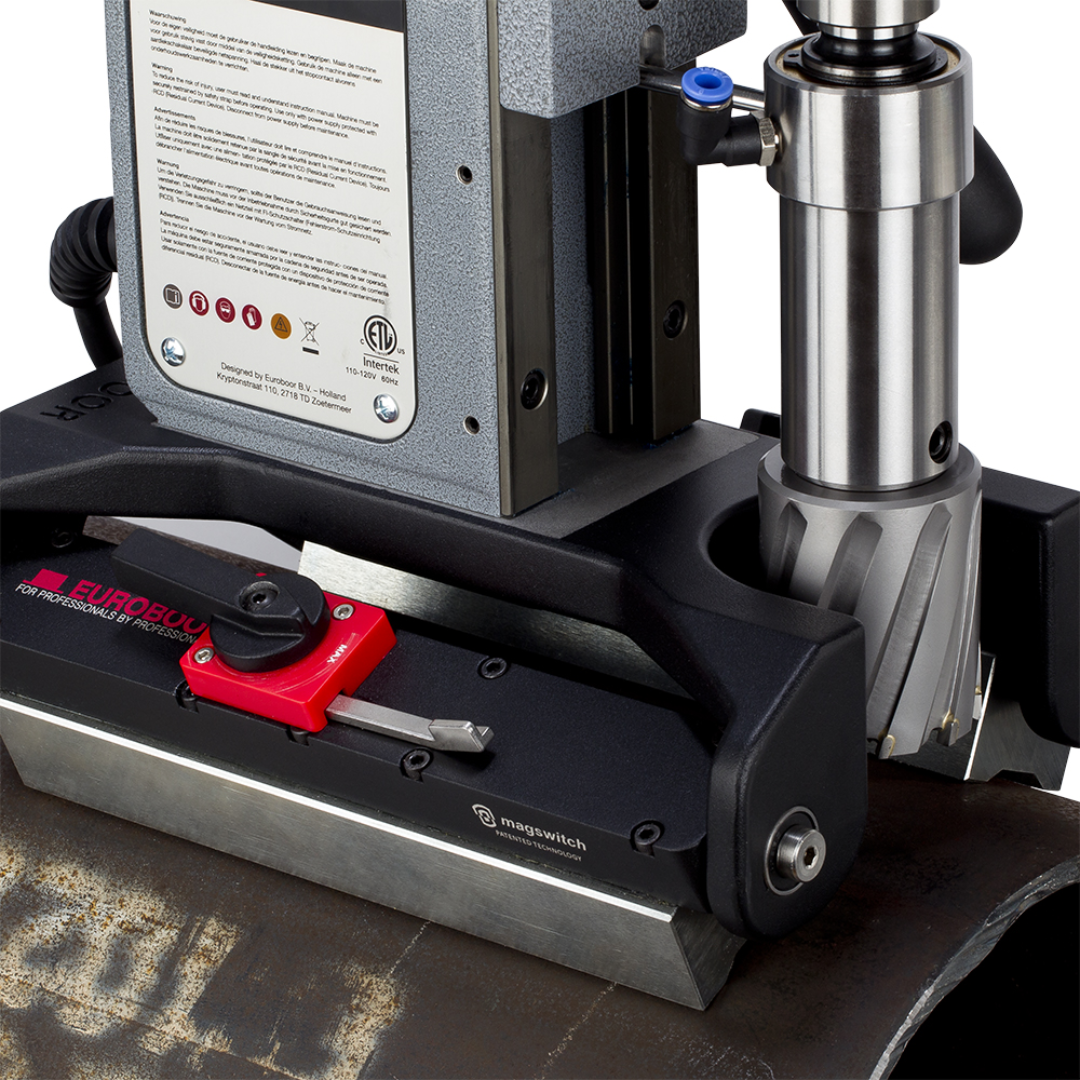

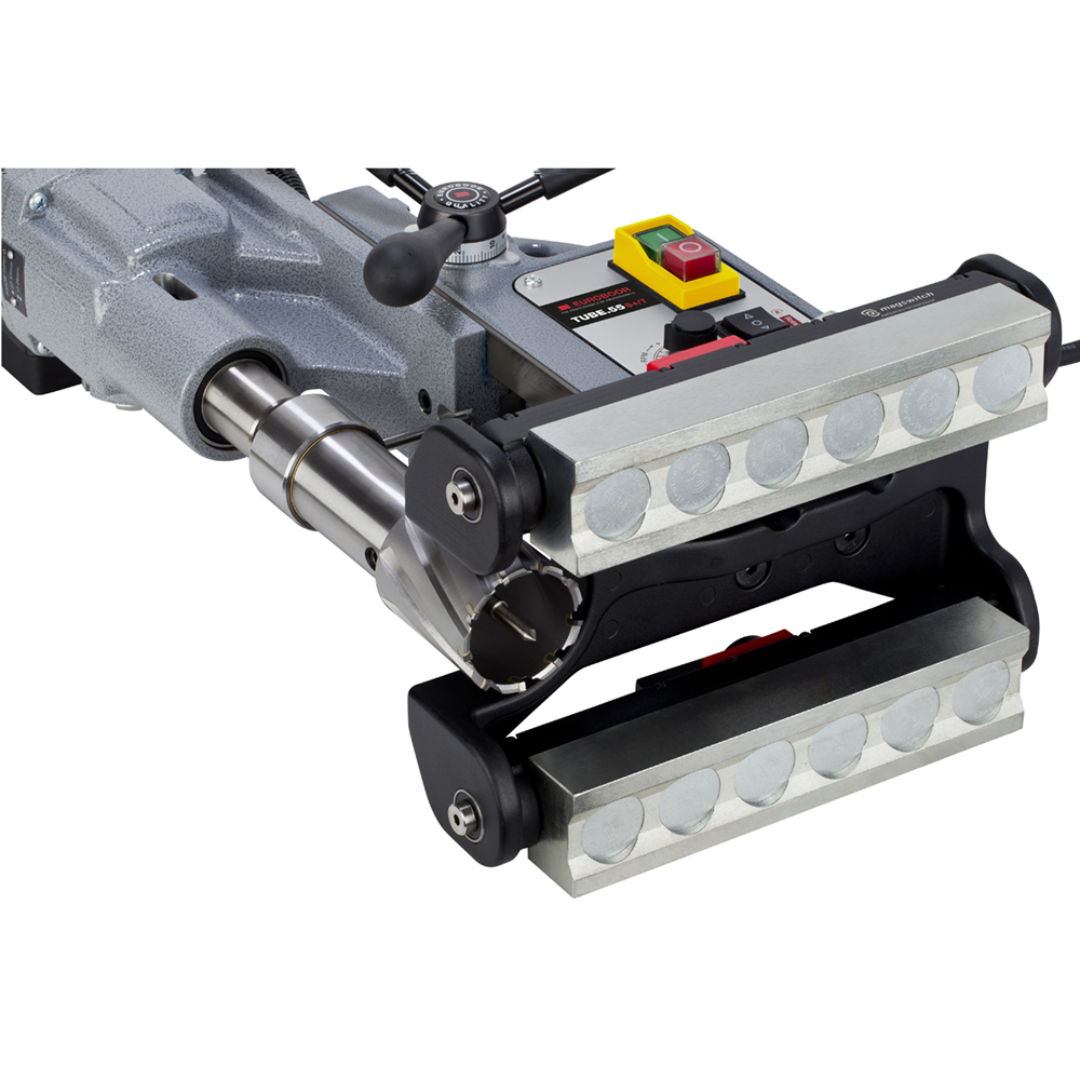

- Pivoting magnet base designed for secure drilling on both round pipe surfaces and flat steel.
- Two-speed oil-lubricated gearbox delivers smooth cutting performance and increased component lifespan.
- Bidirectional rotation enables both drilling and tapping operations.
- Digital display shows optimal working load to help maximize cutting efficiency.
- Smart Restart technology prevents automatic restart after power interruption for improved operator safety.
- GYRO-TEC safety sensor automatically shuts down the machine in case of excessive vibration or sudden displacement.
- Electronic speed adjustment provides precise control for different cutting and threading applications.
- Morse Taper 3 spindle with integrated cooling and lubrication improves tool performance and lifespan.
- LED load indicators help operators maintain ideal cutting pressure.
- High-accuracy capstan hub and precision slide system ensure smooth feeding and minimal vibration.
- Integrated slide design improves drilling accuracy and extends overall machine lifecycle.
- Easily accessible carbon brushes with automatic shut-off during replacement.
- Advanced electronics and protection systems reduce risk of damage to the machine, tooling, and workpiece.
Euroboor TUBE.55S+/T Magnetic Drilling Machine Package Contents
- 1 × Metal carrying case
- 1 × Euroboor TUBE.55S+/T magnetic drilling machine
- 3 × Capstan hub handles
- 1 × Lubrication / cooling system
- 1 × MT3 spindle holder 19.05 mm (3/4") with cooling ring
- 1 × Drift key
- 4 × Tap holders (M10, M12, M14, M16)
- 4 × Allen keys (2.5 mm, 3 mm, 4 mm, 5 mm)

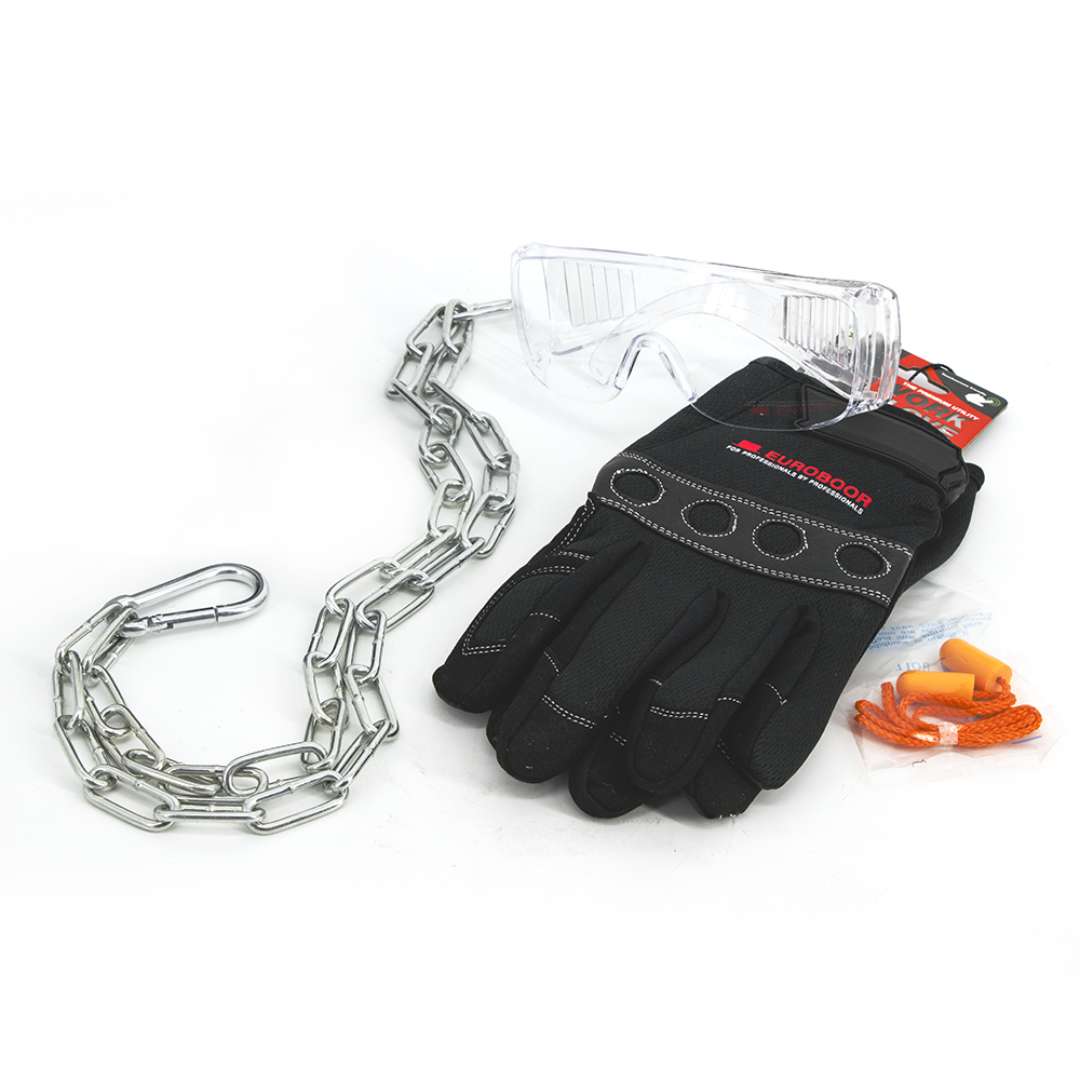

- 1 × Safety chain
- 1 × Ear protection
- 1 × Safety goggles
- 1 × Safety gloves
- 1 × User manual
Why Choose the Euroboor TUBE.55S+/T Magnetic Drilling Machine
- Designed specifically for drilling and tapping on pipes and tubes.
- Pivoting magnet allows secure mounting on curved surfaces.
- Drills holes up to 2 3/16 inches with professional precision.
- Digital load display and Smart Restart improve operational safety.
- GYRO-TEC safety system protects both the operator and the machine.
- Heavy-duty gearbox and industrial electronics ensure long service life.
The Euroboor TUBE.55S+/T Magnetic Drilling Machine is an advanced pipe drilling solution engineered for professionals who require powerful drilling performance, safe tapping capability, and reliable operation on curved steel surfaces.
