Applications
- Pipe and tube mounted drilling (Ø 3" and larger)
- Flat steel surface drilling
- Annular cutting up to 1 7/8"
- Countersinking up to 1 3/8"
- Steel fabrication and maintenance work
Ideal for contractors and fabricators who require secure magnetic drilling on curved or thin materials.
Technical Specifications
| Annular Cutter Capacity | 1/2" – 1 7/8" |
|---|---|
| Twist Drill Capacity | 1/16" – 1/2" |
| Countersinking | 3/8" – 1 3/8" |
| Rotation Direction | Clockwise |
| Stroke | 3 9/16" |
| Magnetic Force | 1,175 lbs |
| Minimum Material Thickness | 1/8" |
| Minimum Pipe Diameter | 3" |
| No-Load Speed | 775 RPM |
| Load Speed | 400 RPM |
| Motor Power | 8.2 Amp |
| Total Power | 8.6 Amp |
| Voltage | 110 – 120V |
| Frequency | 60 Hz |
| Plug Type | NEMA 5-15 |
| Weight | 22.7 lbs |
Performance & Safety Features

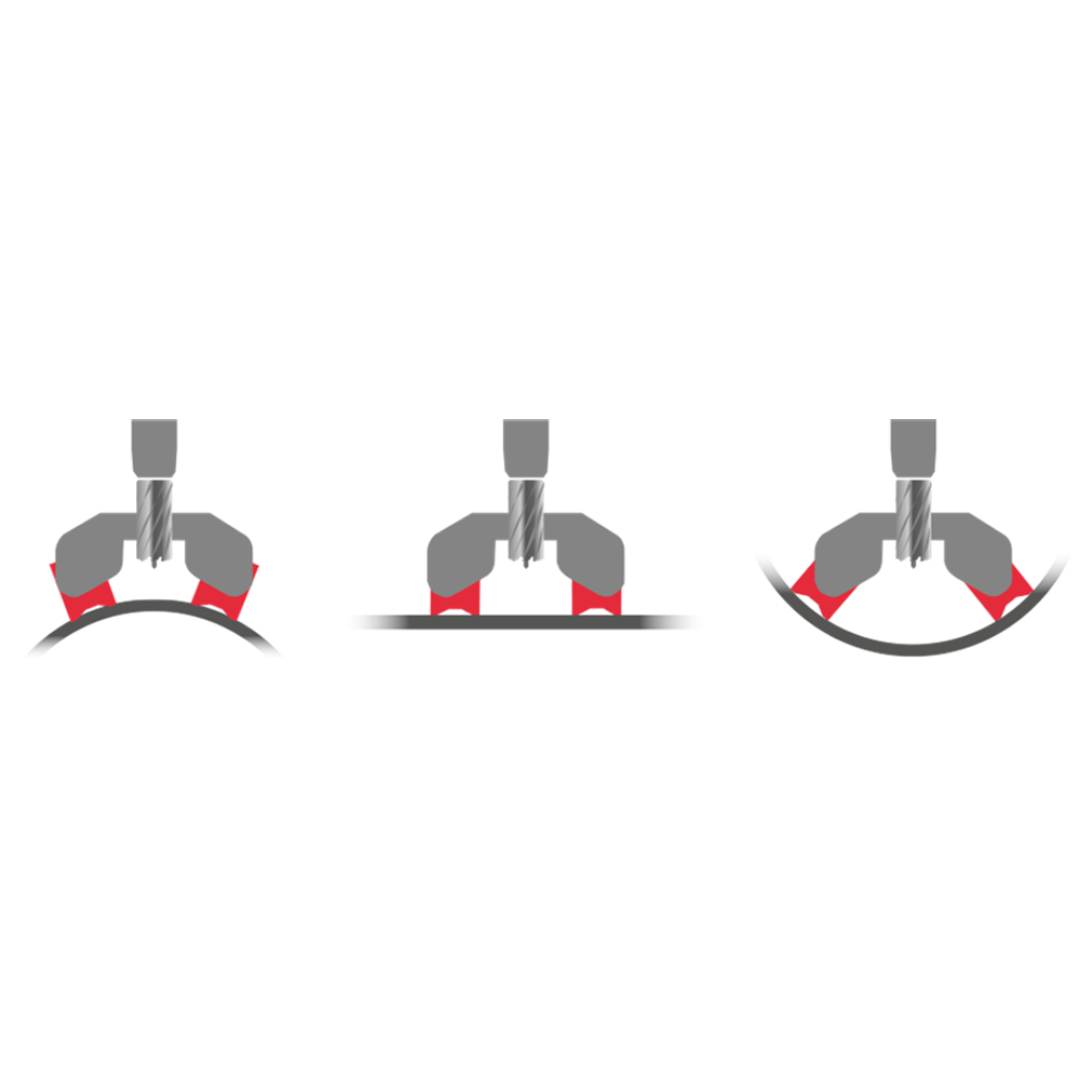

- Patented shallow-field permanent magnet automatically pivots to fit pipes Ø 3" and larger.
- No electricity required for magnet — all power goes to the motor and prevents release during power loss.
- Oil-lubricated gearbox for smooth operation and extended lifespan.
- GYRO-TEC sensor automatically shuts off the machine during excessive vibration or sudden displacement.
- Power surge & fluctuation protection to protect internal electronics.
- Carbon brush wear indicator for timely maintenance.
- Automatic shut-off for enhanced operator safety.
- Suitable for thin steel (1/8") with strong 1,175 lb magnetic force.
Enhanced safety electronics reduce the risk of machine damage, tool breakage, and operator injury while lowering long-term maintenance costs.
Package Contents
- 1× Metal carrying case

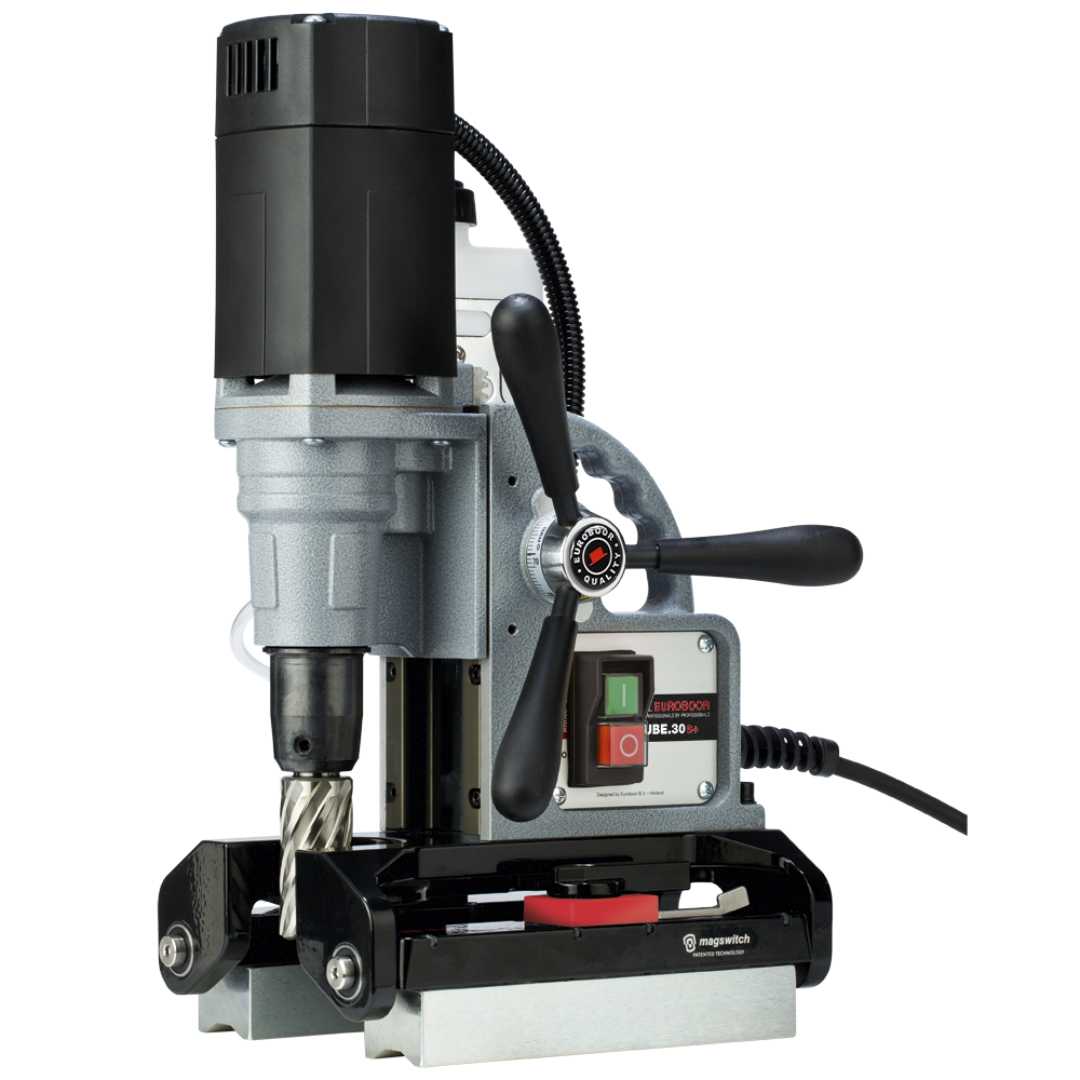

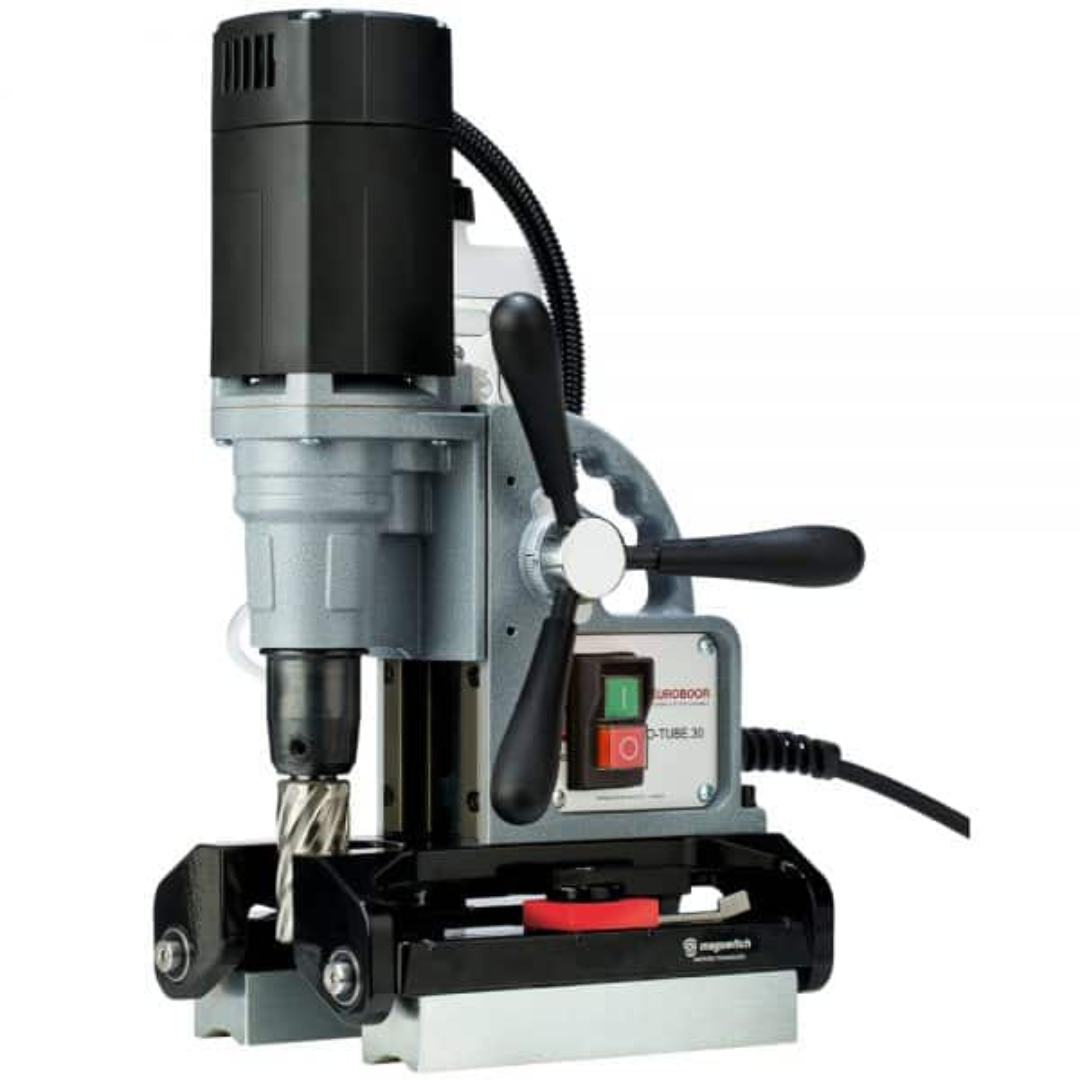

- 1× Euroboor TUBE.30S+ Magnetic Drilling Machine
- 1× Pilot Pin IBC.K25
- 1× Weldon Extension IBK.50
- 3× Capstan Hub handles
- 1× Lubrication / cooling system
- 4× Allen keys (2.5 mm, 3 mm, 4 mm, 5 mm)

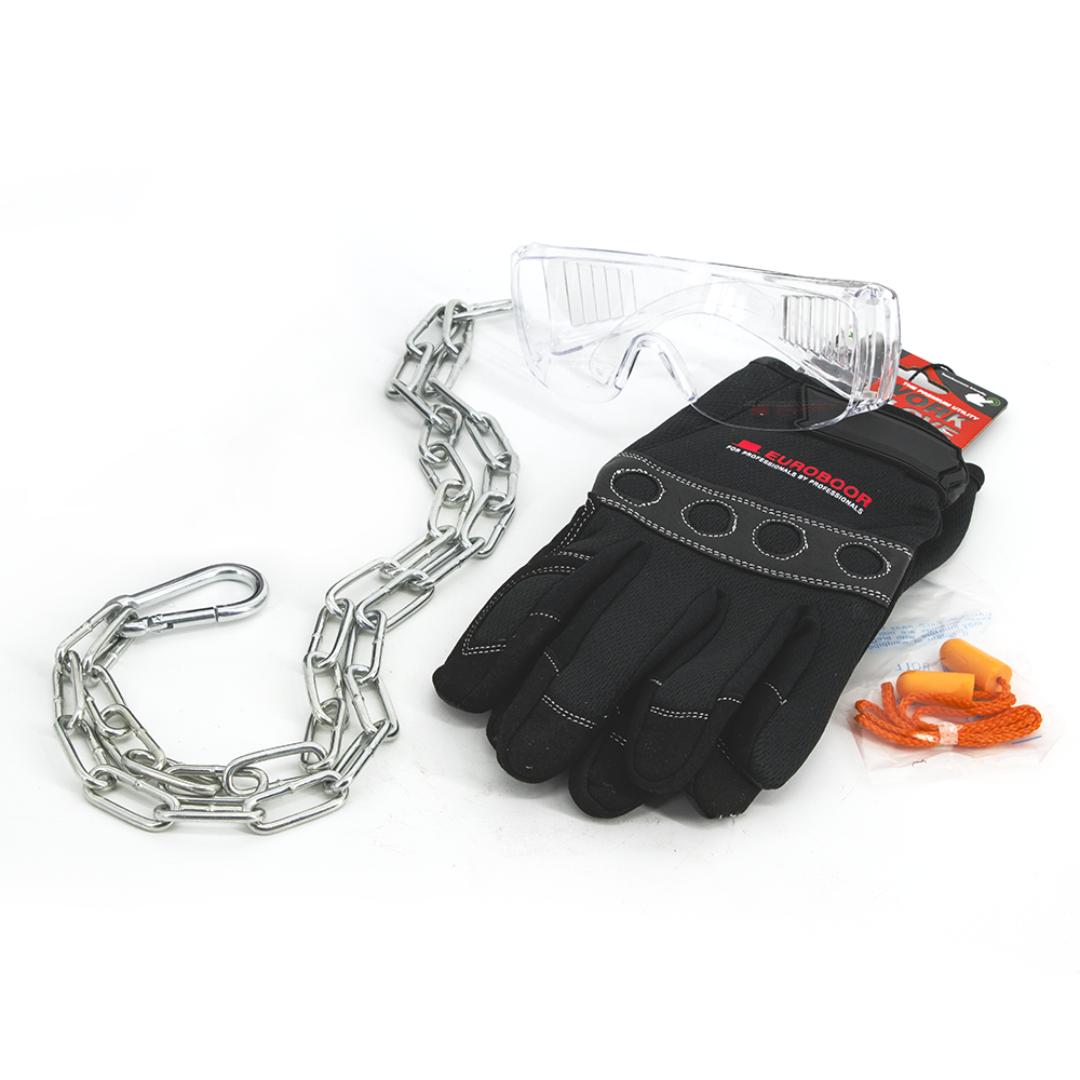

- 1× Safety chain
- 1× Ear protection
- 1× Safety goggles
- 1× Safety gloves
- 1× User manual
Why Choose the Euroboor TUBE.30S+
- Drills both flat and curved pipe surfaces.
- Permanent magnet design improves safety during power loss.
- Strong grip on thin materials (1/8").
- Industrial-grade electronics for longer machine life.
- Compact, portable, and jobsite ready.
The Euroboor TUBE.30S+ delivers powerful, safe, and reliable magnetic drilling performance for pipe and structural steel professionals.
